Cigarette Lighter

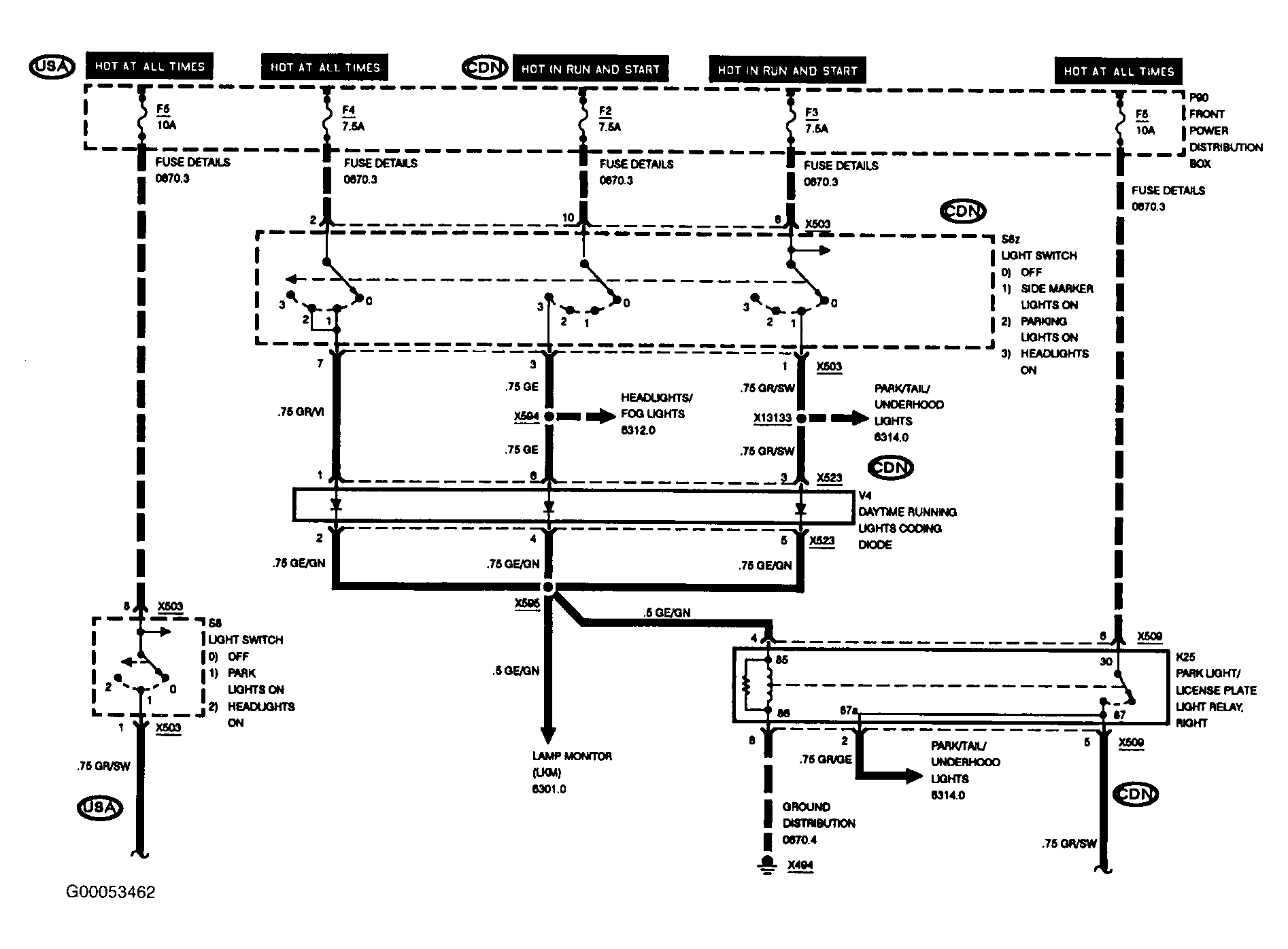

Fig 1: Cigarette Lighter (1 Of 2)

G00053462

Courtesy of BMW OF NORTH AMERICA, INC.

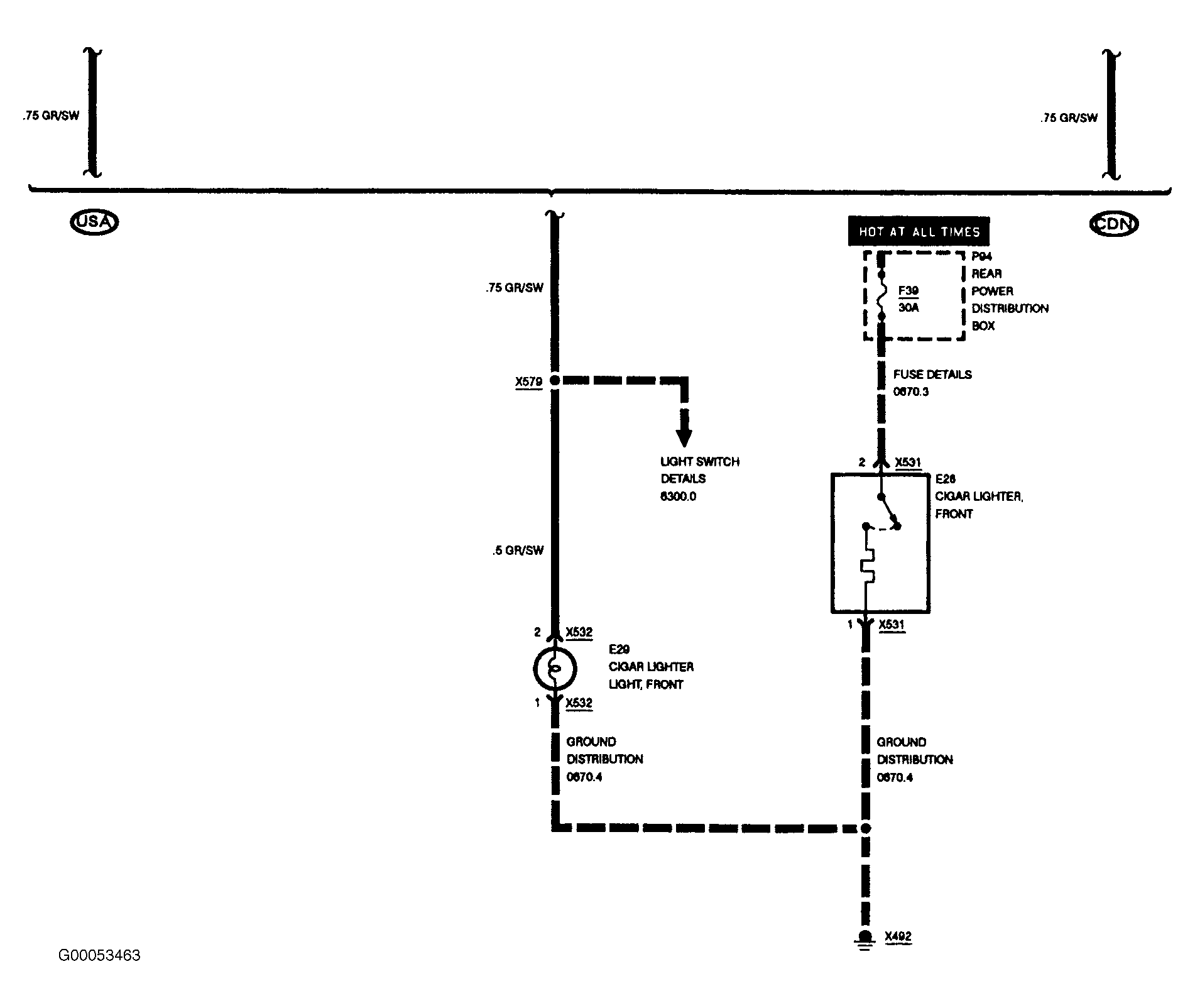

Fig 2: Cigarette Lighter (2 Of 2)

G00053463

Courtesy of BMW OF NORTH AMERICA, INC.
