Wiring Diagrams

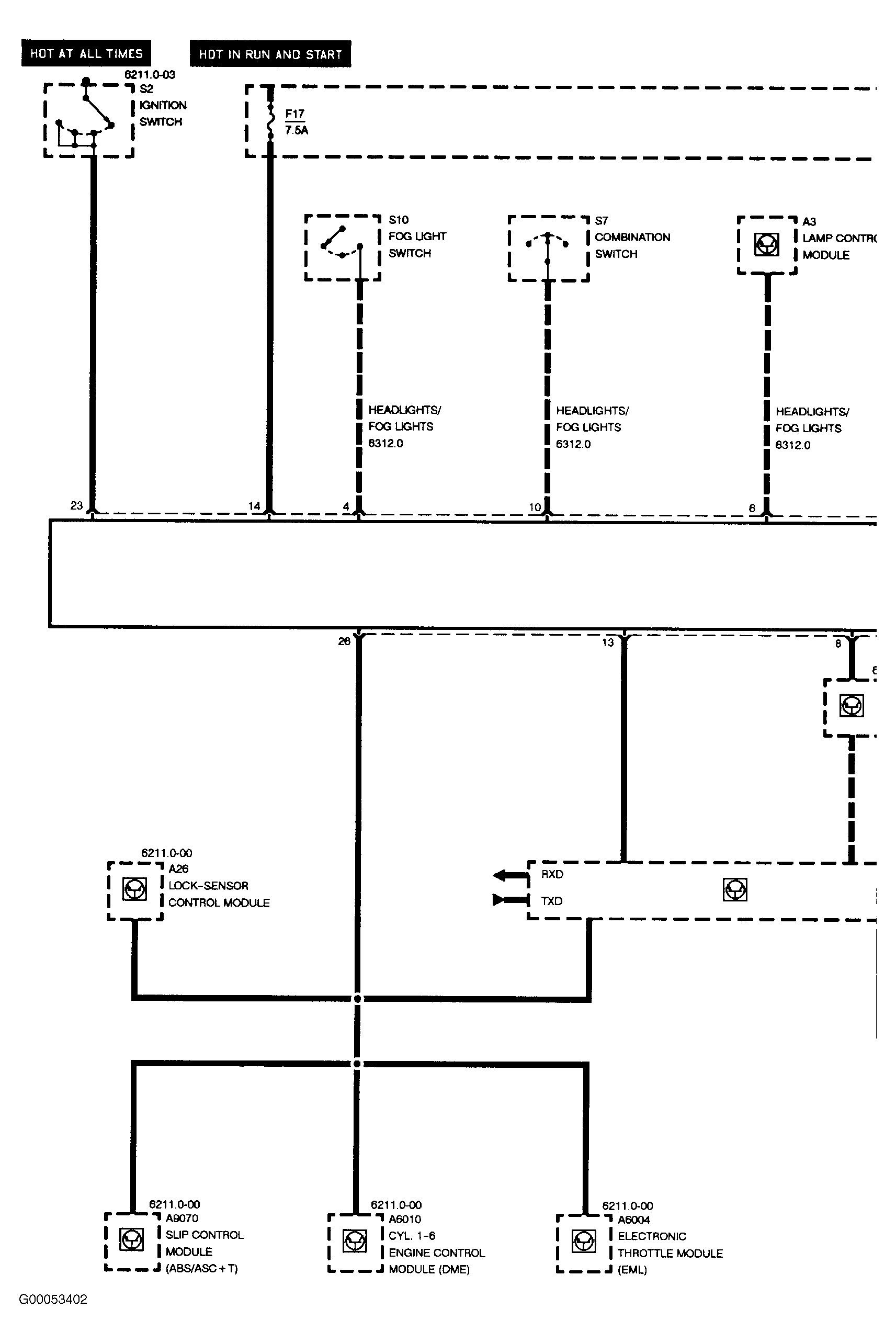

Fig 1: Instrument Cluster (1 Of 3)
G00053402Courtesy of BMW OF NORTH AMERICA, INC.

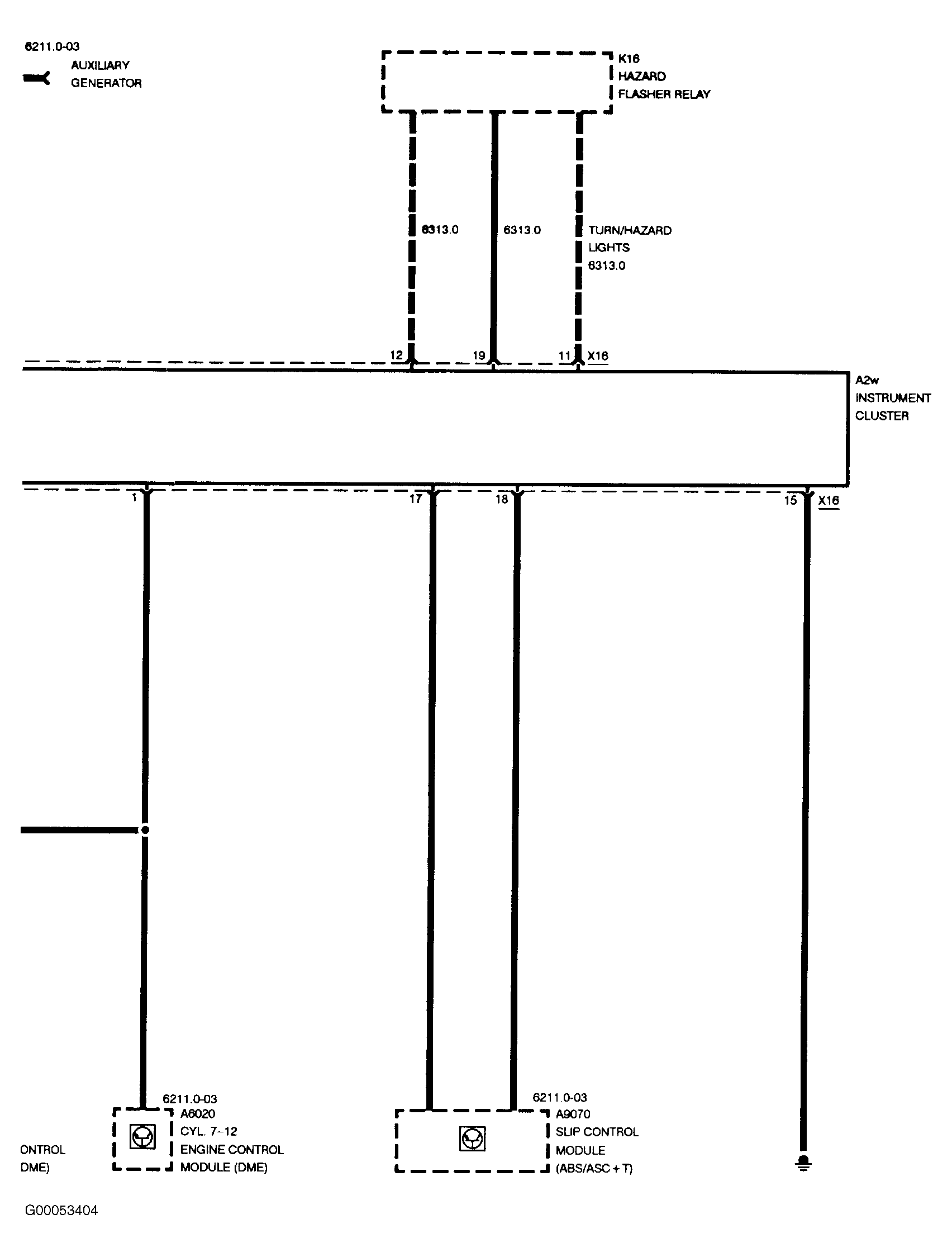

Fig 2: Instrument Cluster (2 Of 3)
G00053403Courtesy of BMW OF NORTH AMERICA, INC.
Fig 3: Instrument Cluster (3 Of 3)
G00053404Courtesy of BMW OF NORTH AMERICA, INC.
