Pin Assignments

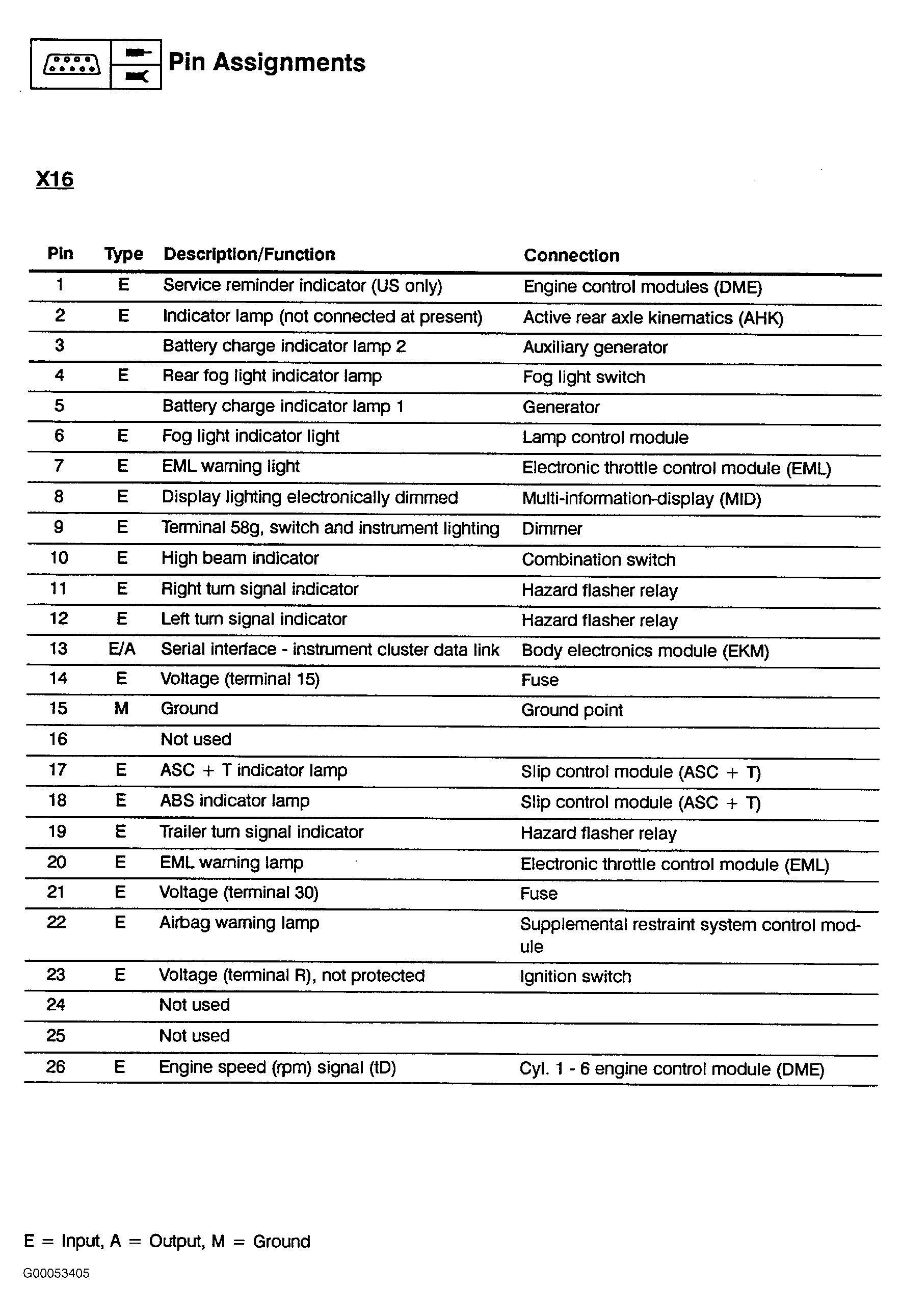

Fig 1: Instrument Cluster Pin Assignments

G00053405

Courtesy of BMW OF NORTH AMERICA, INC.
