Instrumentation Cluster: Indicators

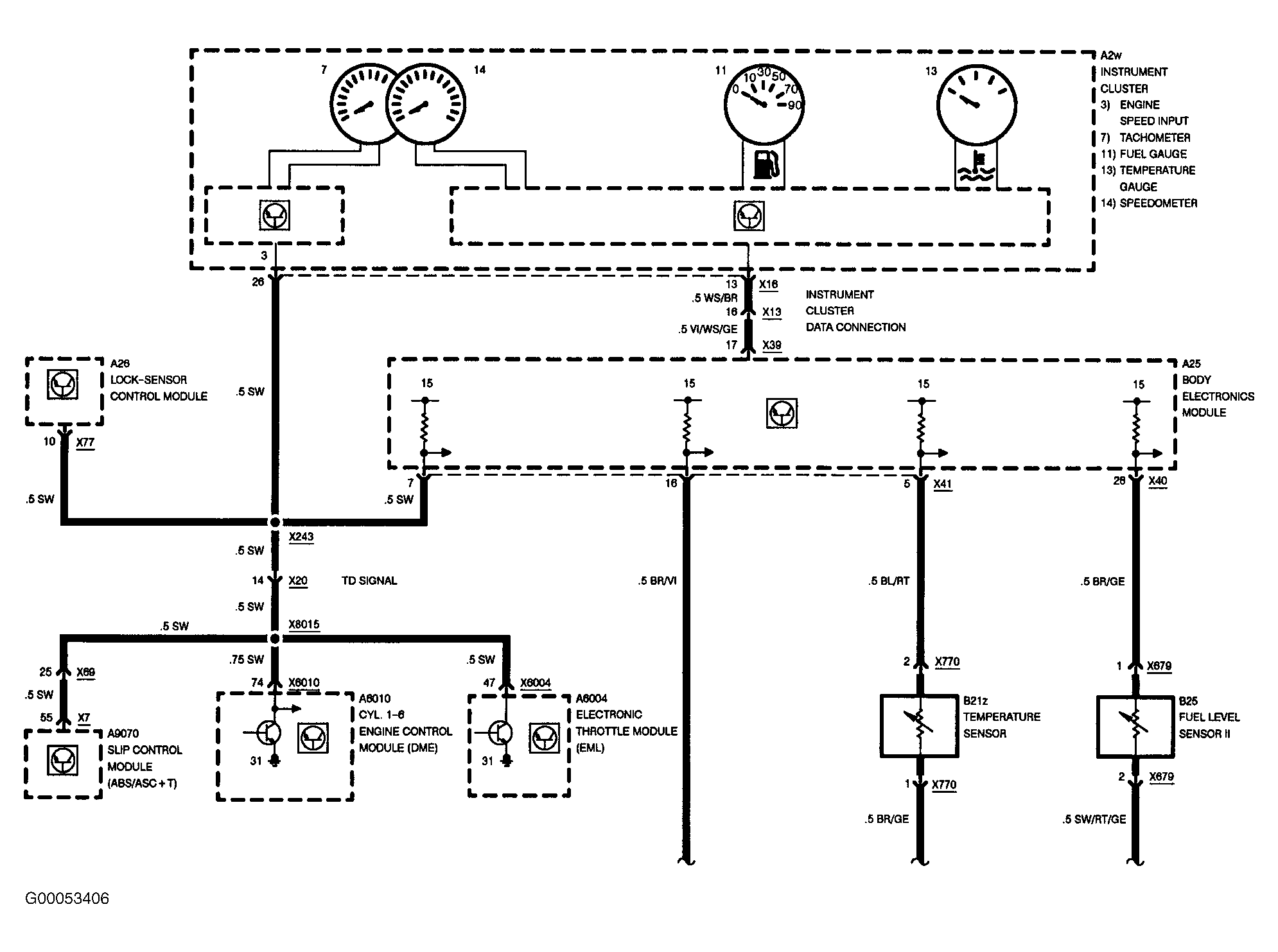

Fig 1: Indicators (1 Of 5)
G00053406Courtesy of BMW OF NORTH AMERICA, INC.

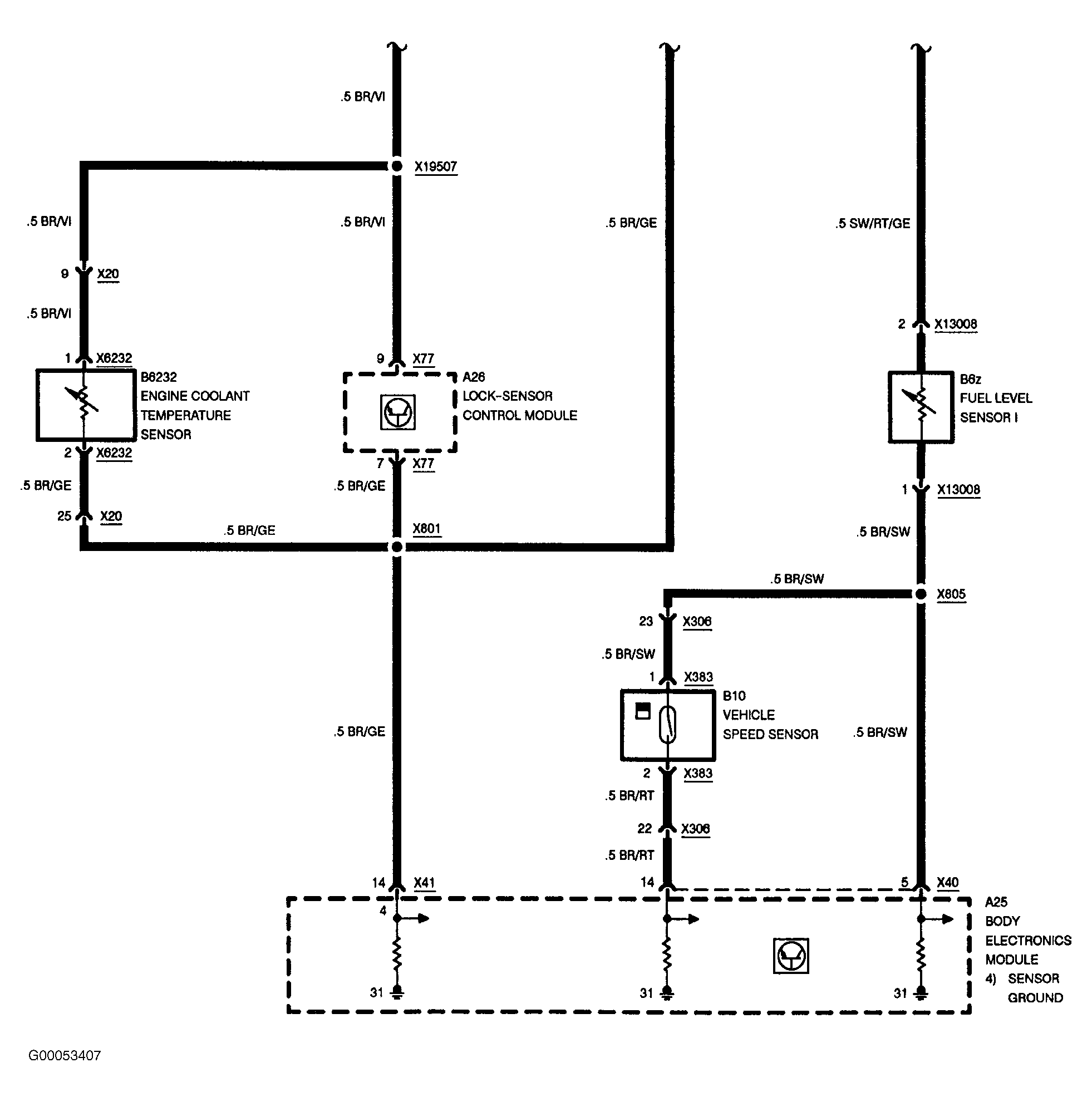

Fig 2: Indicators (2 Of 5)
G00053407Courtesy of BMW OF NORTH AMERICA, INC.

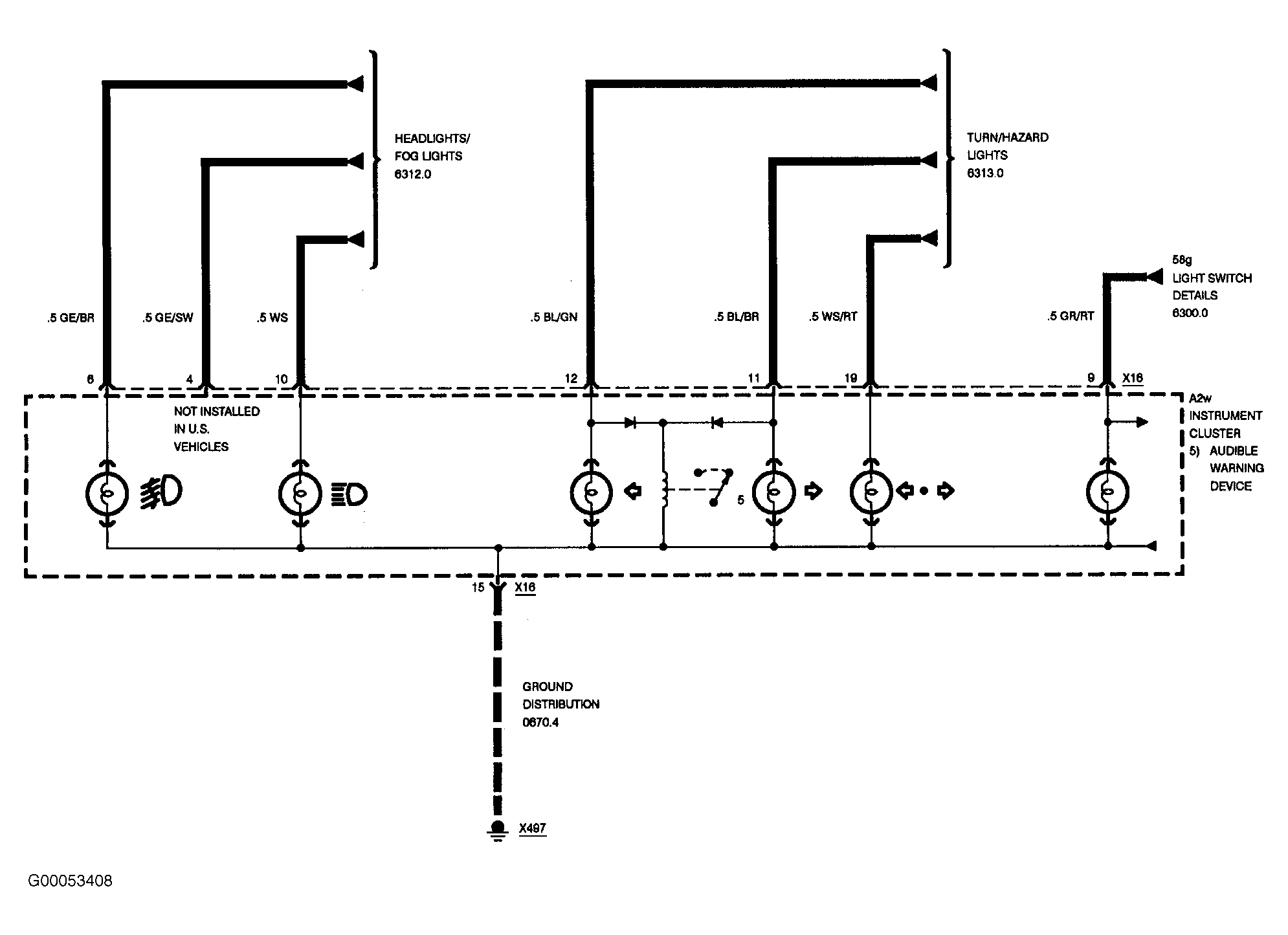

Fig 3: Indicators (3 Of 5)
G00053408Courtesy of BMW OF NORTH AMERICA, INC.

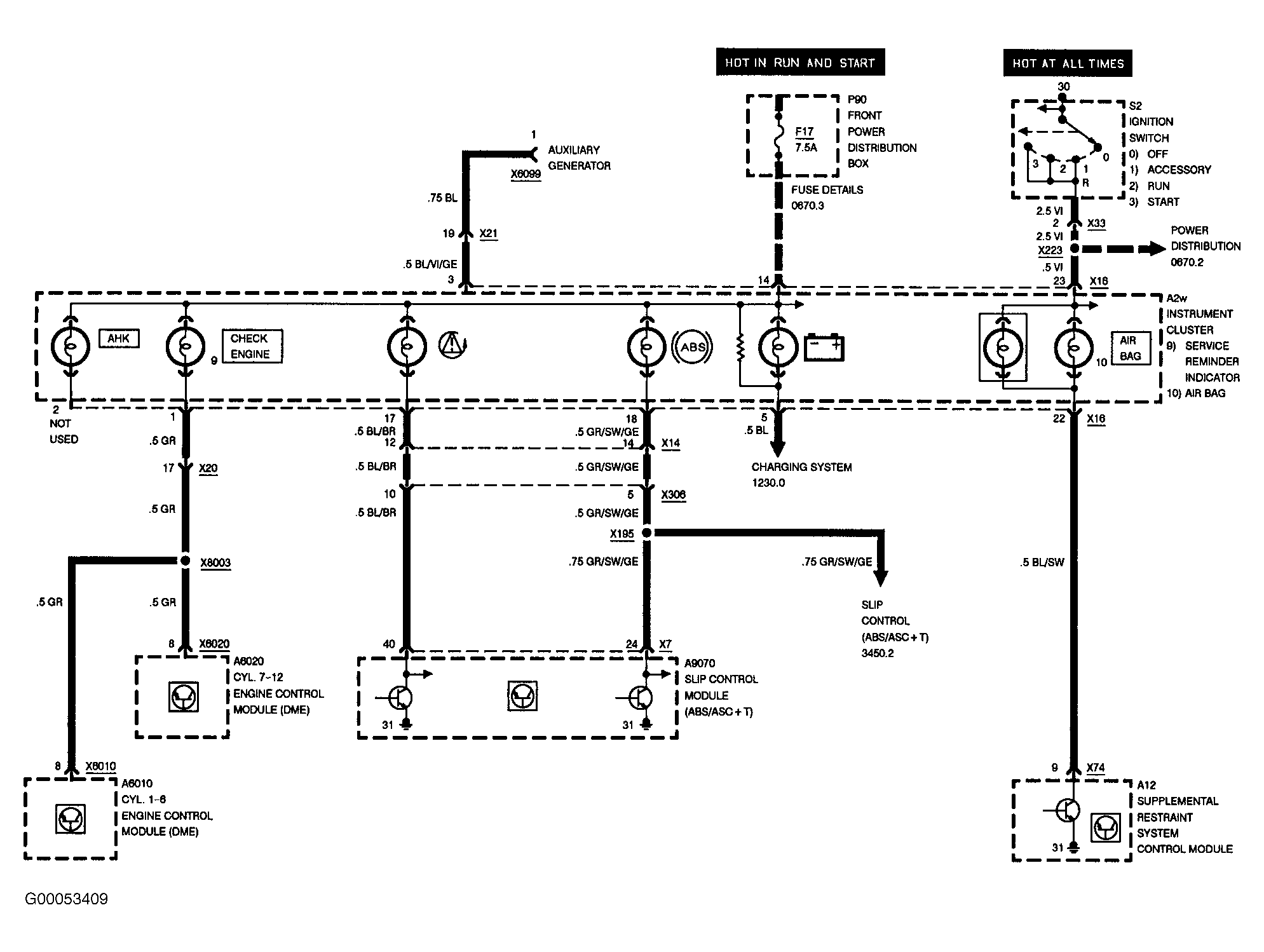

Fig 4: Indicators (4 Of 5)
G00053409Courtesy of BMW OF NORTH AMERICA, INC.

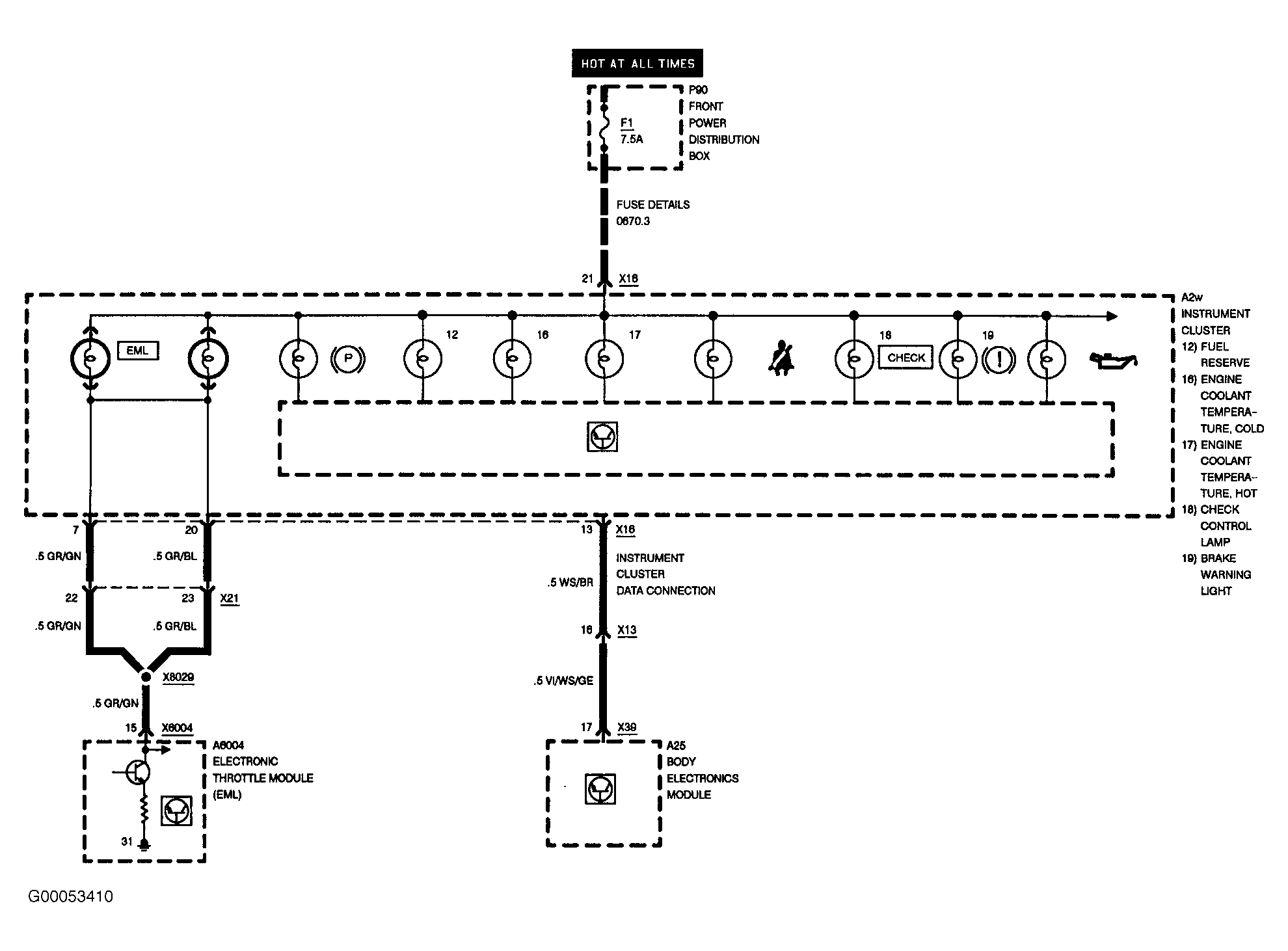

Fig 5: Indicators (5 Of 5)
G00053410Courtesy of BMW OF NORTH AMERICA, INC.
