Wiring Diagrams - BMW 850 1991-92
>>
Instrumentation Cluster
>>
Gear Selector
Gear Selector

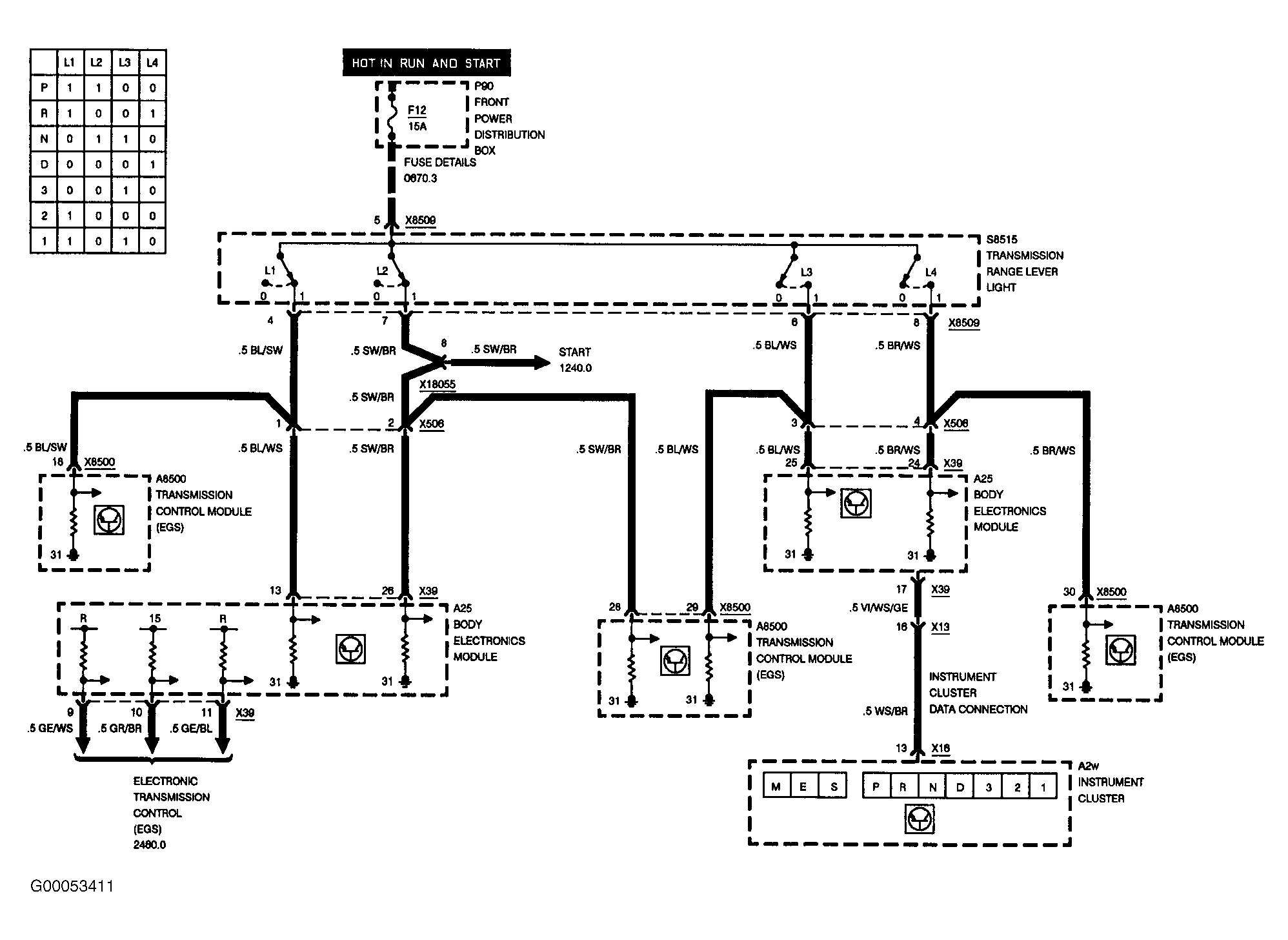

Fig 1: Gear Selector (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Gear Selector (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
