Wiring Diagrams - BMW 850 1991-92: Horn

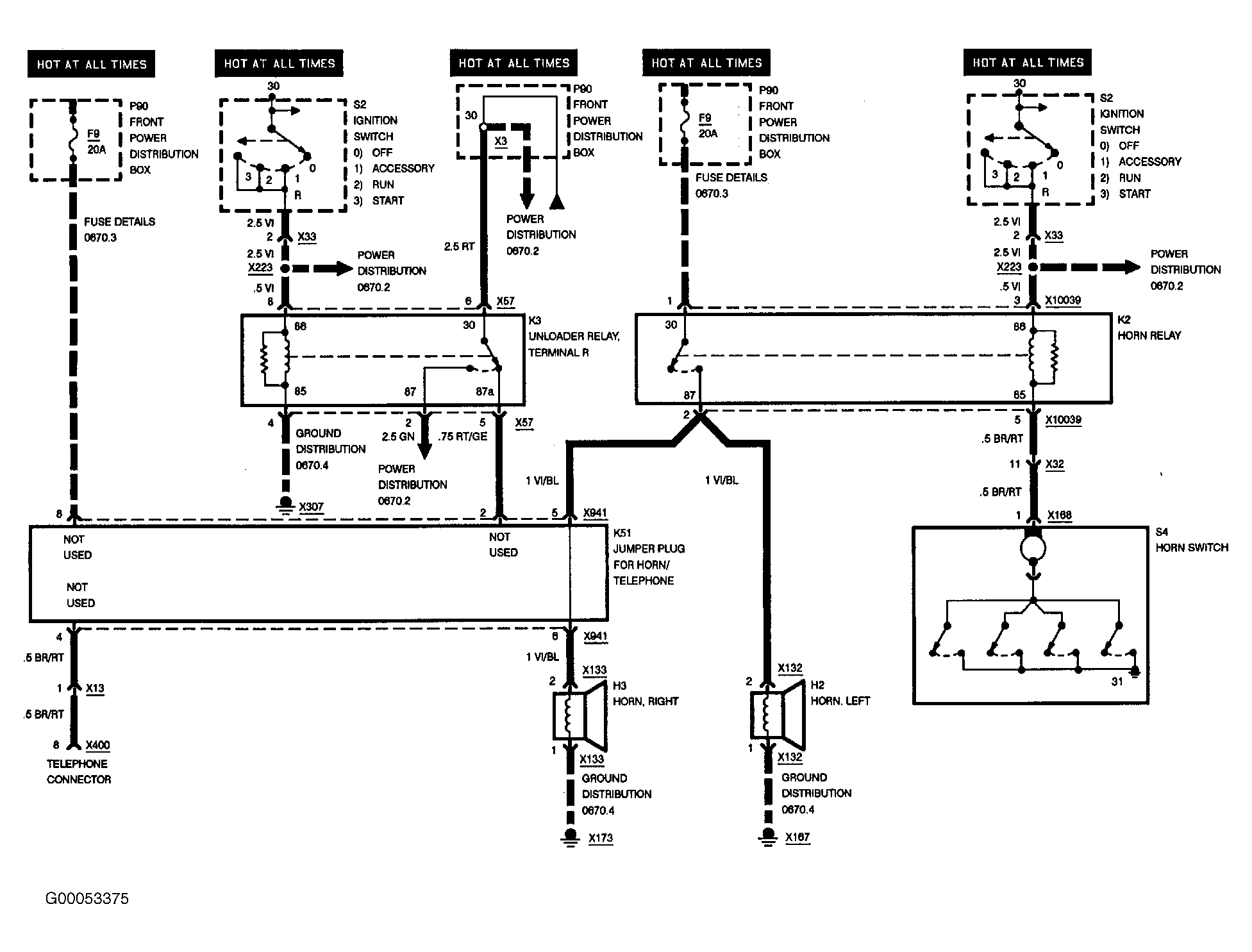

Fig 1: Horn

G00053375

Courtesy of BMW OF NORTH AMERICA, INC.
