Ground X6452
Ground X6452

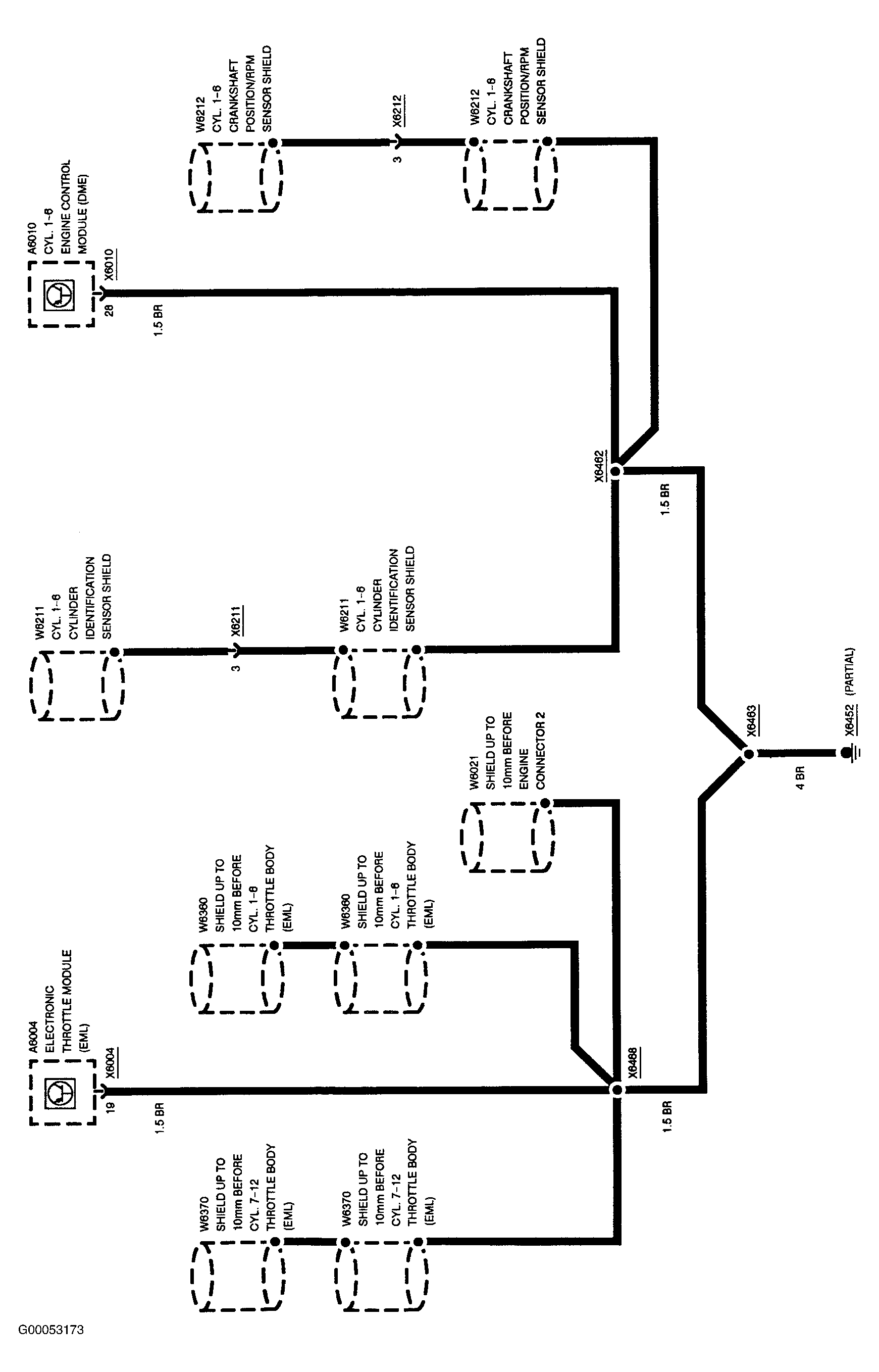

Fig 1: Ground X6452 (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

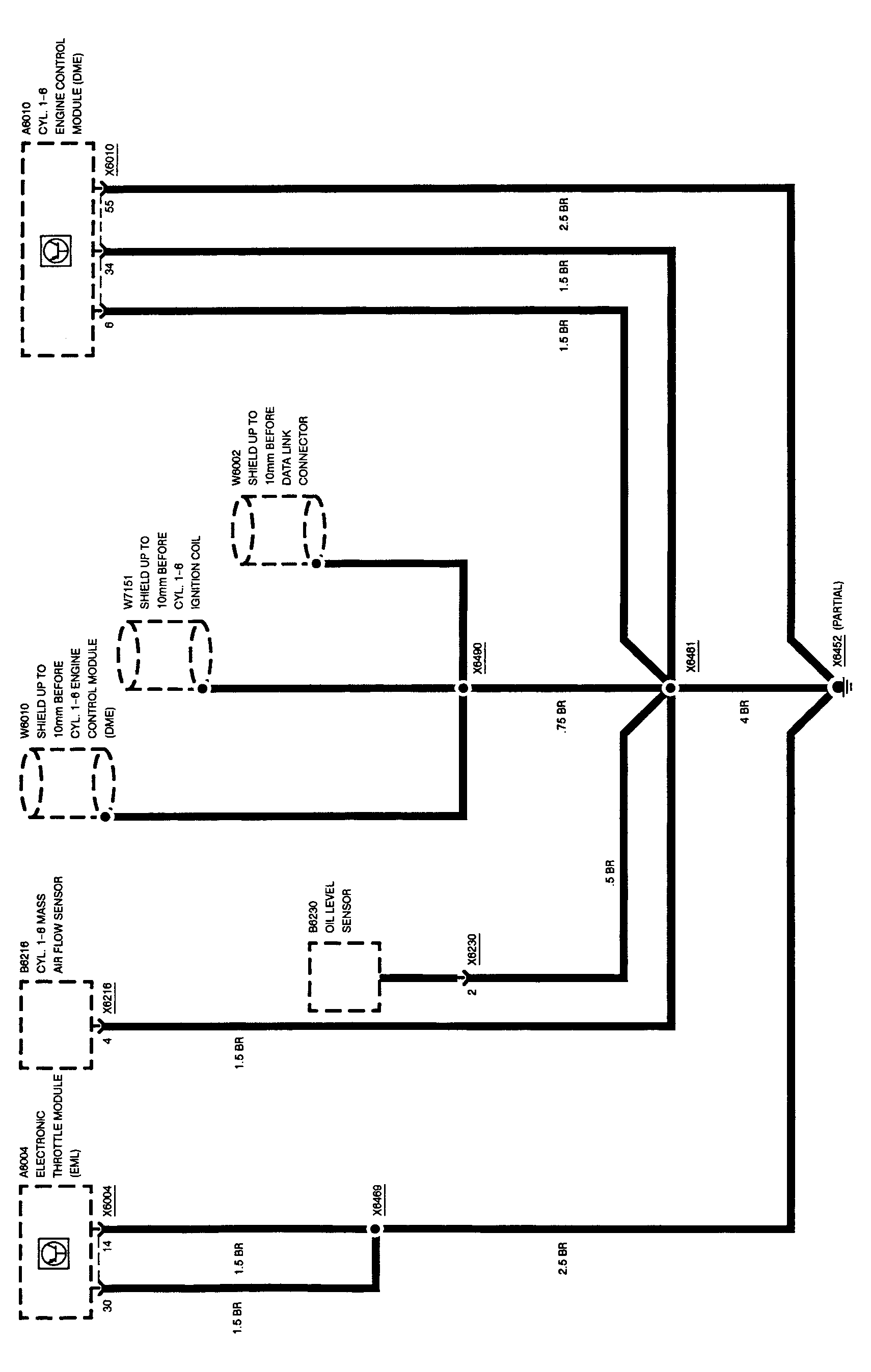

Fig 2: Ground X6452 (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
