Ground X497

Fig 1: Ground X497 (1 Of 3)
G00053168Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Ground X497 (2 Of 3)
G00053169Courtesy of BMW OF NORTH AMERICA, INC.

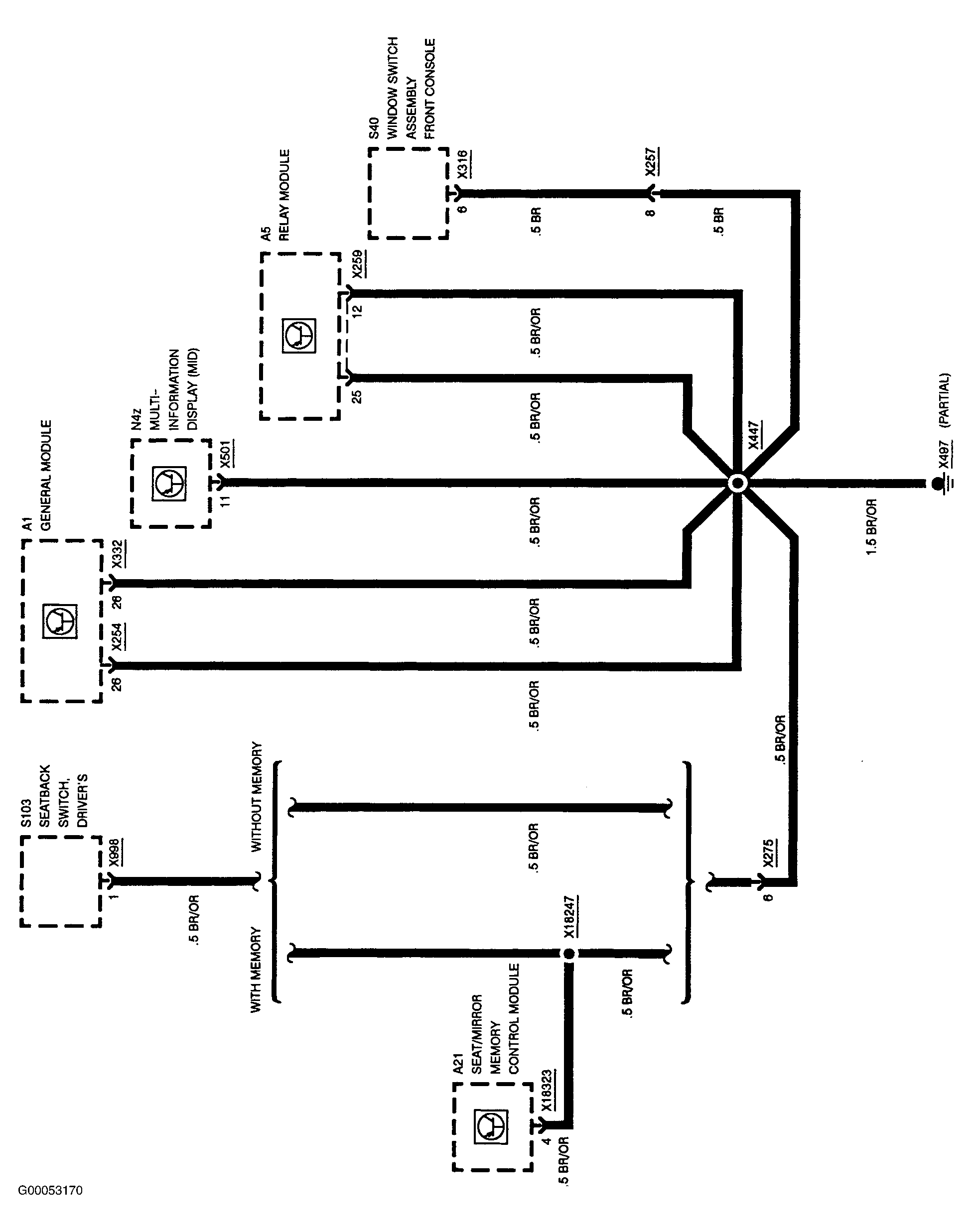

Fig 3: Ground X497 (3 Of 3)
G00053170Courtesy of BMW OF NORTH AMERICA, INC.
