Ground X494
Ground X494

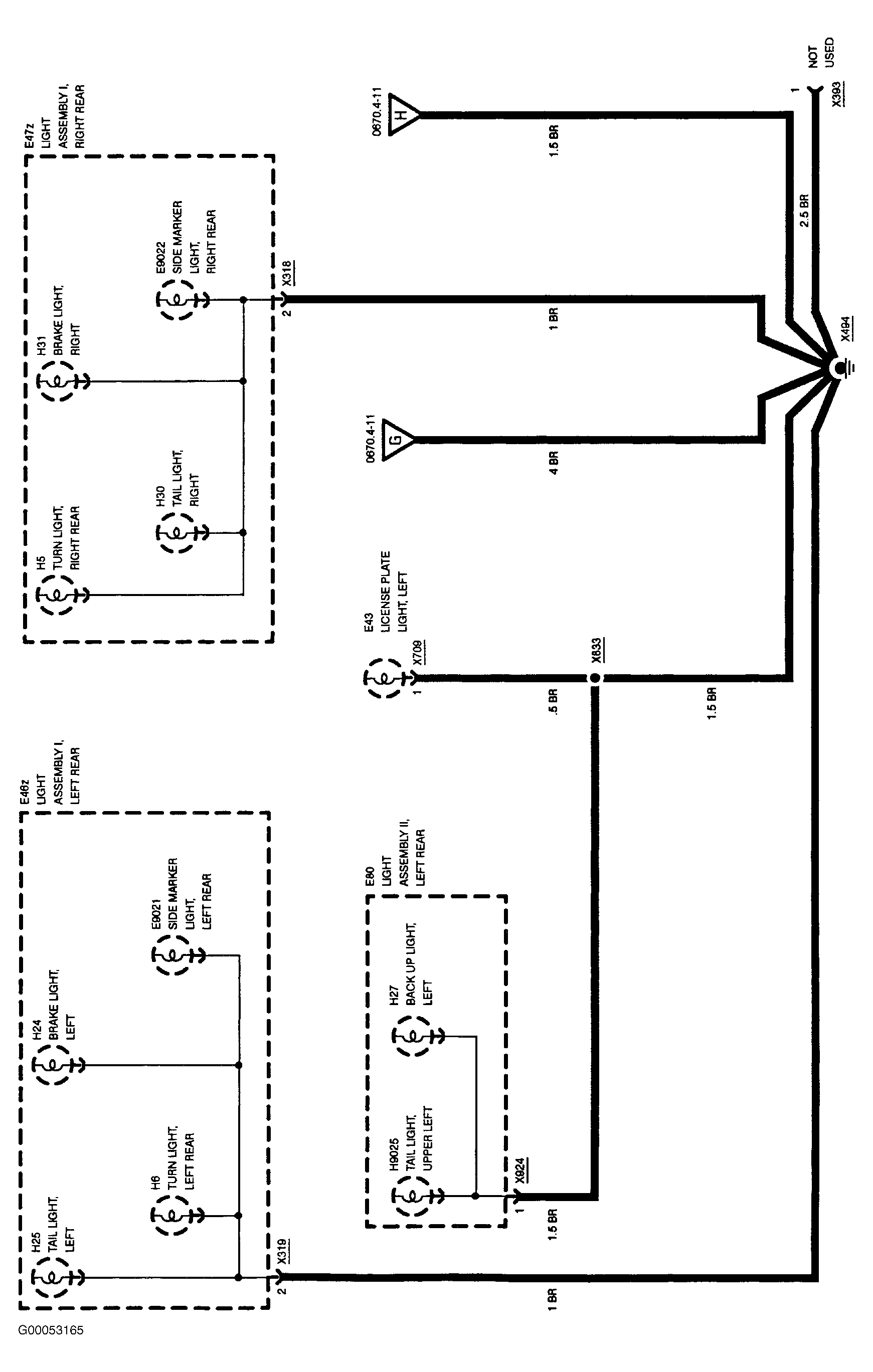

Fig 1: Ground X494 (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

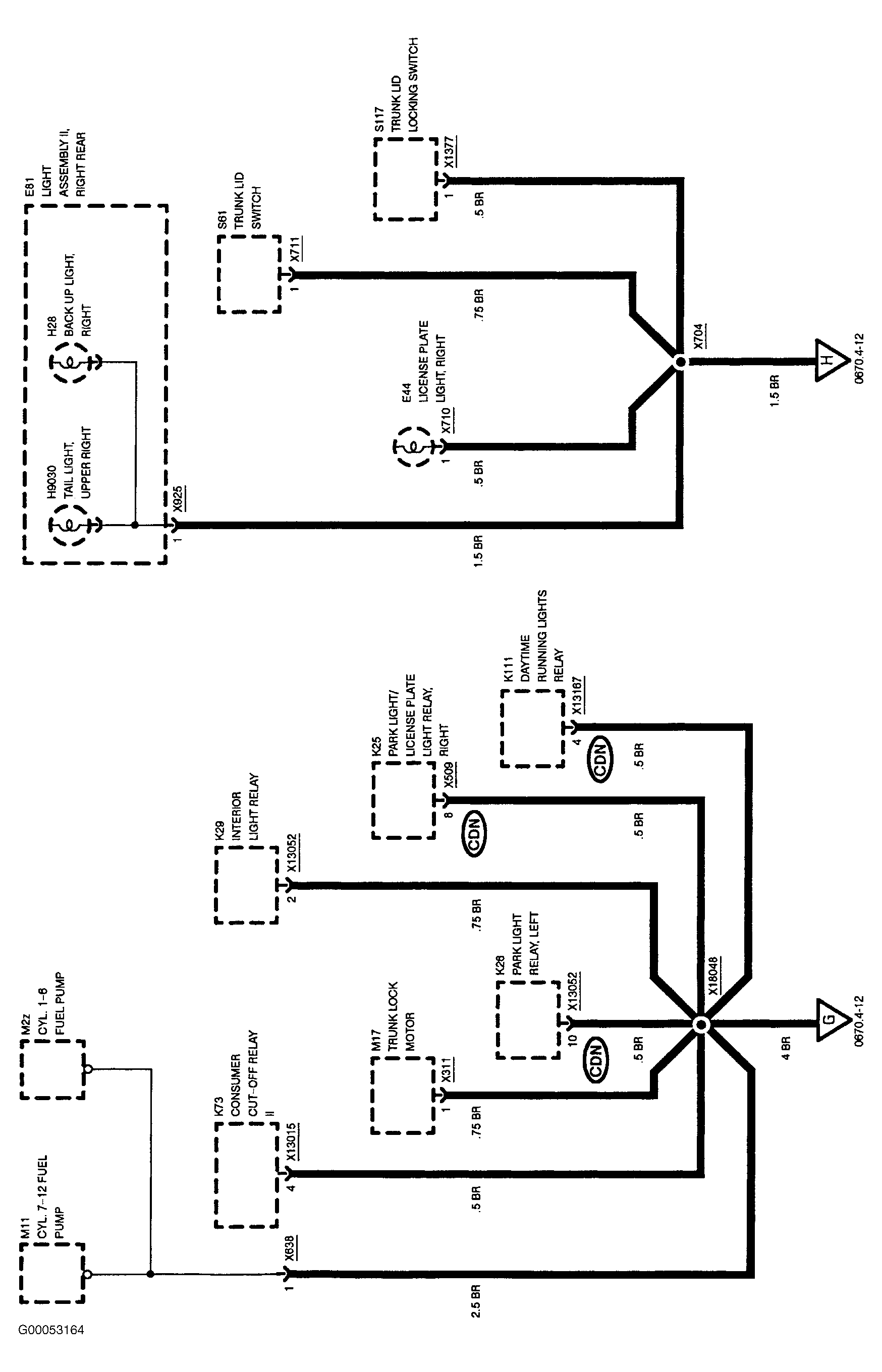

Fig 2: Ground X494 (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
