Ground X492

Fig 1: Ground X492 (1 Of 4)
G00053160Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Ground X492 (2 Of 4)
G00053161Courtesy of BMW OF NORTH AMERICA, INC.
Fig 3: Ground X492 (3 Of 4)
G00053162Courtesy of BMW OF NORTH AMERICA, INC.

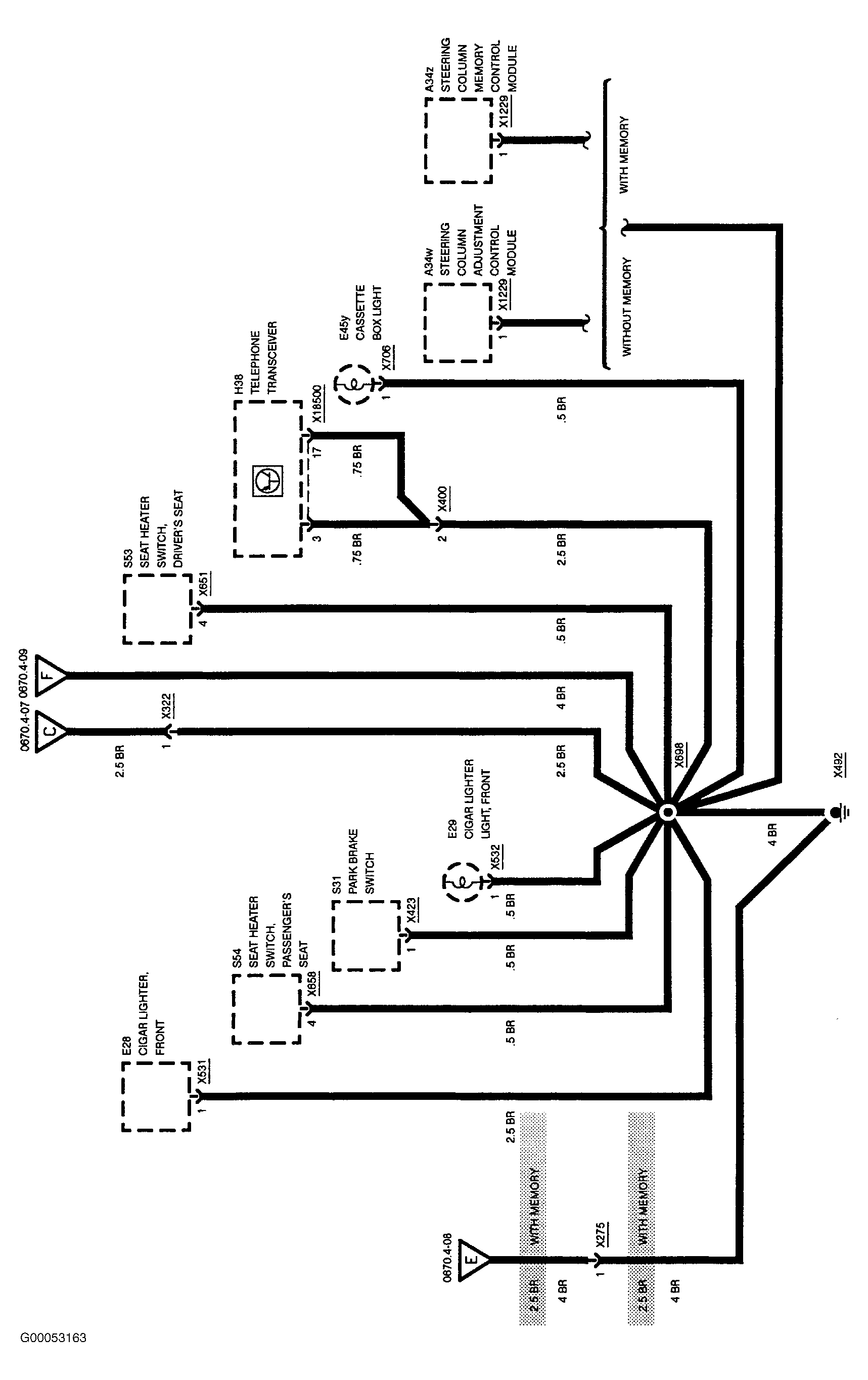

Fig 4: Ground X492 (4 Of 4)
G00053163Courtesy of BMW OF NORTH AMERICA, INC.
