Wiring Diagrams - BMW 850 1991-92
>>
Fuse Panels & Power Distribution Box
>>
Ground Distribution
>>
Ground X307
Ground X307

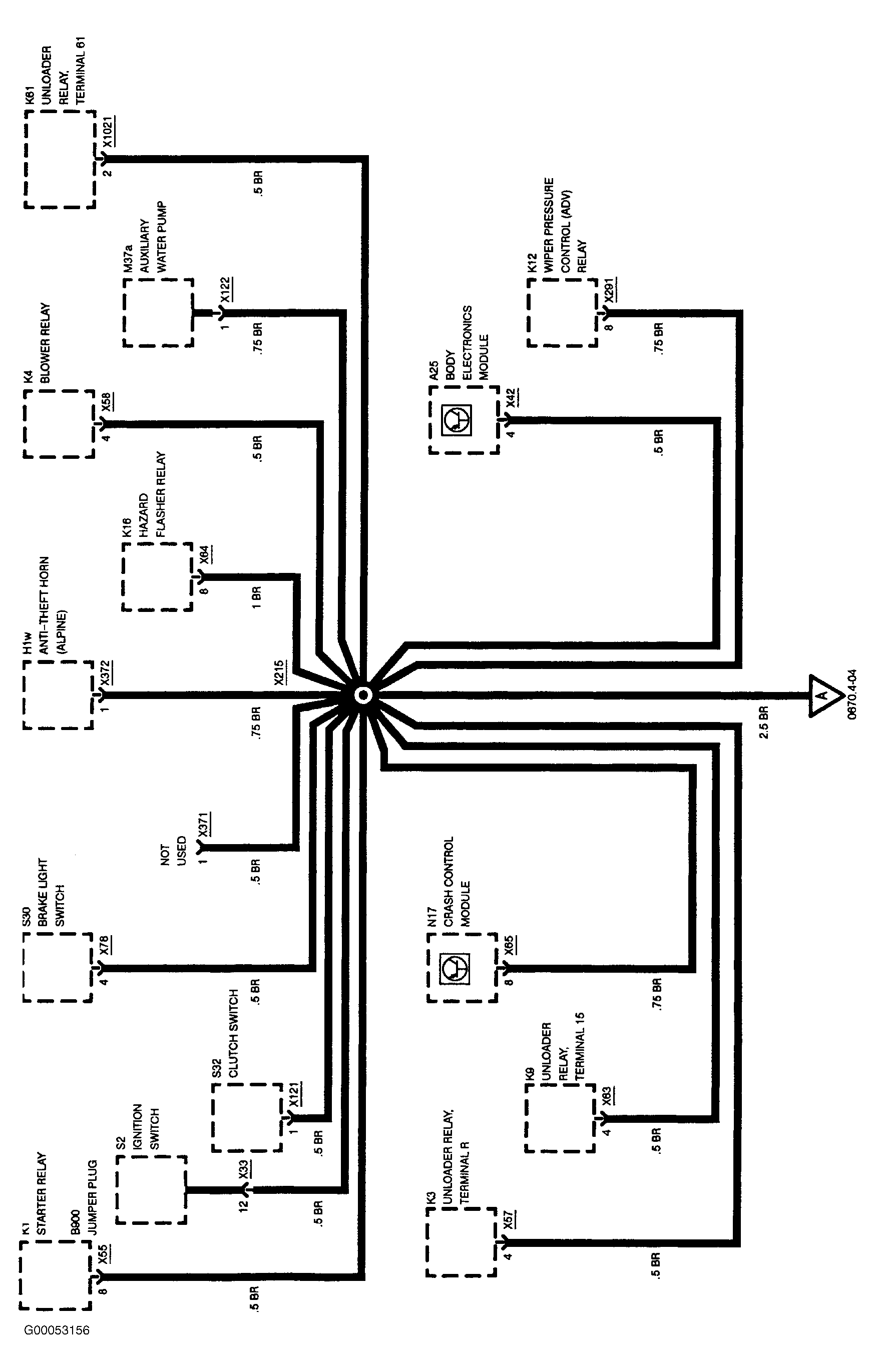

Fig 1: Ground X307 (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

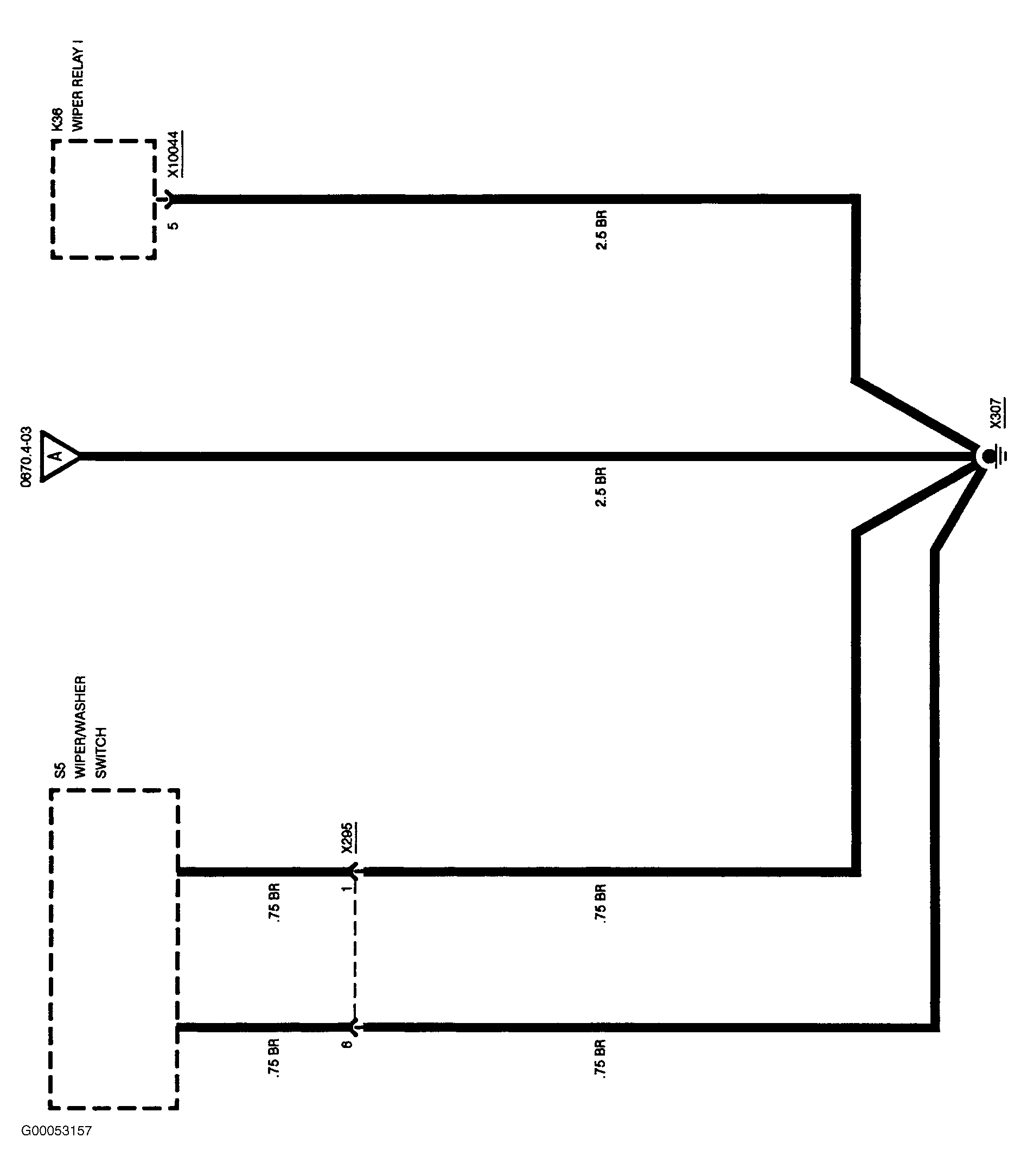

Fig 2: Ground X307 (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
