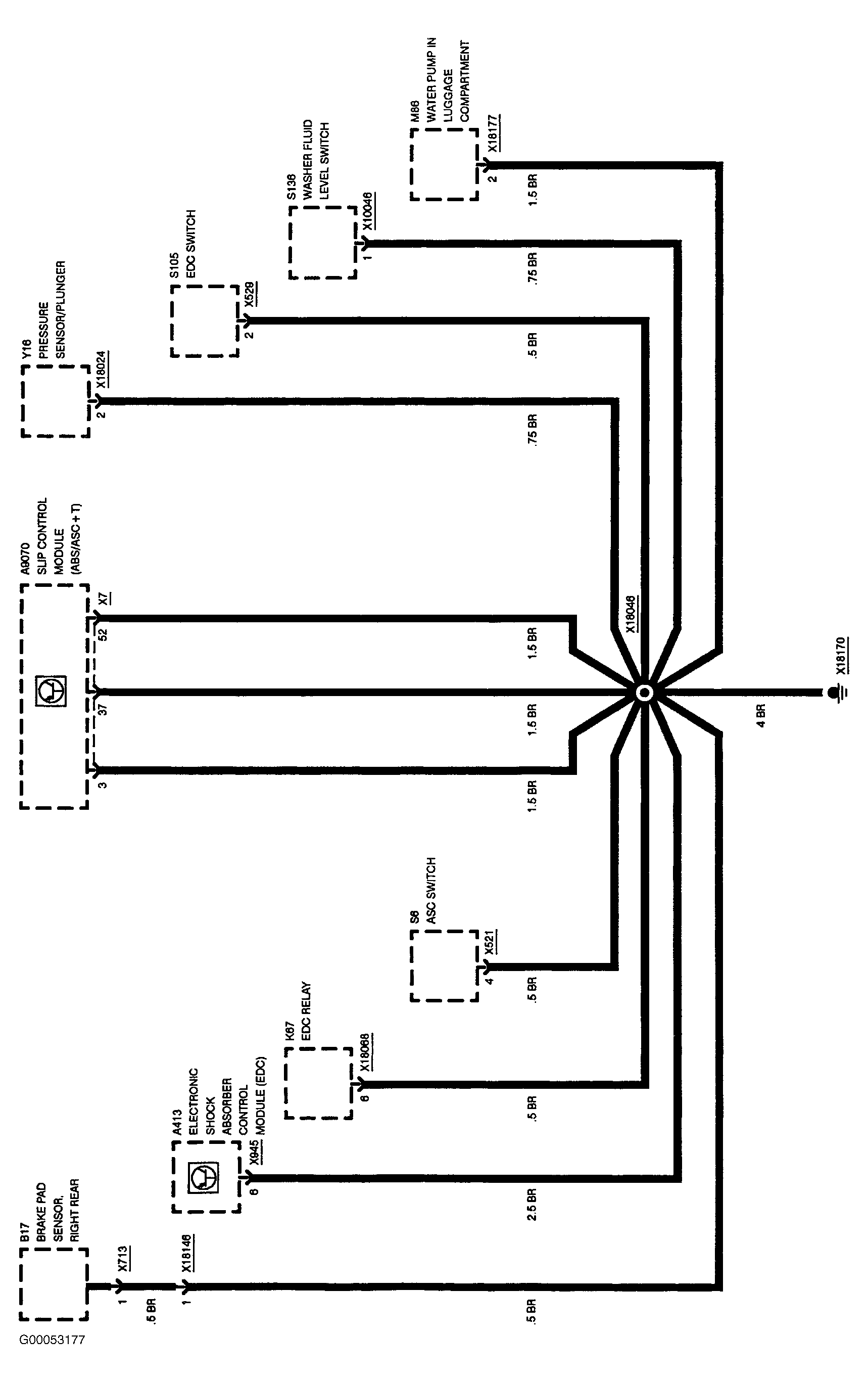

Home >> BMW >> 1992 >> 850i Automatic >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> Wiring Diagrams - BMW 850 1991-92 >> Fuse Panels & Power Distribution Box >> Ground Distribution >> Ground X18170
