Wiring Diagrams - BMW 850 1991-92
>>
Fuse Panels & Power Distribution Box
>>
Fuse Details
>>
Fuses No. 3-6
Fuses No. 3-6

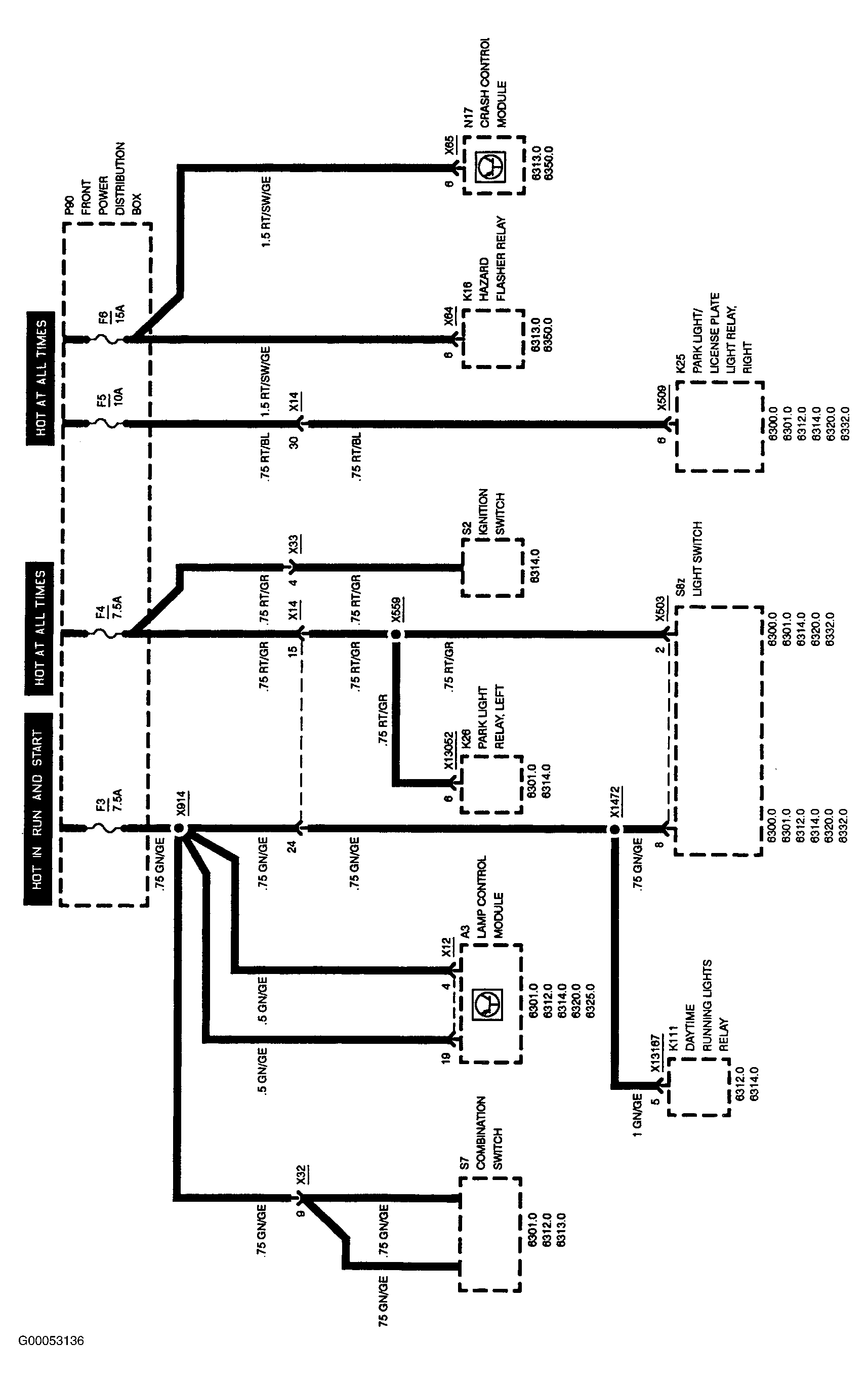

Fig 1: Fuse Details - Fuses 3-6 (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

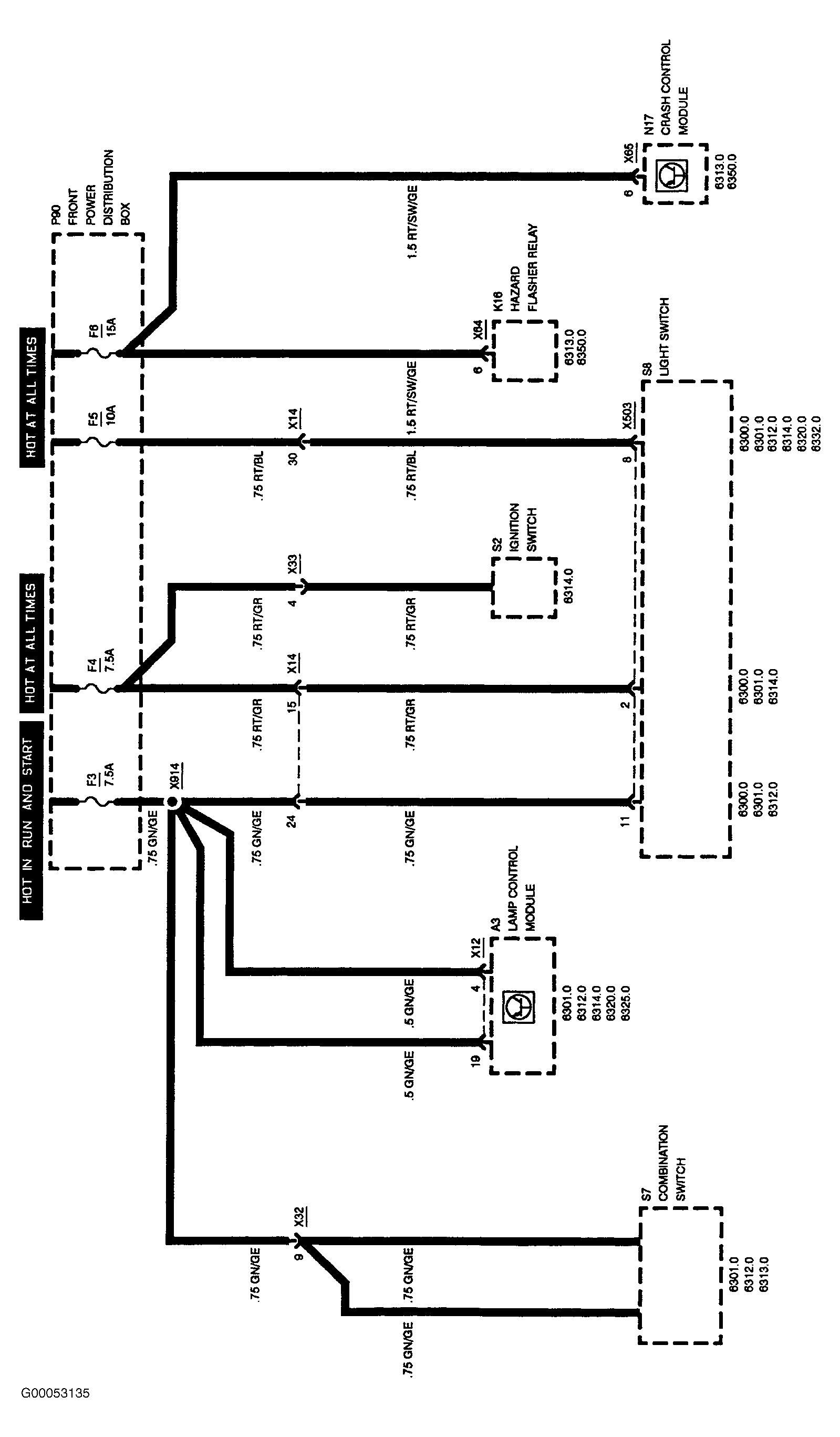

Fig 2: Fuse Details - Fuses 3-6 (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
