Fuses No. 1 & 2

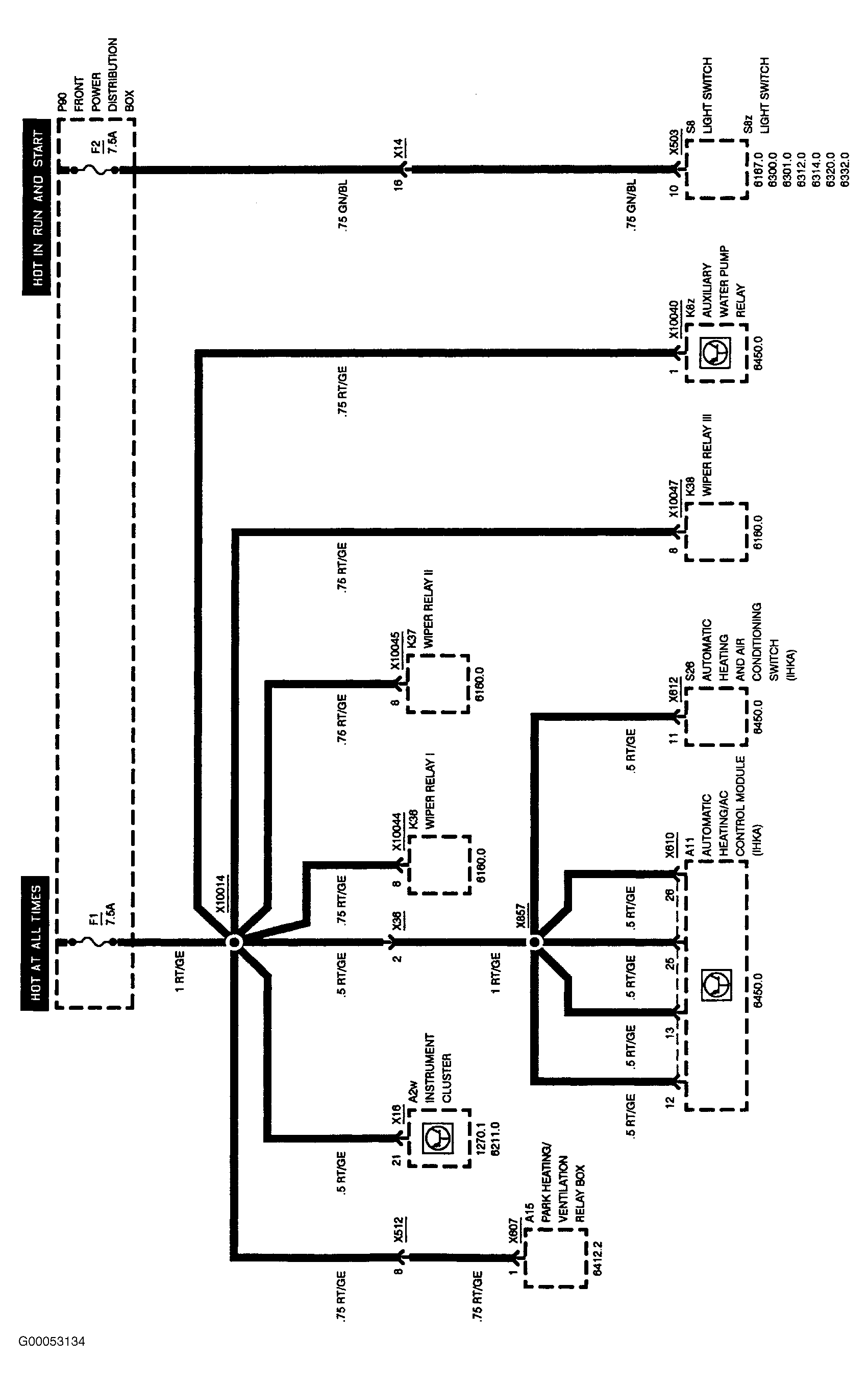

Fig 1: Fuse Details - Fuses 1 & 2

G00053134

Courtesy of BMW OF NORTH AMERICA, INC.
