Wiring Diagrams - BMW 850 1991-92
>>
Fuse Panels & Power Distribution Box
>>
Fuse Details
>>
Fuses 42, 43, 45, 50 & 51
Fuses 42, 43, 45, 50 & 51

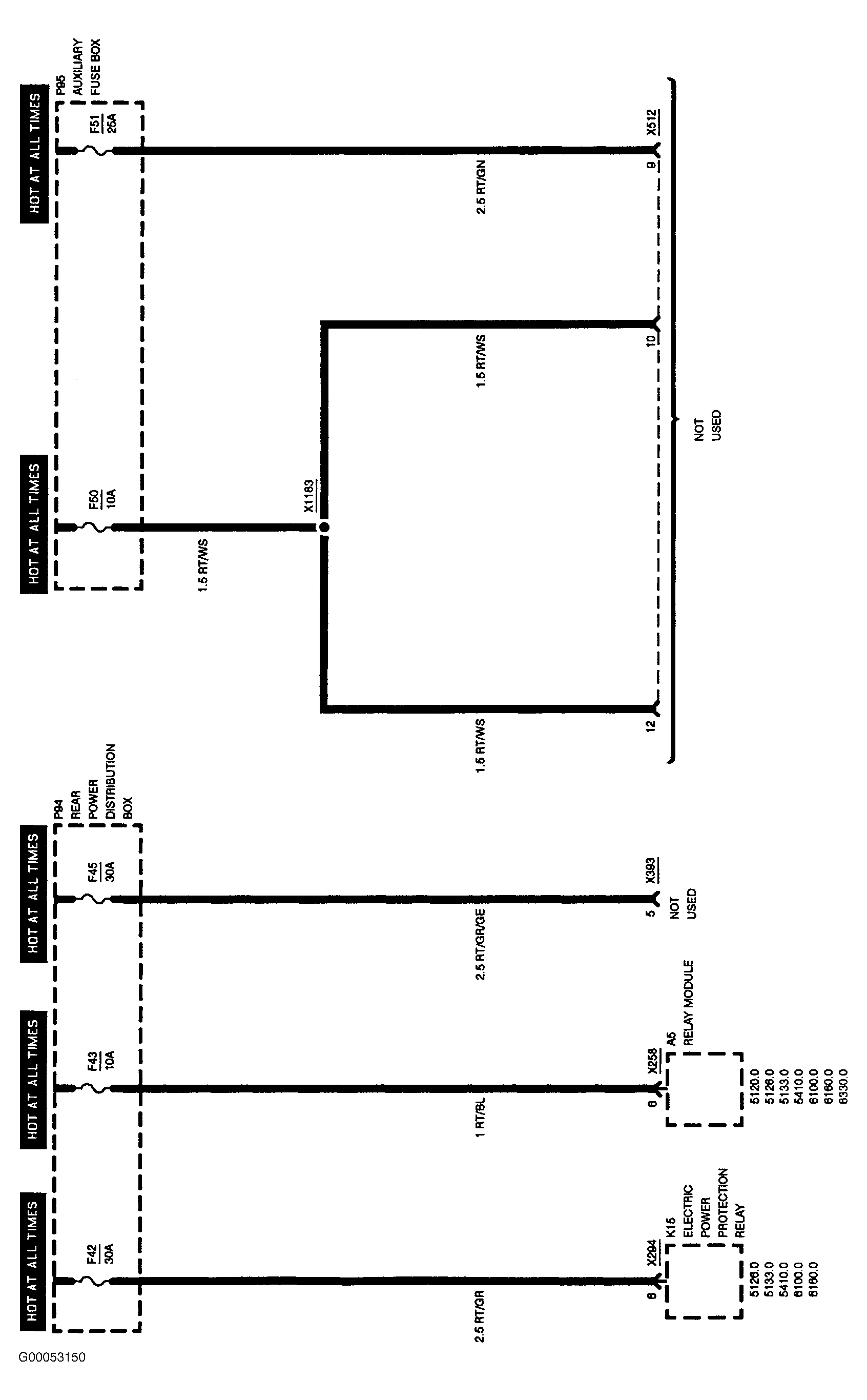

Fig 1: Fuse Details - Fuses 42, 43, 45, 50 & 51
Courtesy of BMW OF NORTH AMERICA, INC.
