Wiring Diagrams - BMW 850 1991-92
>>
Fuse Panels & Power Distribution Box
>>
Fuse Details
>>
Fuses 38-41
Fuses 38-41

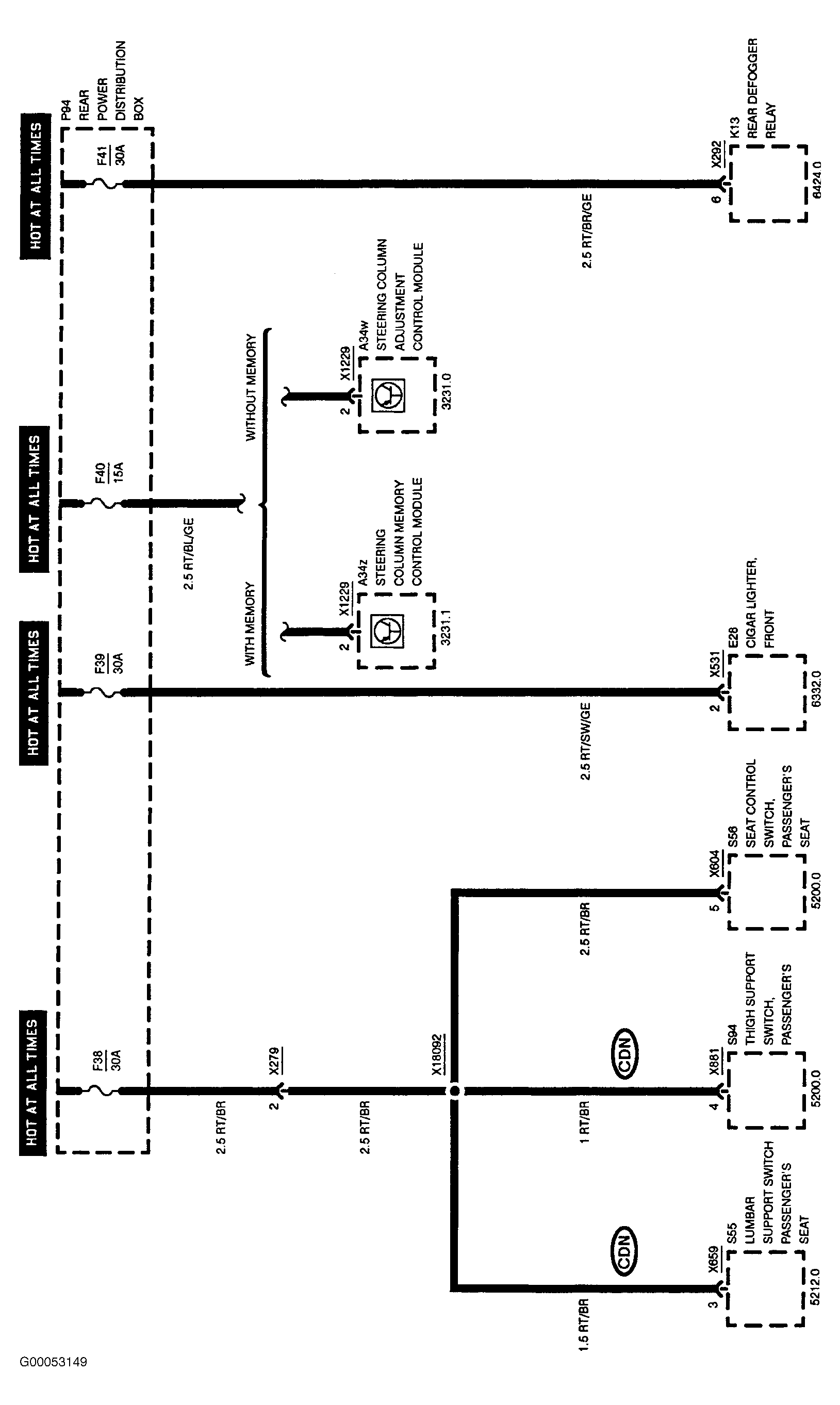

Fig 1: Fuse Details - Fuses 38-41
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
