Wiring Diagrams - BMW 850 1991-92
>>
Fuse Panels & Power Distribution Box
>>
Fuse Details
>>
Fuses 30-32
Fuses 30-32

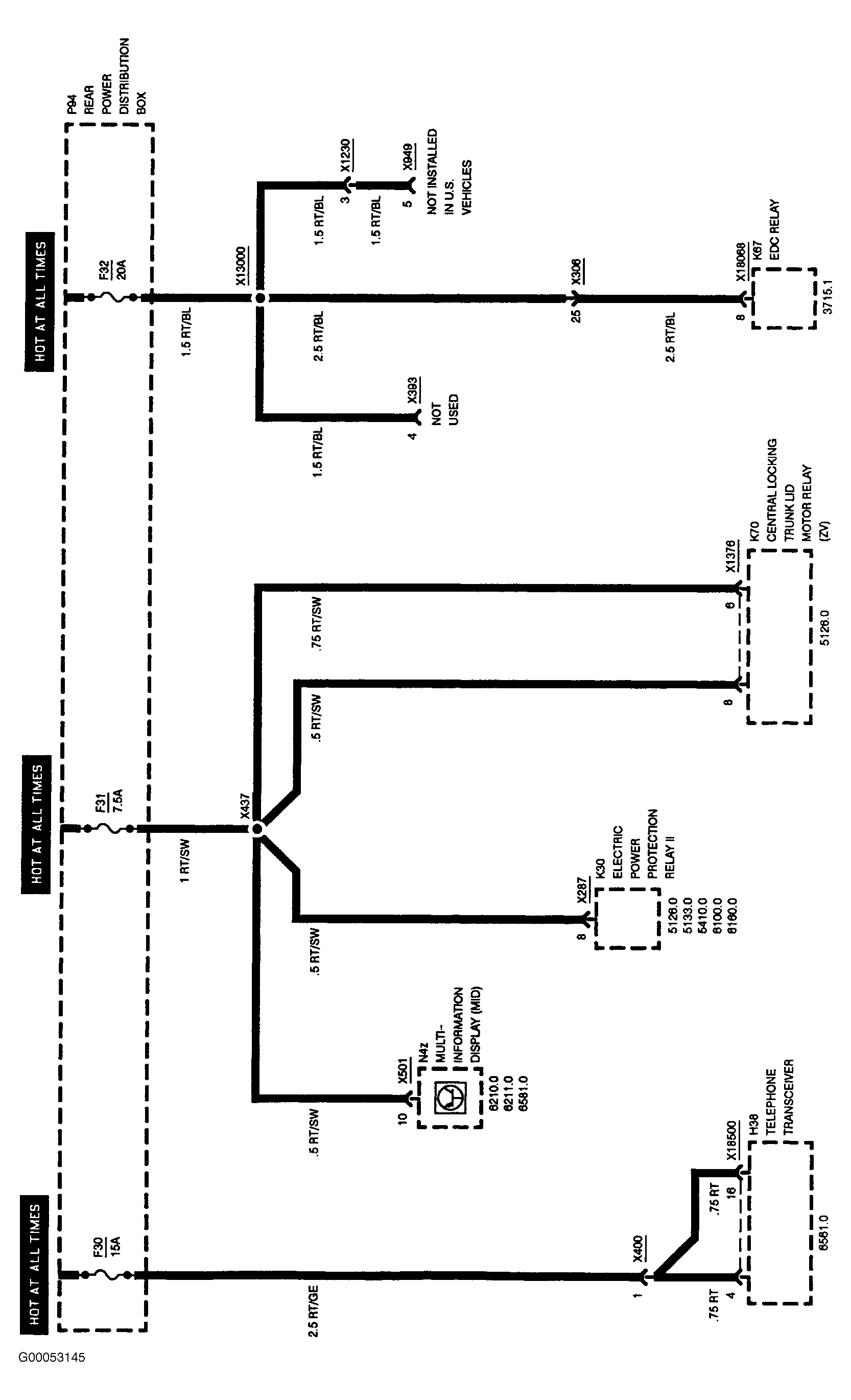

Fig 1: Fuse Details - Fuses 30-32
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
