Home >> BMW >> 1992 >> 850i Automatic >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> Wiring Diagrams - BMW 850 1991-92 >> Fuse Panels & Power Distribution Box >> Fuse Details >> Fuse 37

Fuse 37

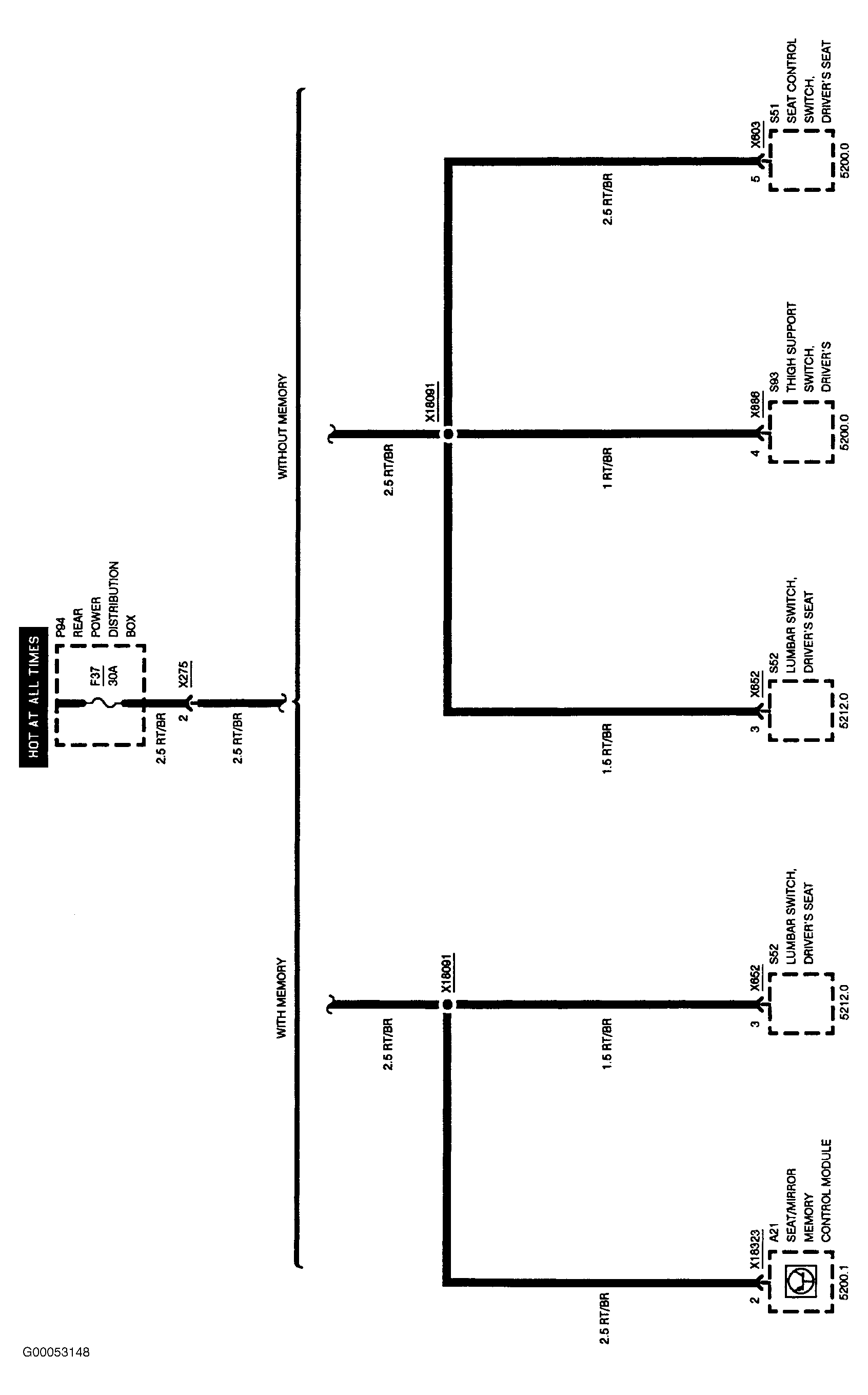

Fig 1: Fuse Details - Fuse 37

G00053148

Courtesy of BMW OF NORTH AMERICA, INC.
