Wiring Diagrams - BMW 850 1991-92
>>
Fuse Panels & Power Distribution Box
>>
Fuse Details
>>
Fuse 16
Fuse 16

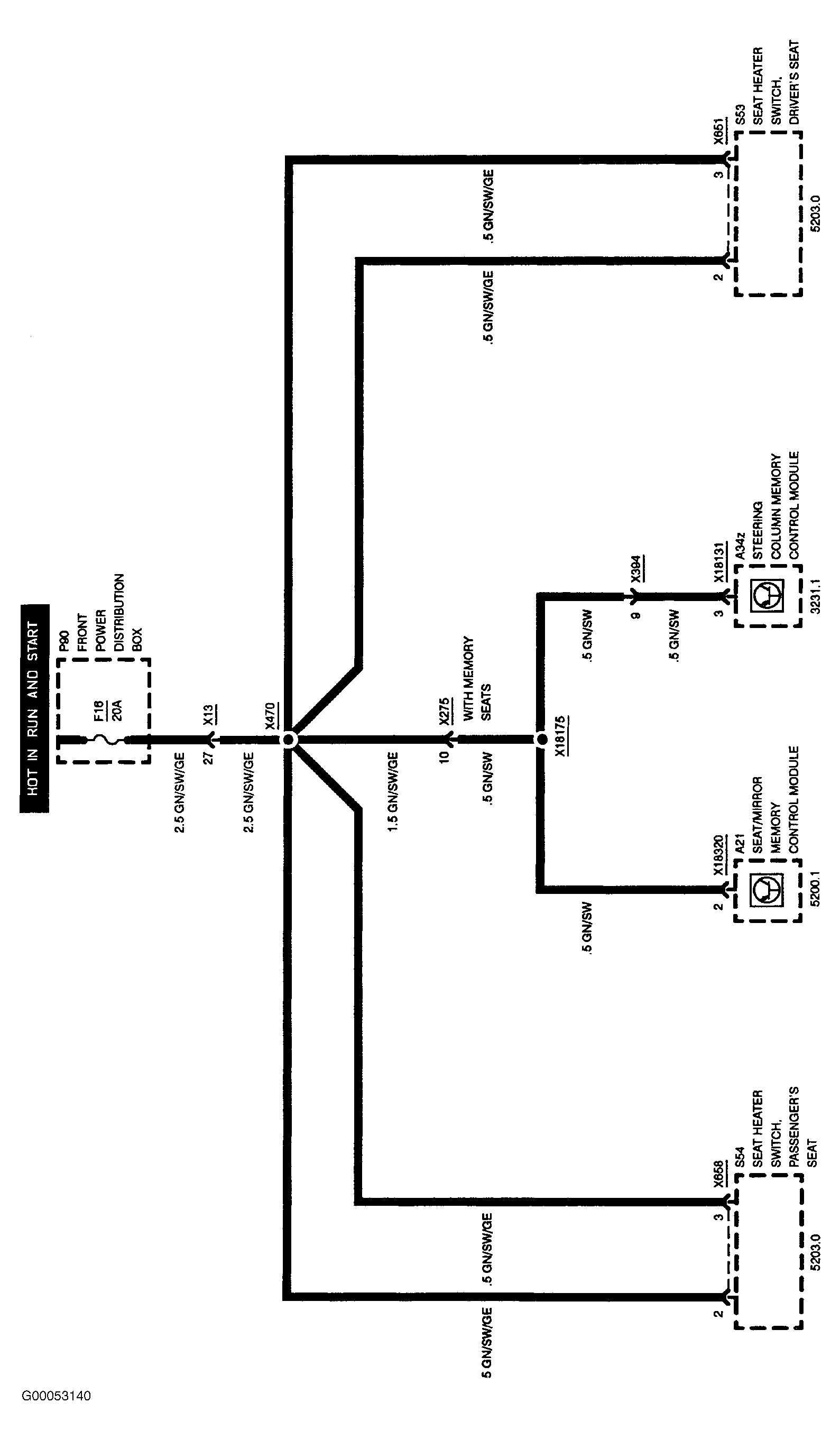

Fig 1: Fuse Details - Fuse 16
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
