Wiring Diagrams - BMW 850 1991-92
>>
Fuse Panels & Power Distribution Box
>>
Data Link
>>
Instrumentation BUS (I-BUS)
Instrumentation BUS (I-BUS)
Fig 1: Data Link - Instrumentation BUS (I-BUS) - (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

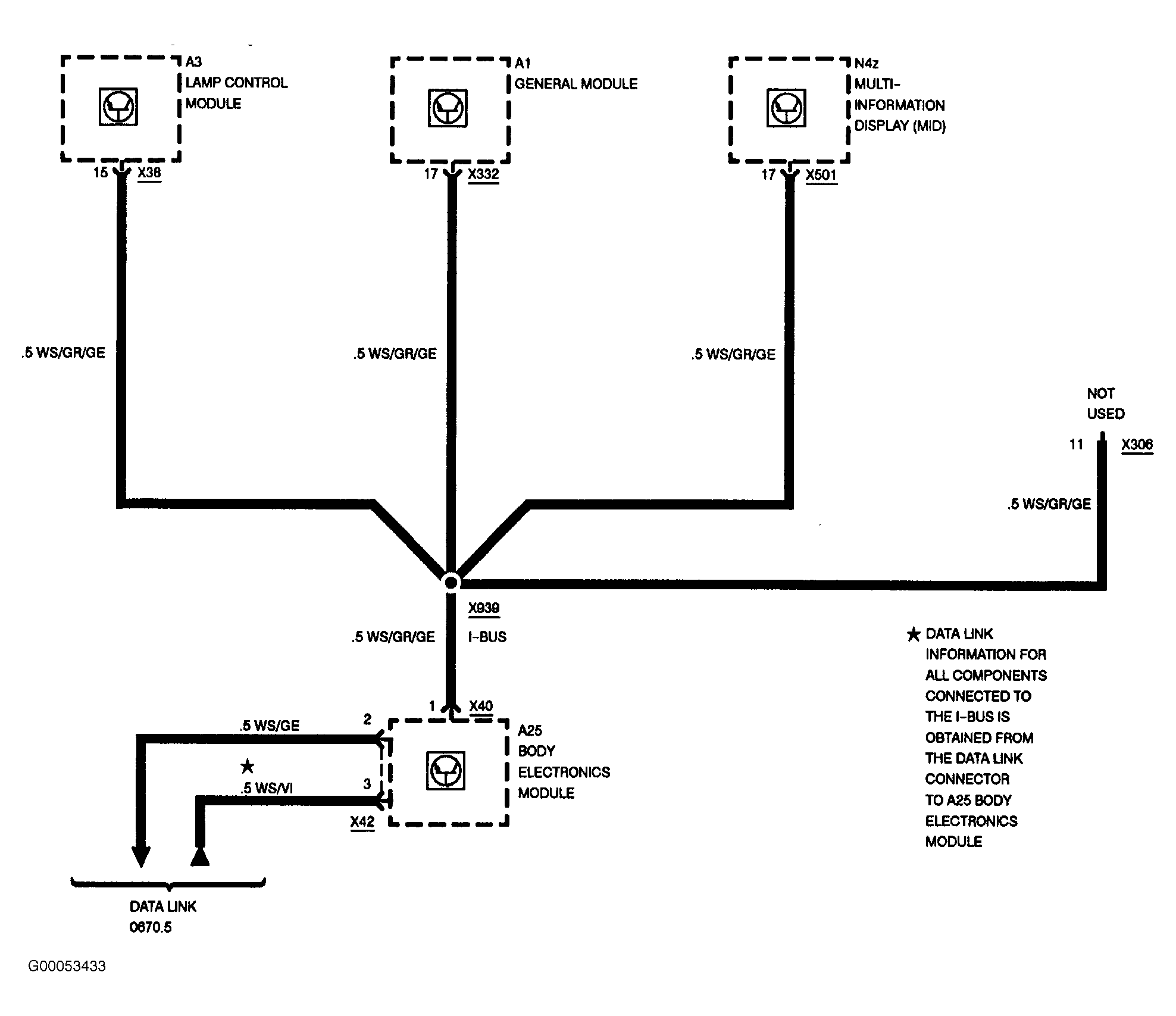

Fig 2: Instrumentation BUS (I-BUS) - (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
