Wiring Diagrams - BMW 850 1991-92
>>
Fuse Panels & Power Distribution Box
>>
Data Link
>>
Data Link Connector Pins 7, 11, 14 & 16
Data Link Connector Pins 7, 11, 14 & 16

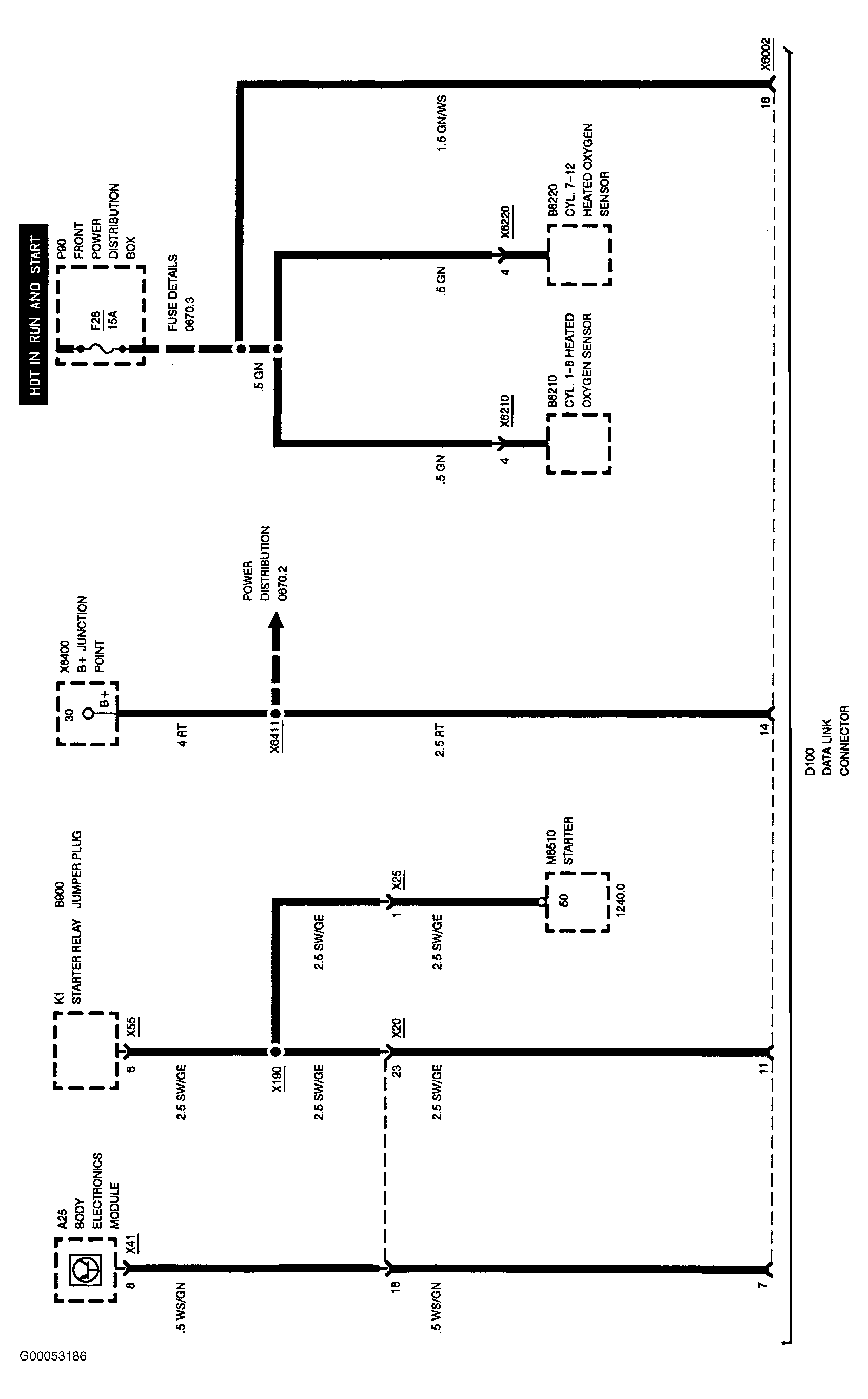

Fig 1: Data Link Connector Pins 7, 11, 14, & 16
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
