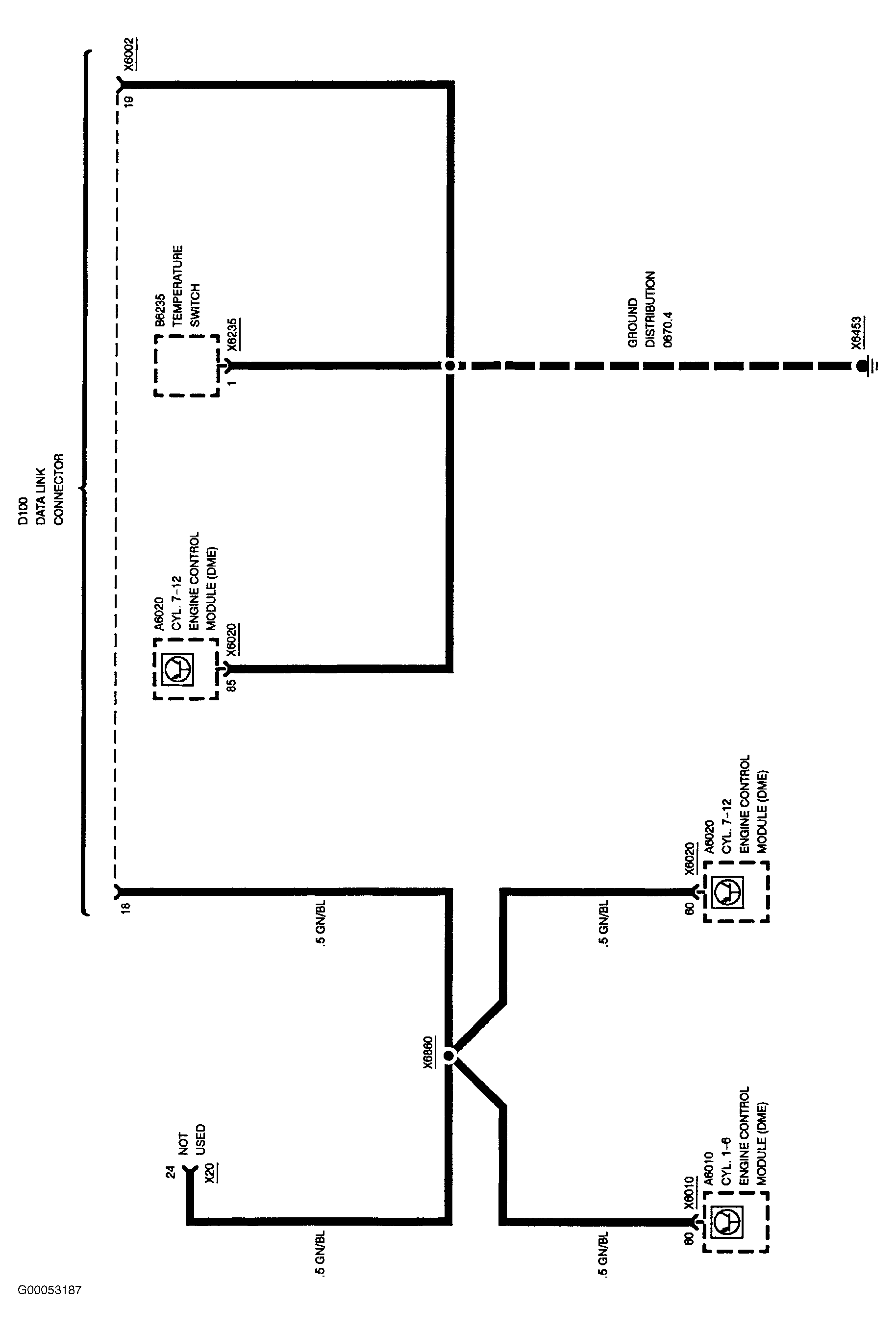

Home >> BMW >> 1992 >> 850i Automatic >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> Wiring Diagrams - BMW 850 1991-92 >> Fuse Panels & Power Distribution Box >> Data Link >> Data Link Connector Pins 18 & 19
