Wiring Diagrams - BMW 850 1991-92
>>
Engine Control System
>>
Starting System
Starting System

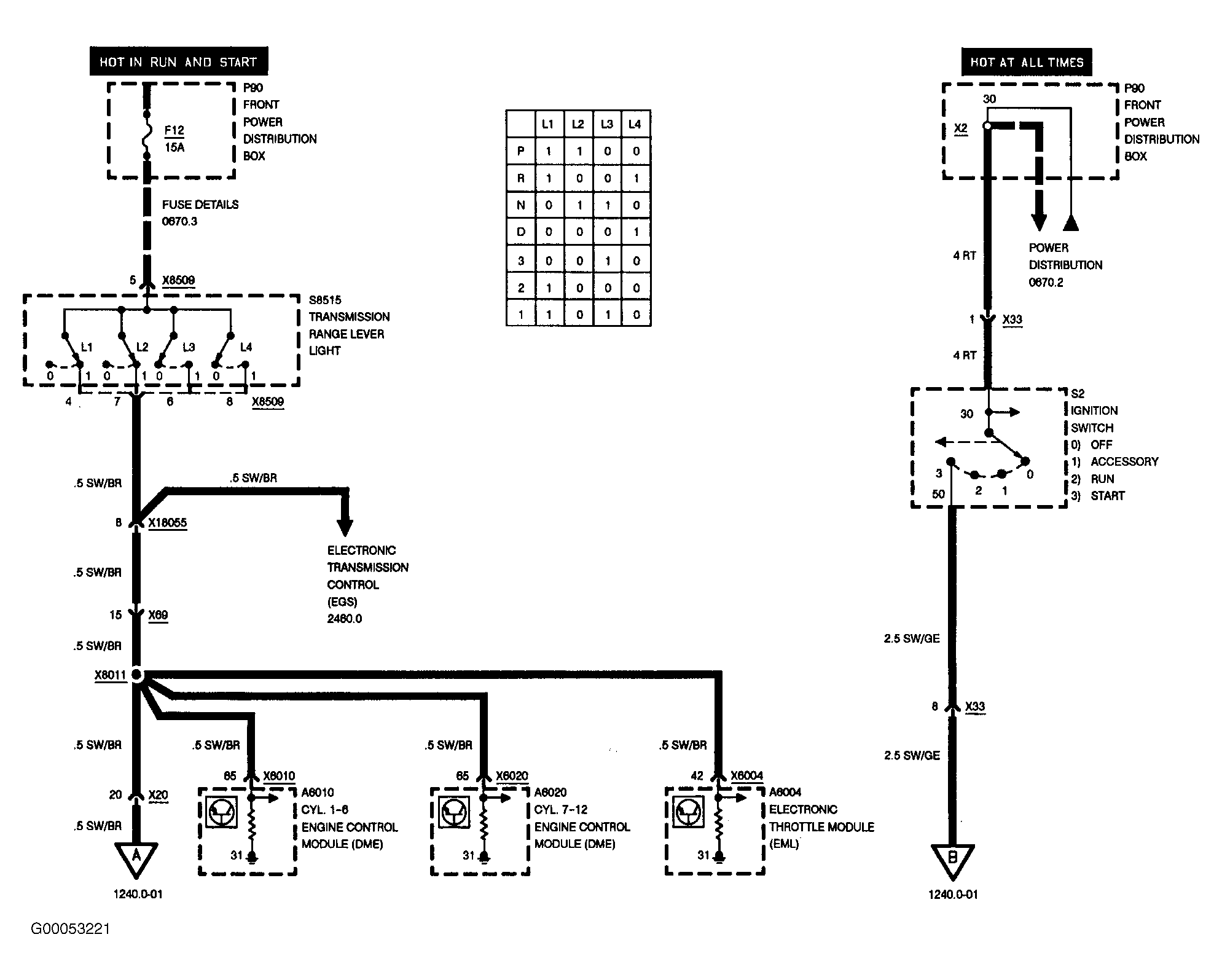

Fig 1: Starting System (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

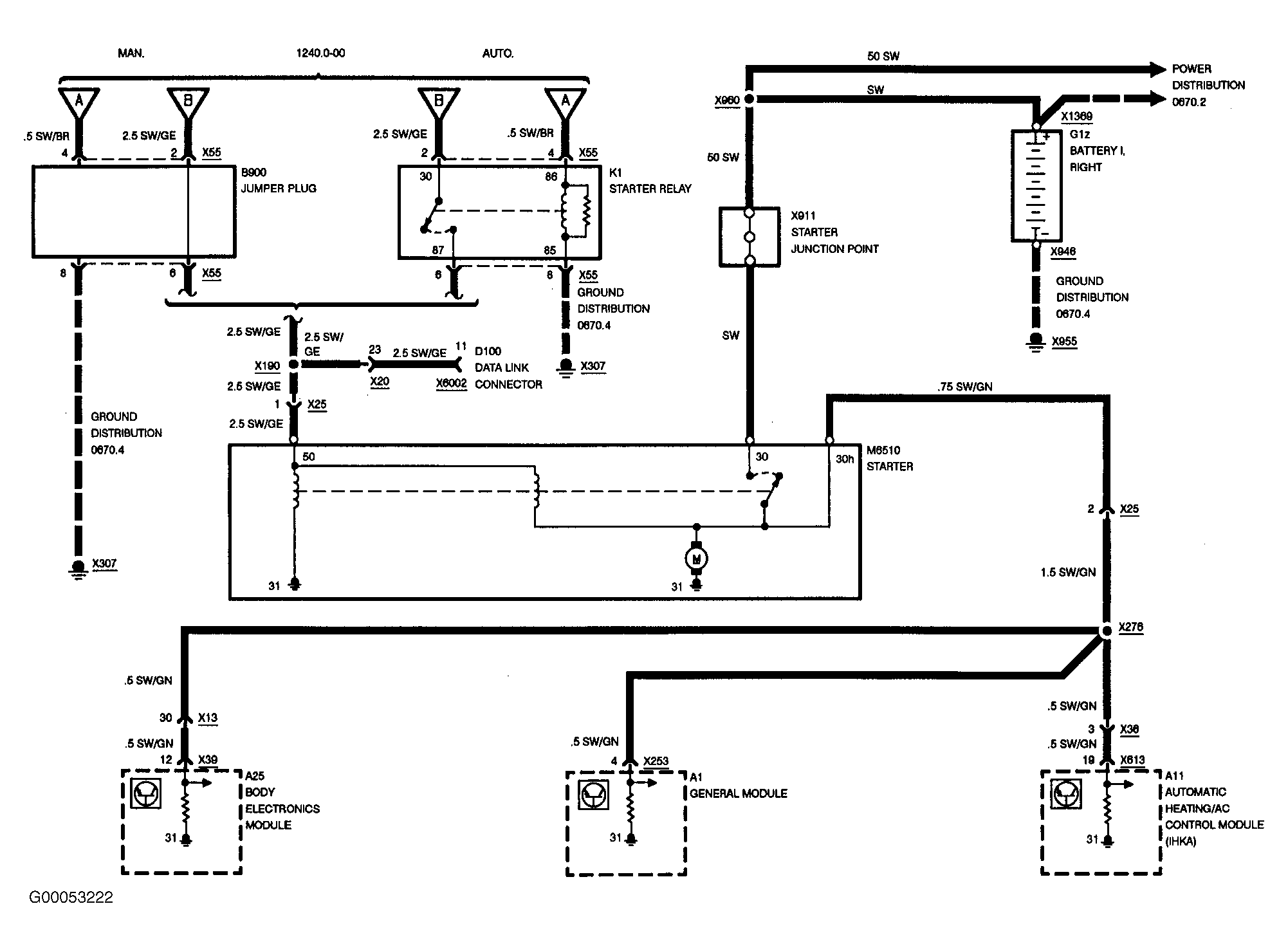

Fig 2: Starting System (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
