Pin Assignments

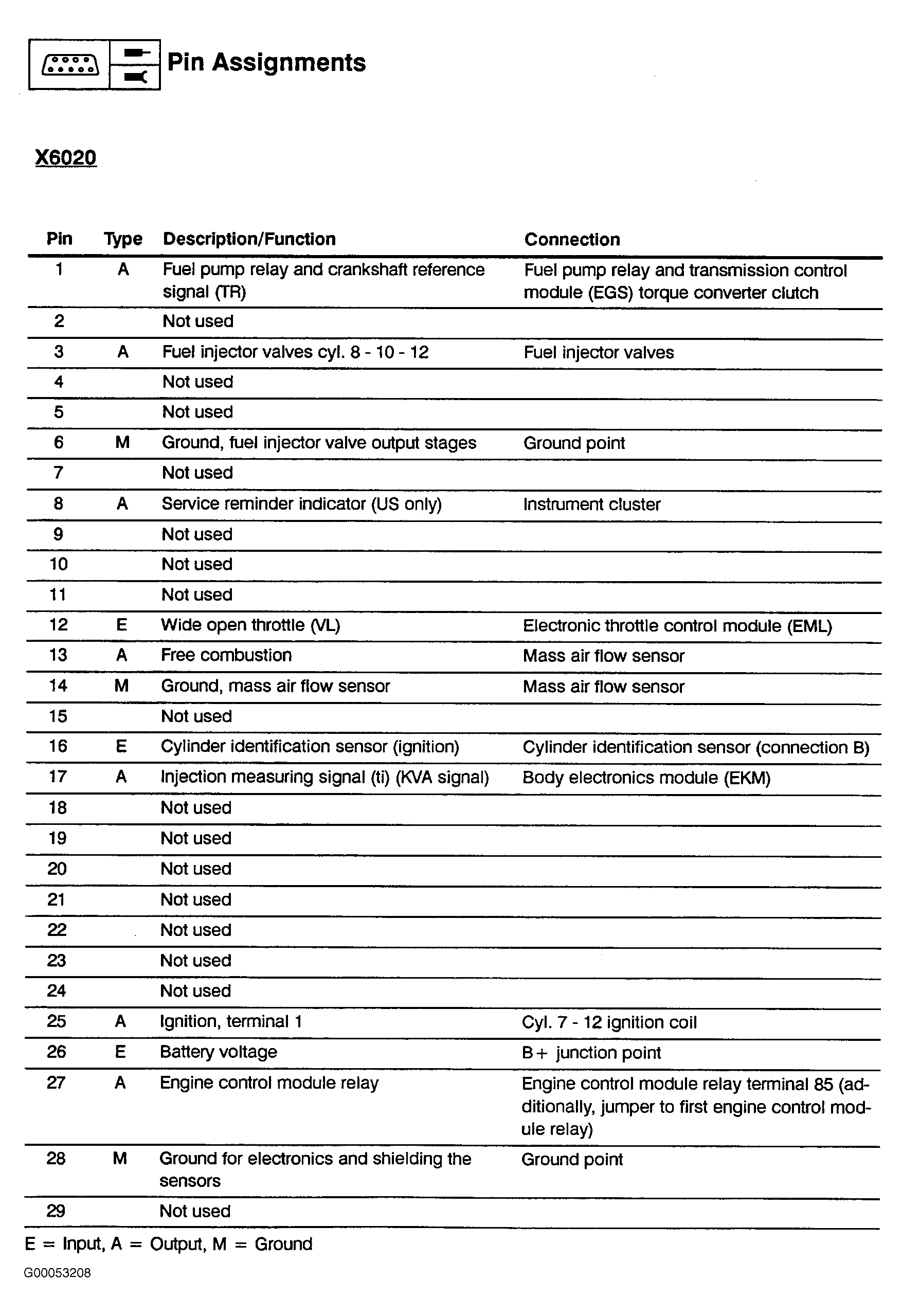

Fig 1: Pin Assignments - DME M1.7 - Cylinders 7-12 (1 Of 3)
G00053208Courtesy of BMW OF NORTH AMERICA, INC.

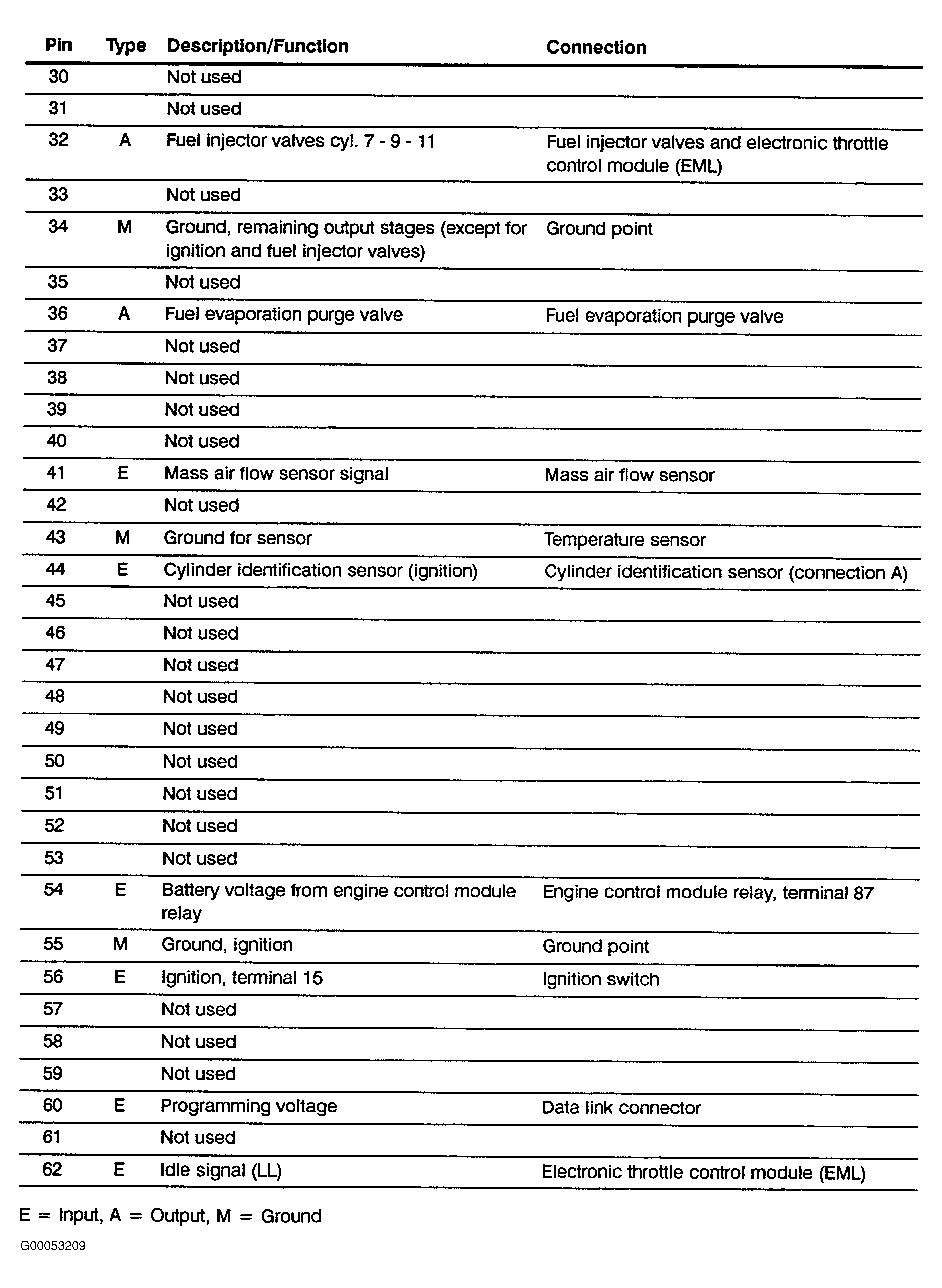

Fig 2: Pin Assignments - DME M1.7 - Cylinders 7-12 (2 Of 3)
G00053209Courtesy of BMW OF NORTH AMERICA, INC.

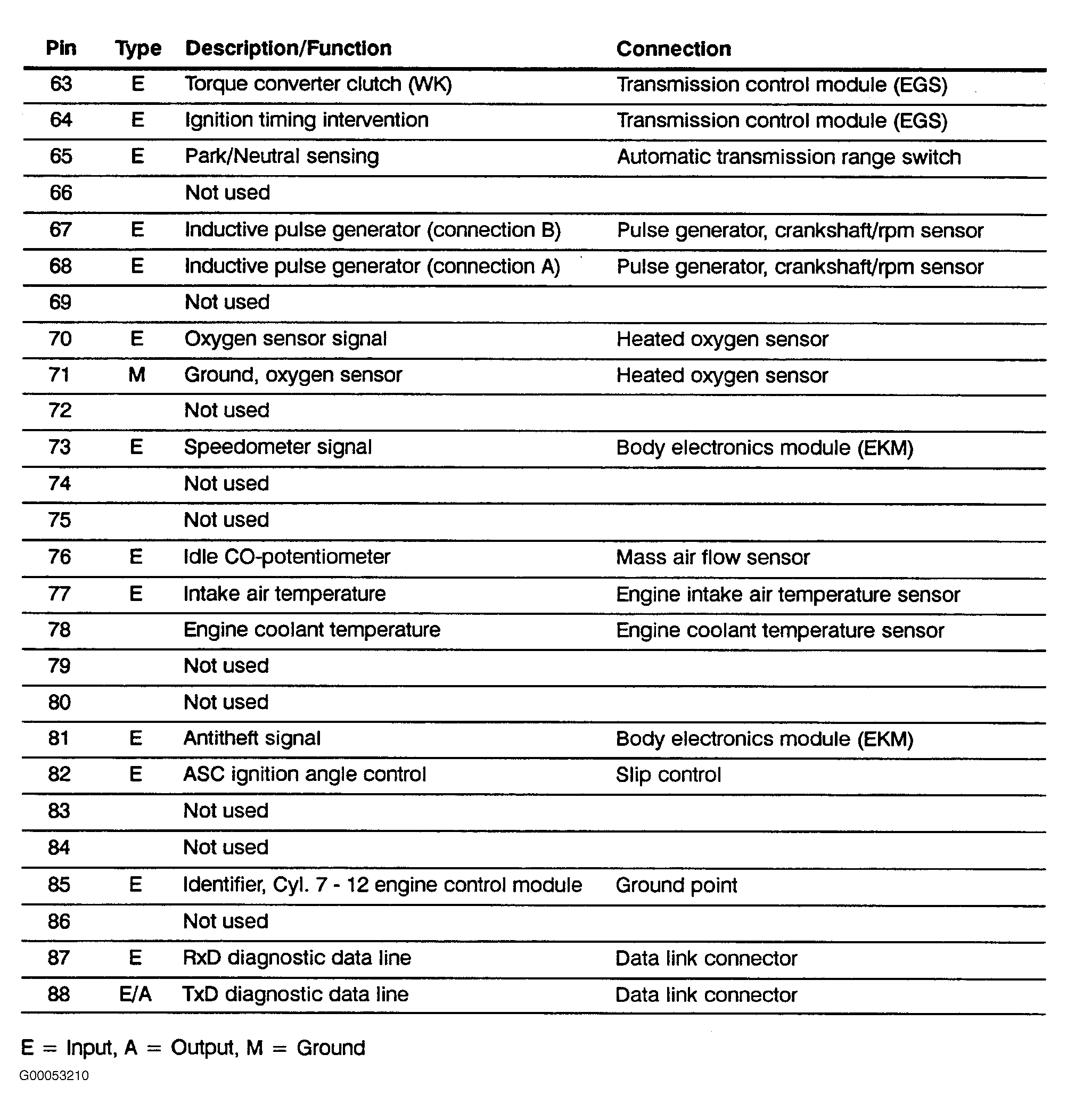

Fig 3: Pin Assignments - DME M1.7 - Cylinders 7-12 (3 Of 3)
G00053210Courtesy of BMW OF NORTH AMERICA, INC.
