Cylinders 7-12 - DME M1.7 - Engine Control Module

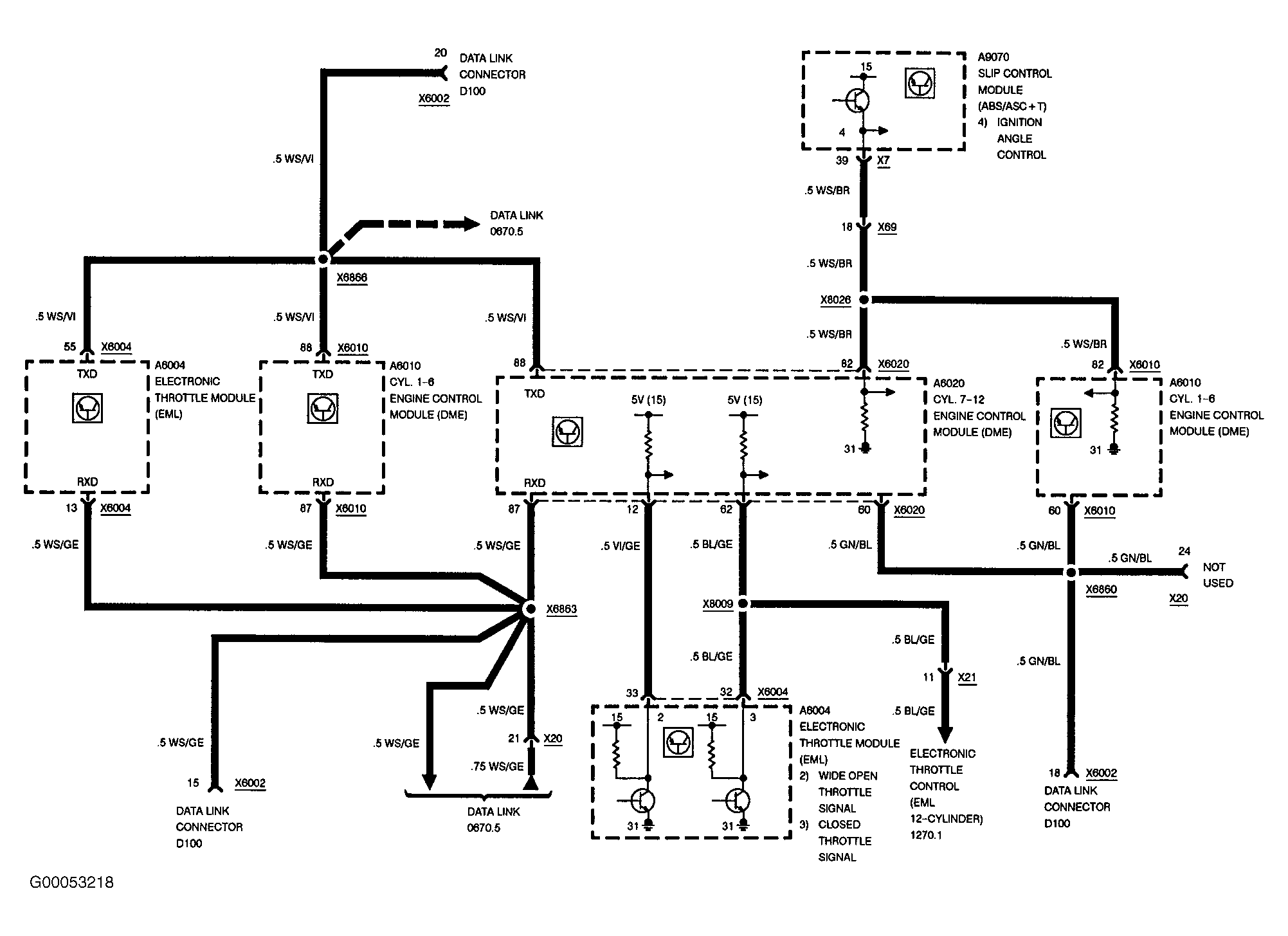

Fig 1: Cylinders 7-12 - DME M1.7 - Engine Control Module (1 Of 8)

Courtesy of BMW OF NORTH AMERICA, INC.

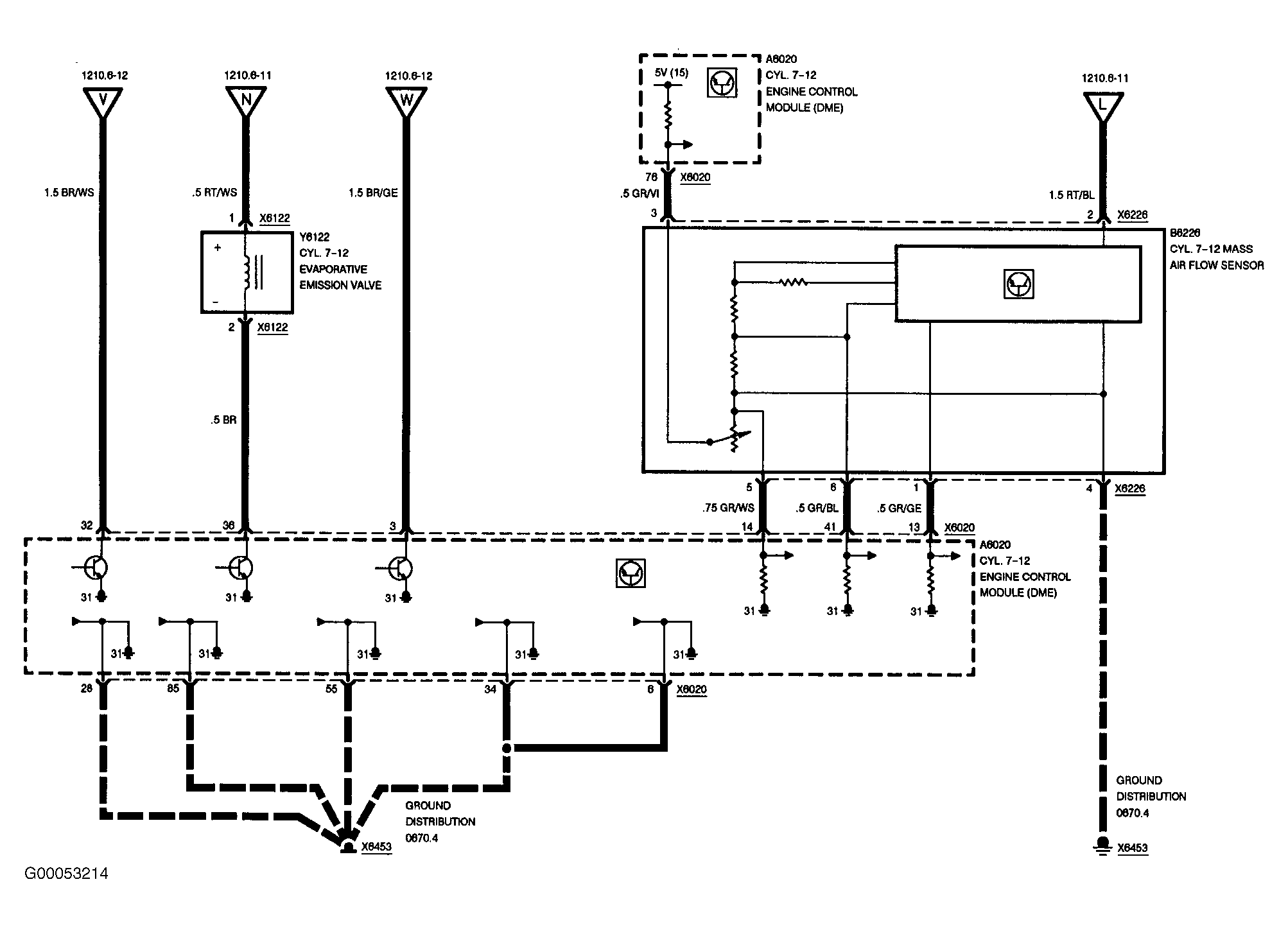

Fig 2: Cylinders 7-12 - DME M1.7 - Engine Control Module (2 Of 8)

Courtesy of BMW OF NORTH AMERICA, INC.

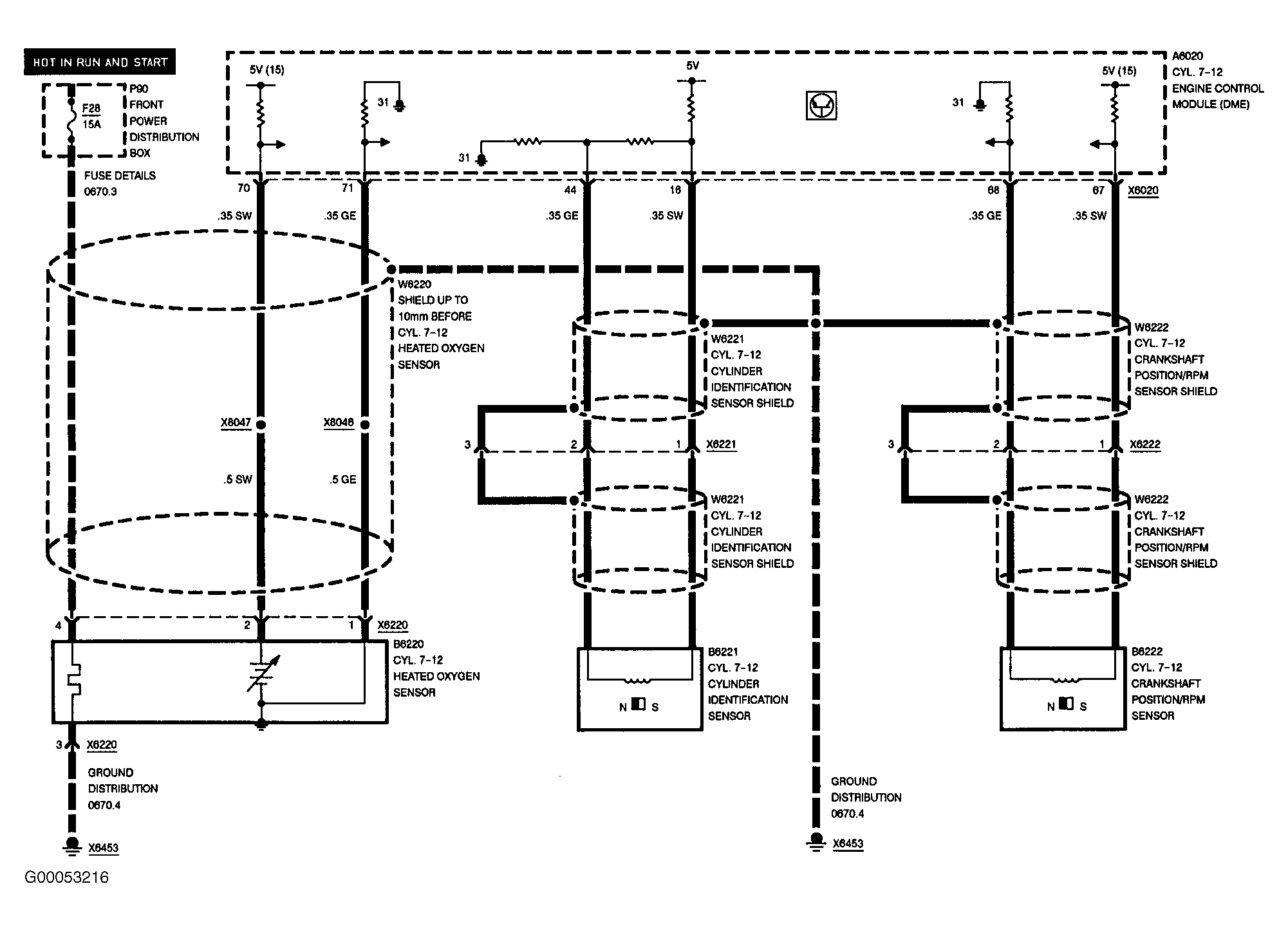

Fig 3: Cylinders 7-12 - DME M1.7 - Engine Control Module (3 Of 8)

Courtesy of BMW OF NORTH AMERICA, INC.

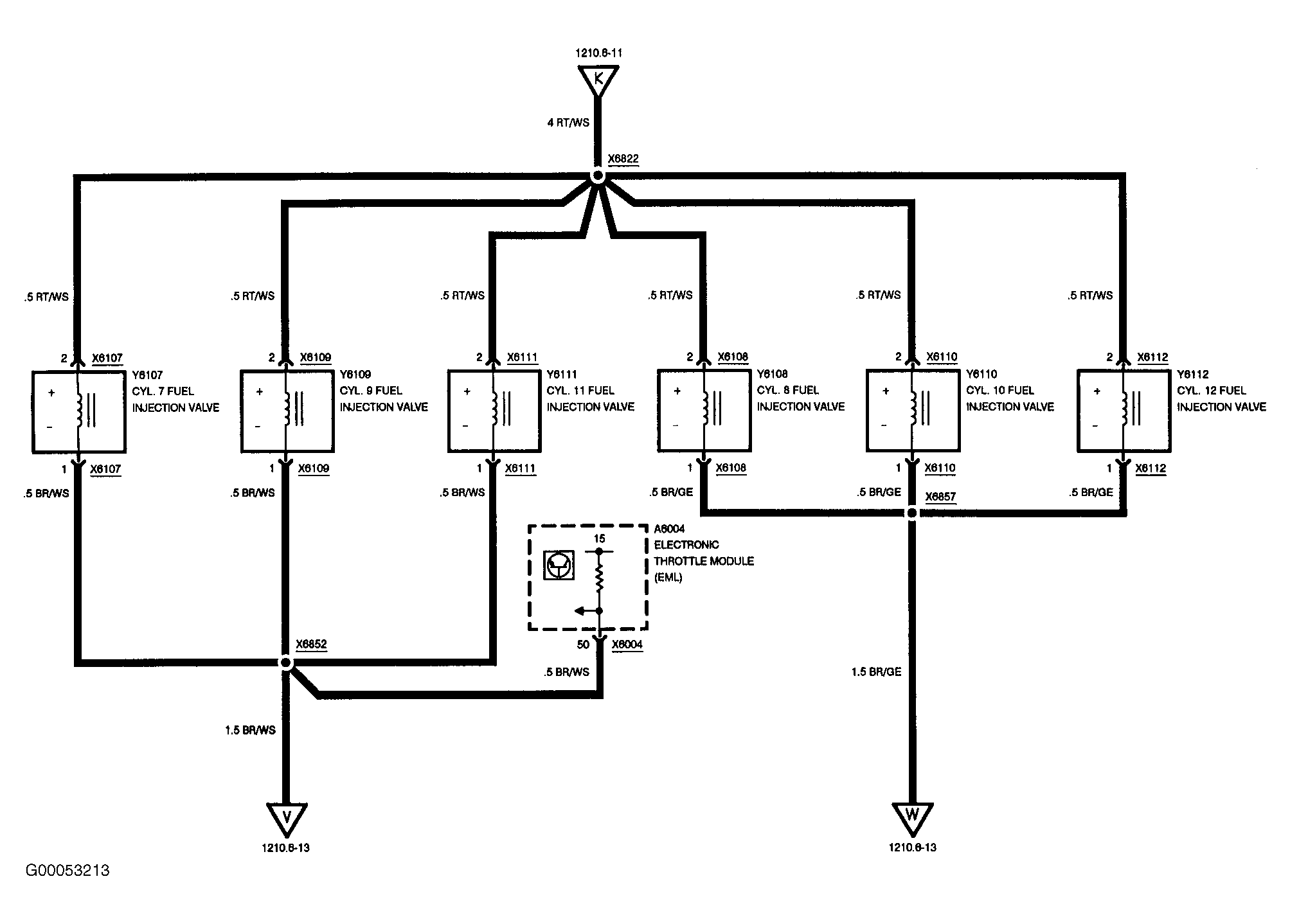

Fig 4: Cylinders 7-12 - DME M1.7 - Engine Control Module (4 Of 8)

Courtesy of BMW OF NORTH AMERICA, INC.

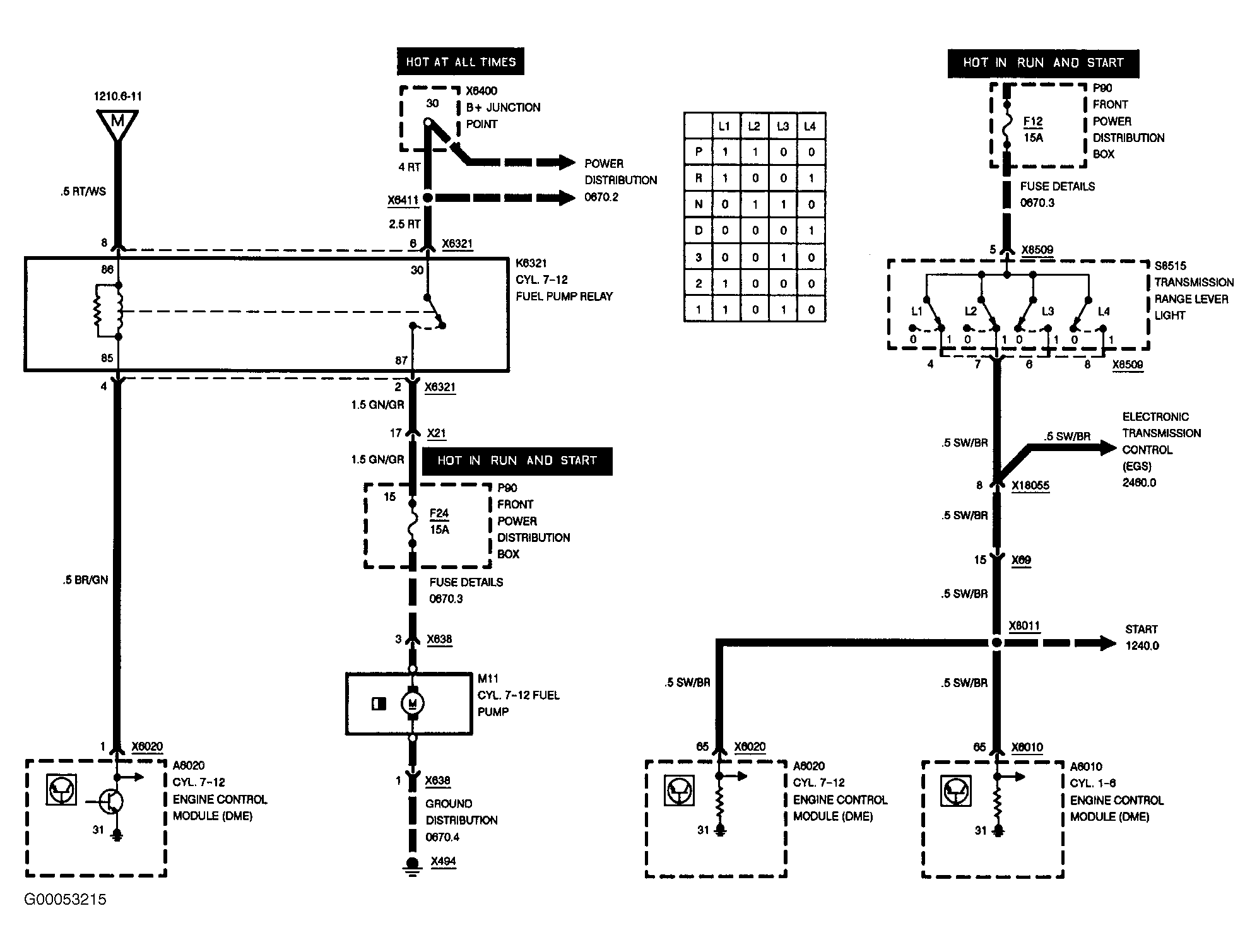

Fig 5: Cylinders 7-12 - DME M1.7 - Engine Control Module (5 Of 8)

Courtesy of BMW OF NORTH AMERICA, INC.

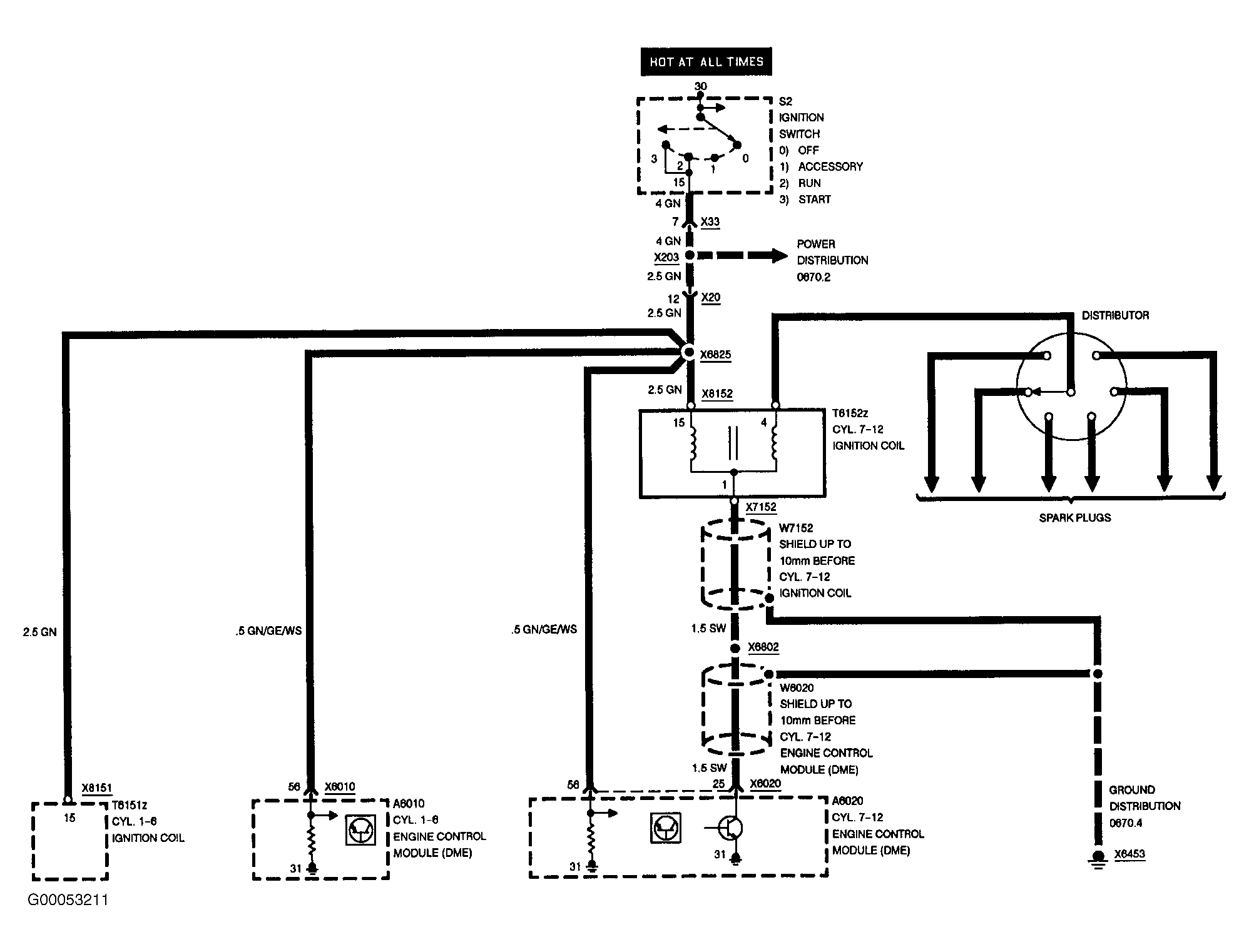

Fig 6: Cylinders 7-12 - DME M1.7 - Engine Control Module (6 Of 8)

Courtesy of BMW OF NORTH AMERICA, INC.

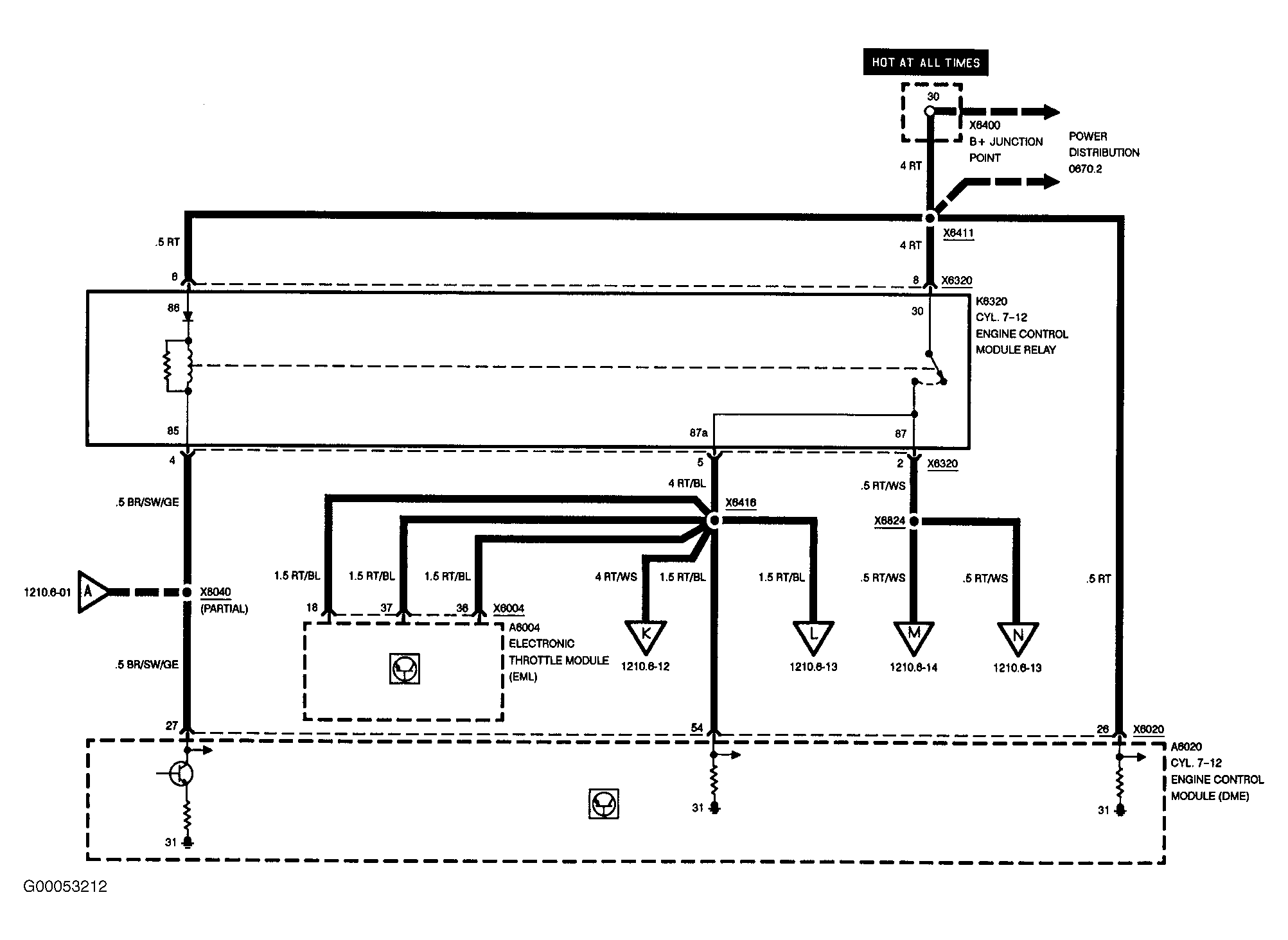

Fig 7: Cylinders 7-12 - DME M1.7 - Engine Control Module (7 Of 8)

Courtesy of BMW OF NORTH AMERICA, INC.

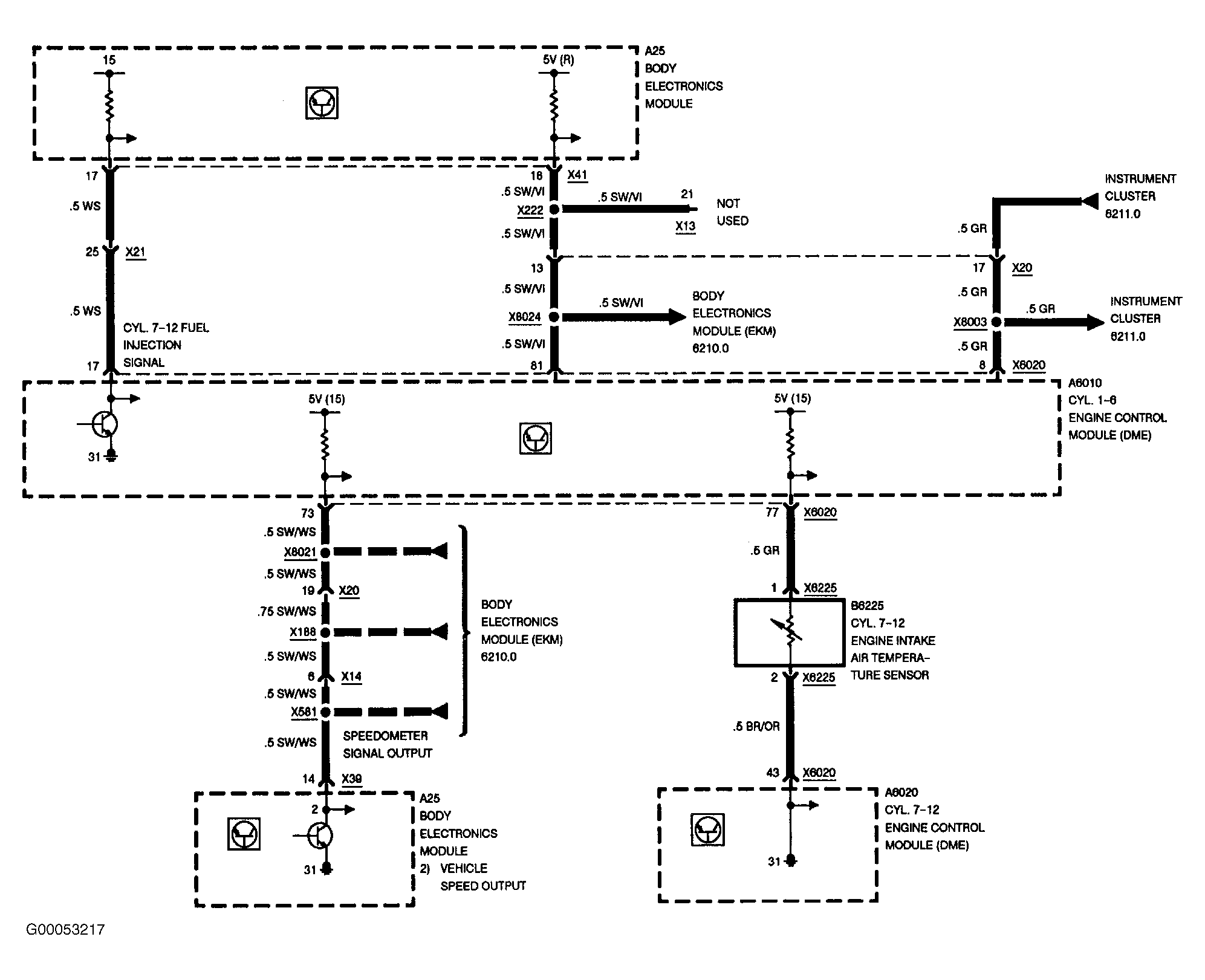

Fig 8: Cylinders 7-12 - DME M1.7 - Engine Control Module (8 Of 8)

Courtesy of BMW OF NORTH AMERICA, INC.
