Pin Assignments

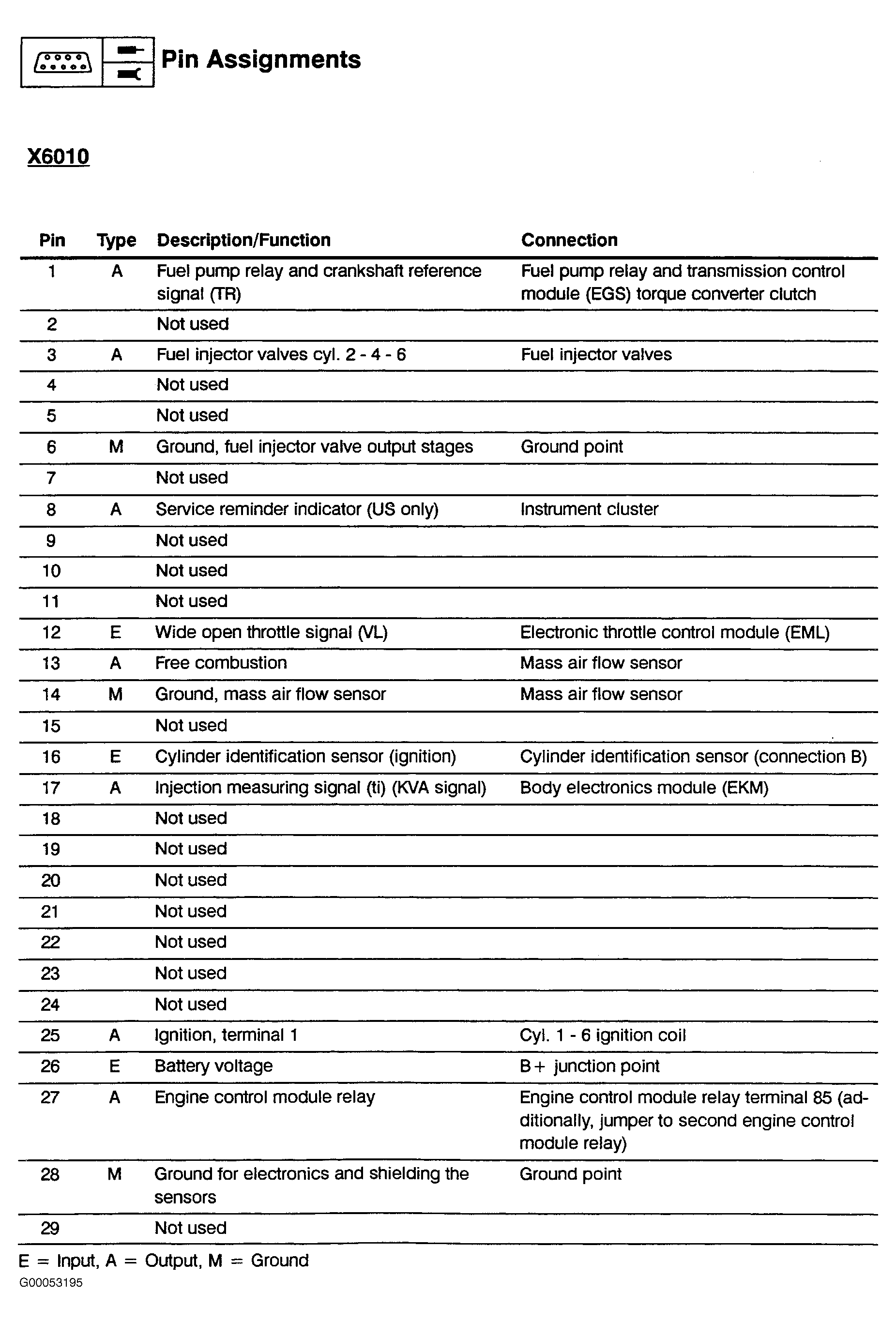

Fig 1: Pin Assignments - DME M1.7 - Cylinders 1-6 (1 Of 3)
G00053195Courtesy of BMW OF NORTH AMERICA, INC.

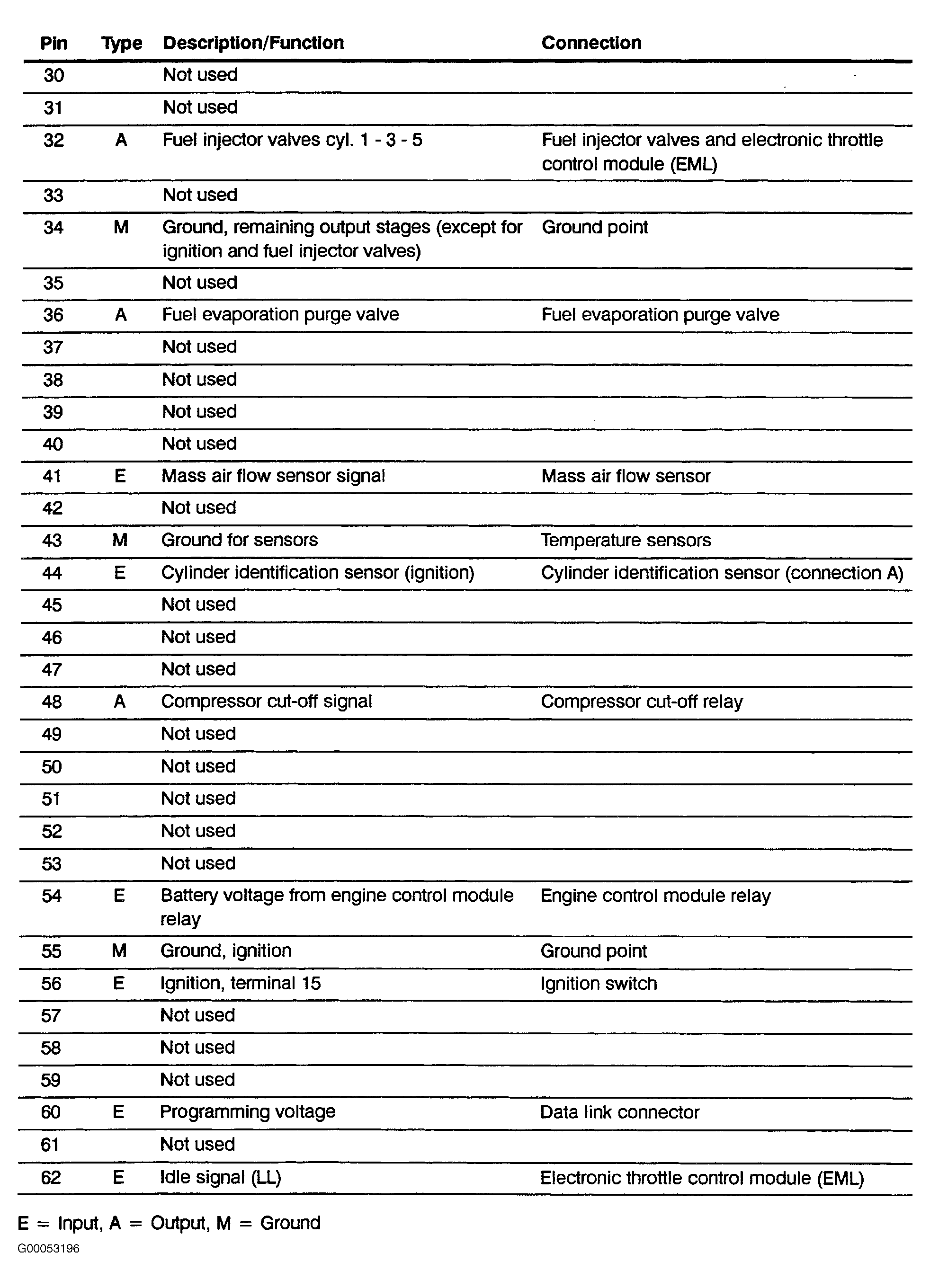

Fig 2: Pin Assignments - DME M1.7 - Cylinders 1-6 (2 Of 3)
G00053196Courtesy of BMW OF NORTH AMERICA, INC.

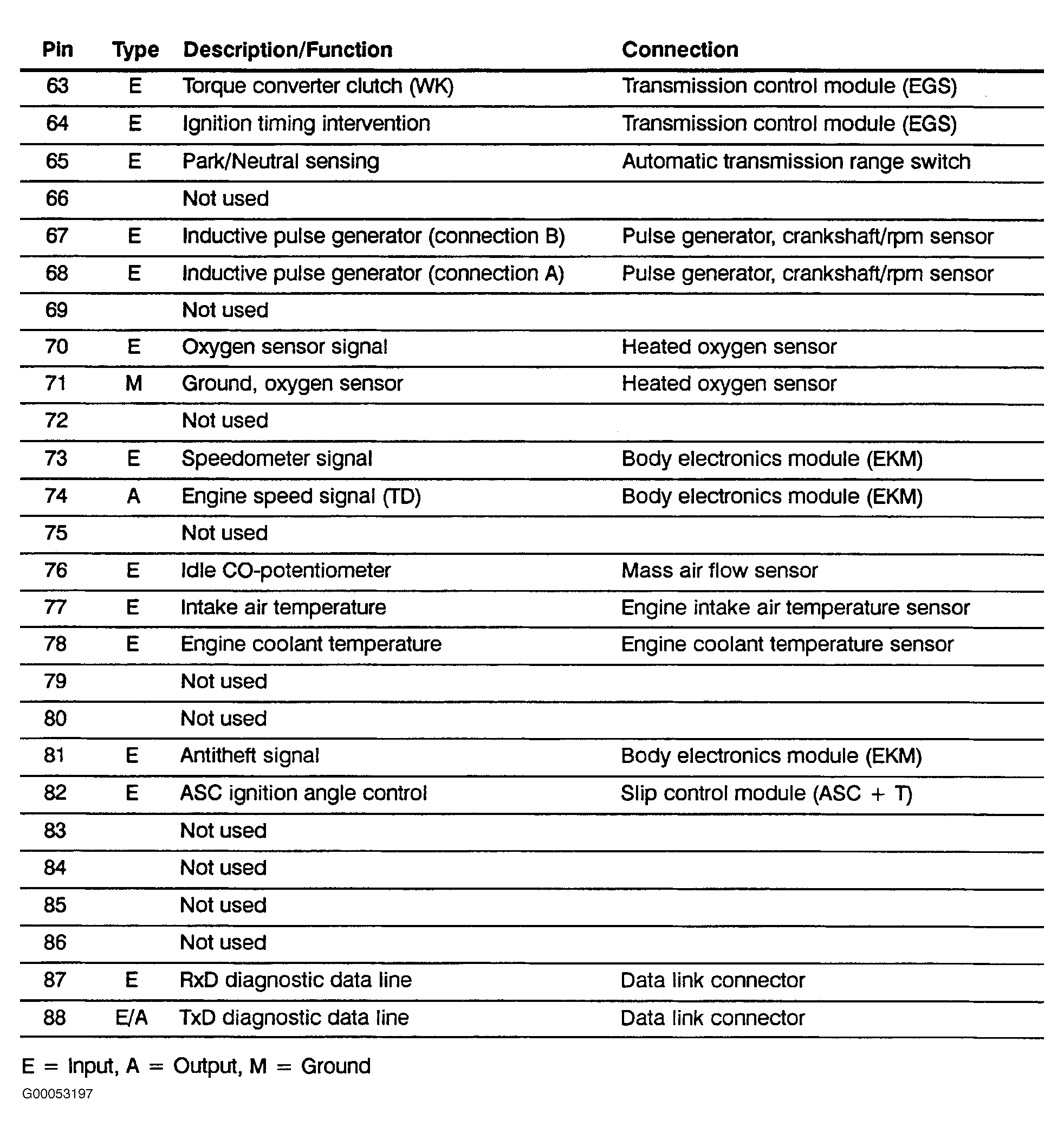

Fig 3: Pin Assignments - DME M1.7 - Cylinders 1-6 (3 Of 3)
G00053197Courtesy of BMW OF NORTH AMERICA, INC.
