DME M1.7 - 12-Cylinder M70 - Cylinders 1-6: Notes

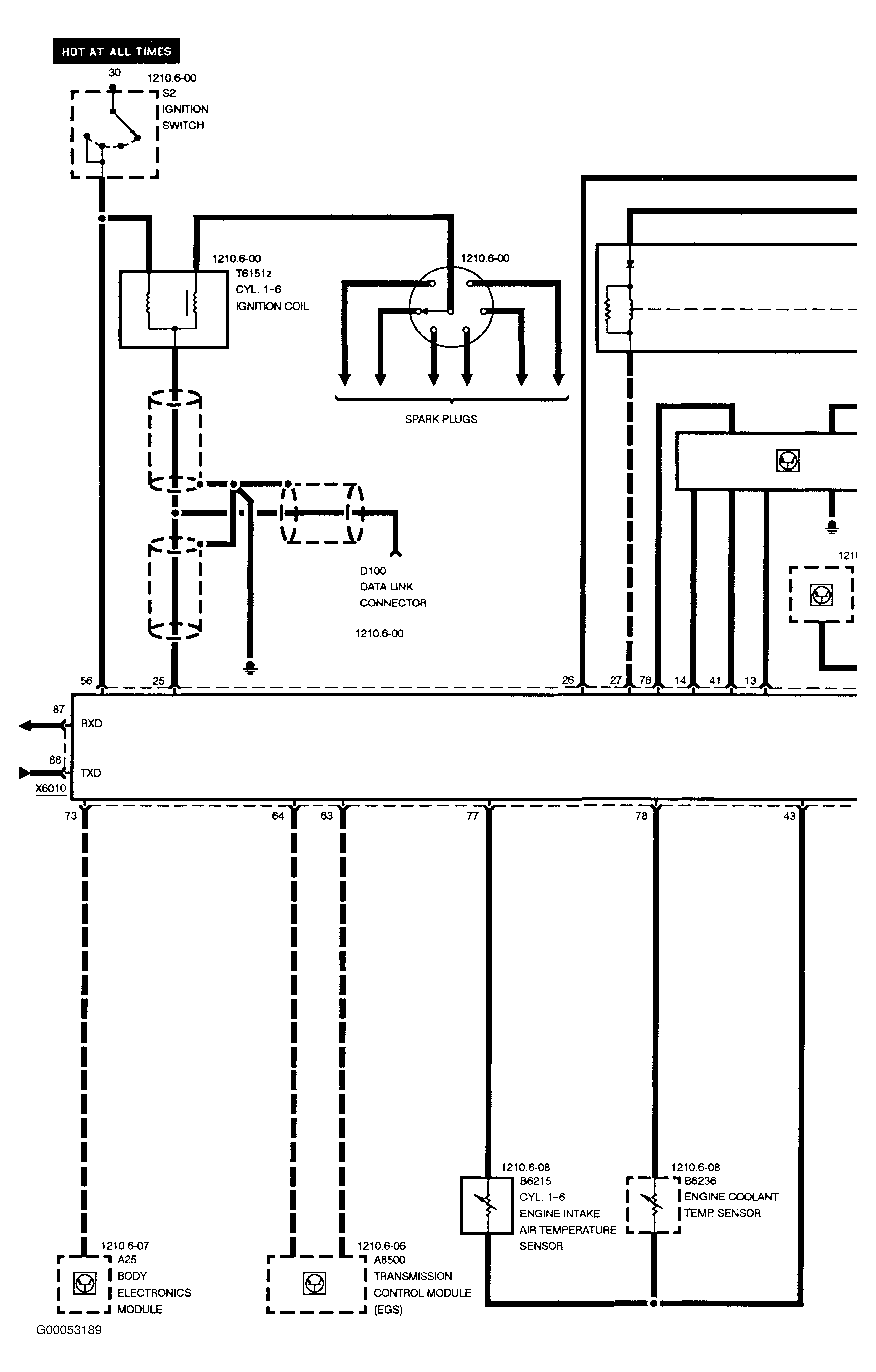

Fig 1: DME M1.7 - Cylinders 1-6 M70 (1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

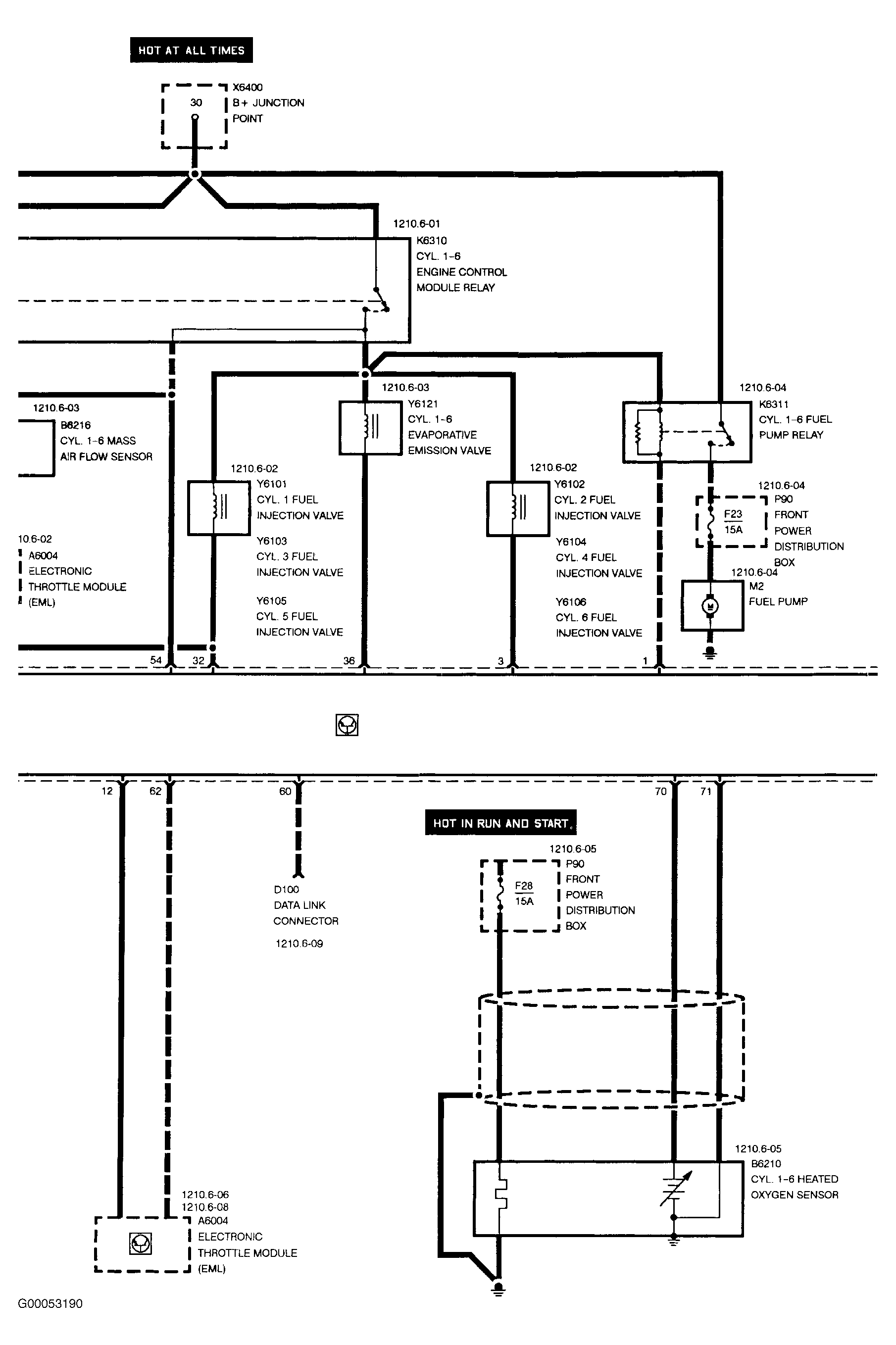

Fig 2: DME M1.7 - Cylinders 1-6 M70 (2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

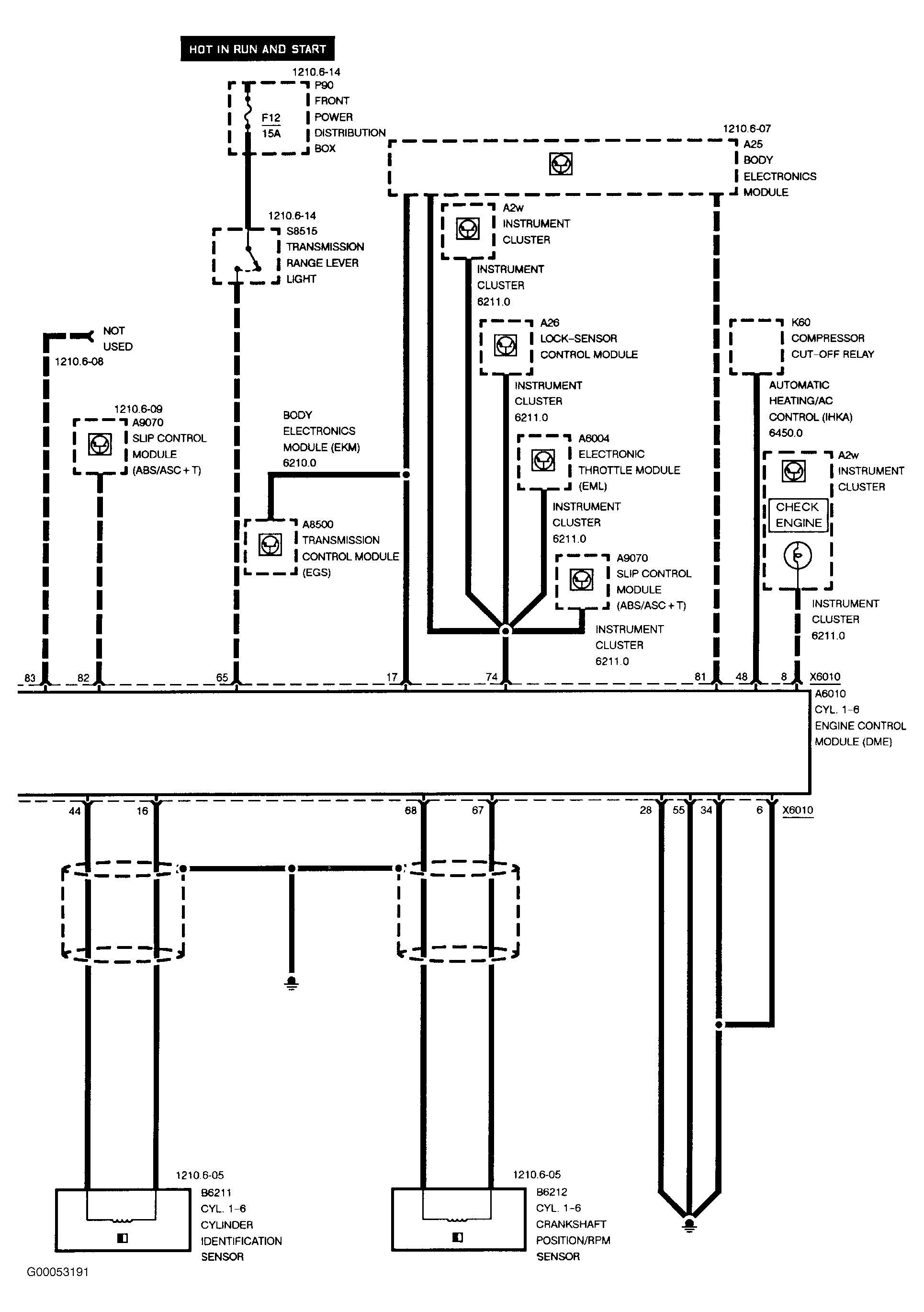

Fig 3: DME M1.7 - Cylinders 1-6 M70 (3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.
