Cylinders 1-6 - DME M1.7 - Engine Control Module

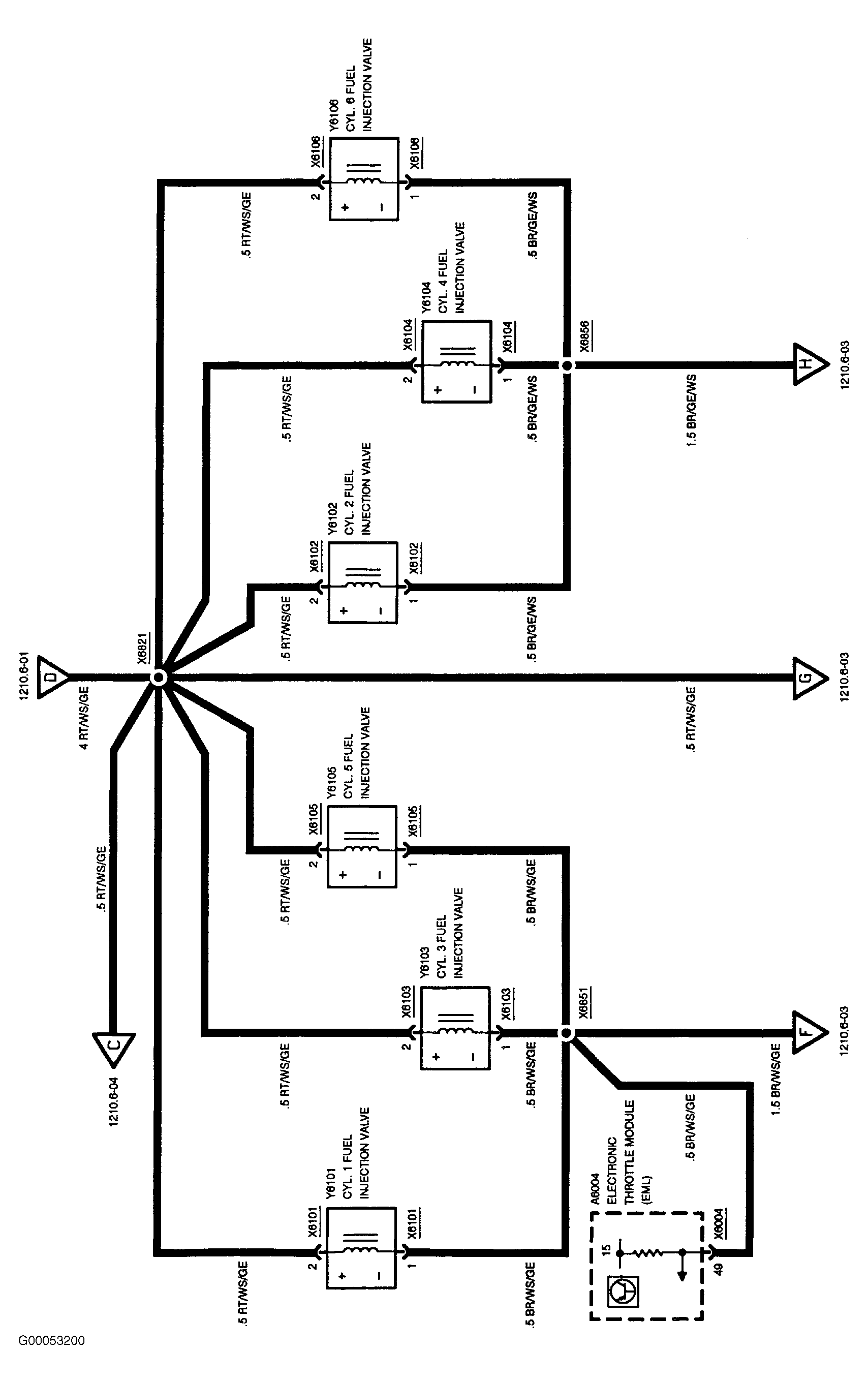

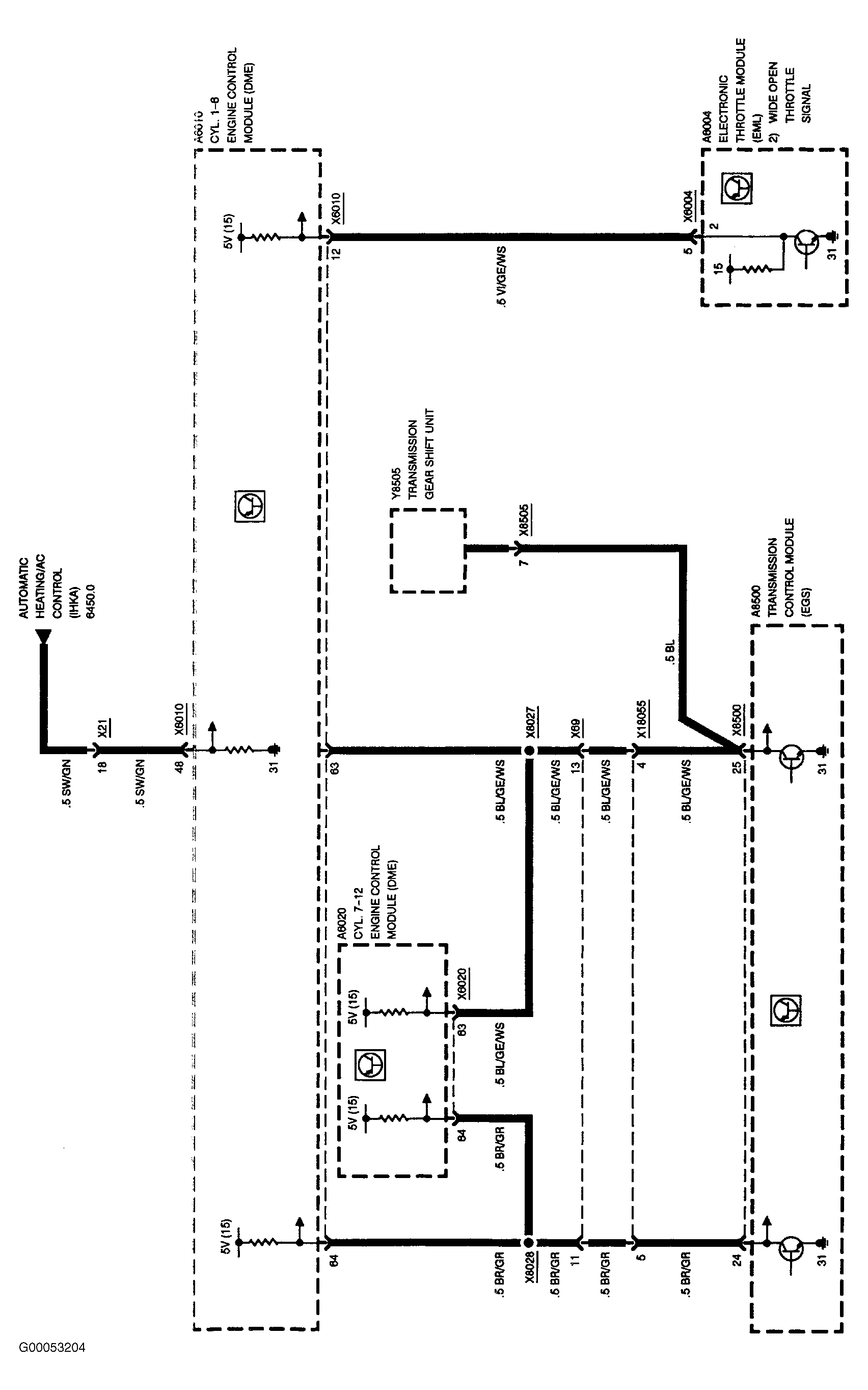

Fig 1: Cylinders 1-6 - DME M1.7 - Engine Control Module (1 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

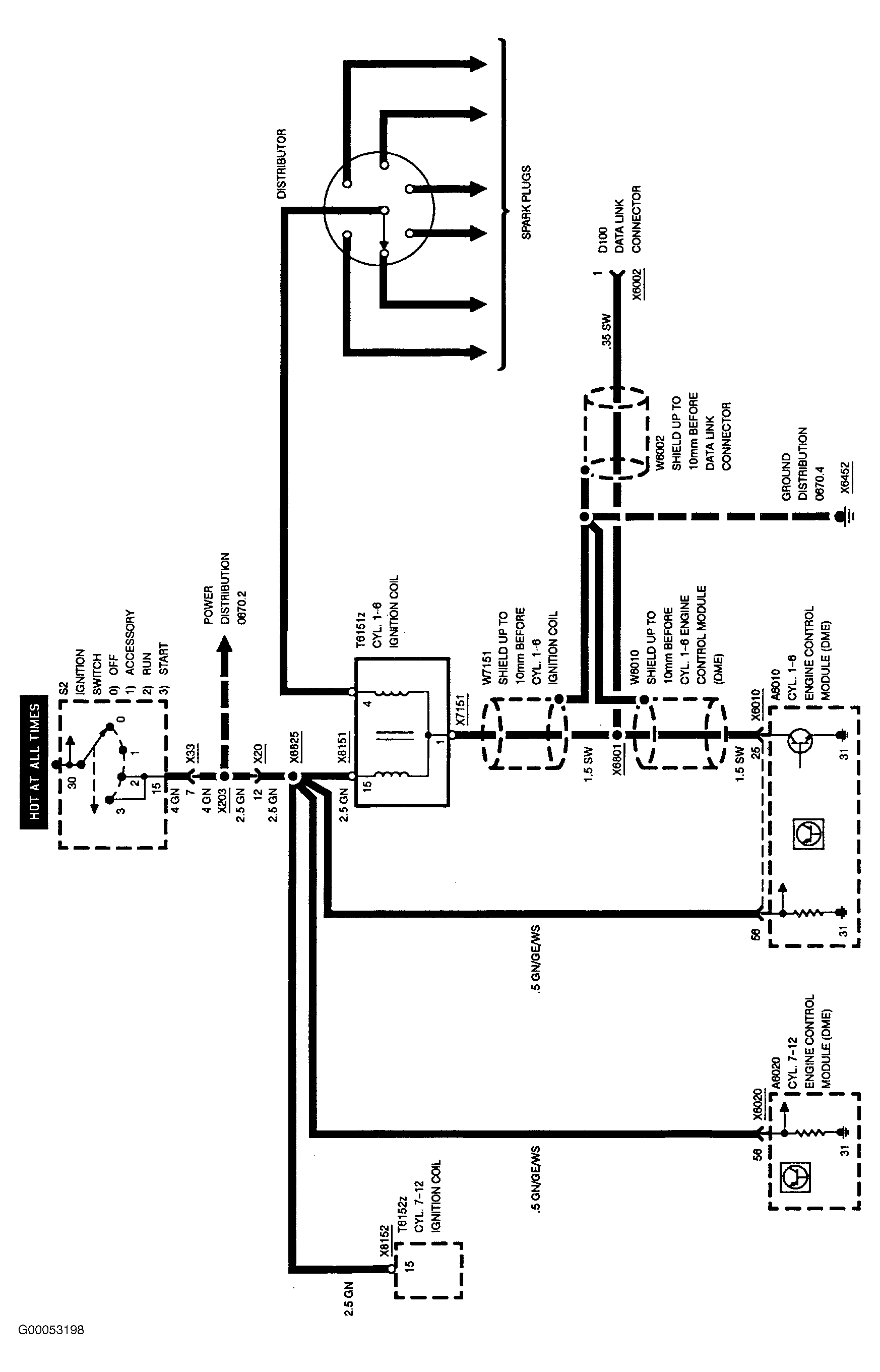

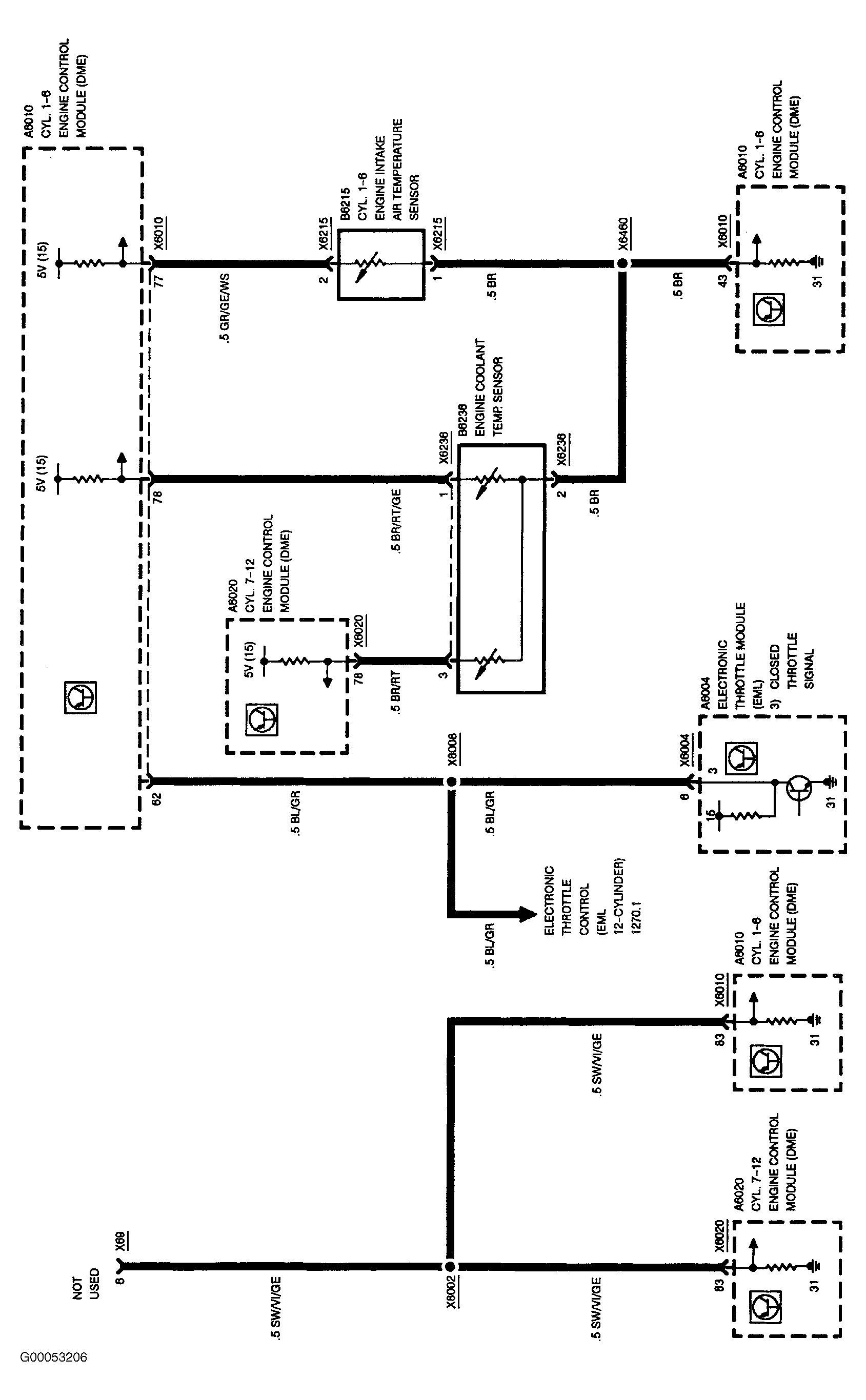

Fig 2: Cylinders 1-6 - DME M1.7 - Engine Control Module (2 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

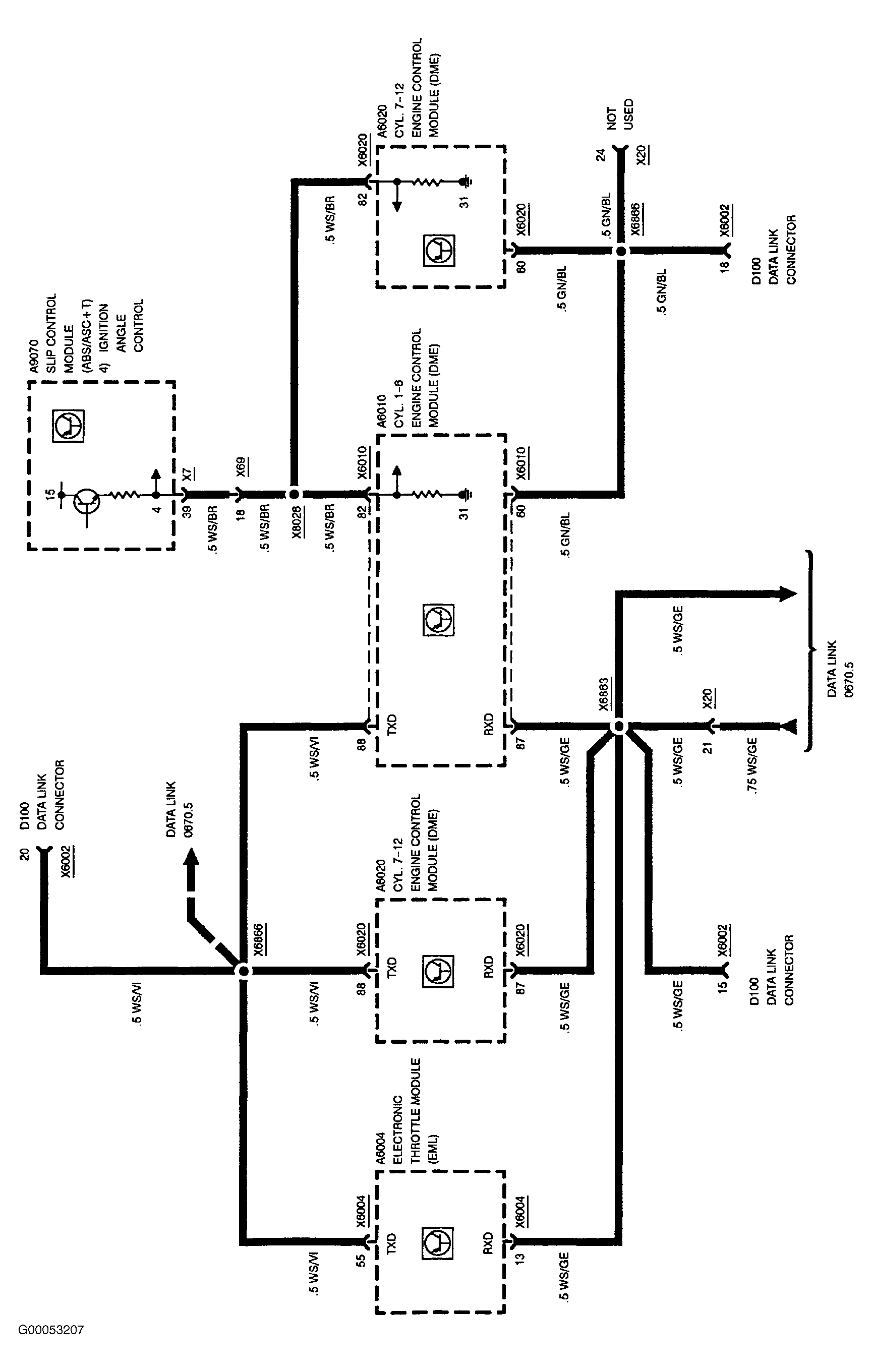

Fig 3: Cylinders 1-6 - DME M1.7 - Engine Control Module (3 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

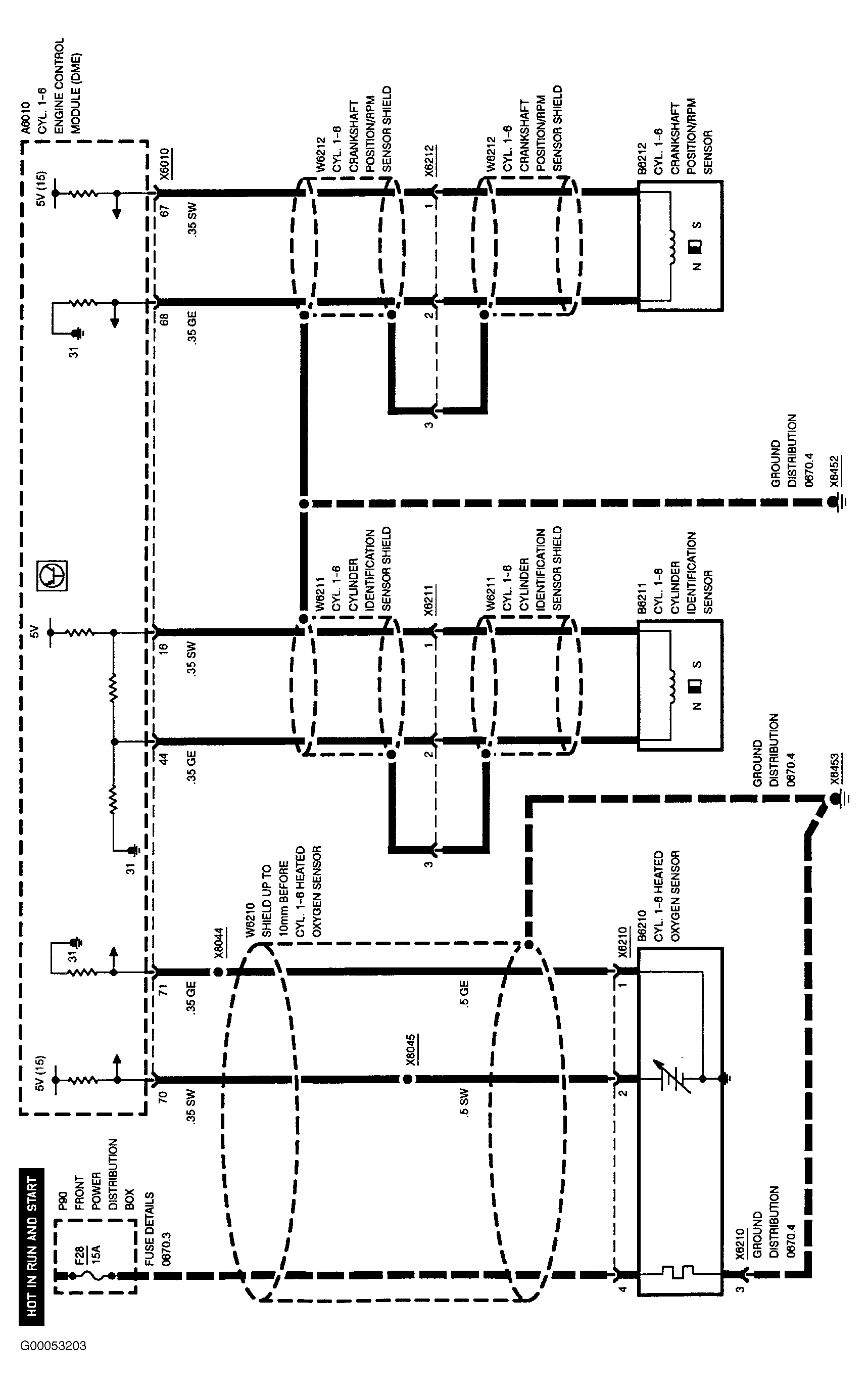

Fig 4: Cylinders 1-6 - DME M1.7 - Engine Control Module (4 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

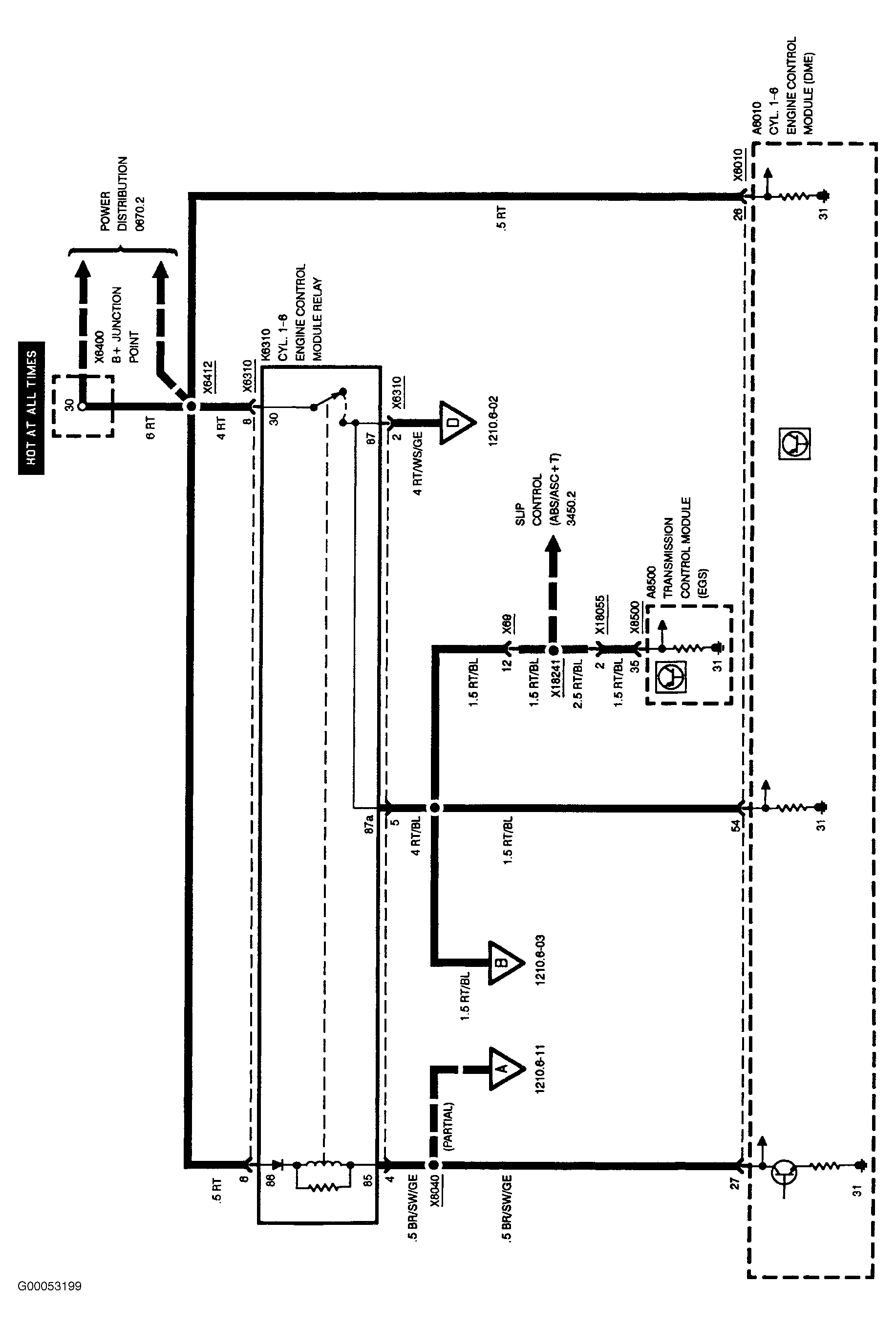

Fig 5: Cylinders 1-6 - DME M1.7 - Engine Control Module (5 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

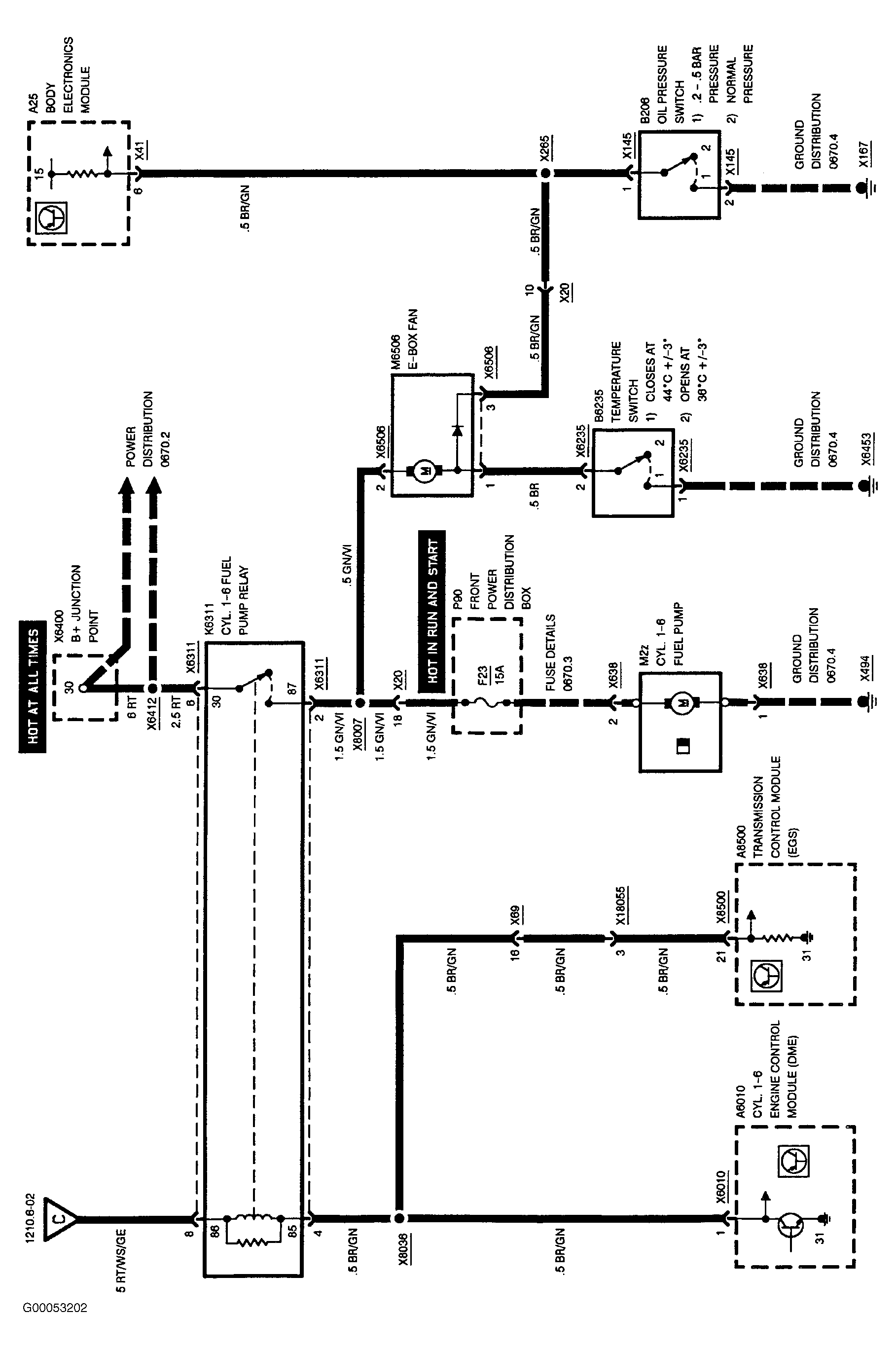

Fig 6: Cylinders 1-6 - DME M1.7 - Engine Control Module (6 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

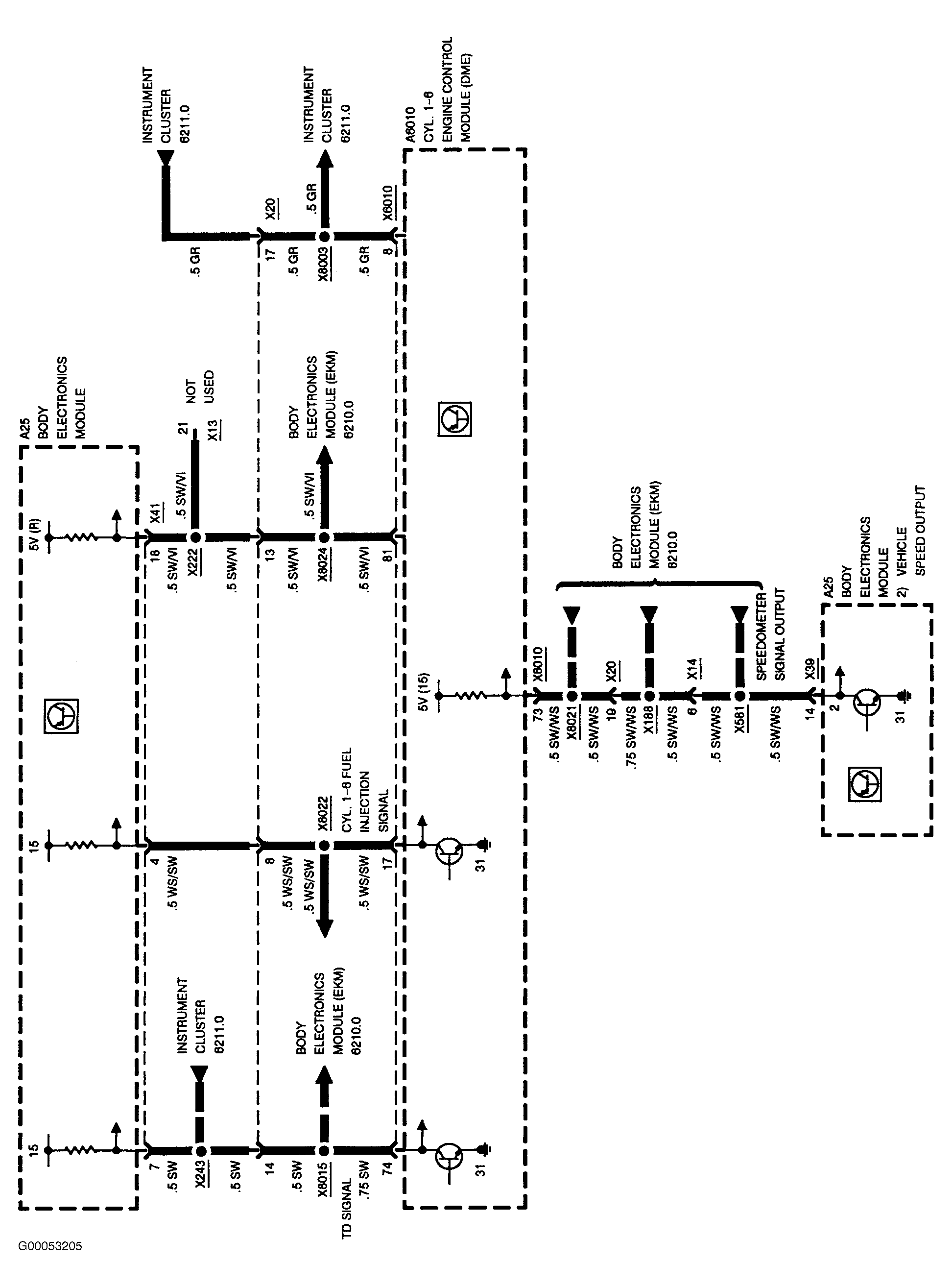

Fig 7: Cylinders 1-6 - DME M1.7 - Engine Control Module (7 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

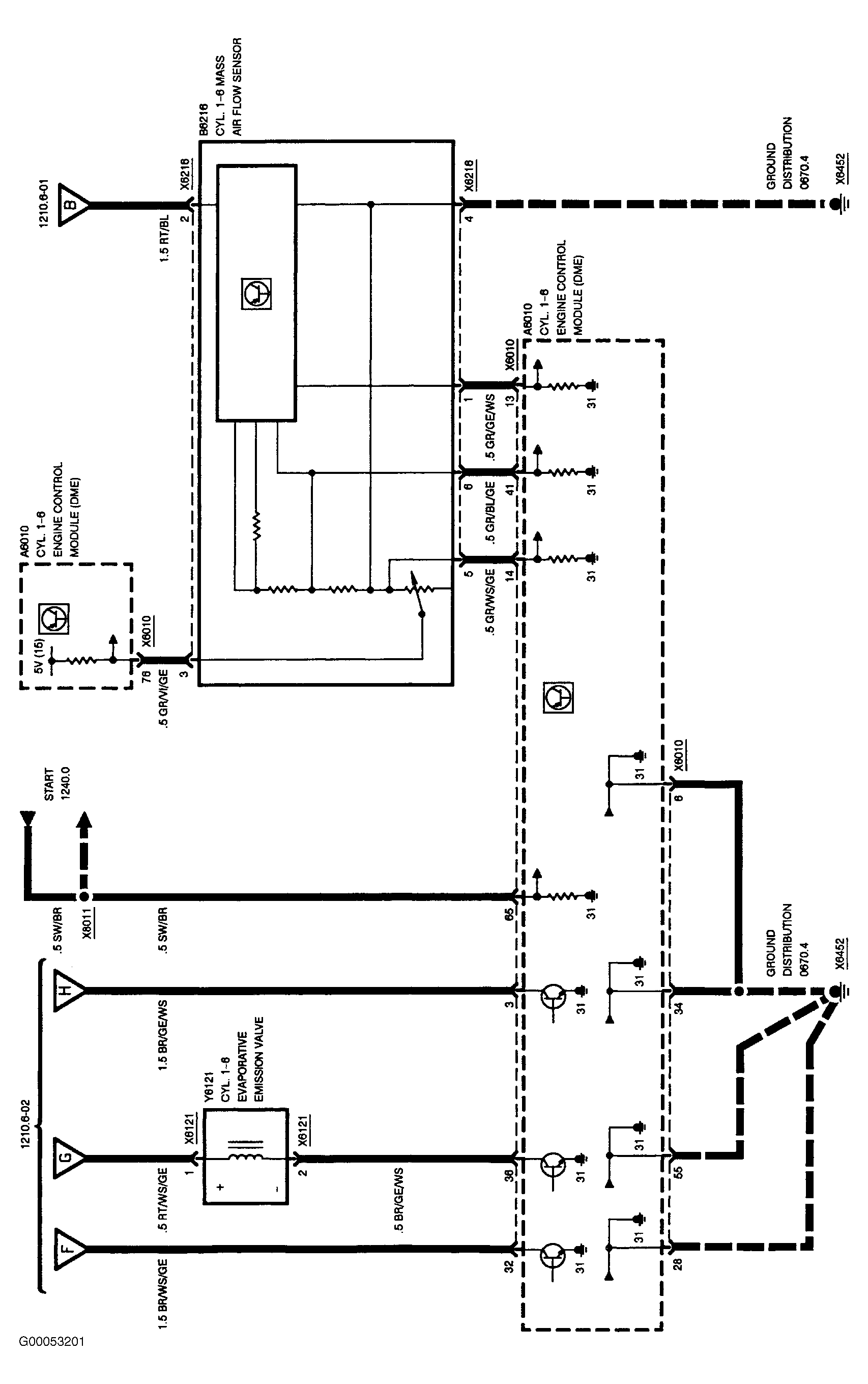

Fig 8: Cylinders 1-6 - DME M1.7 - Engine Control Module (8 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 9: Cylinders 1-6 - DME M1.7 - Engine Control Module (9 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 10: Cylinders 1-6 - DME M1.7 - Engine Control Module (10 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.
