EML Interface

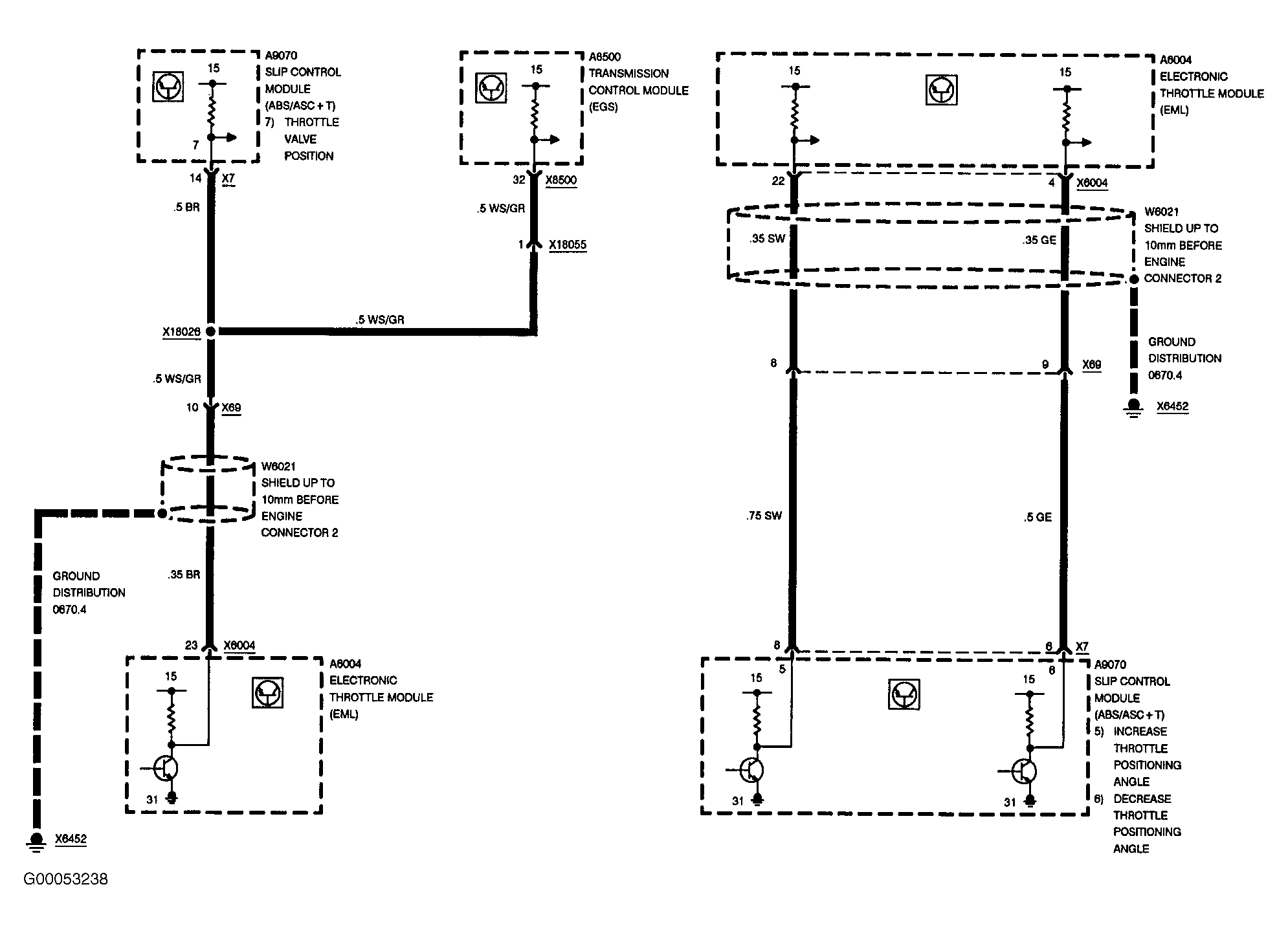

Fig 1: Electronic Throttle Control - EML Interface

G00053238

Courtesy of BMW OF NORTH AMERICA, INC.
