Pin Assignments

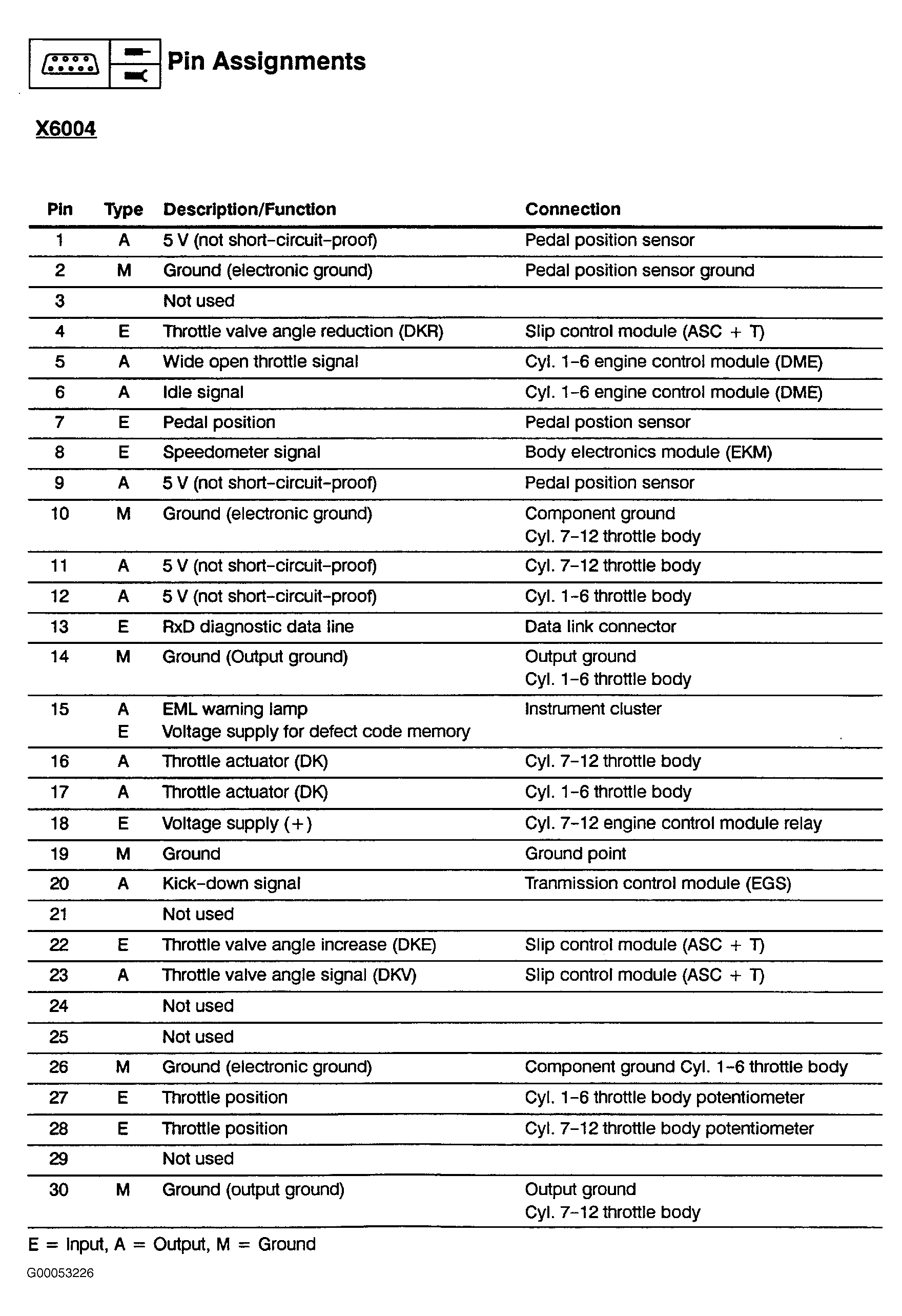

Fig 1: Electronic Throttle Control - Pin Assignments (1 Of 2)
G00053226Courtesy of BMW OF NORTH AMERICA, INC.

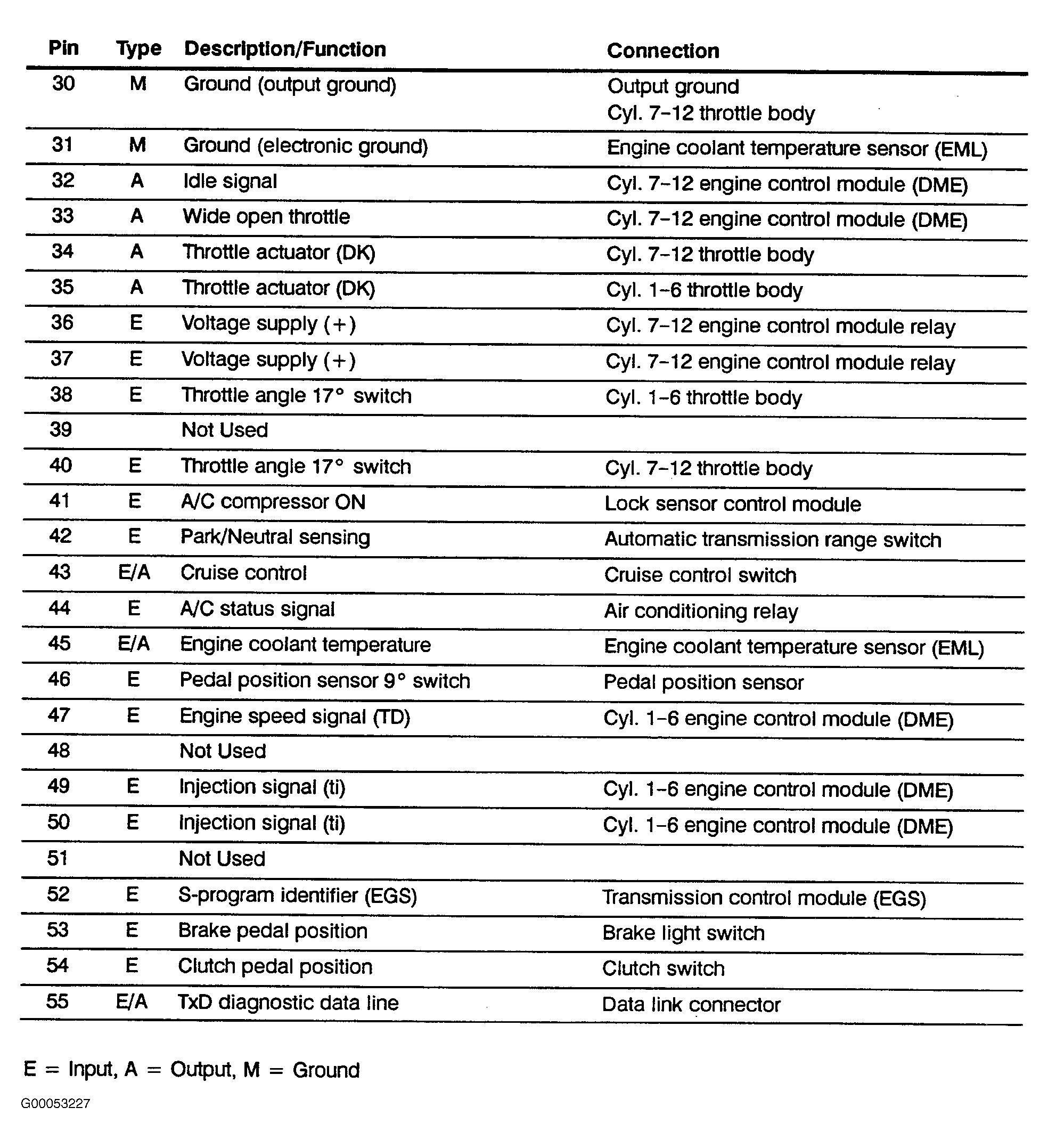

Fig 2: Electronic Throttle Control - Pin Assignments (2 Of 2)
G00053227Courtesy of BMW OF NORTH AMERICA, INC.
