EML 12-Cylinder: Notes

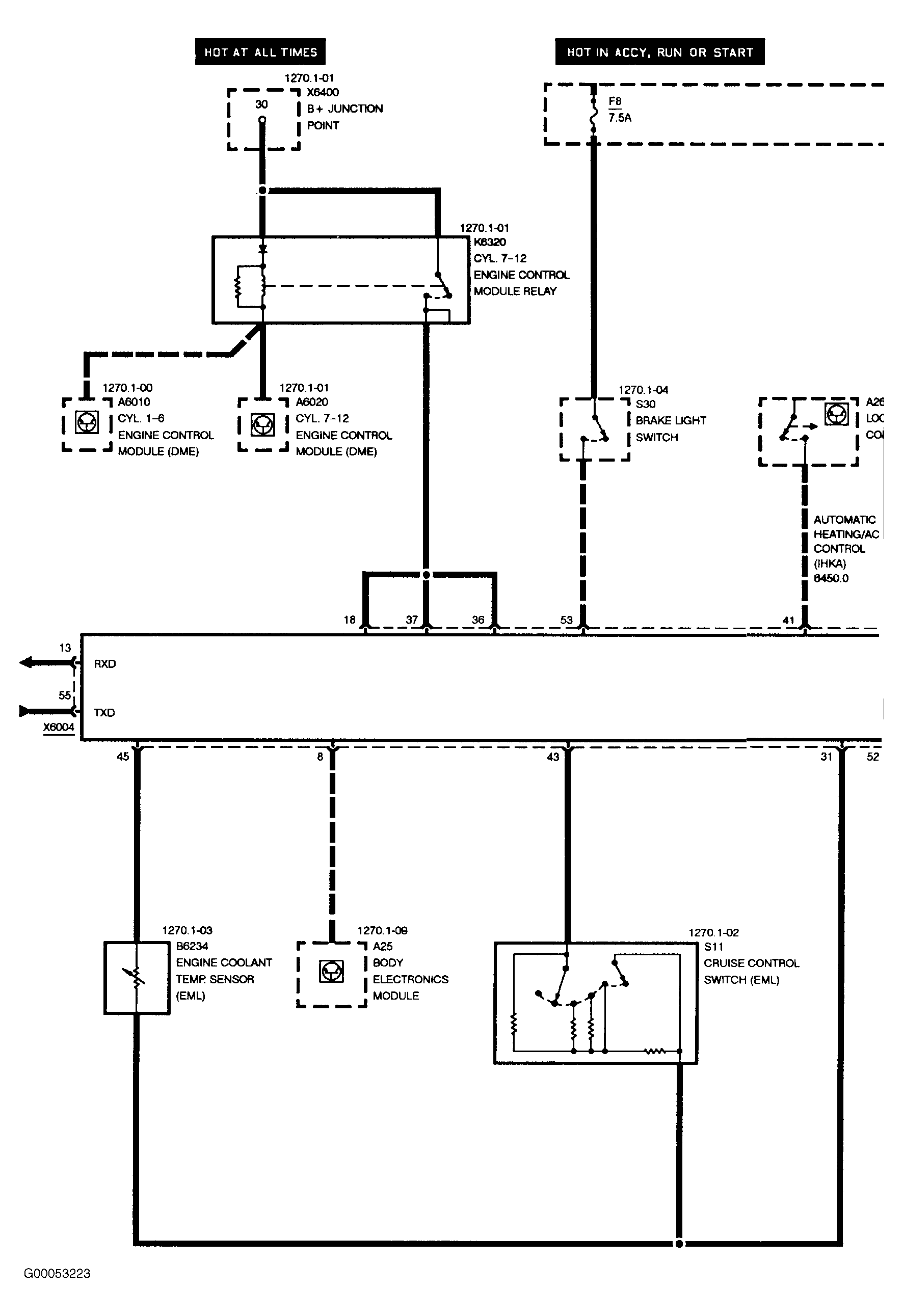

Fig 1: Electronic Throttle Control - EML 12-Cylinder (1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

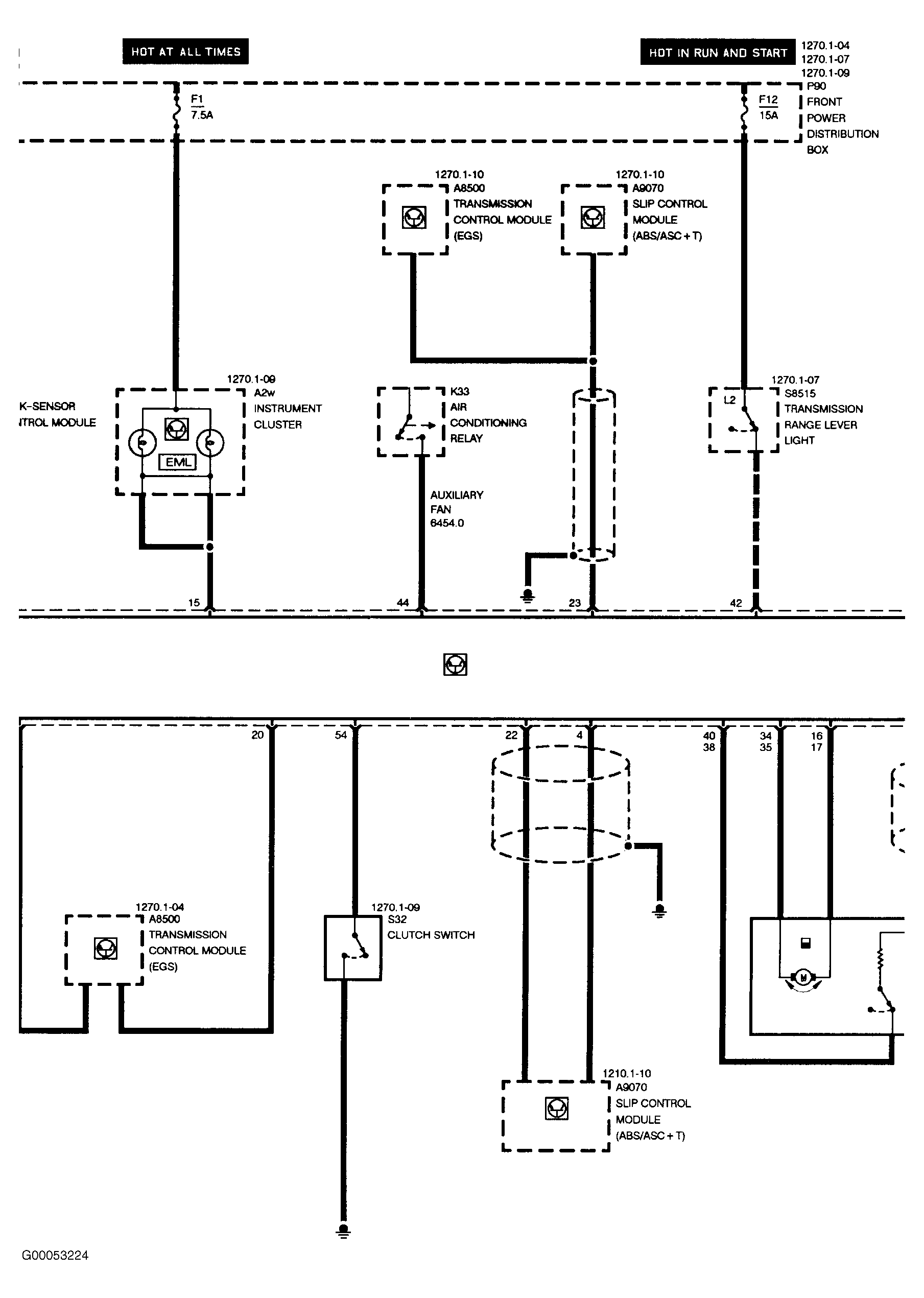

Fig 2: Electronic Throttle Control - EML 12-Cylinder (2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

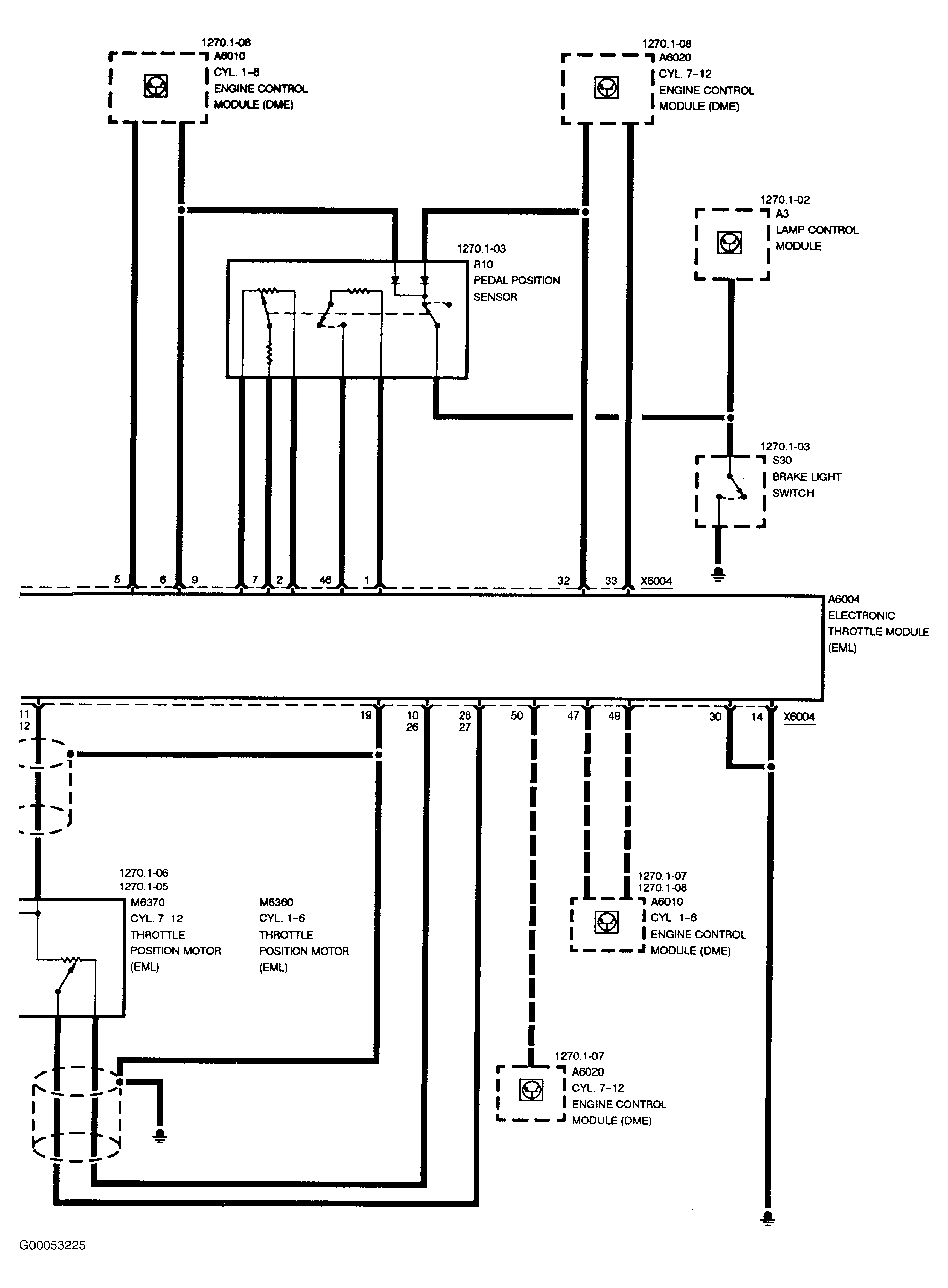

Fig 3: Electronic Throttle Control - EML 12-Cylinder (3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.
