Cylinder Diagrams

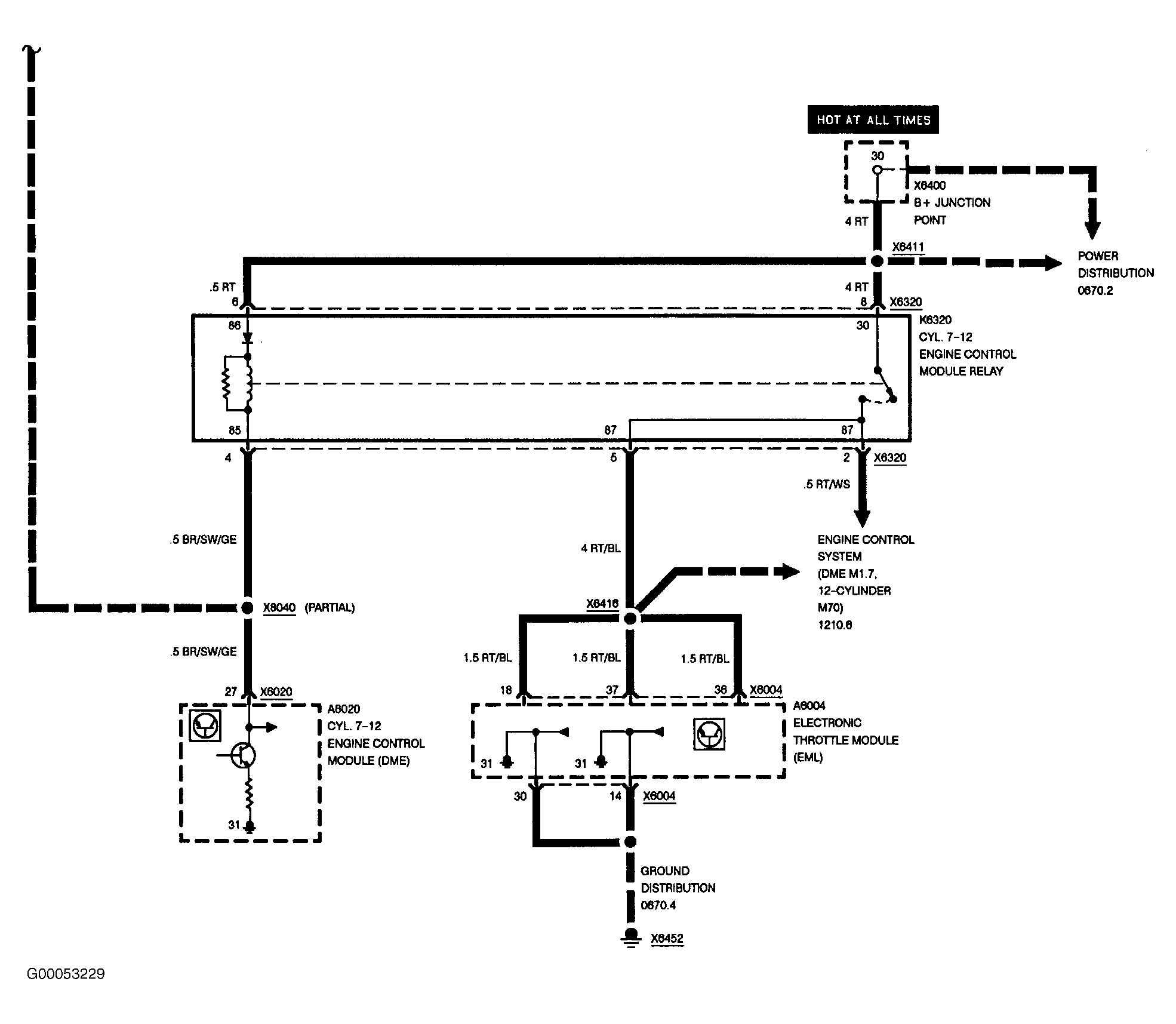

Fig 1: Electronic Throttle Control - EML 12-Cylinder (1 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

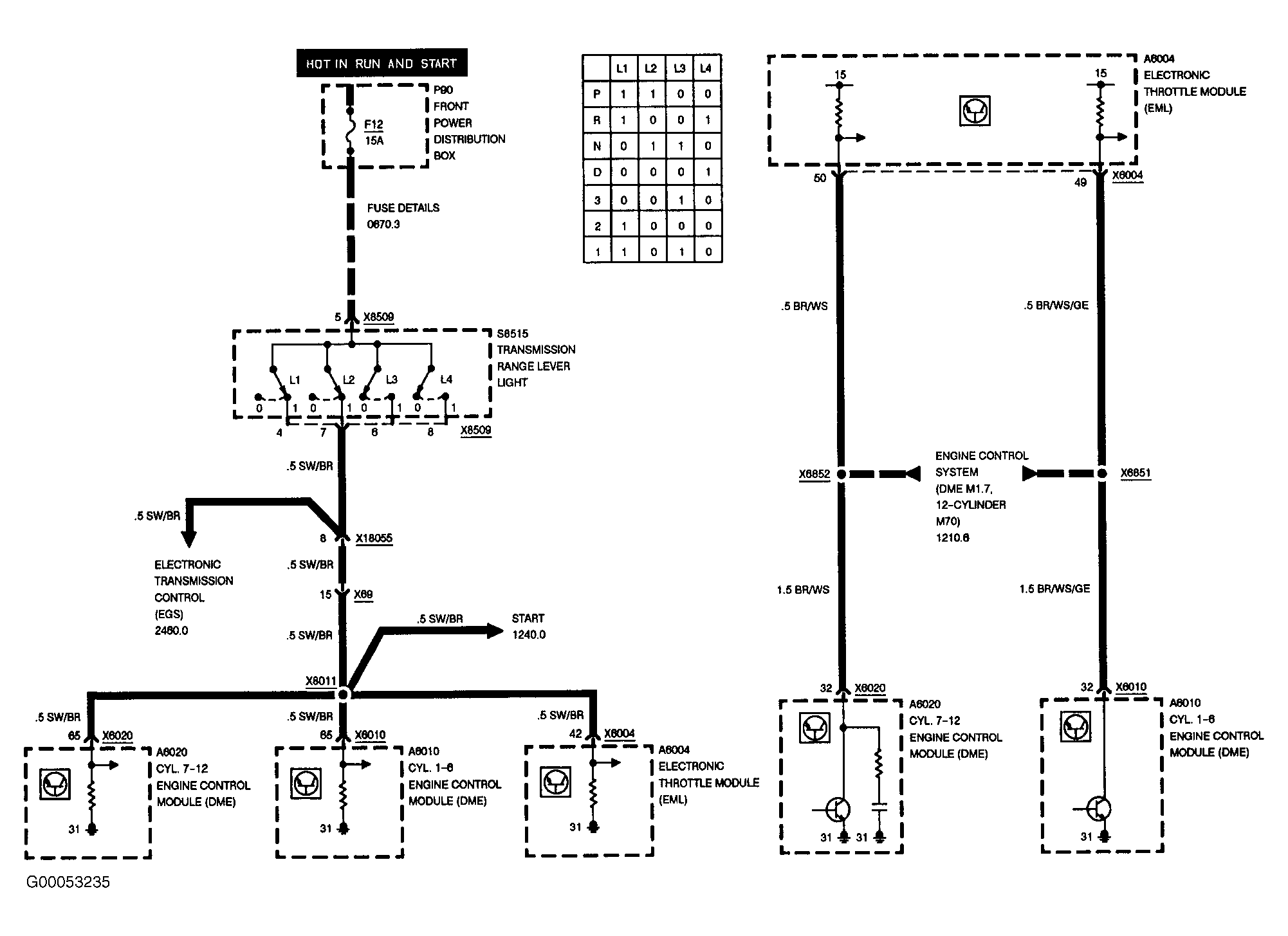

Fig 2: Electronic Throttle Control - EML 12-Cylinder (2 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

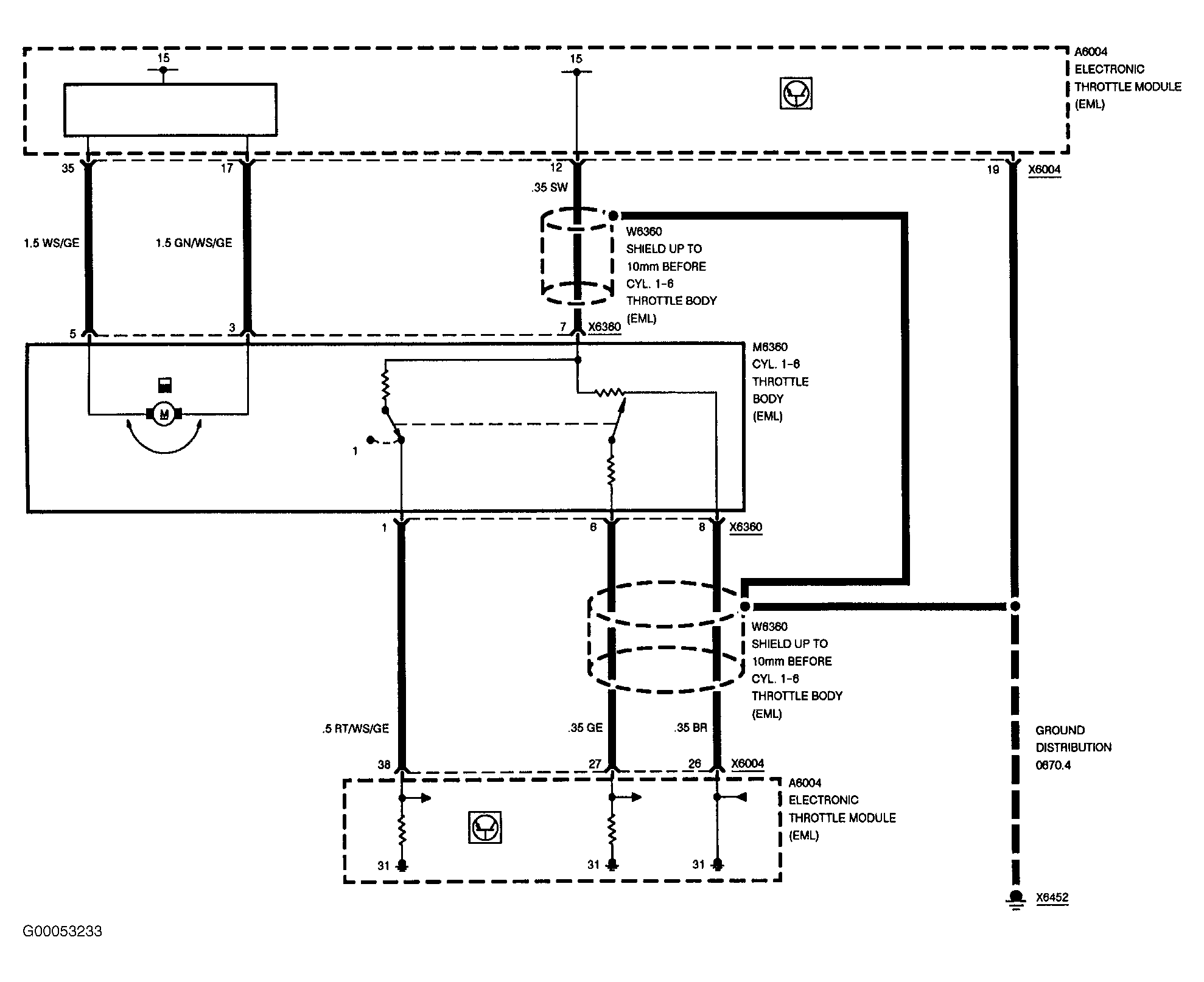

Fig 3: Electronic Throttle Control - EML 12-Cylinder (3 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

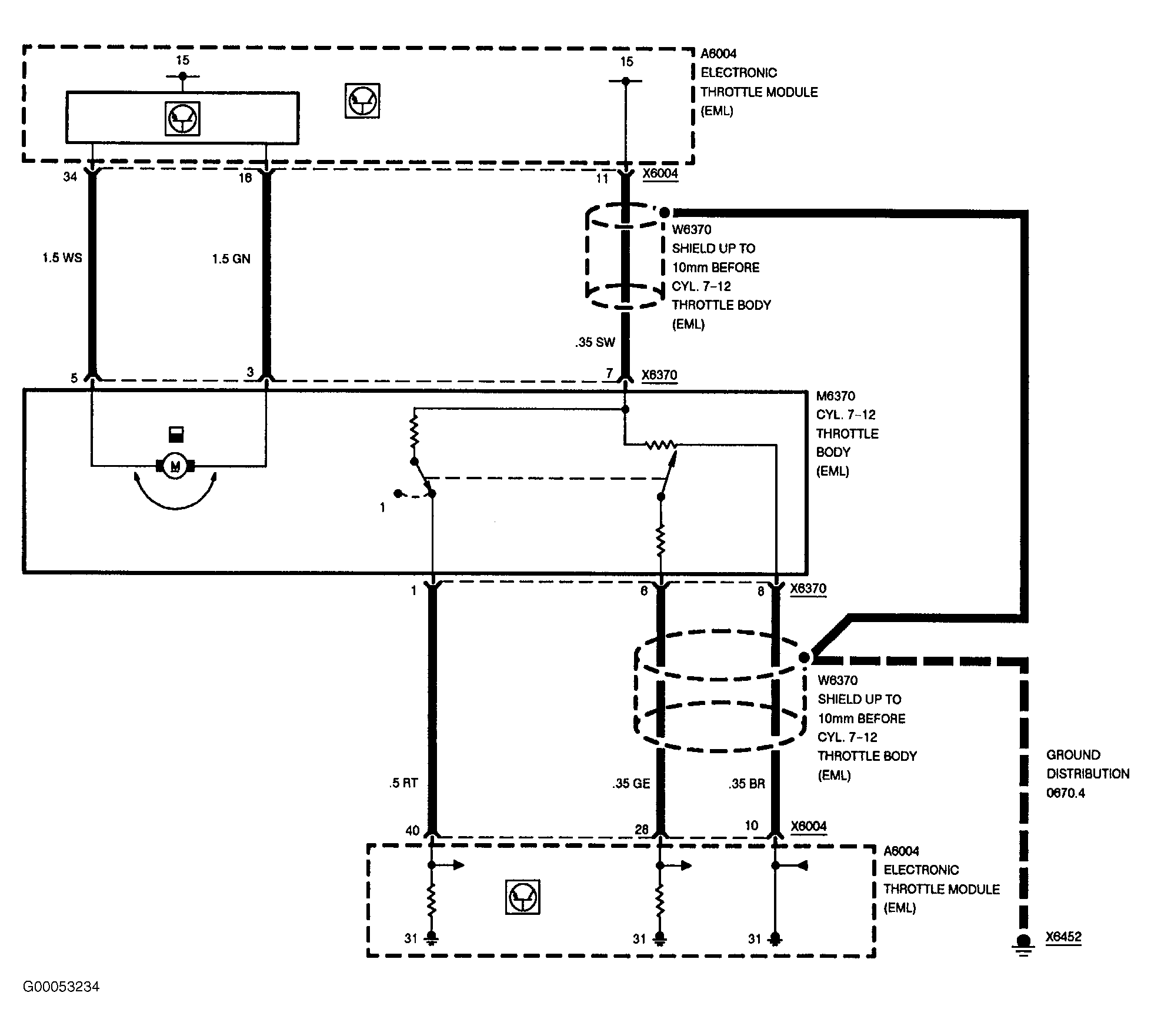

Fig 4: Electronic Throttle Control - EML 12-Cylinder (4 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

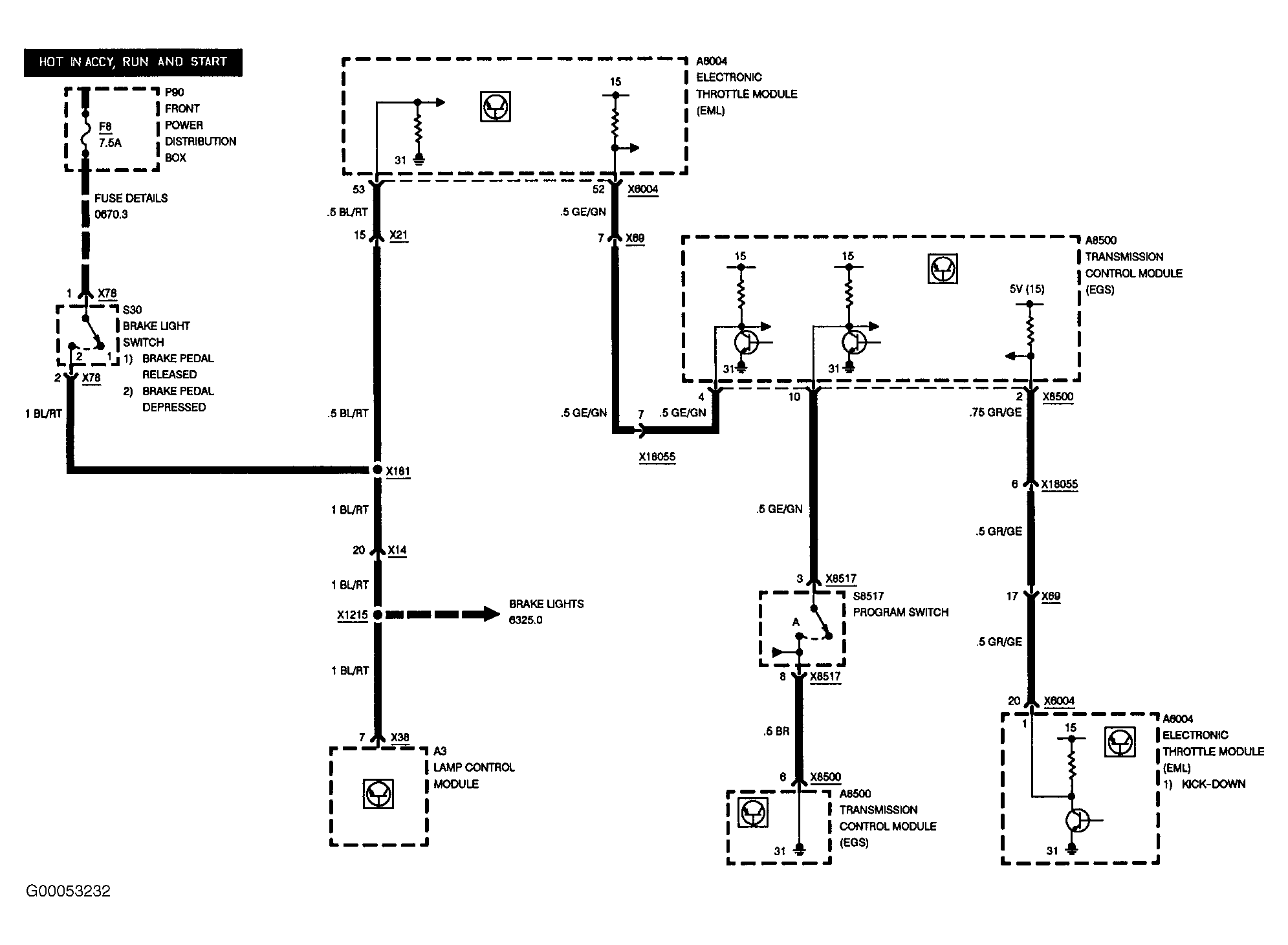

Fig 5: Electronic Throttle Control - EML 12-Cylinder (5 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

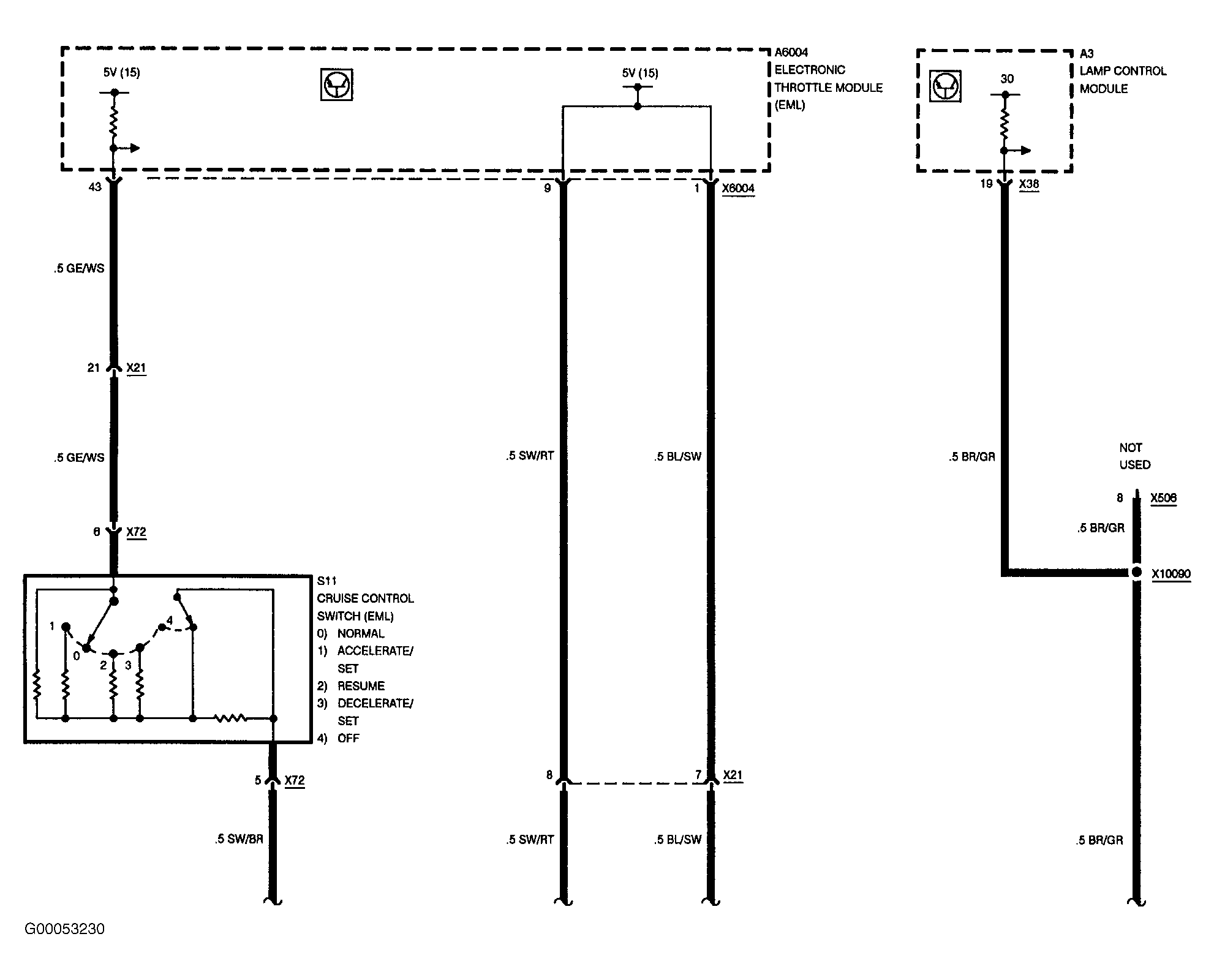

Fig 6: Electronic Throttle Control - EML 12-Cylinder (6 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

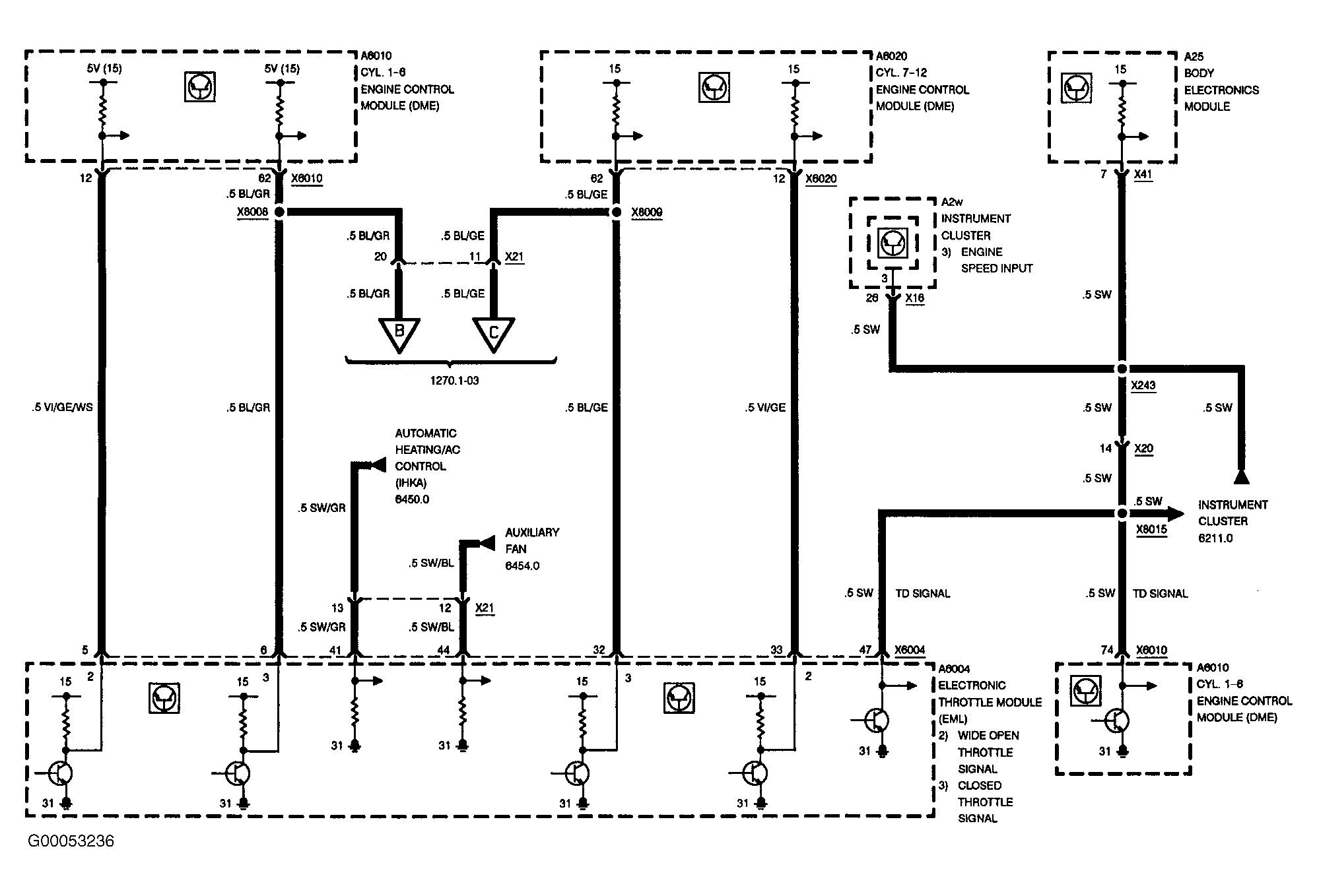

Fig 7: Electronic Throttle Control - EML 12-Cylinder (7 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

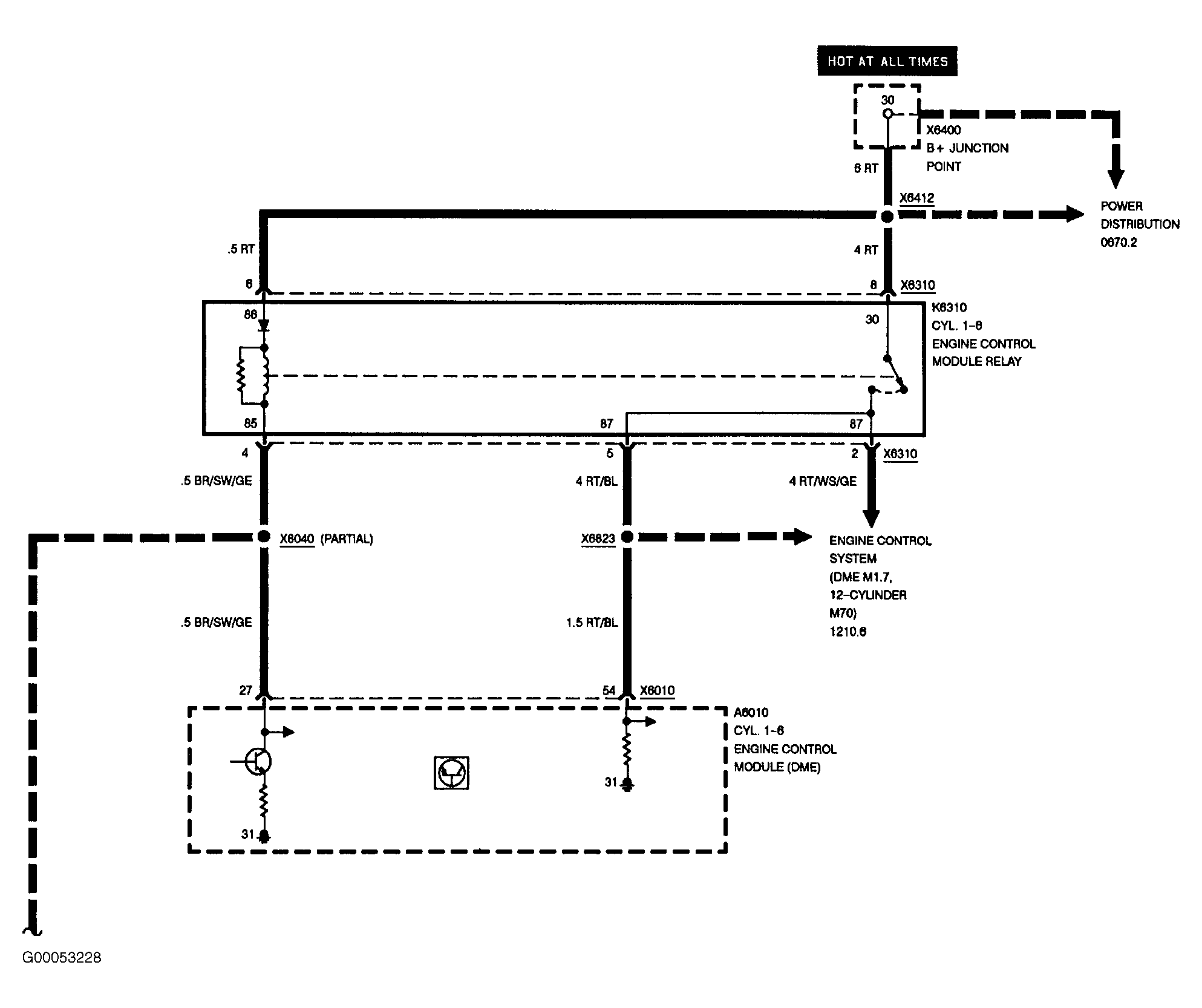

Fig 8: Electronic Throttle Control - EML 12-Cylinder (8 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

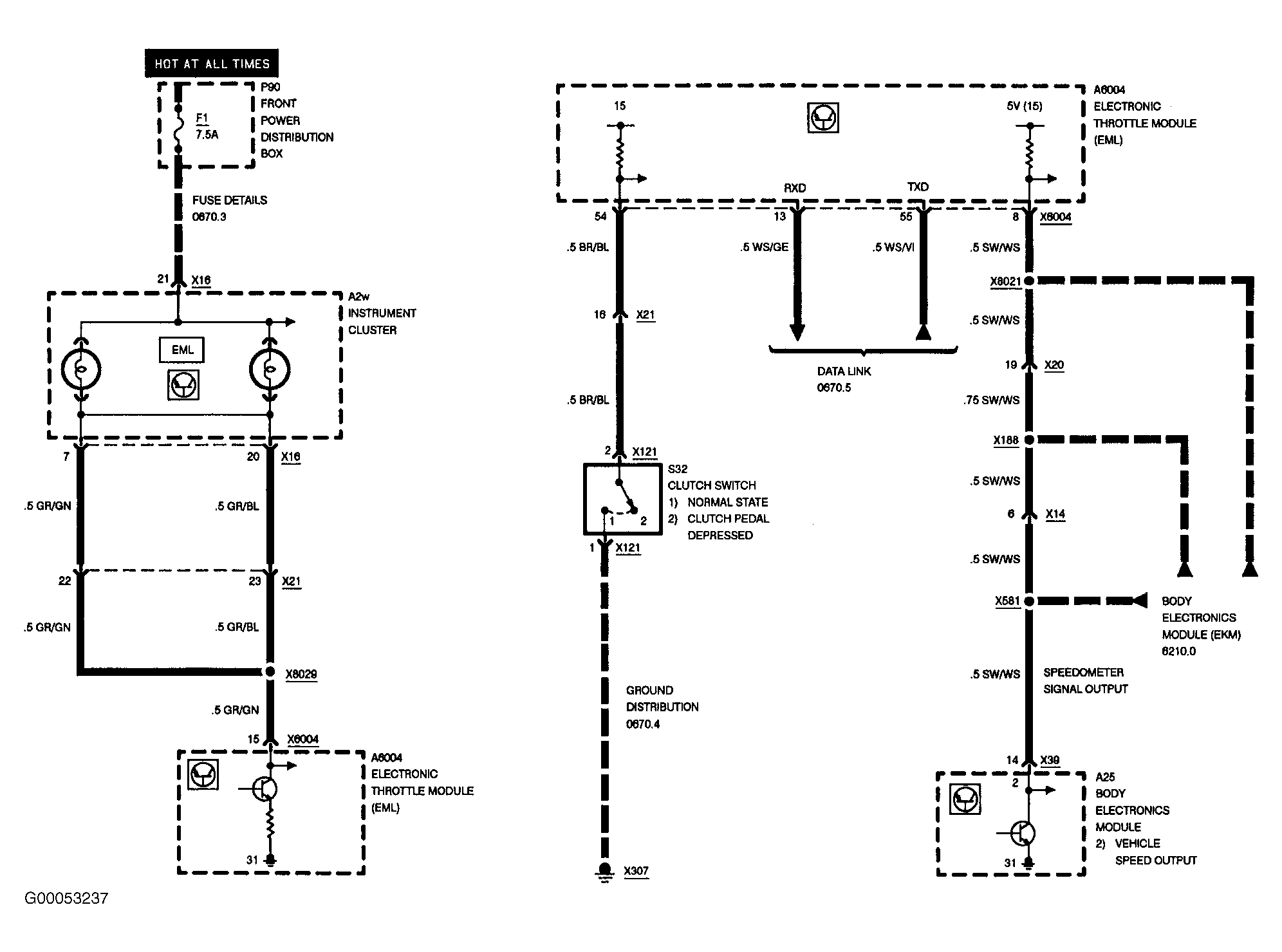

Fig 9: Electronic Throttle Control - EML 12-Cylinder (9 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.

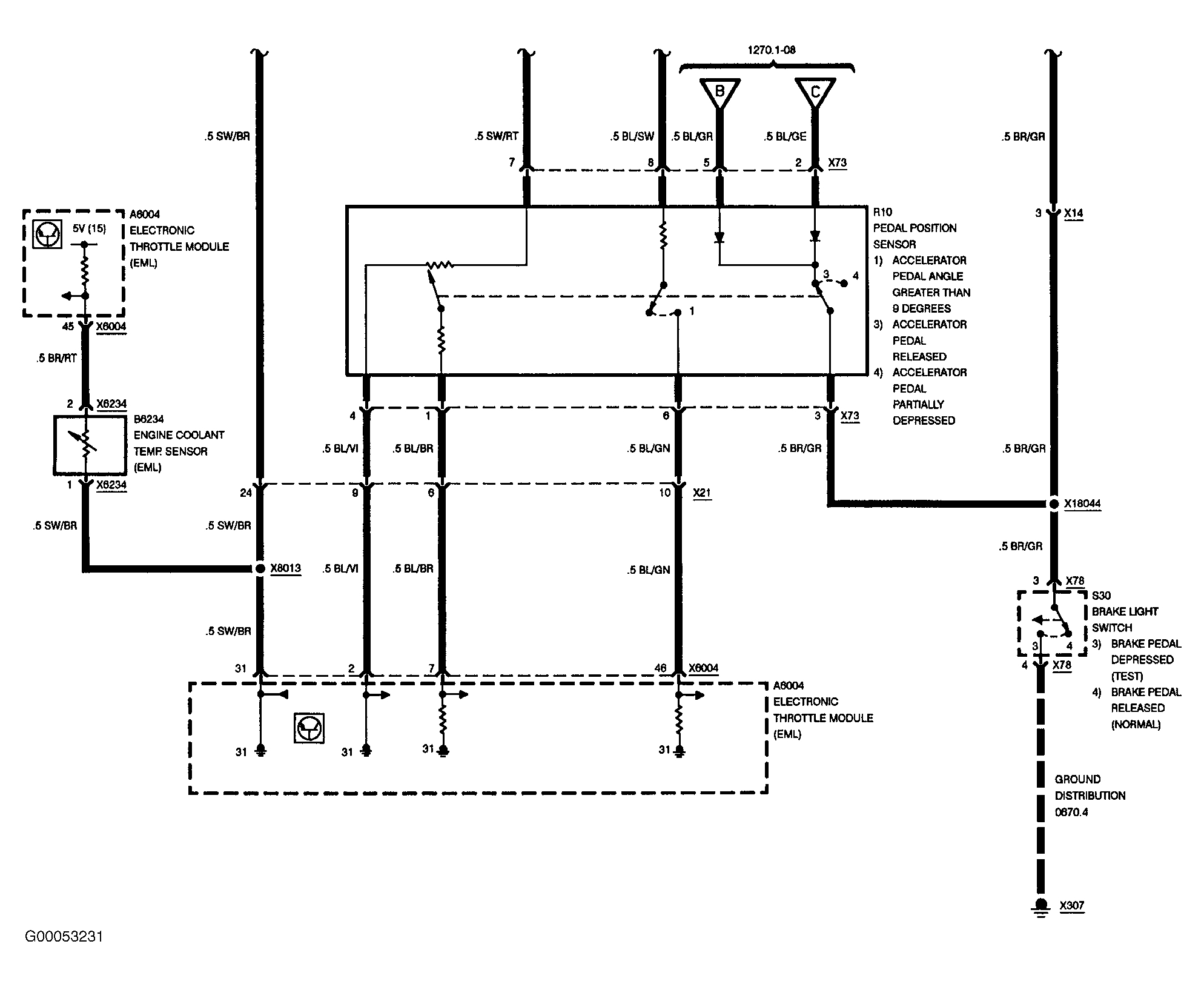

Fig 10: Electronic Throttle Control - EML 12-Cylinder (10 Of 10)

Courtesy of BMW OF NORTH AMERICA, INC.
