Electronic Shock Absorber Control (EDC III+)

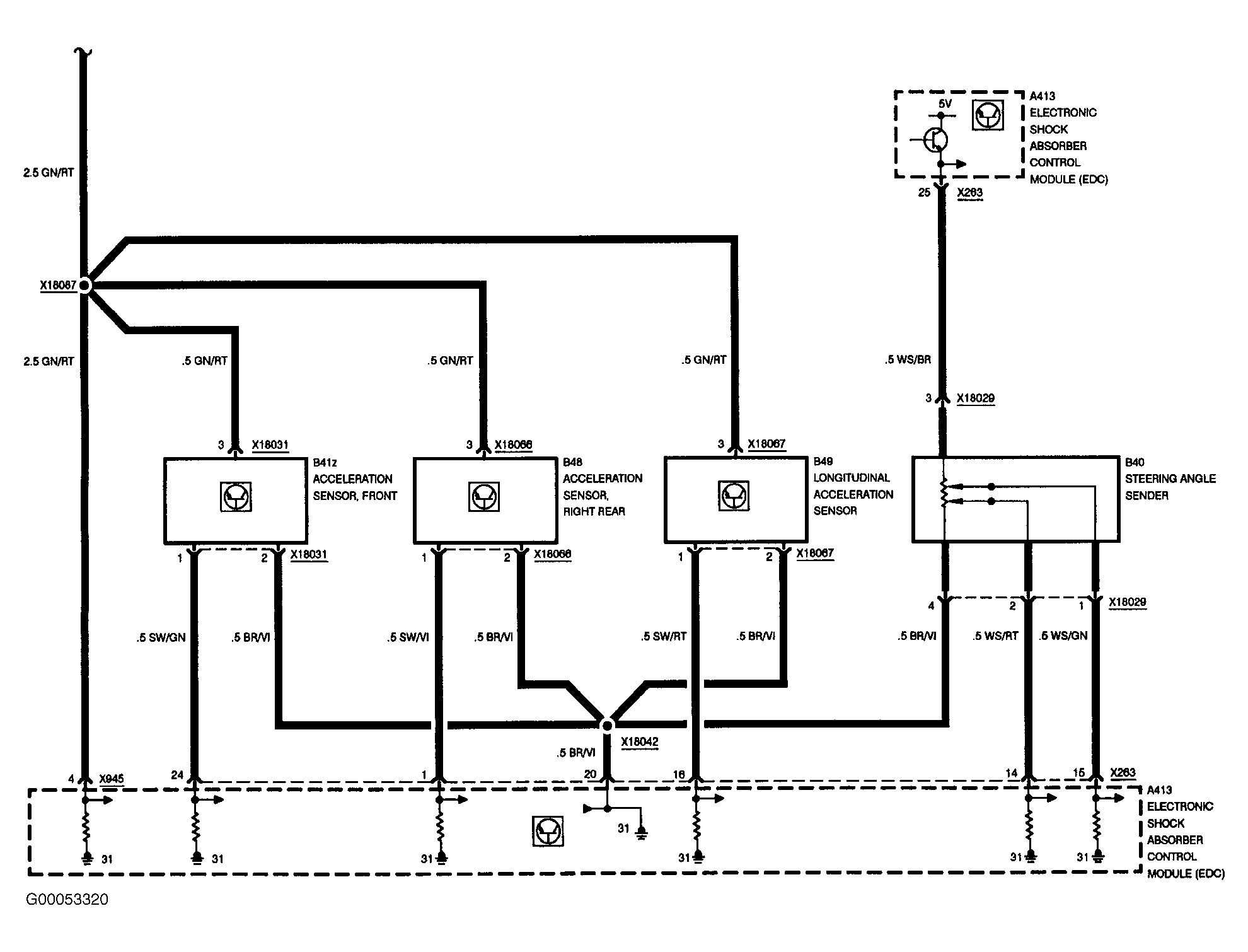

Fig 1: Electronic Shock Absorber Control (1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

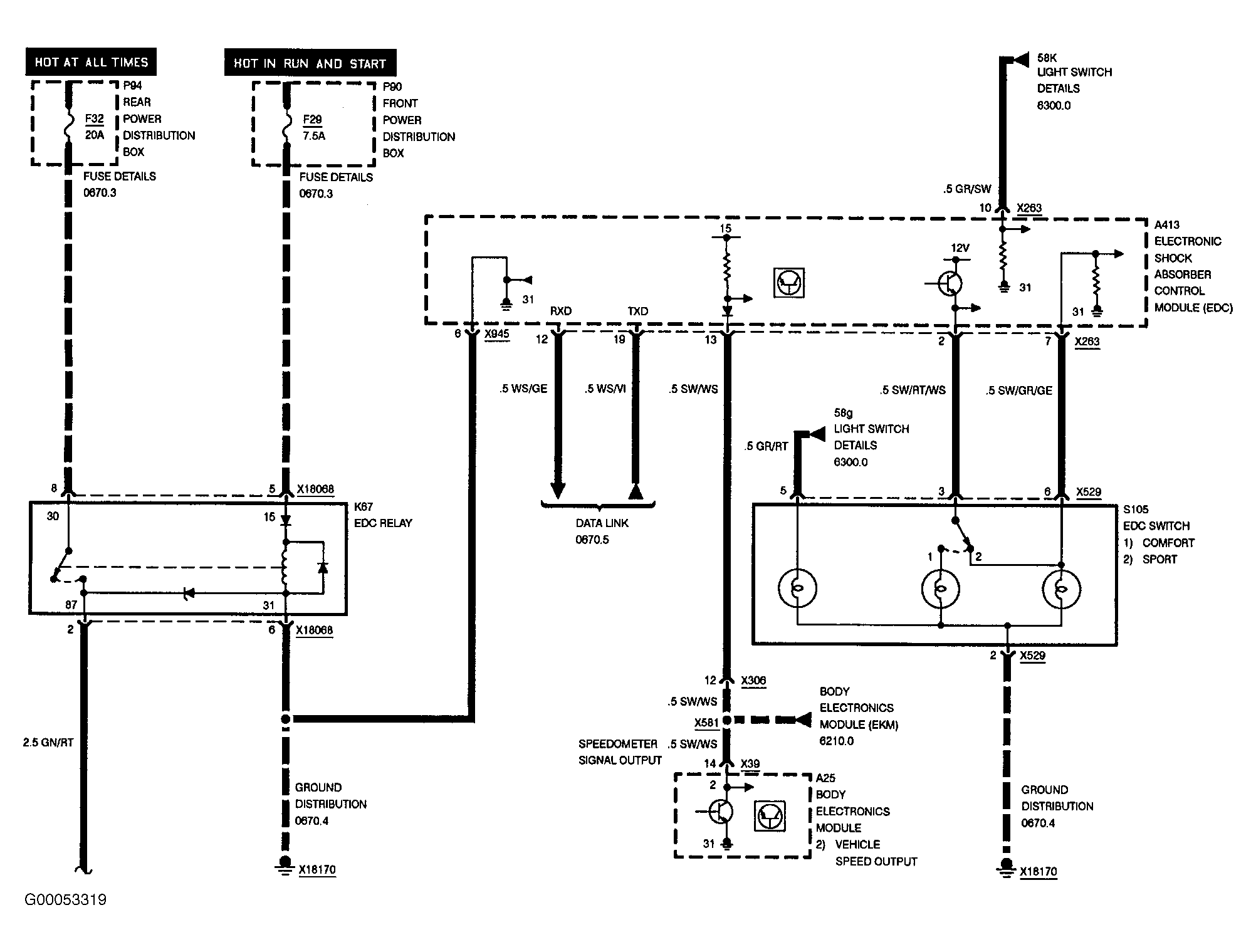

Fig 2: Electronic Shock Absorber Control (2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

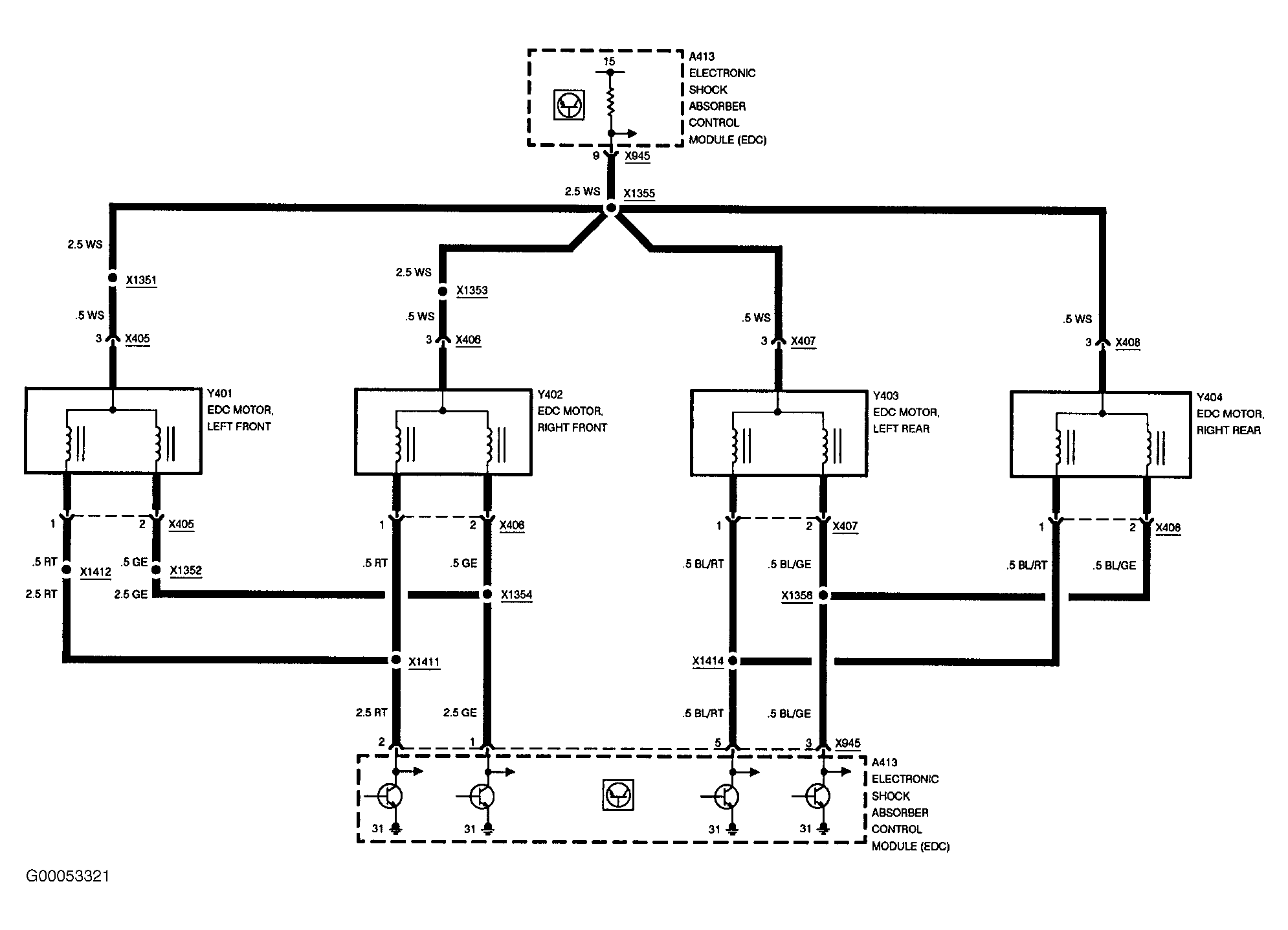

Fig 3: Electronic Shock Absorber Control (3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.
