Electric Steering Column Adjustment

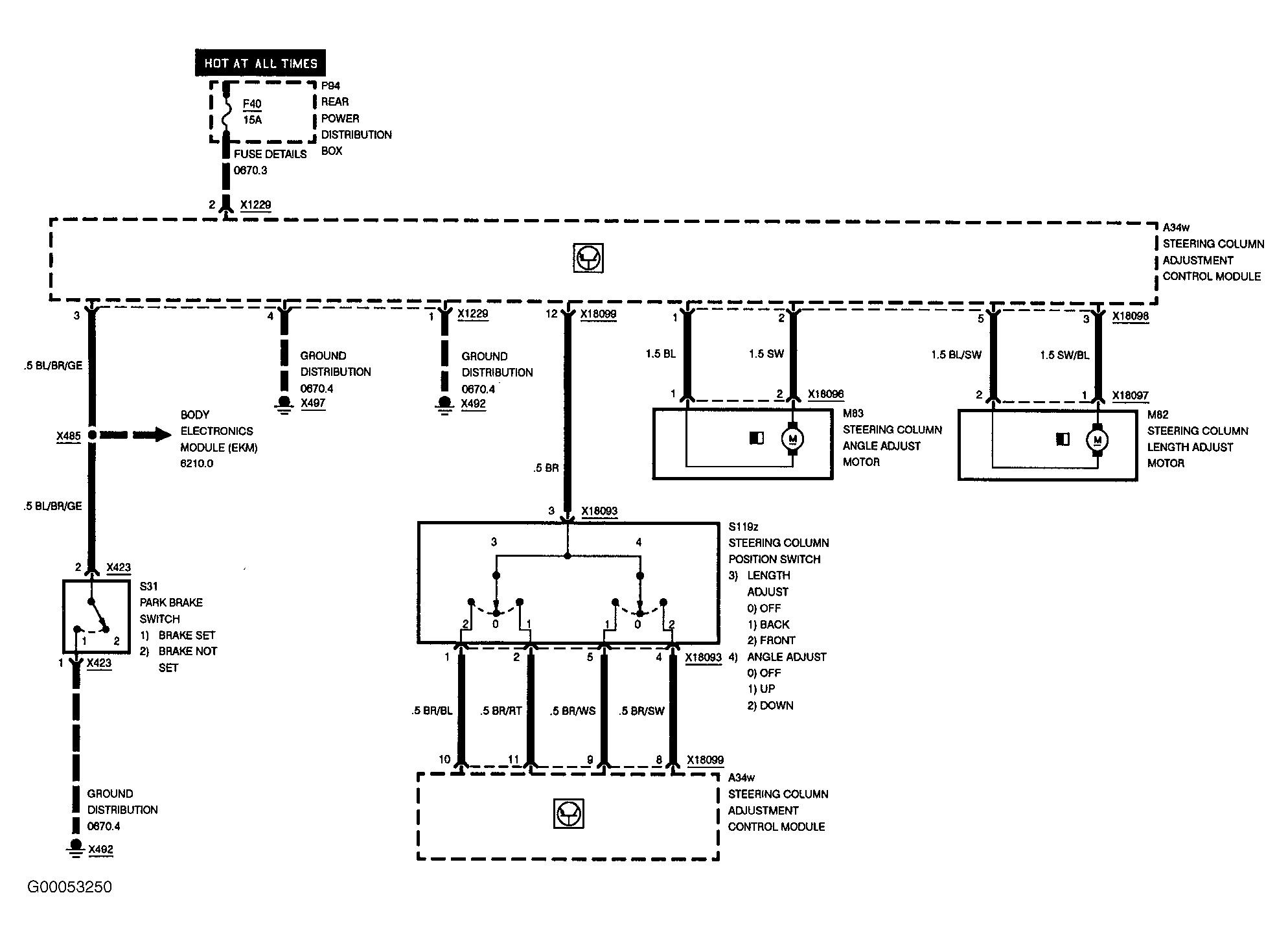

Fig 1: Electric Steering Column Adjustment

G00053250

Courtesy of BMW OF NORTH AMERICA, INC.
