Wiring Diagrams - BMW 850 1991-92
>>
Crash Control Module
Crash Control Module

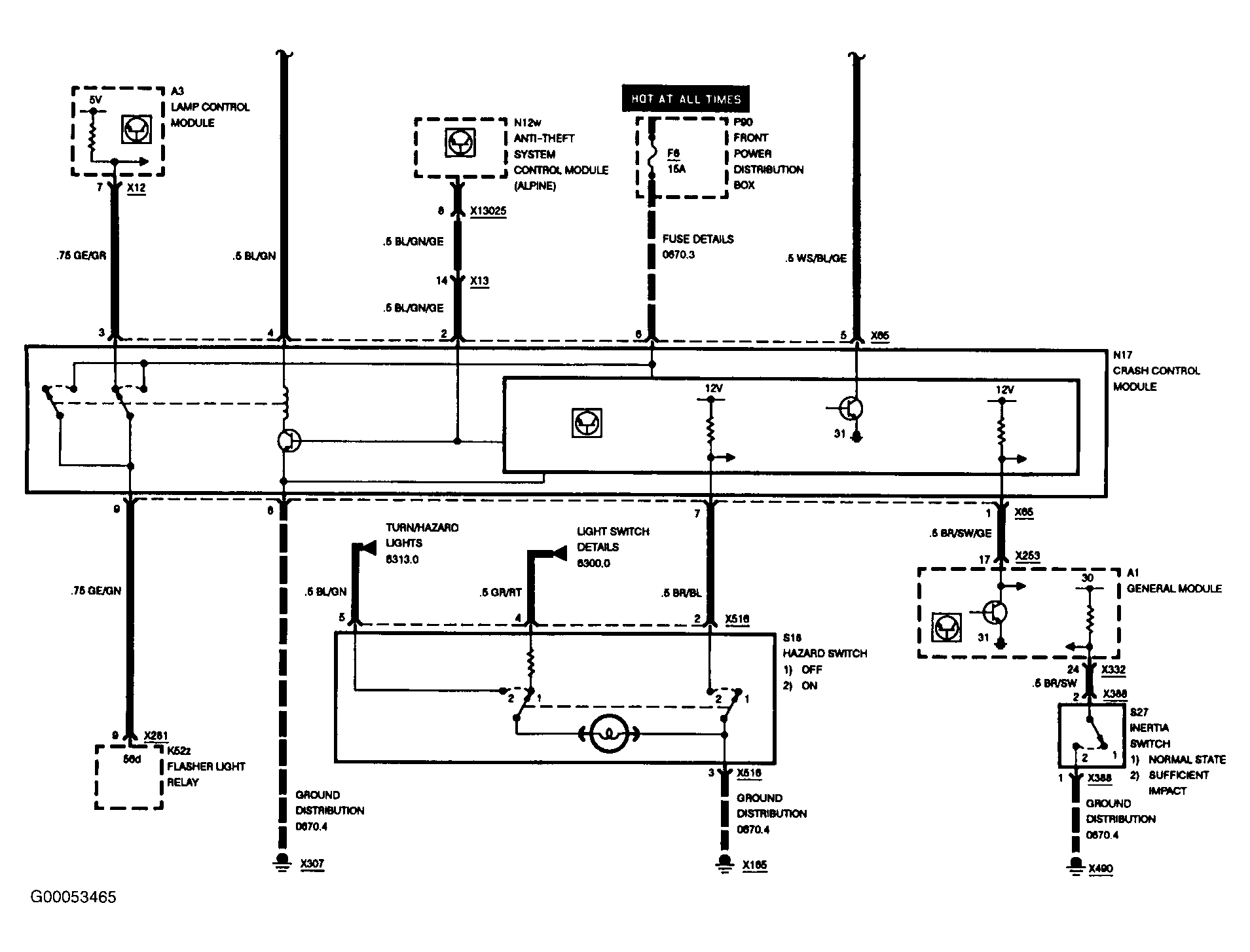

Fig 1: Crash Control Module (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Crash Control Module (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
