Connector Views

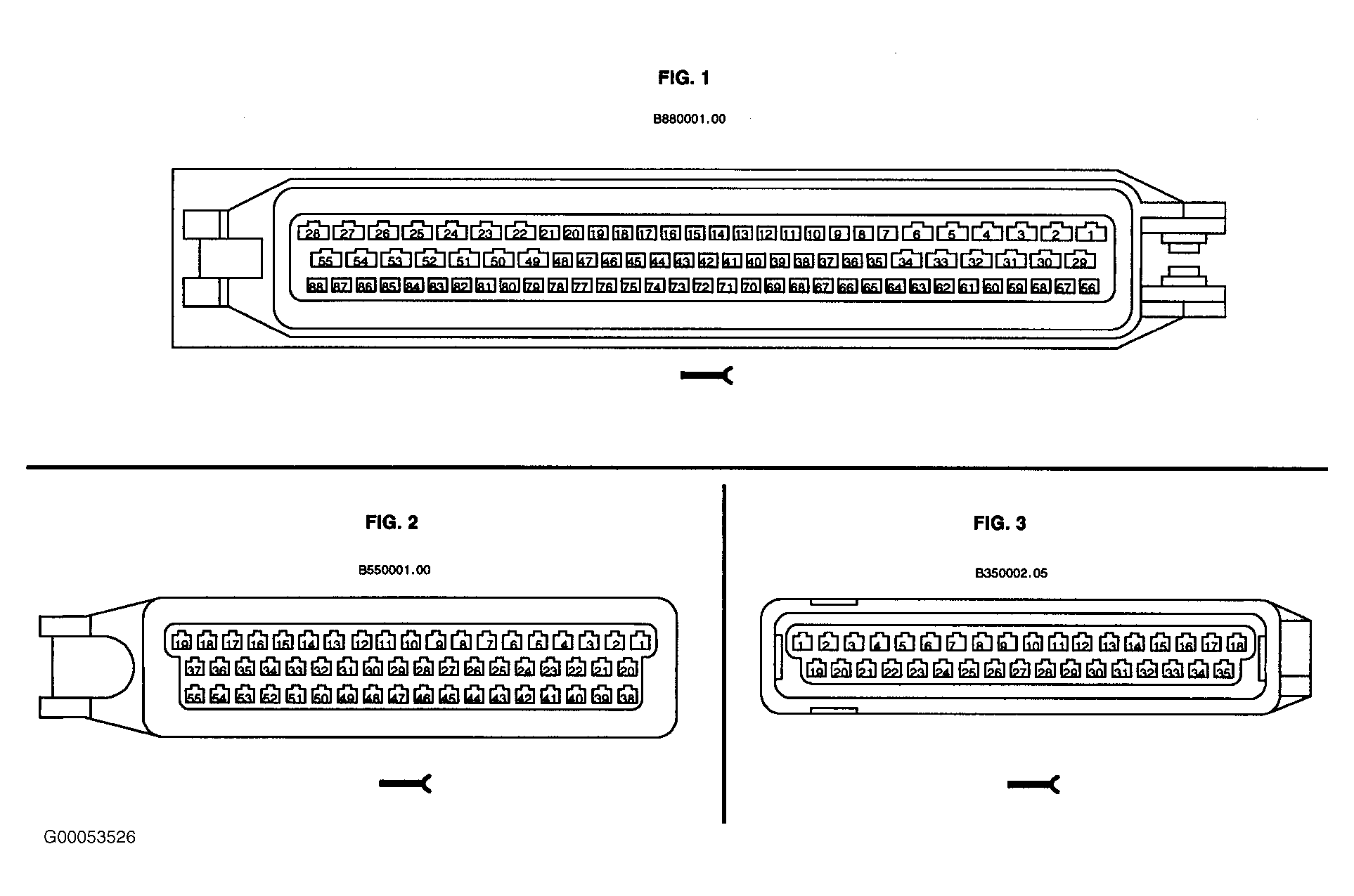

Fig 1: Connector Views (1 Of 13)

G00053526

Courtesy of BMW OF NORTH AMERICA, INC.

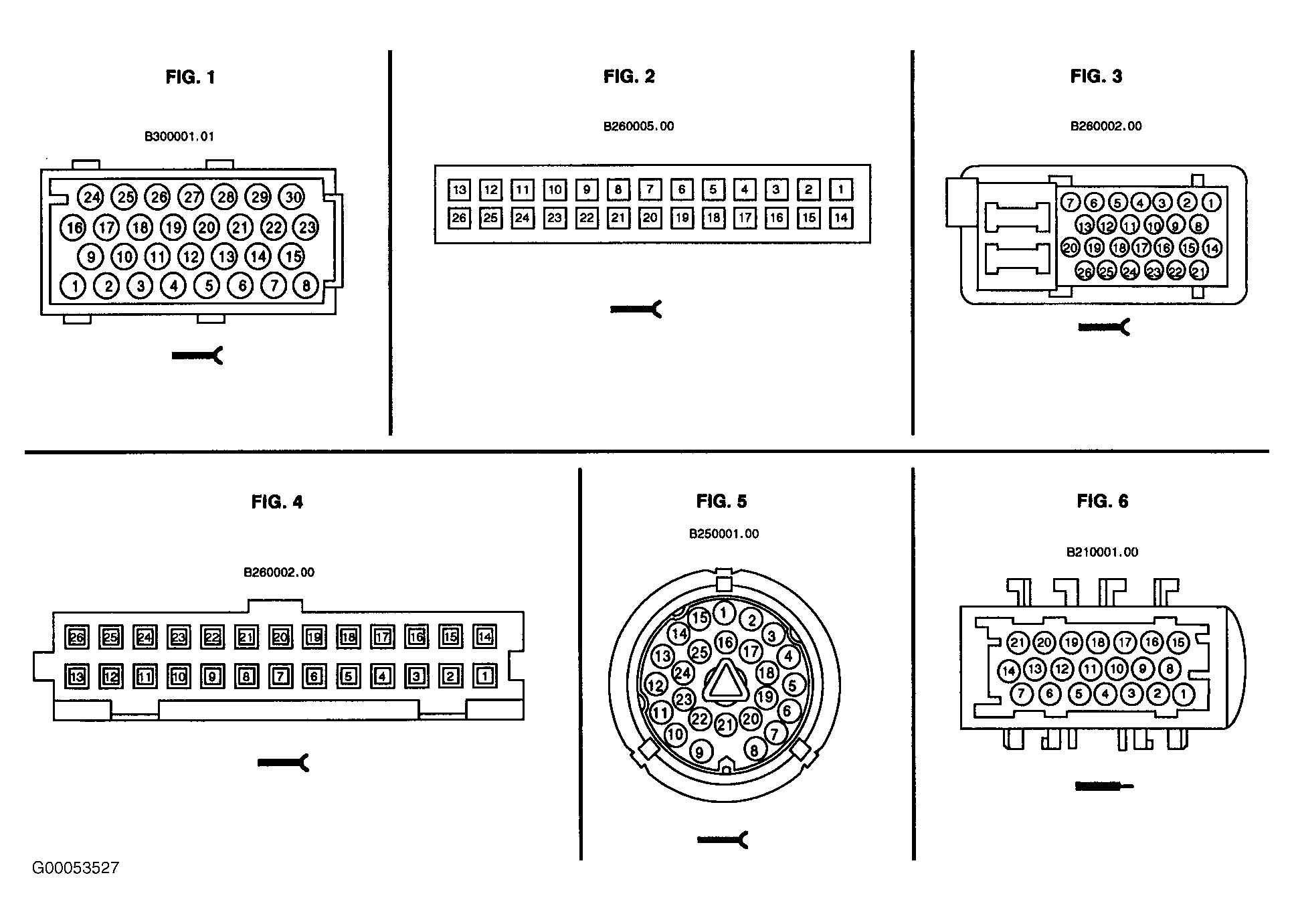

Fig 2: Connector Views (2 Of 13)

G00053527

Courtesy of BMW OF NORTH AMERICA, INC.

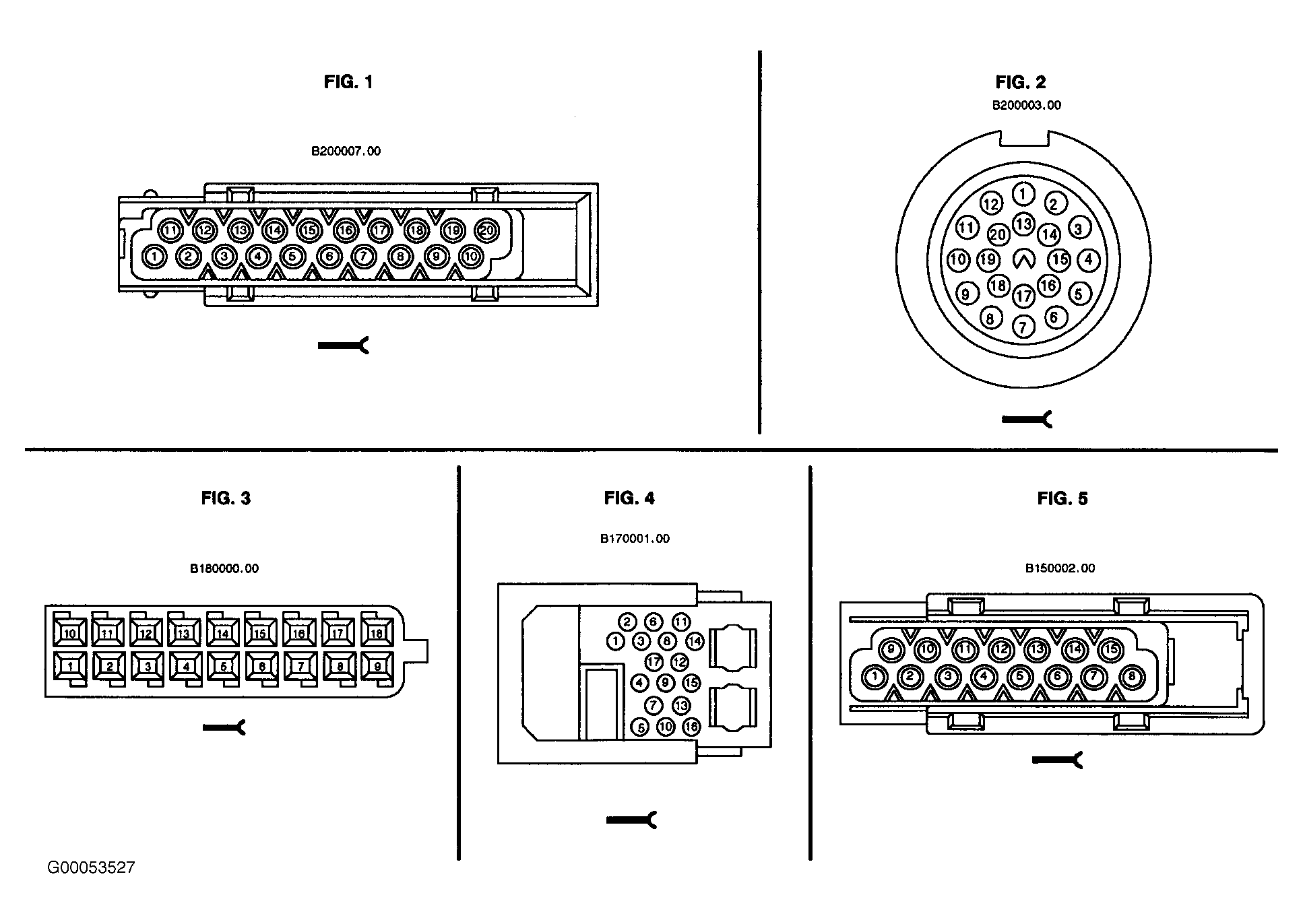

Fig 3: Connector Views (3 Of 13)

G00053528

Courtesy of BMW OF NORTH AMERICA, INC.

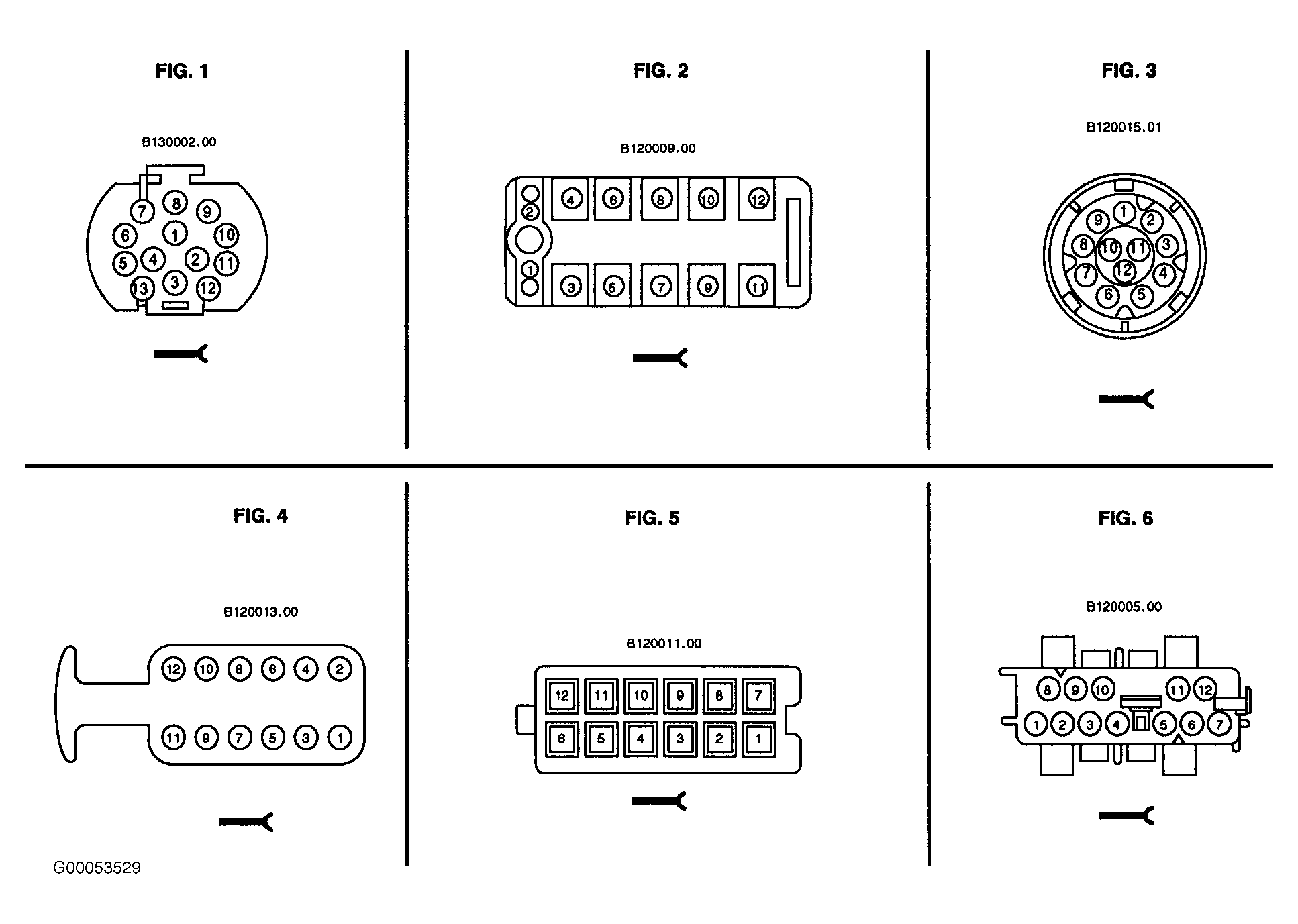

Fig 4: Connector Views (4 Of 13)

G00053529

Courtesy of BMW OF NORTH AMERICA, INC.

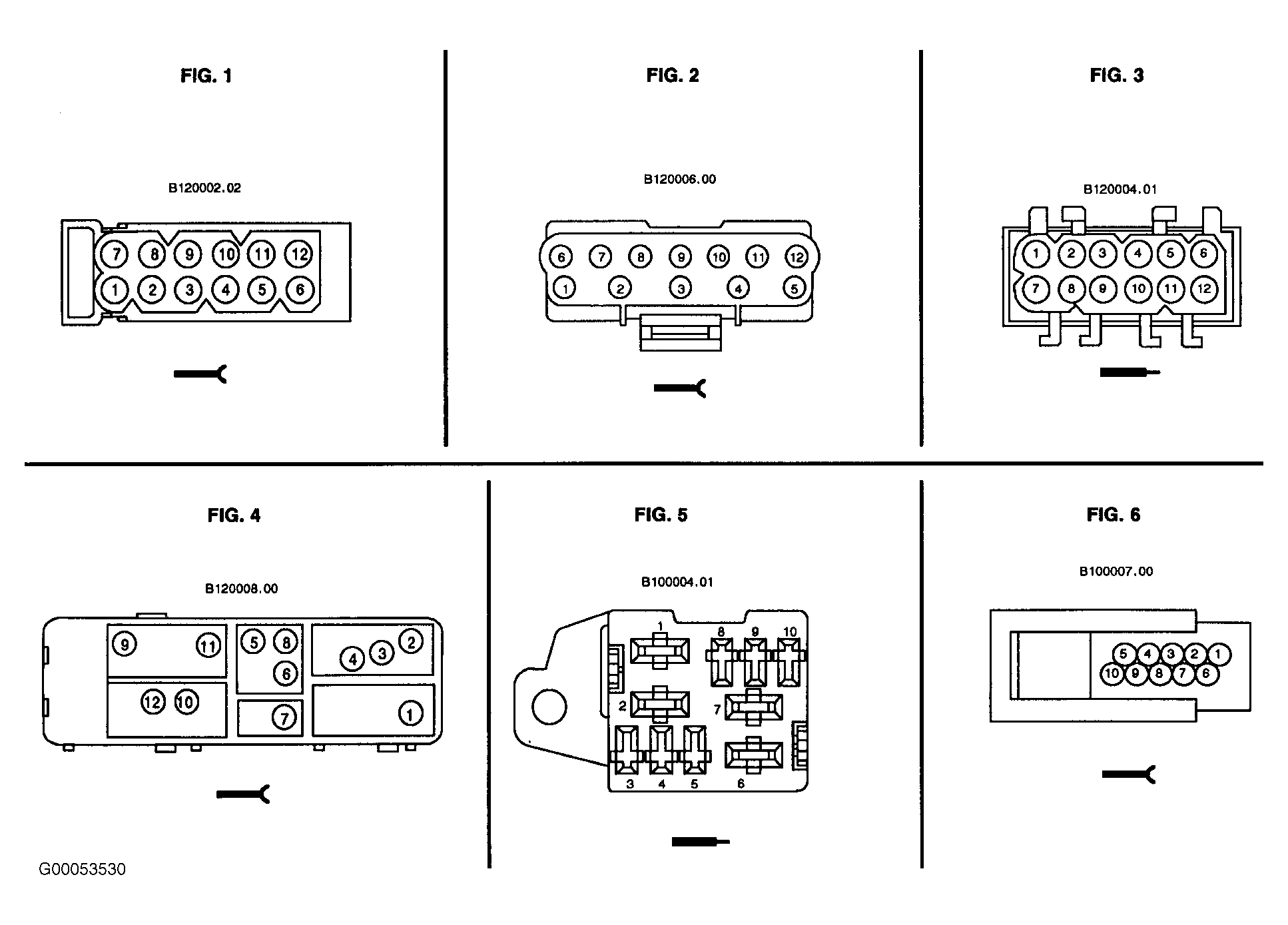

Fig 5: Connector Views (5 Of 13)

G00053530

Courtesy of BMW OF NORTH AMERICA, INC.

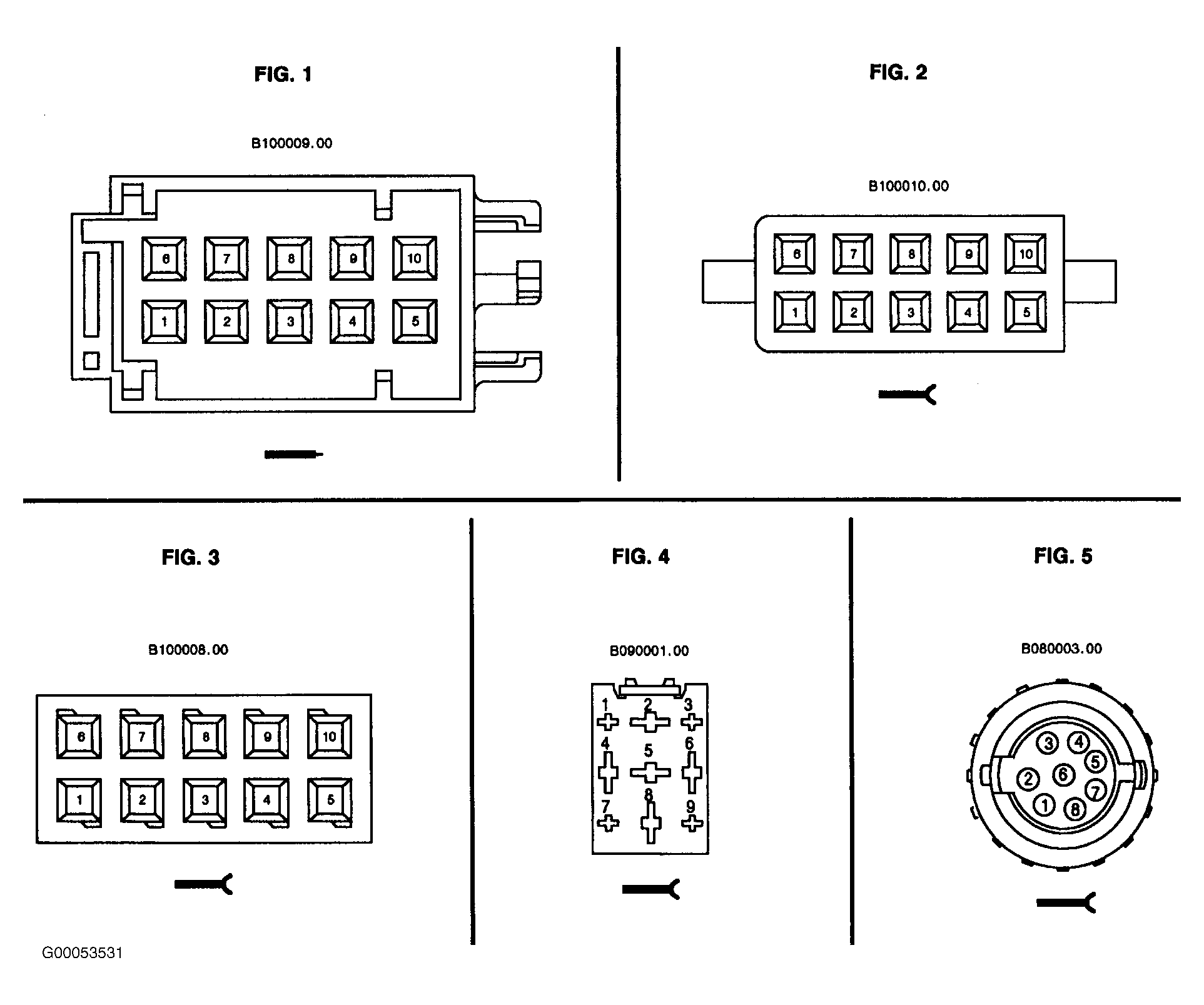

Fig 6: Connector Views (6 Of 13)

G00053531

Courtesy of BMW OF NORTH AMERICA, INC.

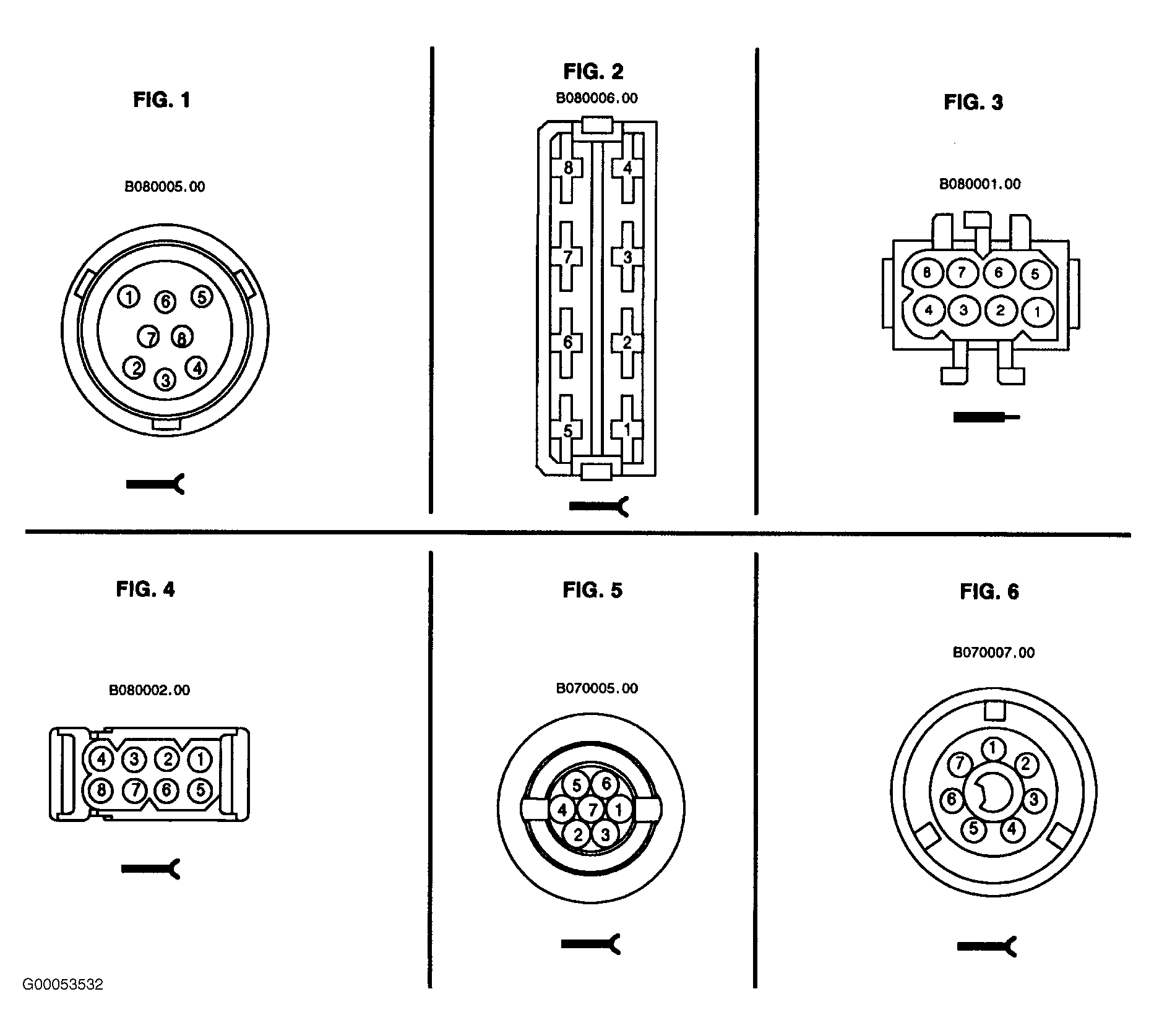

Fig 7: Connector Views (7 Of 13)

G00053532

Courtesy of BMW OF NORTH AMERICA, INC.

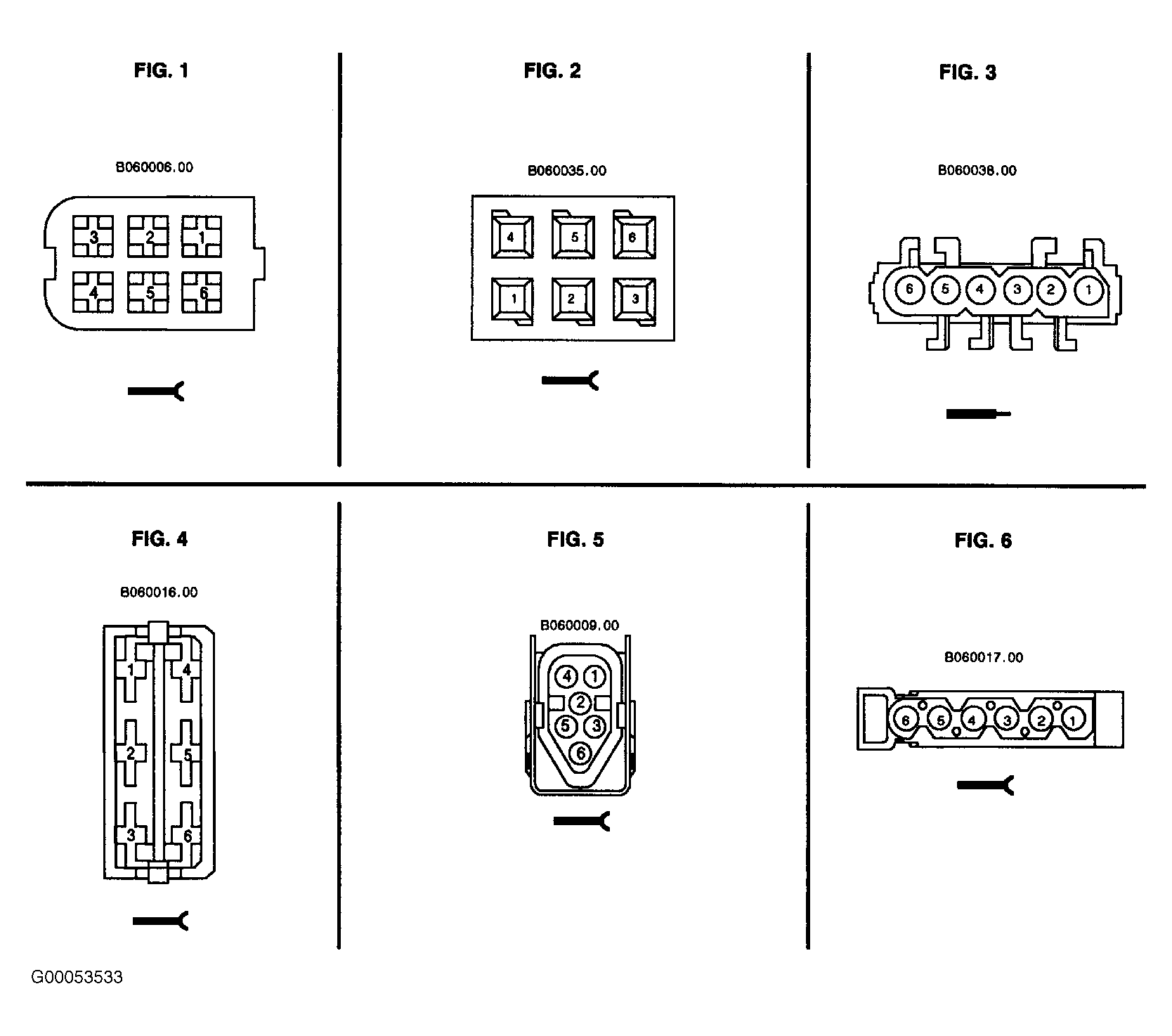

Fig 8: Connector Views (8 Of 13)

G00053533

Courtesy of BMW OF NORTH AMERICA, INC.

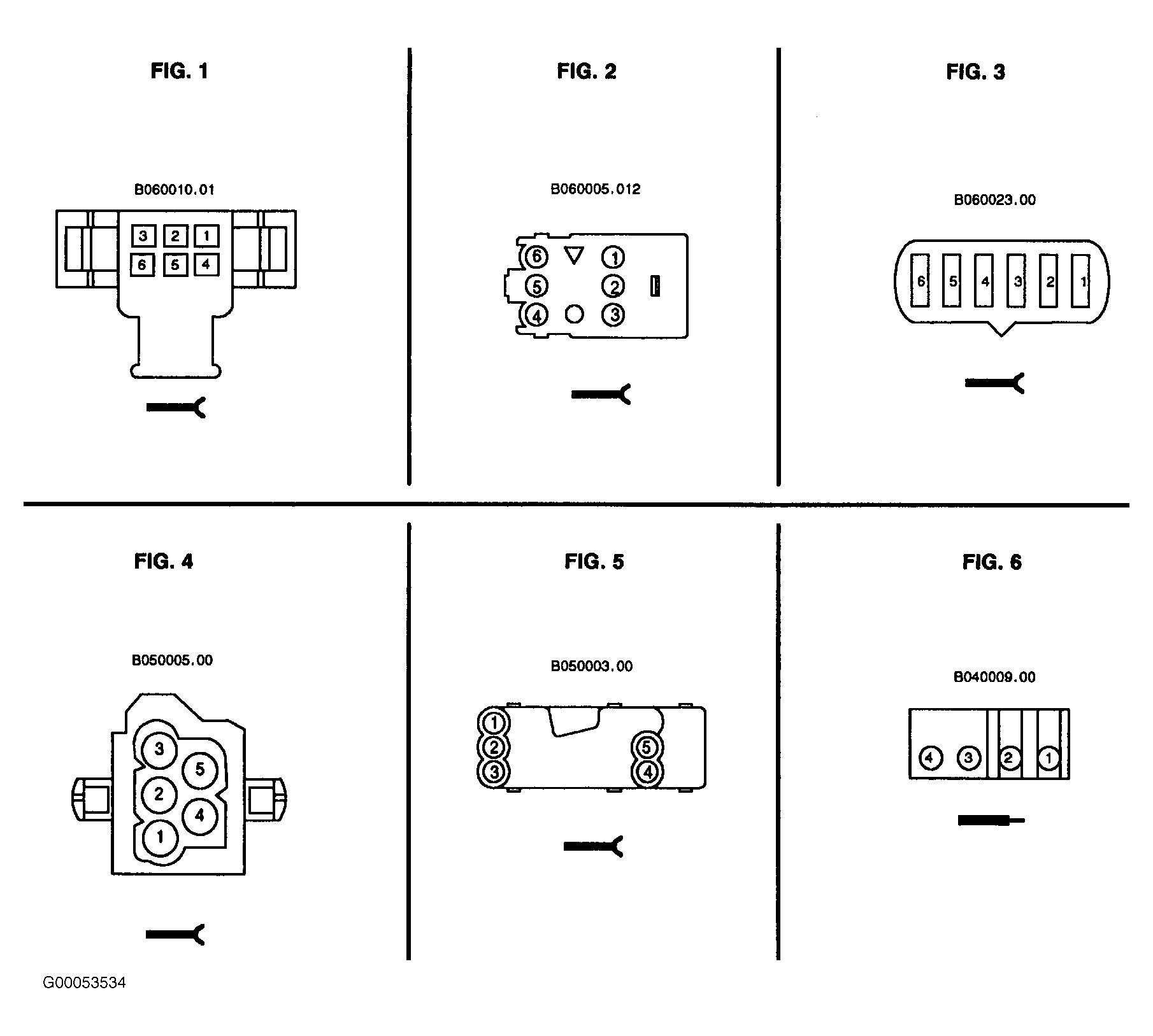

Fig 9: Connector Views (9 Of 13)

G00053534

Courtesy of BMW OF NORTH AMERICA, INC.

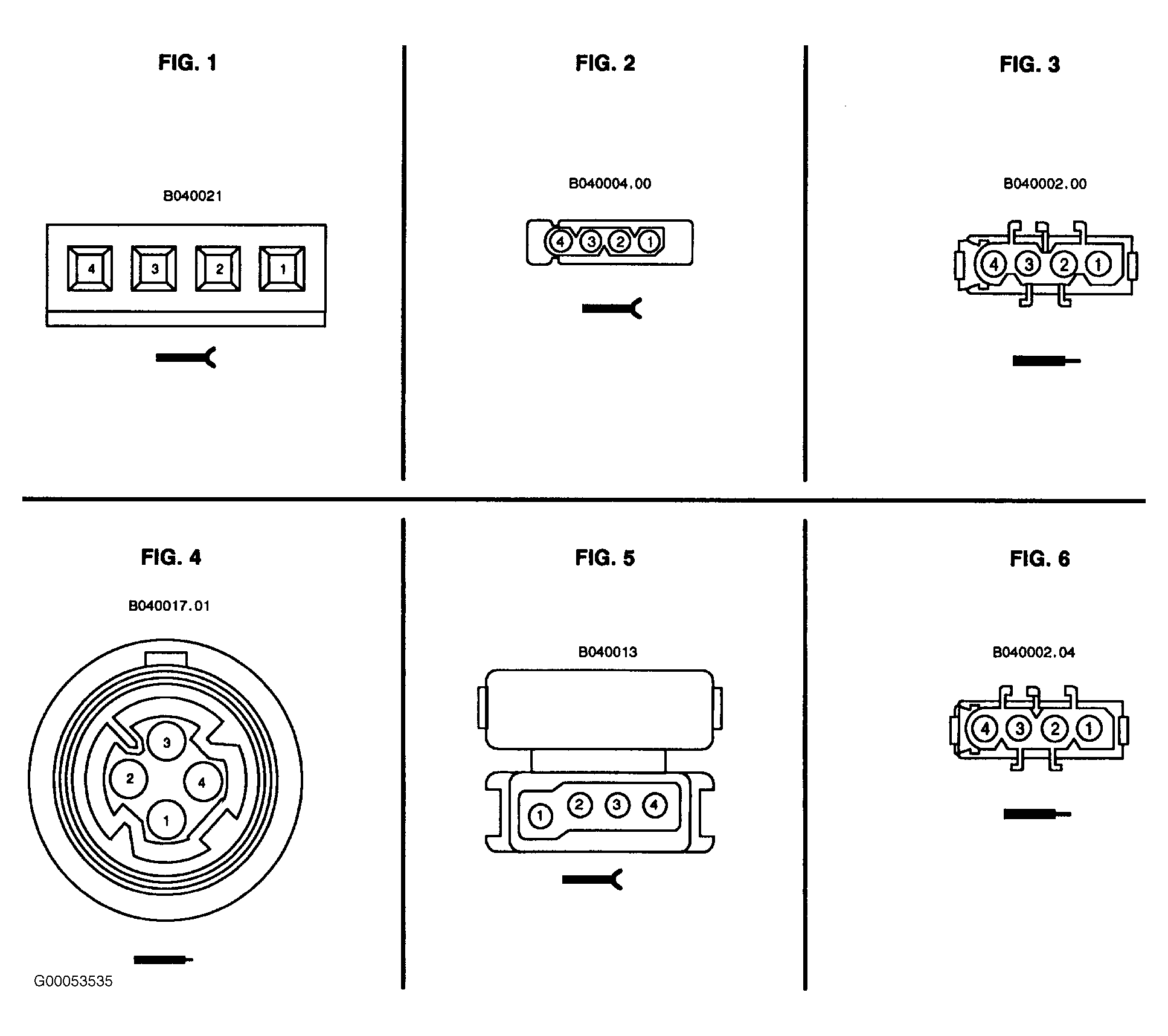

Fig 10: Connector Views (10 Of 13)

G00053535

Courtesy of BMW OF NORTH AMERICA, INC.

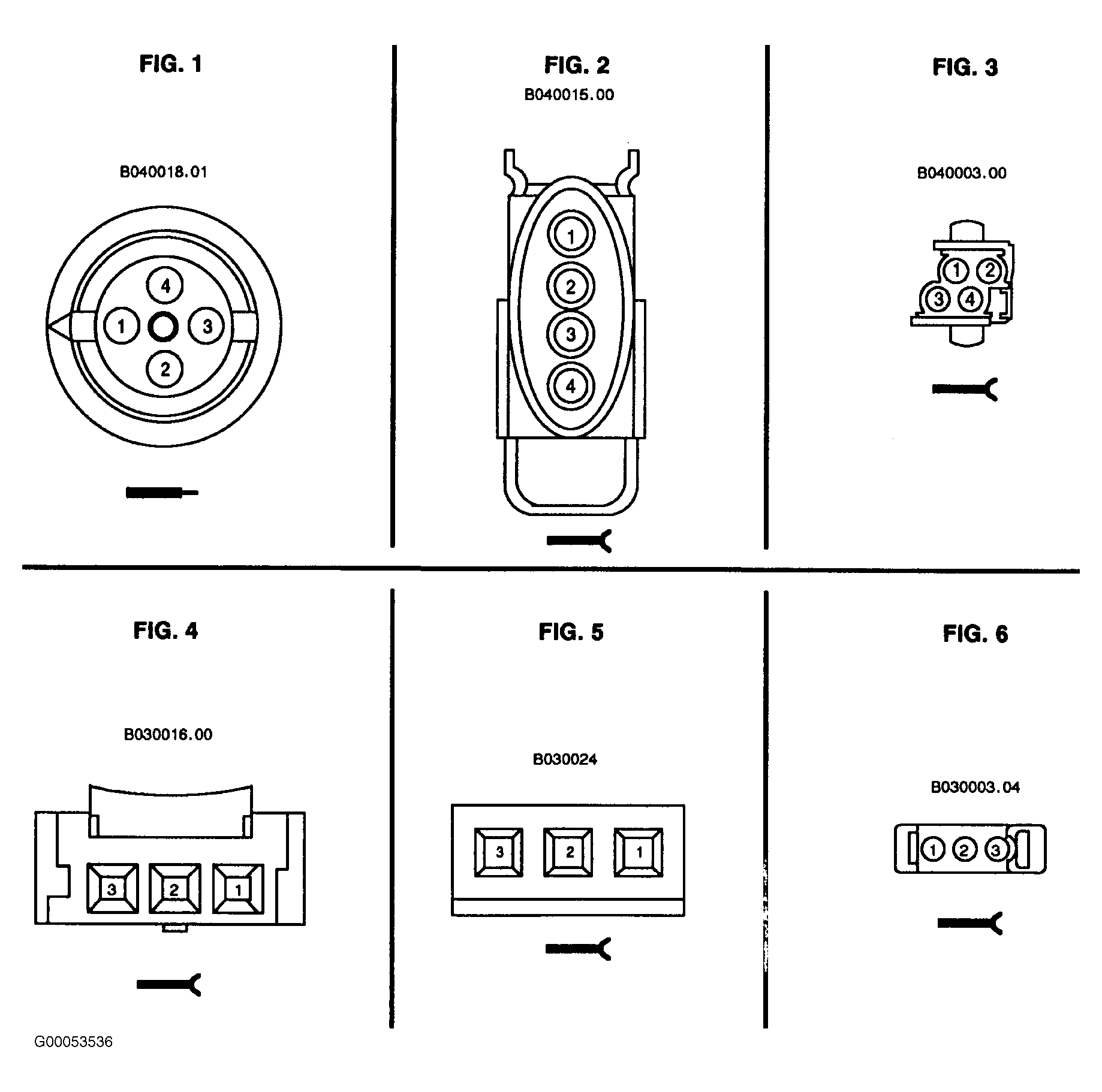

Fig 11: Connector Views (11 Of 13)

G00053536

Courtesy of BMW OF NORTH AMERICA, INC.

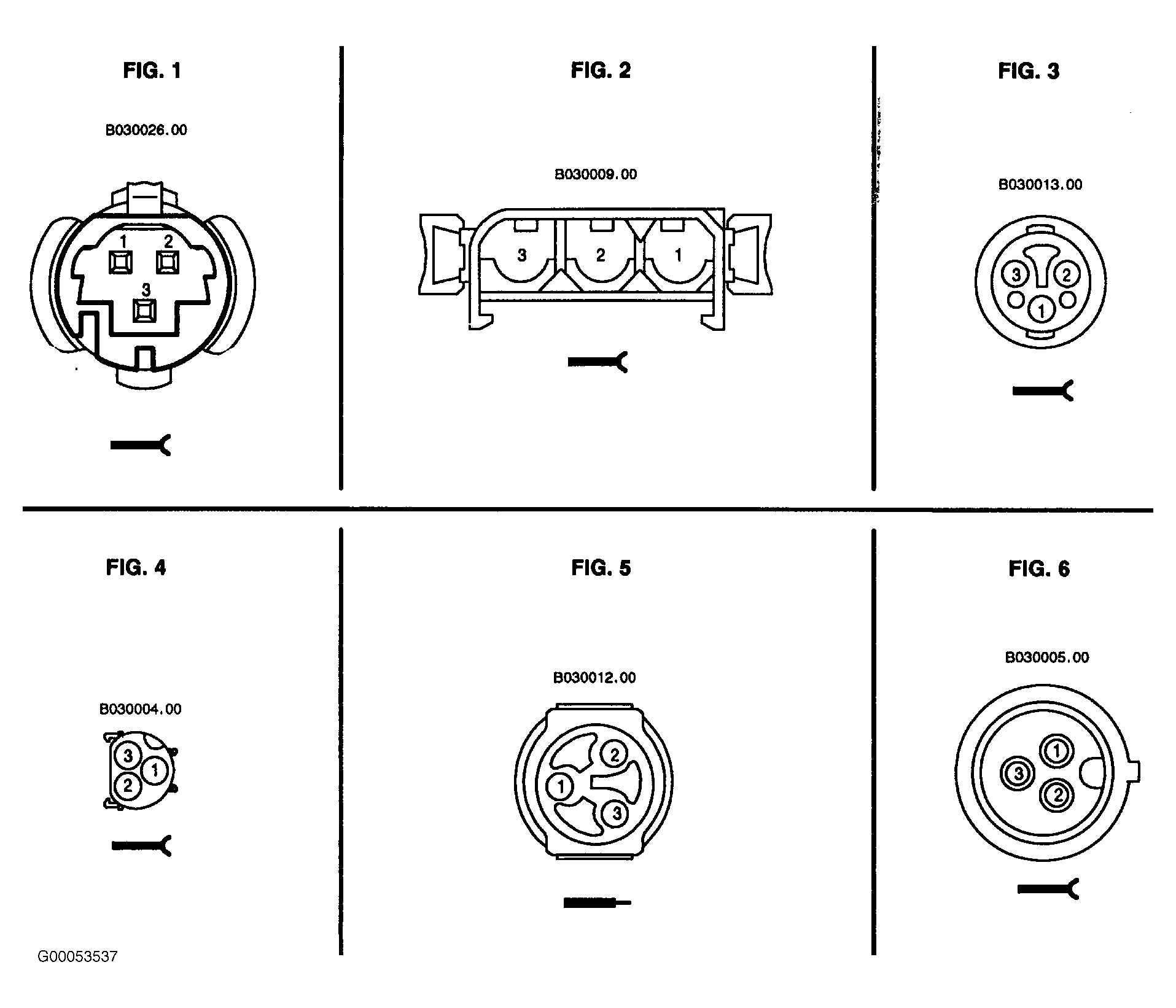

Fig 12: Connector Views (12 Of 13)

G00053537

Courtesy of BMW OF NORTH AMERICA, INC.

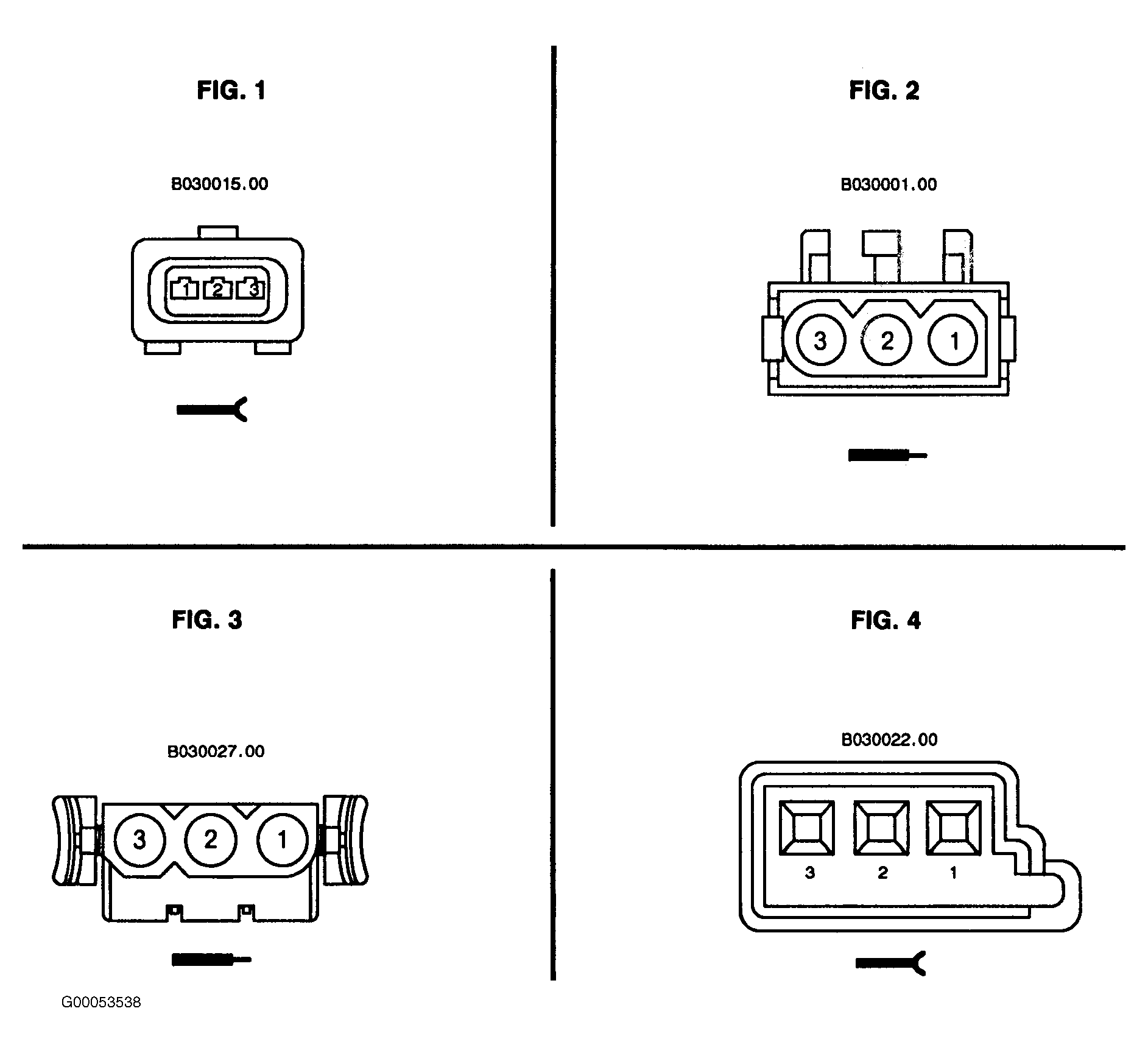

Fig 13: Connector Views (13 Of 13)

G00053538

Courtesy of BMW OF NORTH AMERICA, INC.
