Electrical Control Module Locations

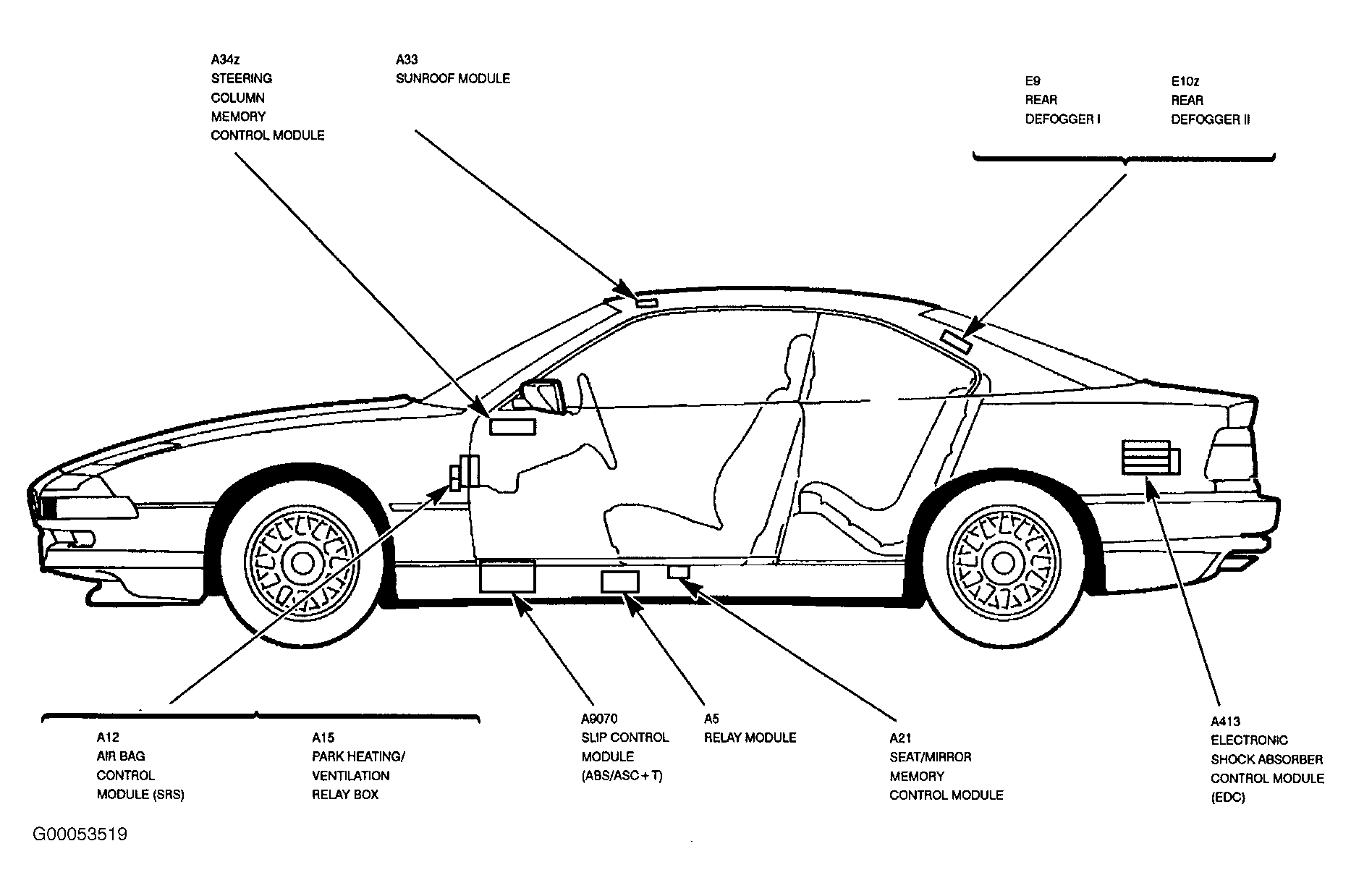

Fig 1: Electrical Control Module Locations (1 Of 2)
G00053519Courtesy of BMW OF NORTH AMERICA, INC.

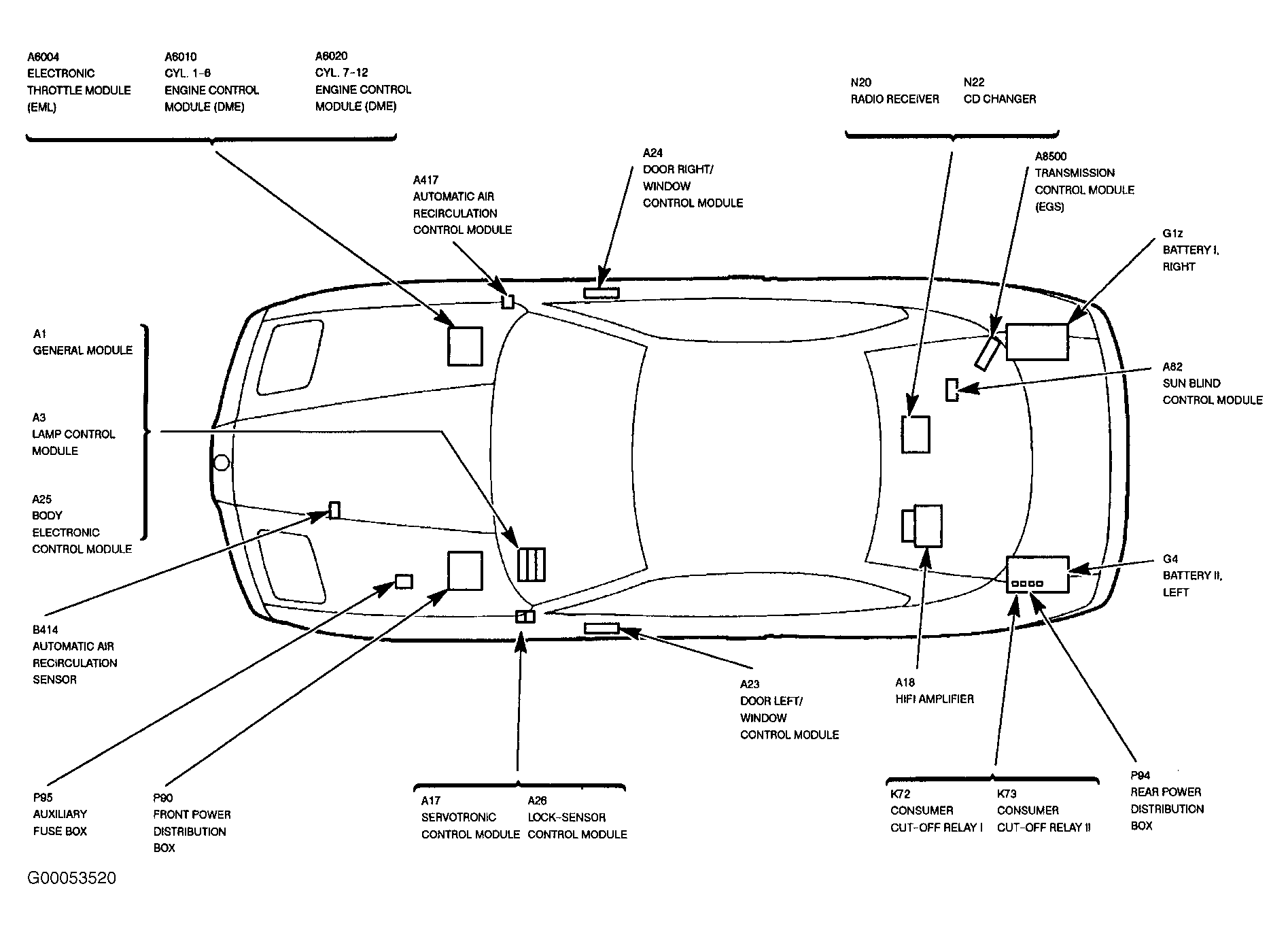

Fig 2: Electrical Control Module Locations (2 Of 2)
G00053520Courtesy of BMW OF NORTH AMERICA, INC.
