Battery Negative B (-) Circuit

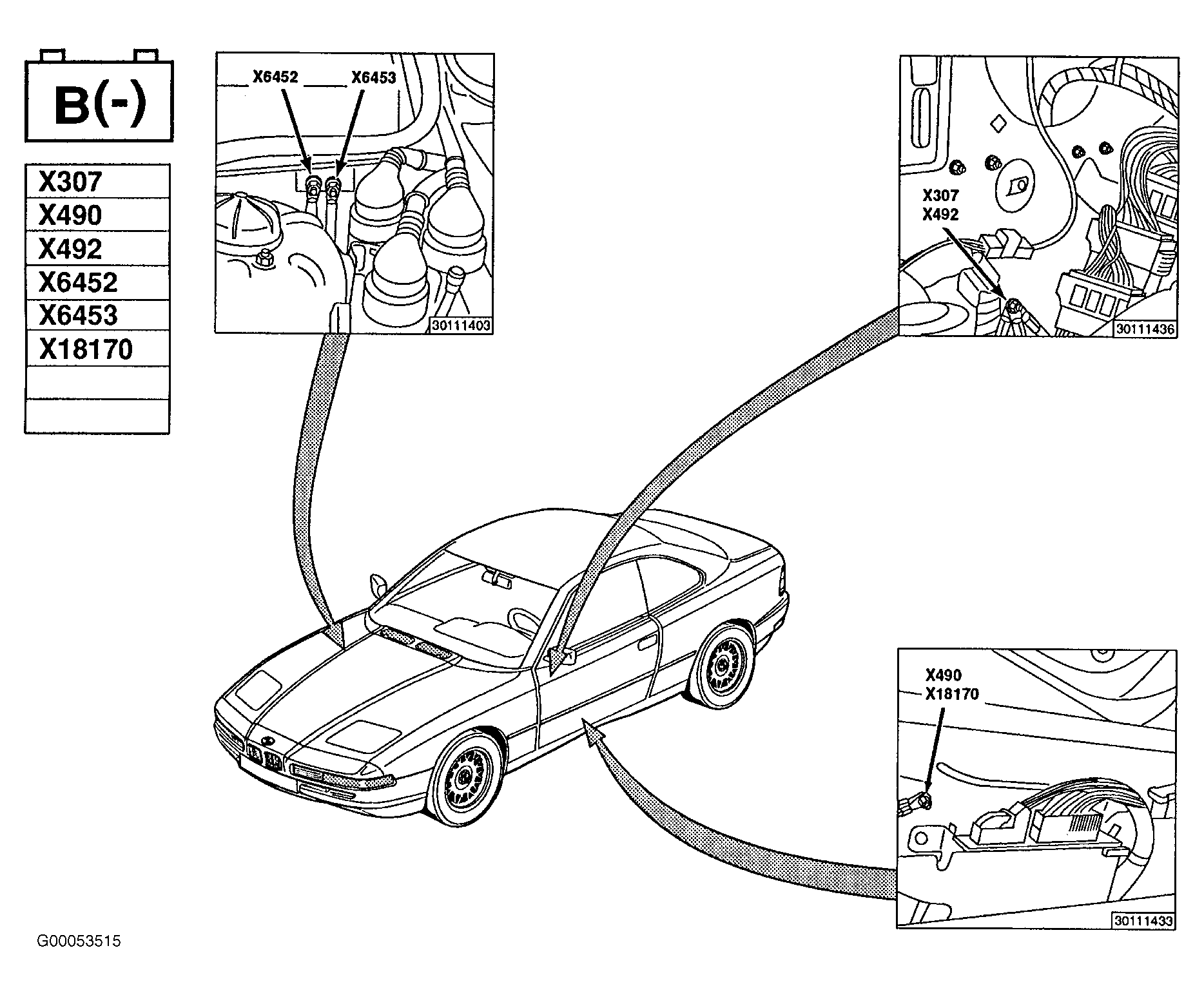

Fig 1: Battery Negative B (-) Circuit Component Location Chart (1 Of 3)
G00053515Courtesy of BMW OF NORTH AMERICA, INC.

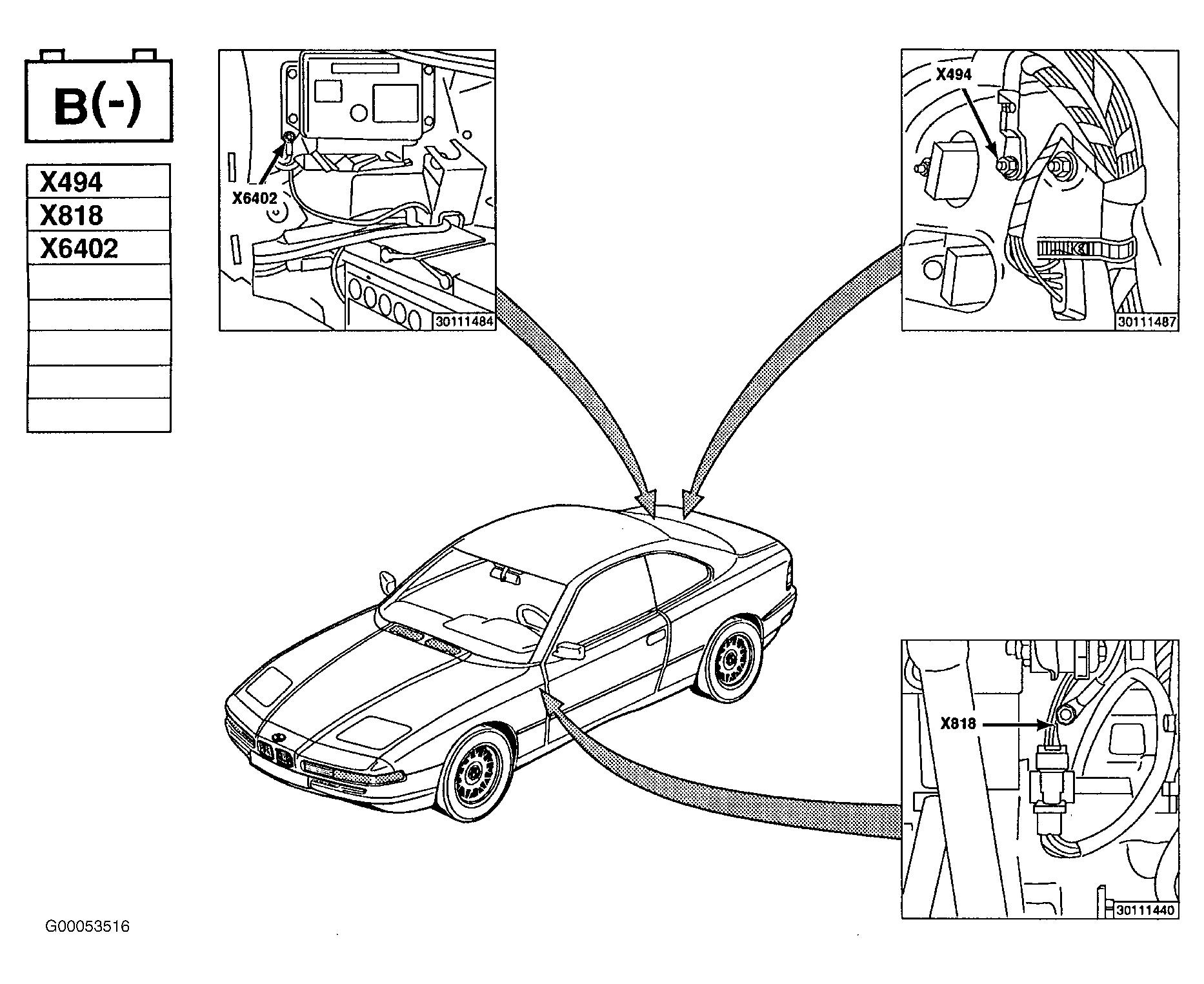

Fig 2: Battery Negative B (-) Circuit Component Location Chart (2 Of 3)
G00053516Courtesy of BMW OF NORTH AMERICA, INC.

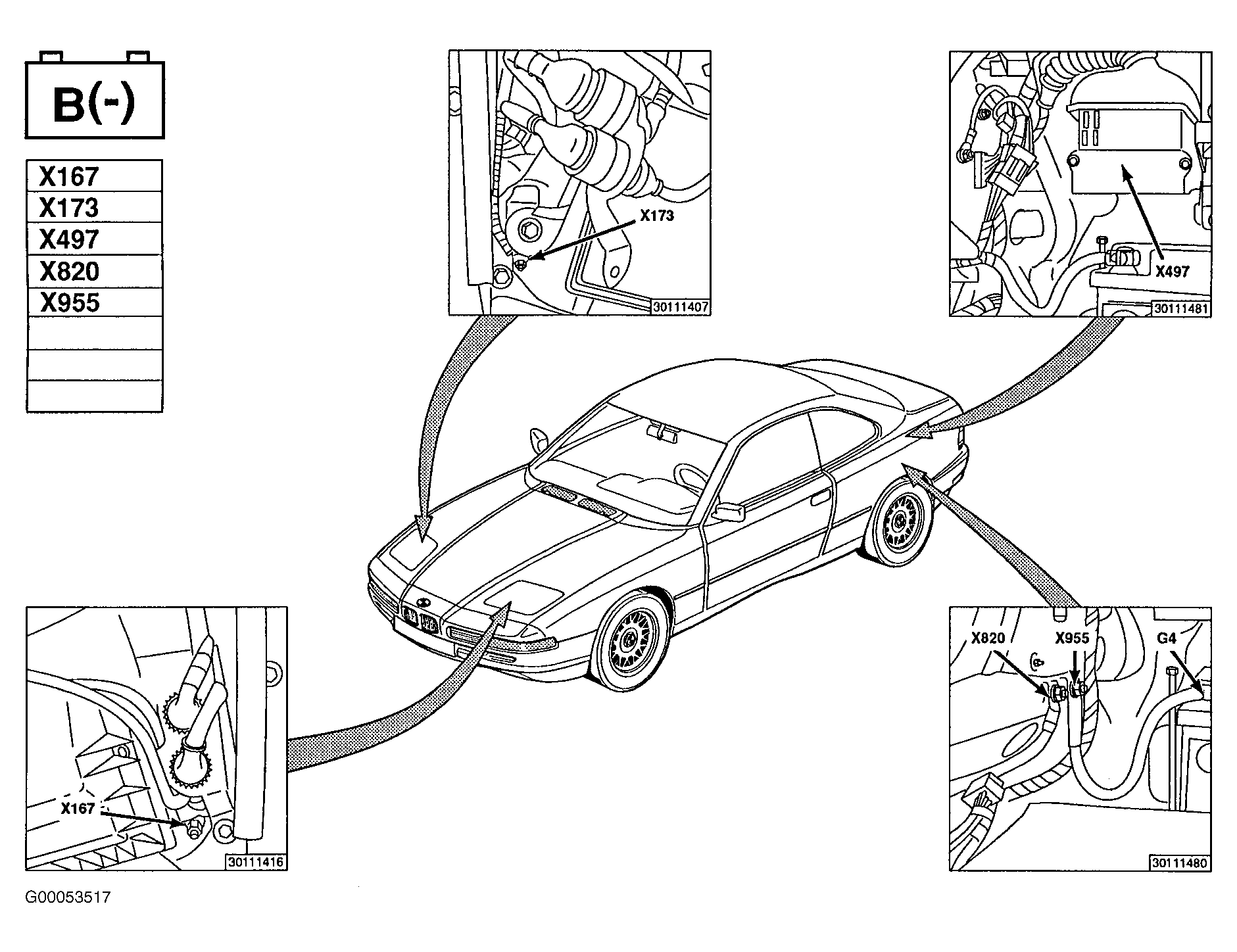

Fig 3: Battery Negative B (-) Circuit Component Location Chart (3 Of 3)
G00053517Courtesy of BMW OF NORTH AMERICA, INC.
