Relay Module

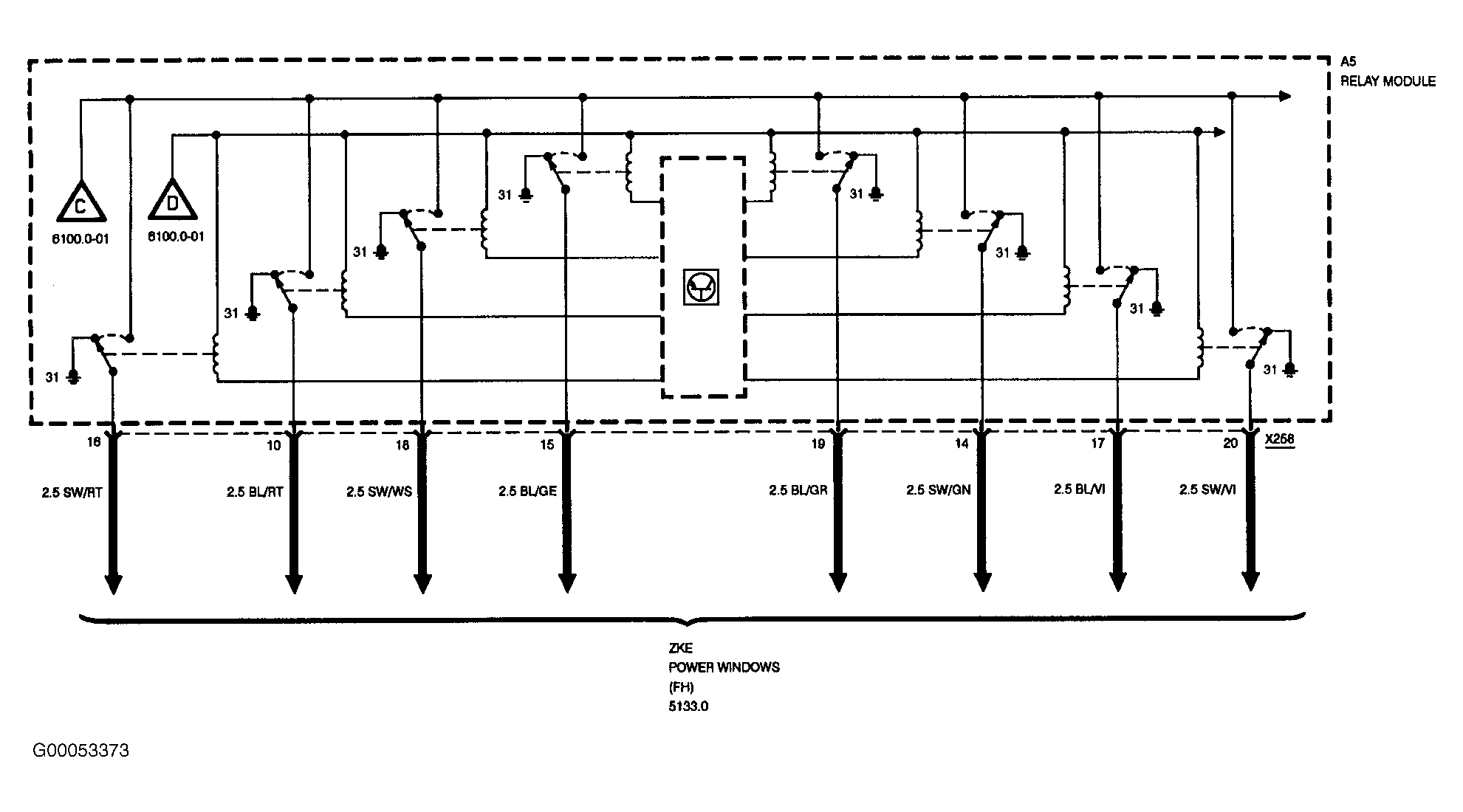

Fig 1: Central Body Electronics - Relay Module (1 Of 2)

G00053373

Courtesy of BMW OF NORTH AMERICA, INC.

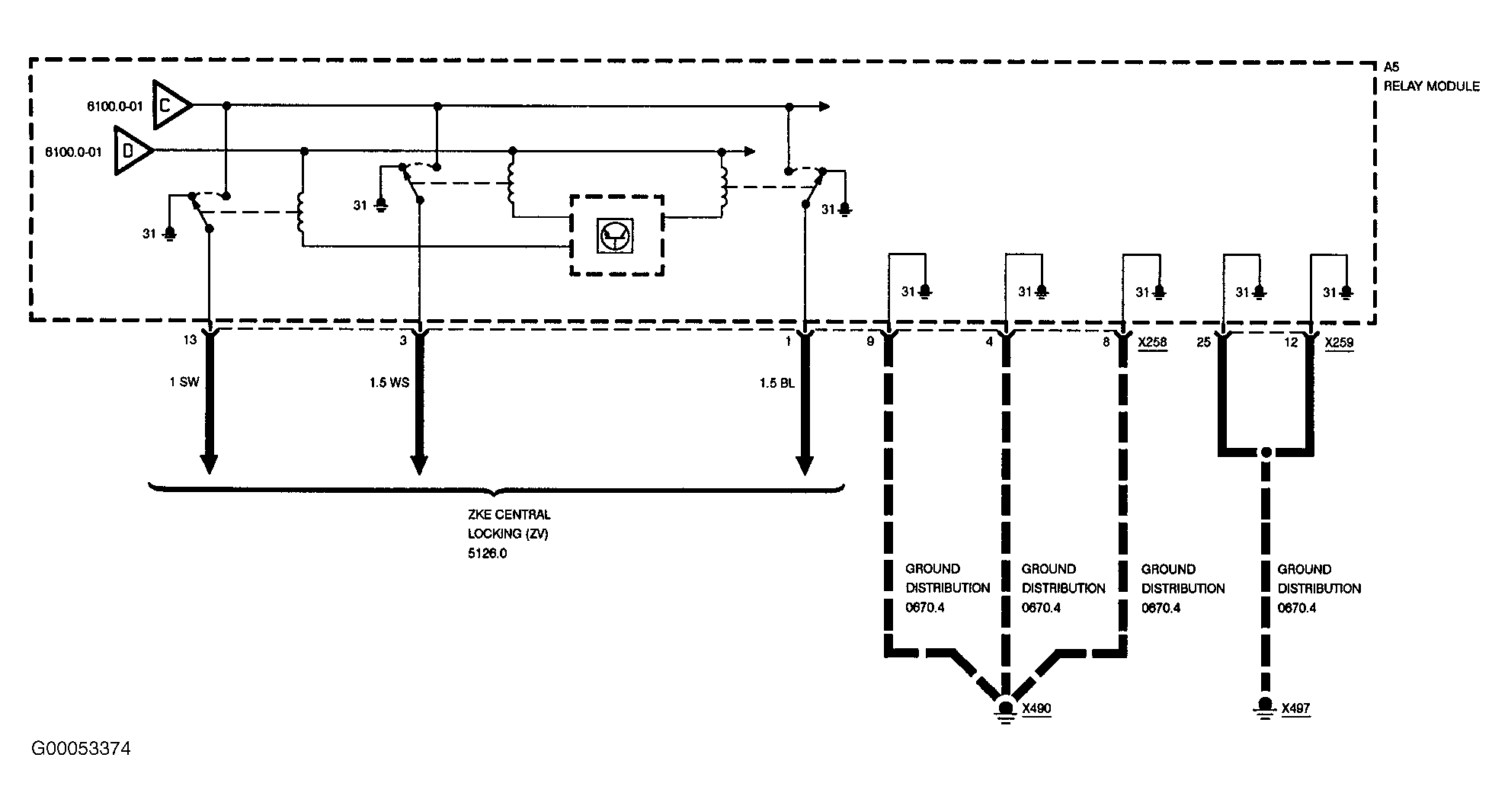

Fig 2: Central Body Electronics - Relay Module (2 Of 2)

G00053374

Courtesy of BMW OF NORTH AMERICA, INC.
