Pin Assignments

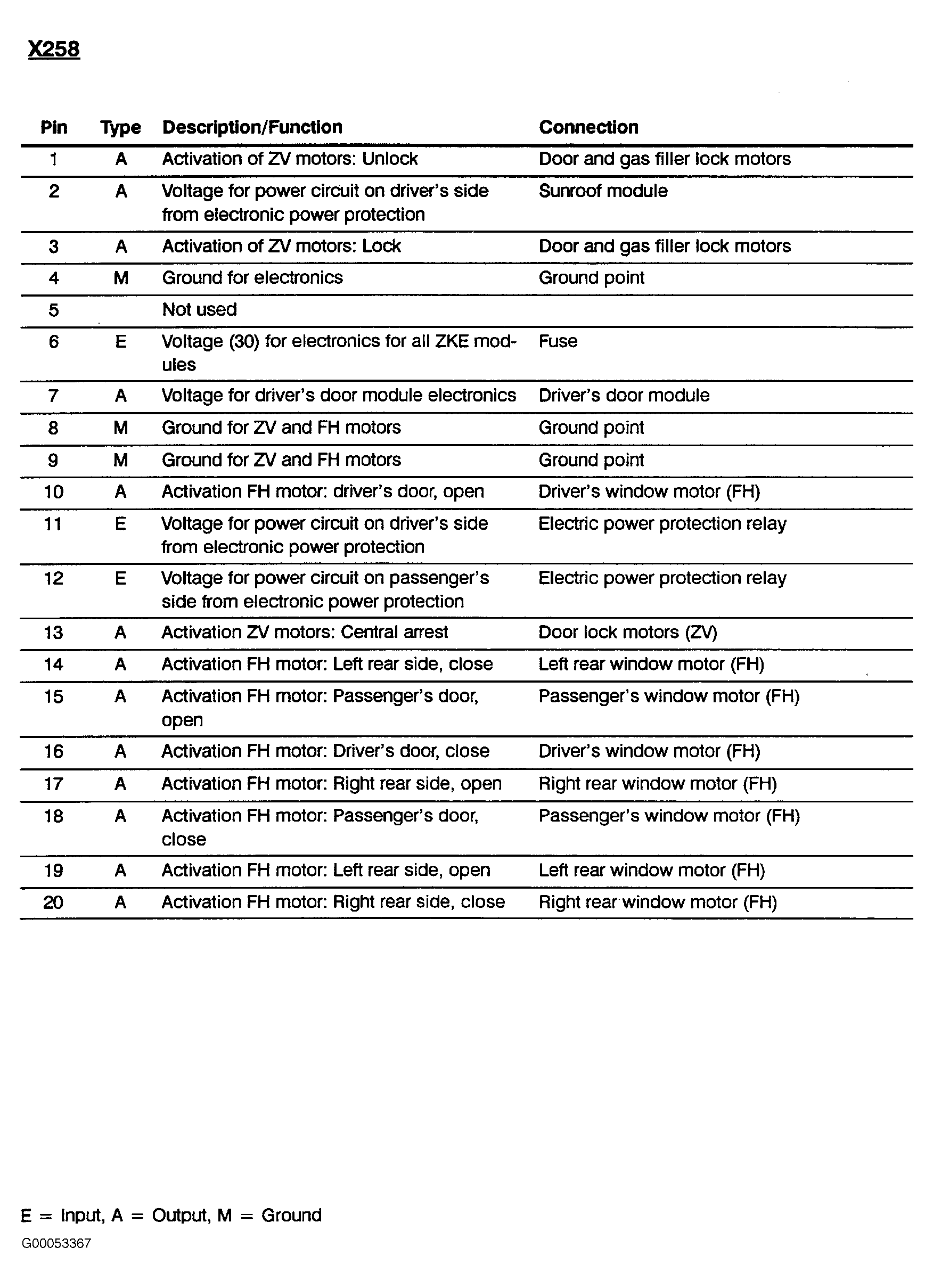

Fig 1: Central Body Electronics - Pin Assignments (1 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

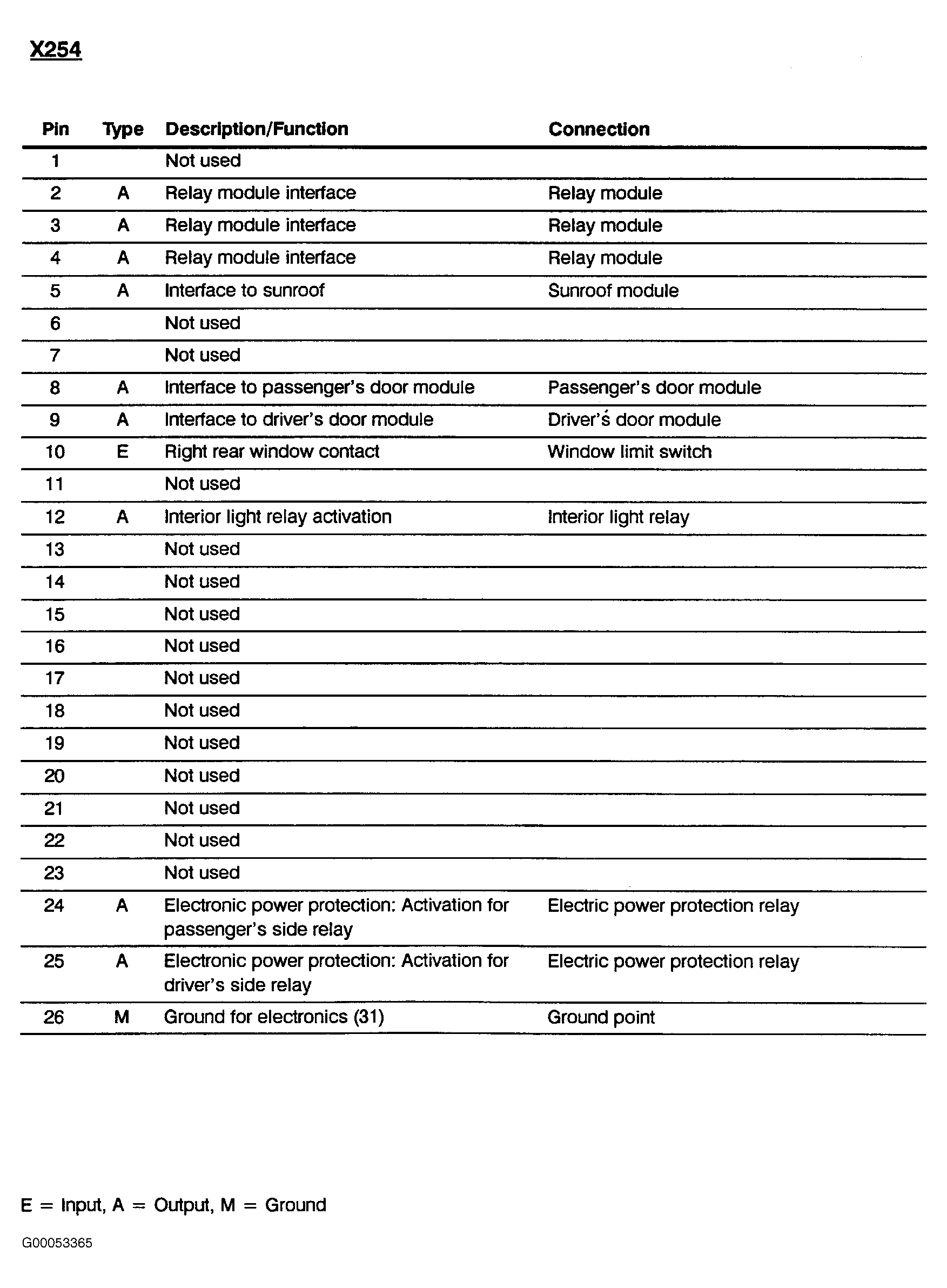

Fig 2: Central Body Electronics - Pin Assignments (2 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

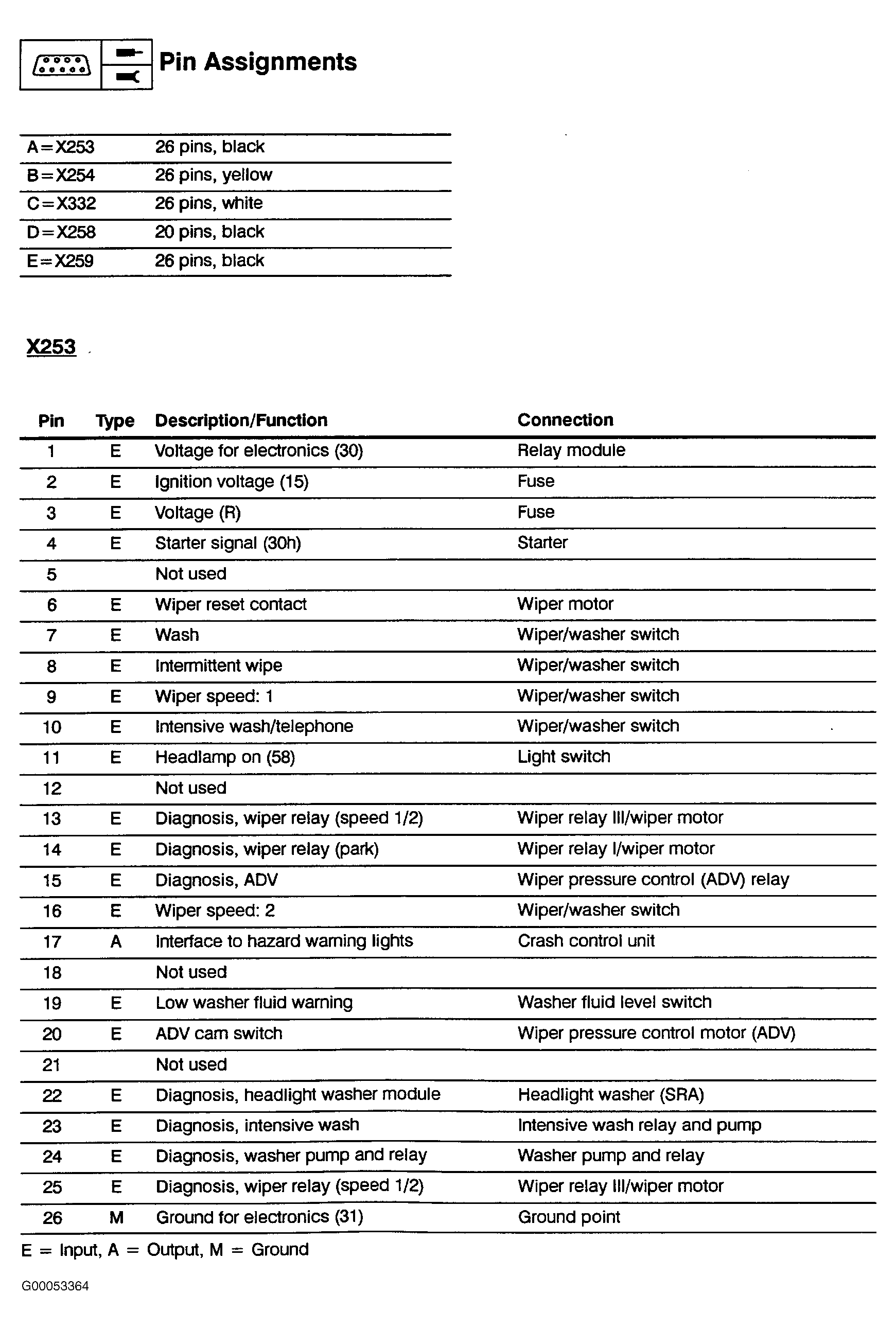

Fig 3: Central Body Electronics - Pin Assignments (3 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

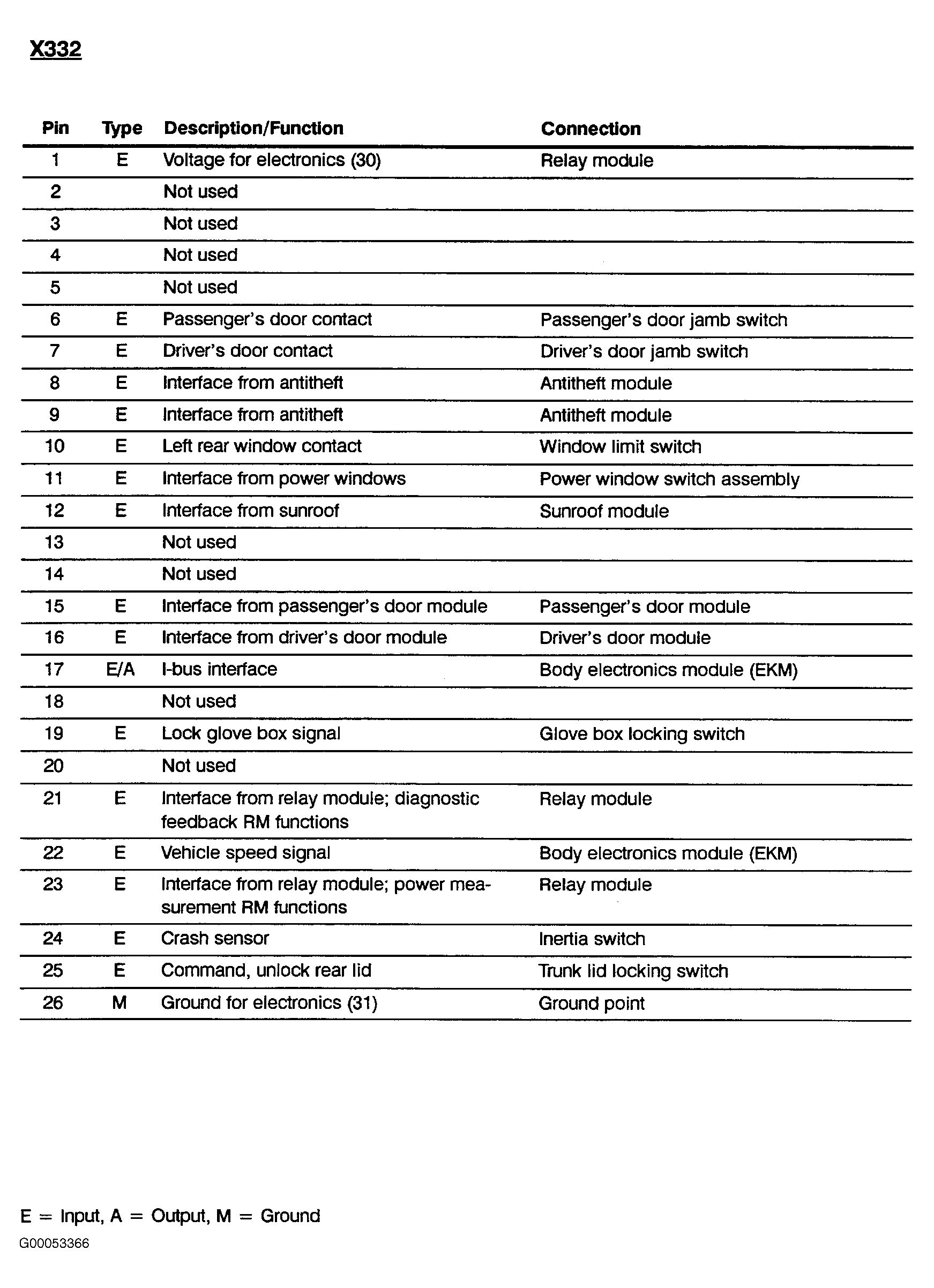

Fig 4: Central Body Electronics - Pin Assignments (4 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.

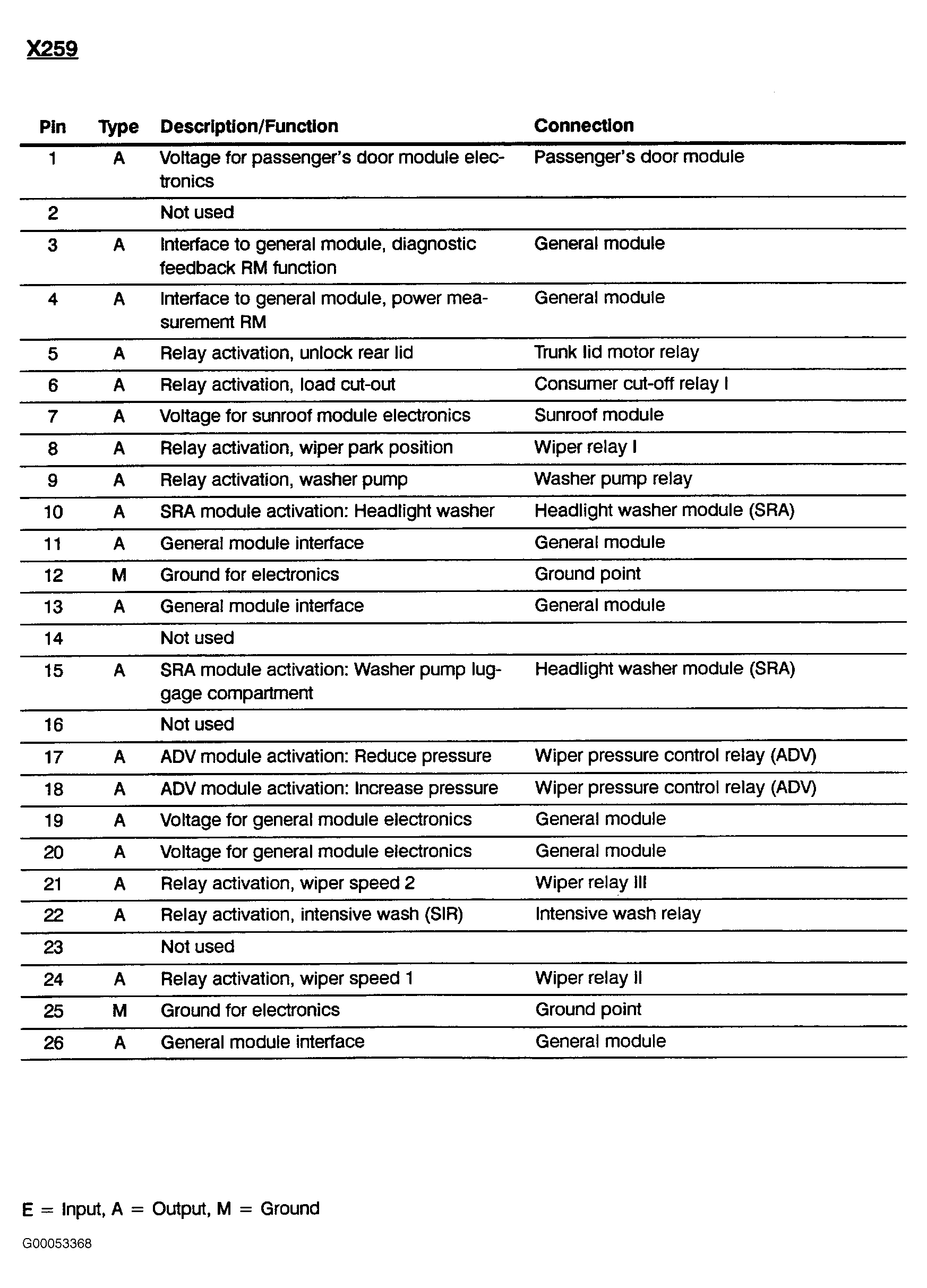

Fig 5: Central Body Electronics - Pin Assignments (5 Of 5)

Courtesy of BMW OF NORTH AMERICA, INC.
