General Module

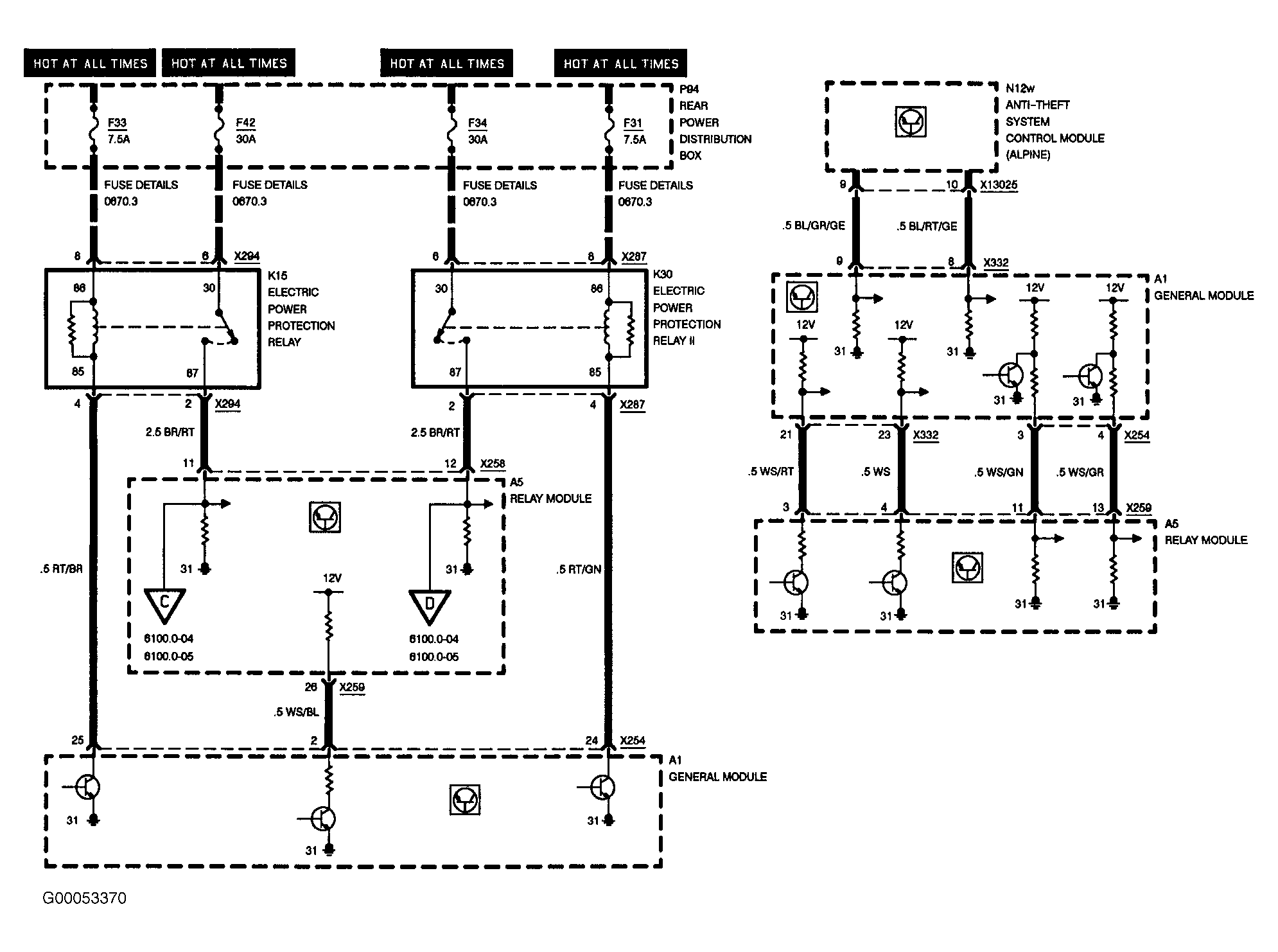

Fig 1: Central Body Electronics - General Module (1 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

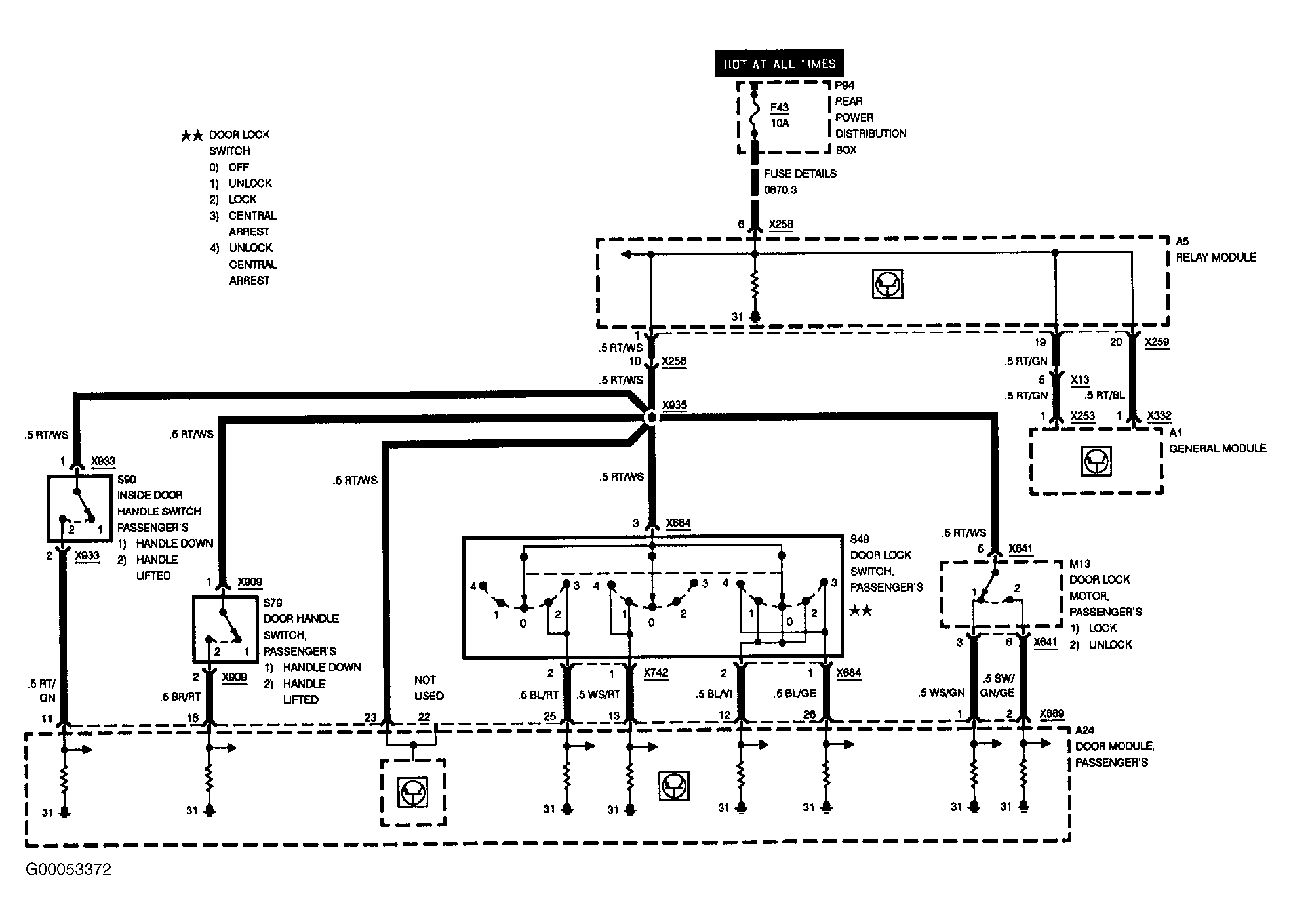

Fig 2: Central Body Electronics - General Module (2 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Central Body Electronics - General Module (3 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

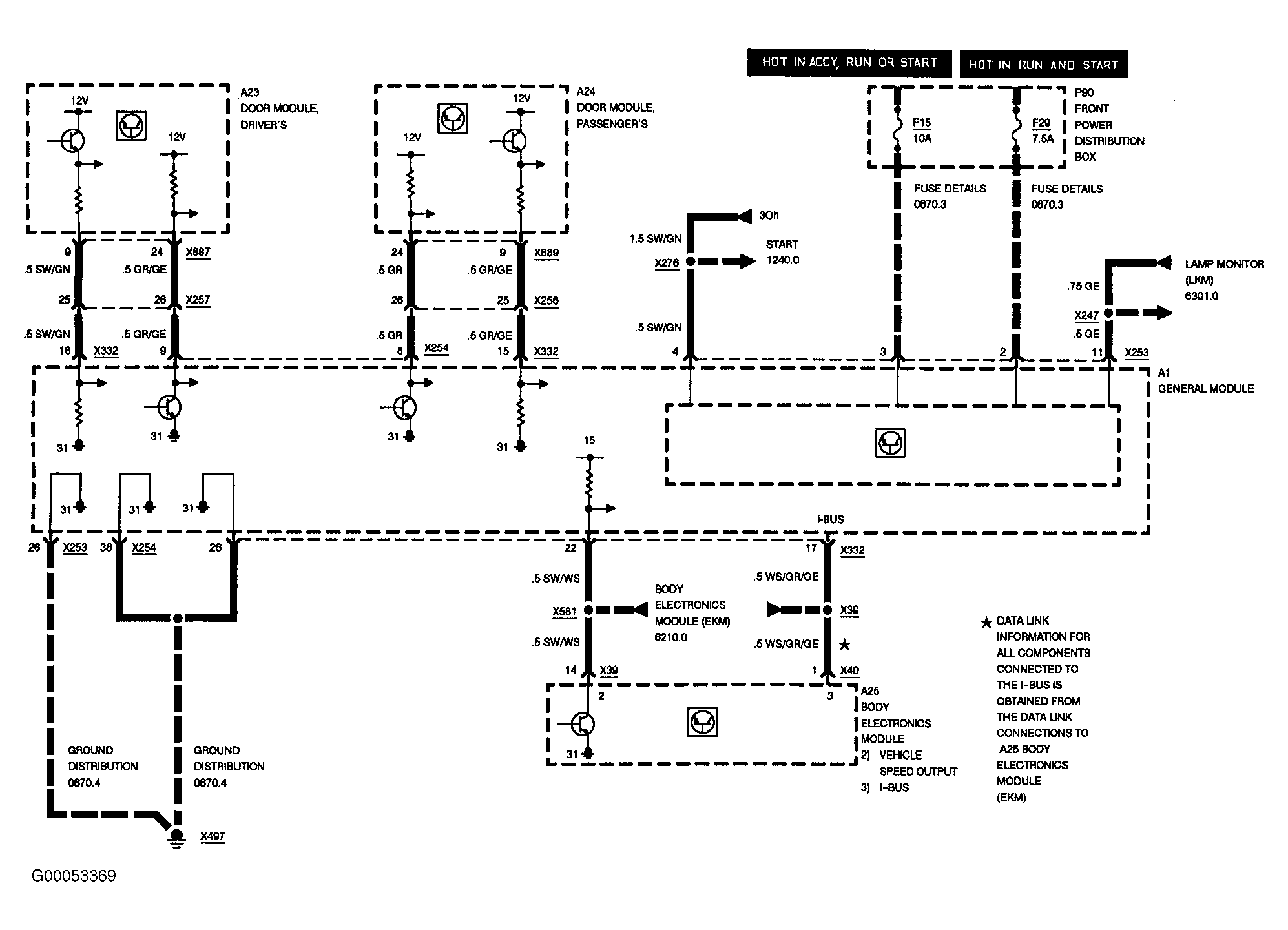

Fig 4: Central Body Electronics - General Module (4 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.
