Wiring Diagrams - BMW 850 1991-92
>>
Cellular Telephone
>>
Amps System
Amps System

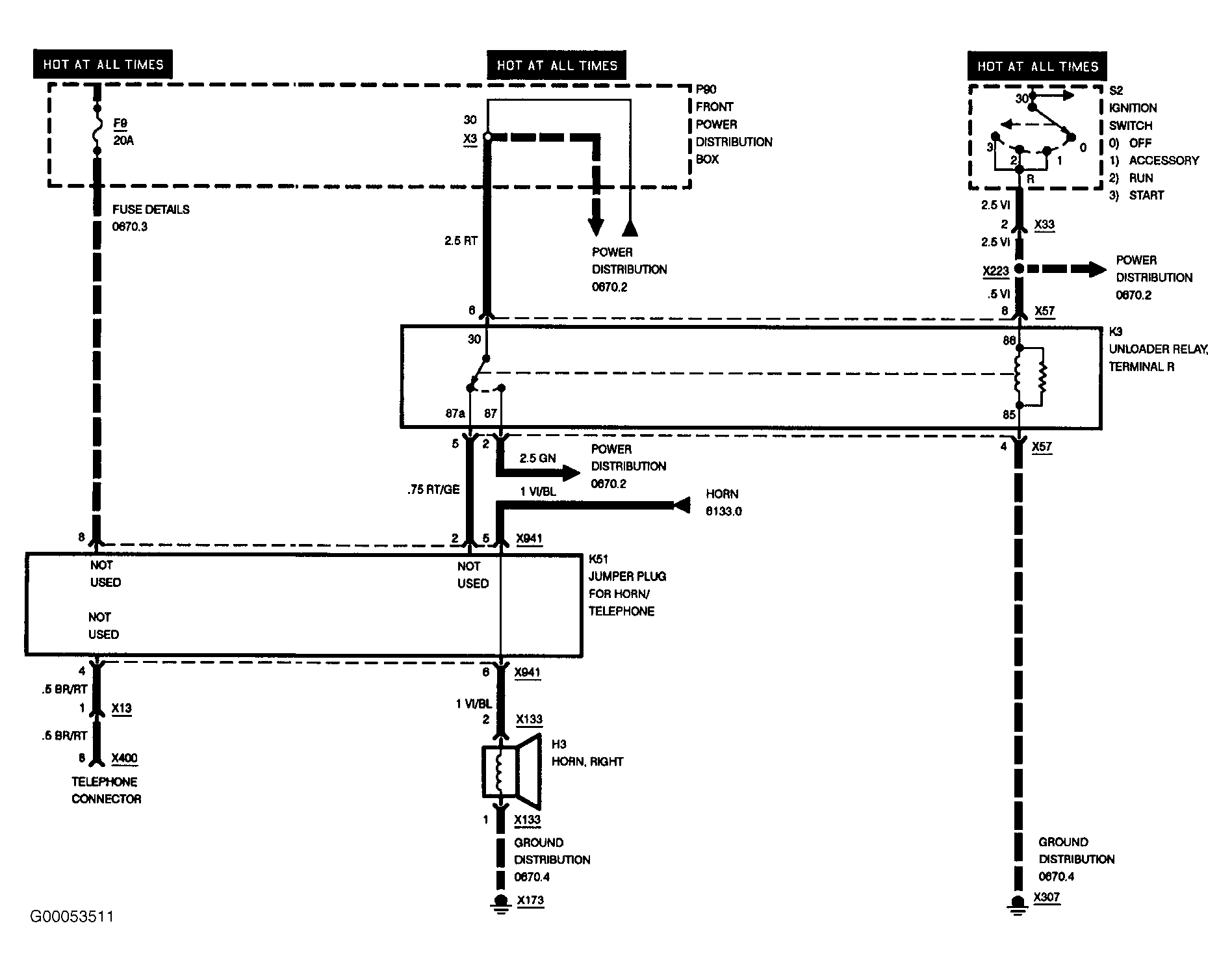

Fig 1: AMPS System (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

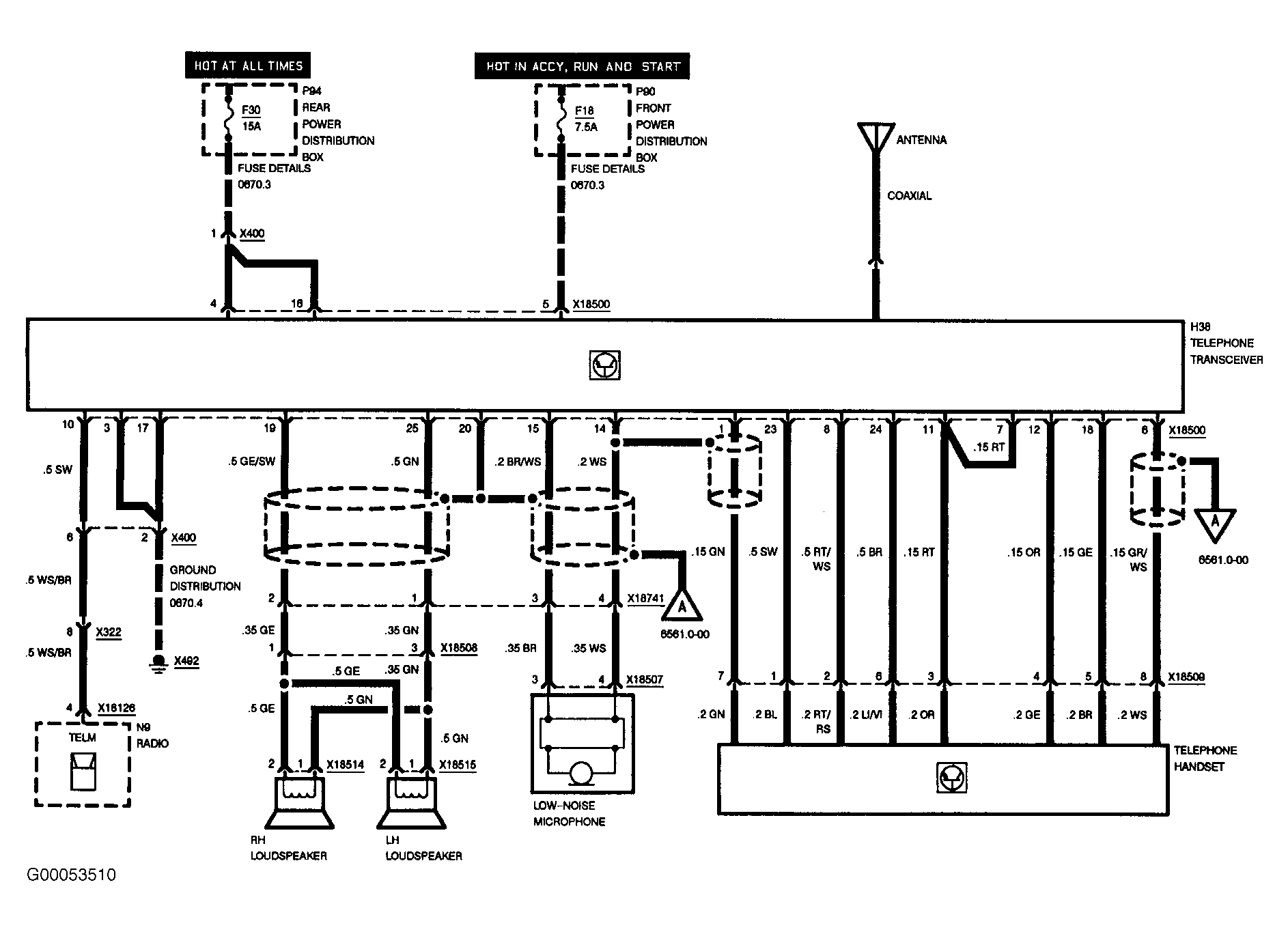

Fig 2: AMPS System (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
