Single Output Speedometer

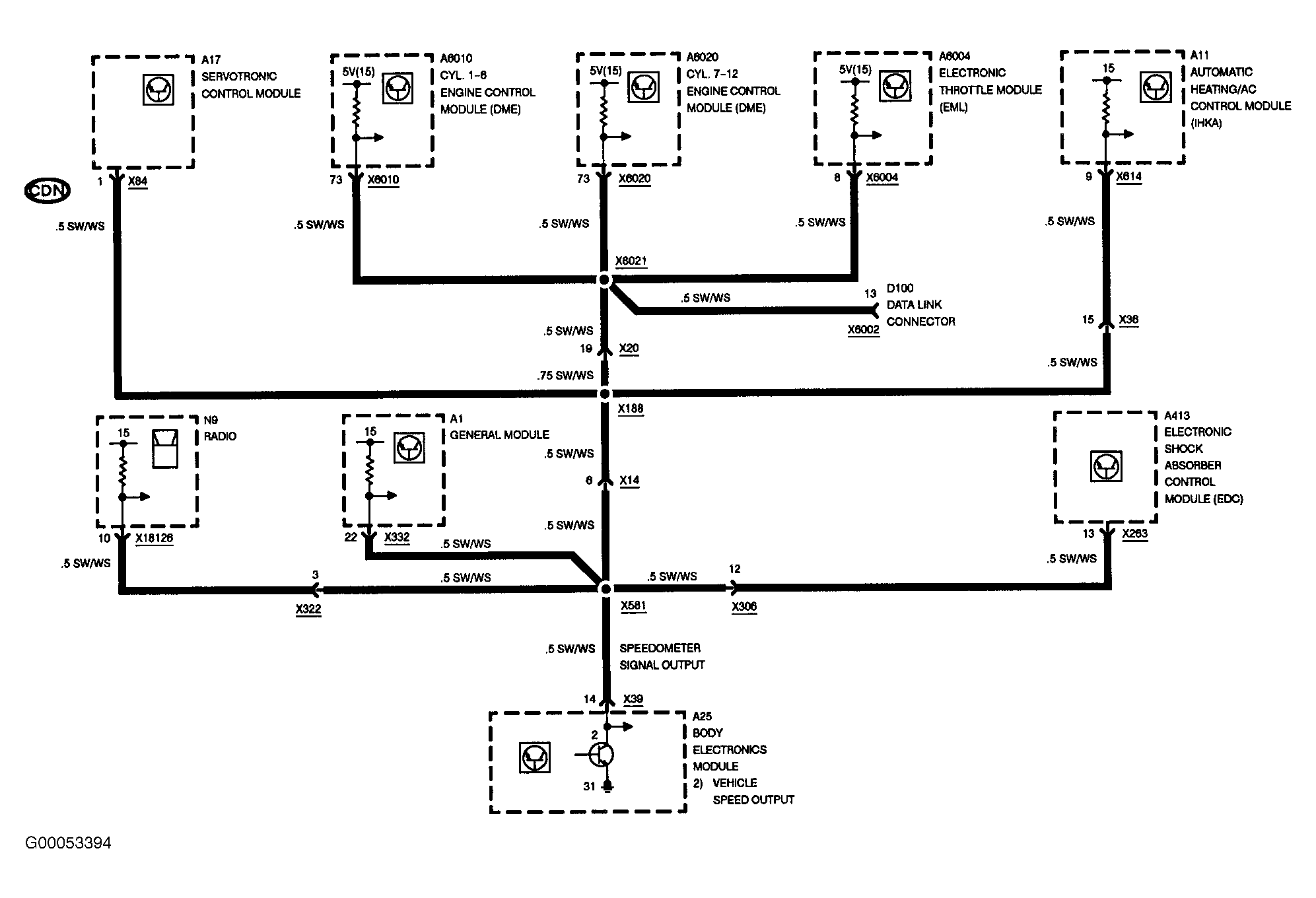

Fig 1: Single Output Speedometer (1 Of 8)

G00053394

Courtesy of BMW OF NORTH AMERICA, INC.

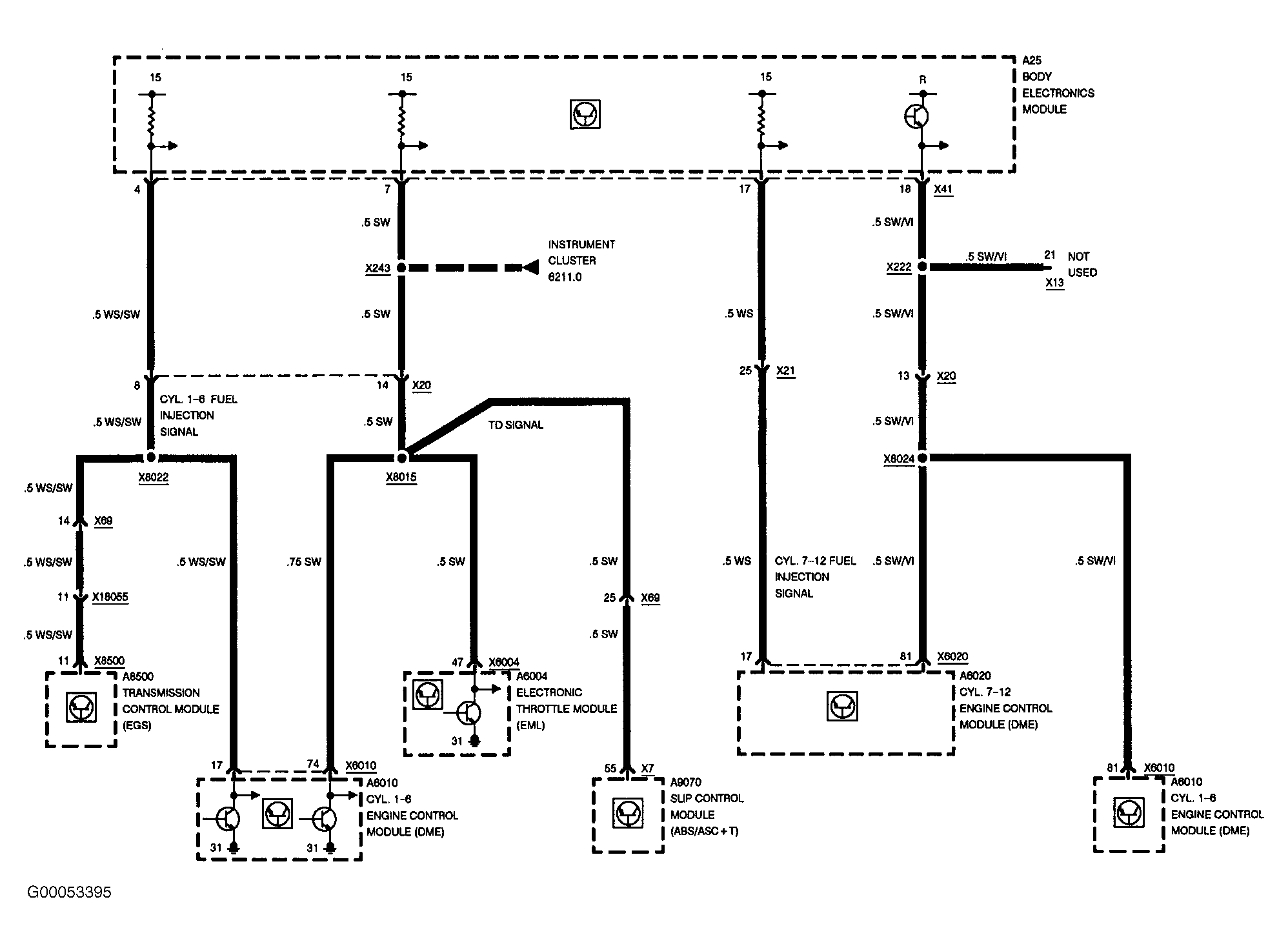

Fig 2: Single Output Speedometer (2 Of 8)

G00053395

Courtesy of BMW OF NORTH AMERICA, INC.

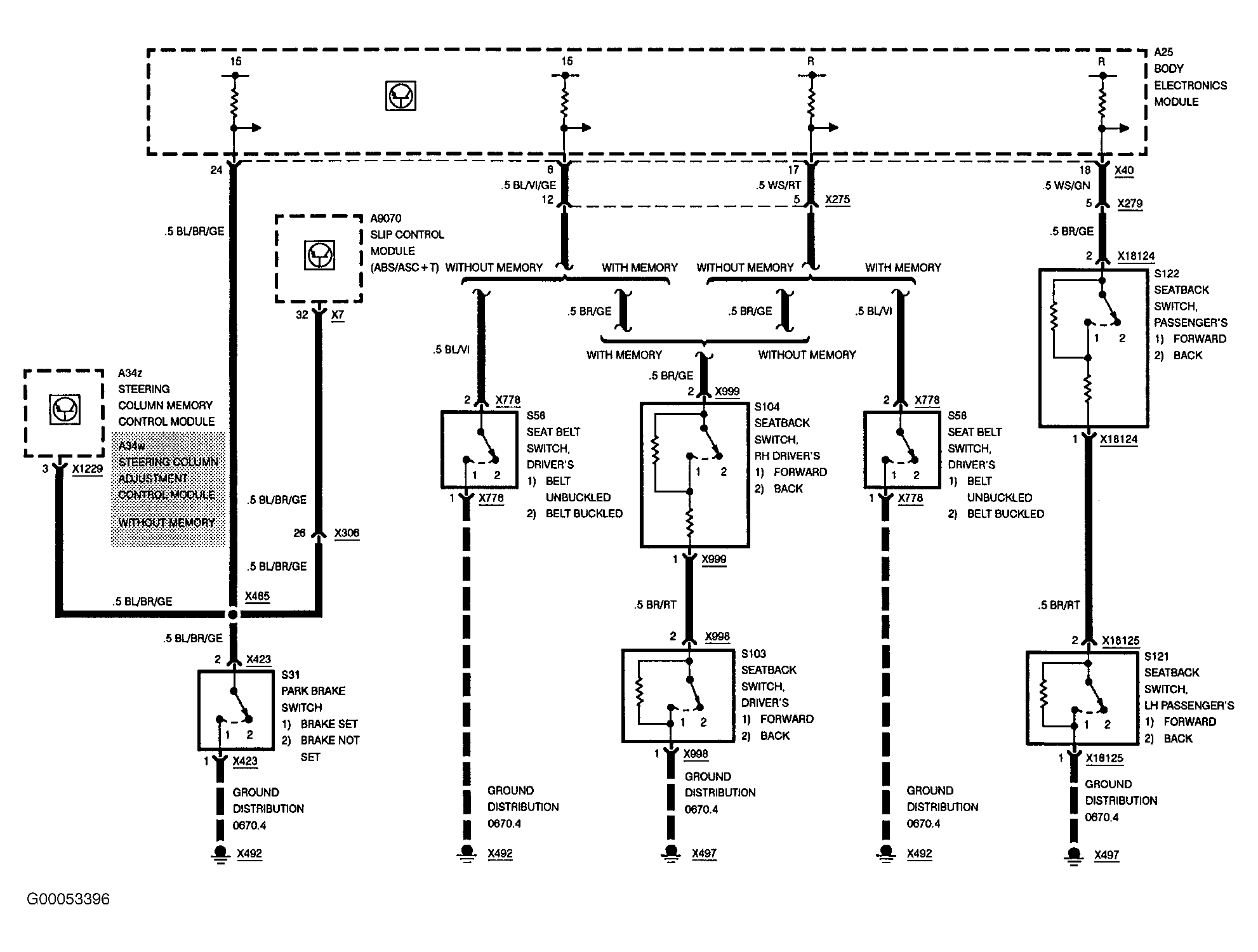

Fig 3: Single Output Speedometer (3 Of 8)

G00053396

Courtesy of BMW OF NORTH AMERICA, INC.

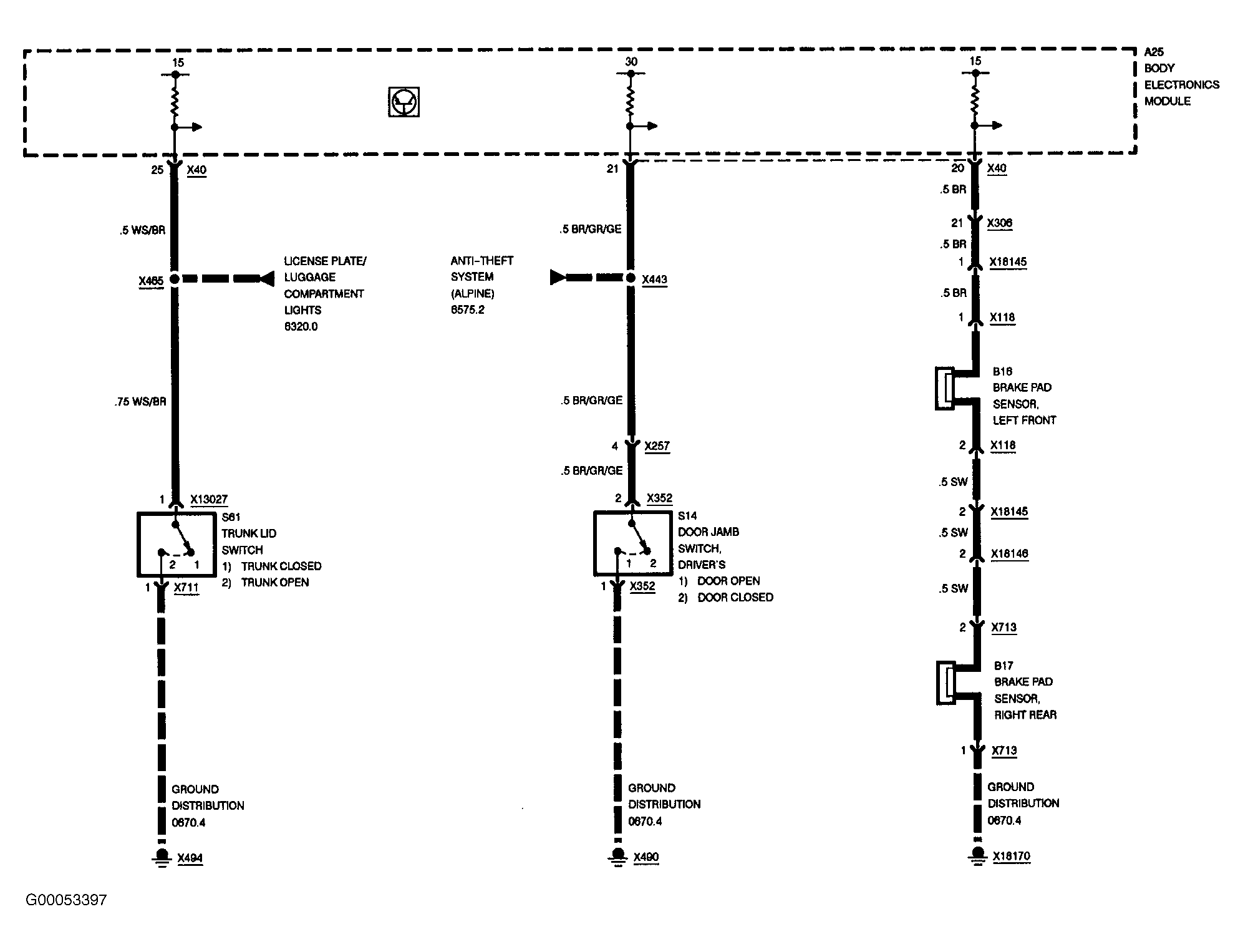

Fig 4: Single Output Speedometer (4 Of 8)

G00053397

Courtesy of BMW OF NORTH AMERICA, INC.

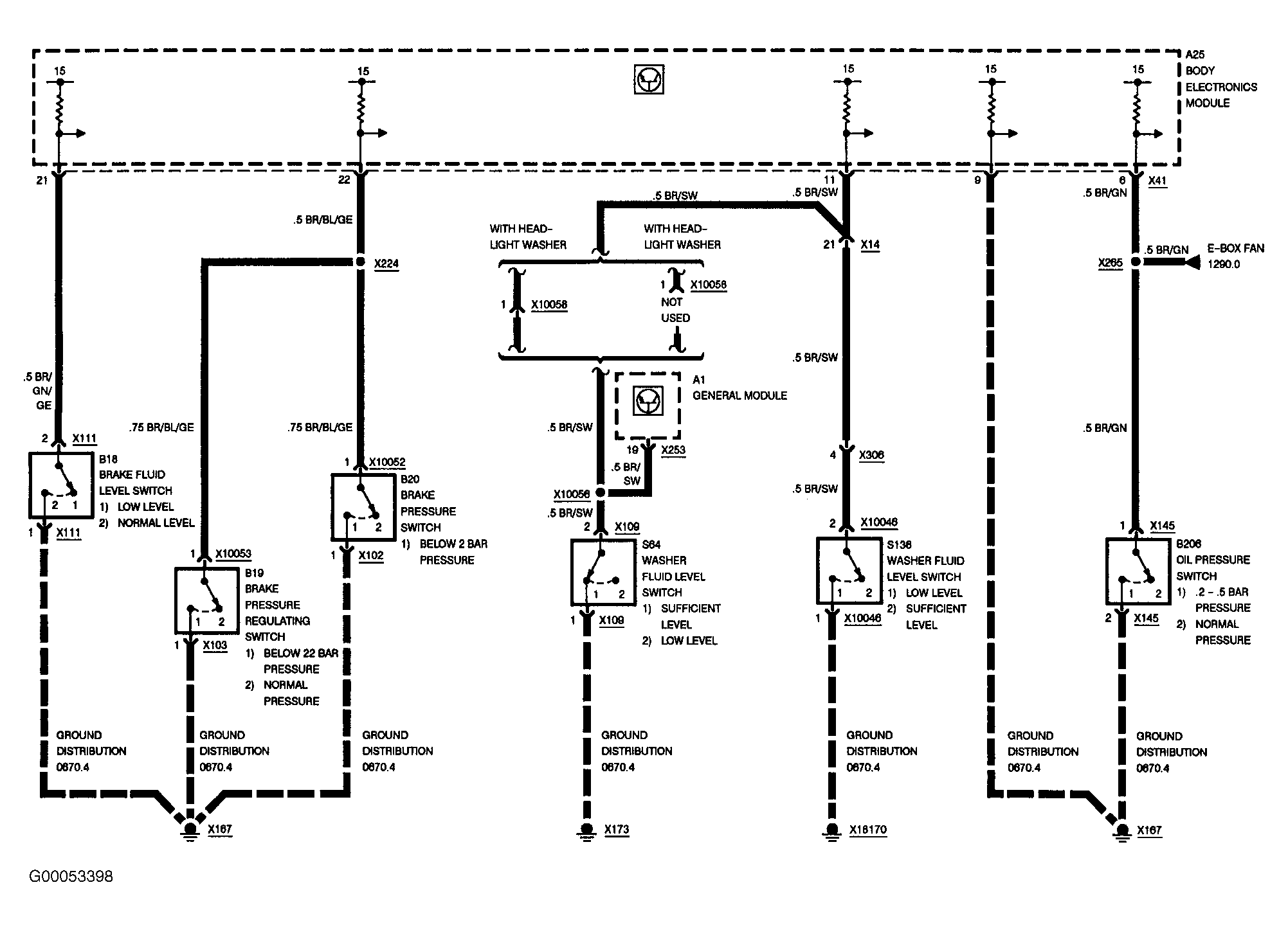

Fig 5: Single Output Speedometer (5 Of 8)

G00053398

Courtesy of BMW OF NORTH AMERICA, INC.

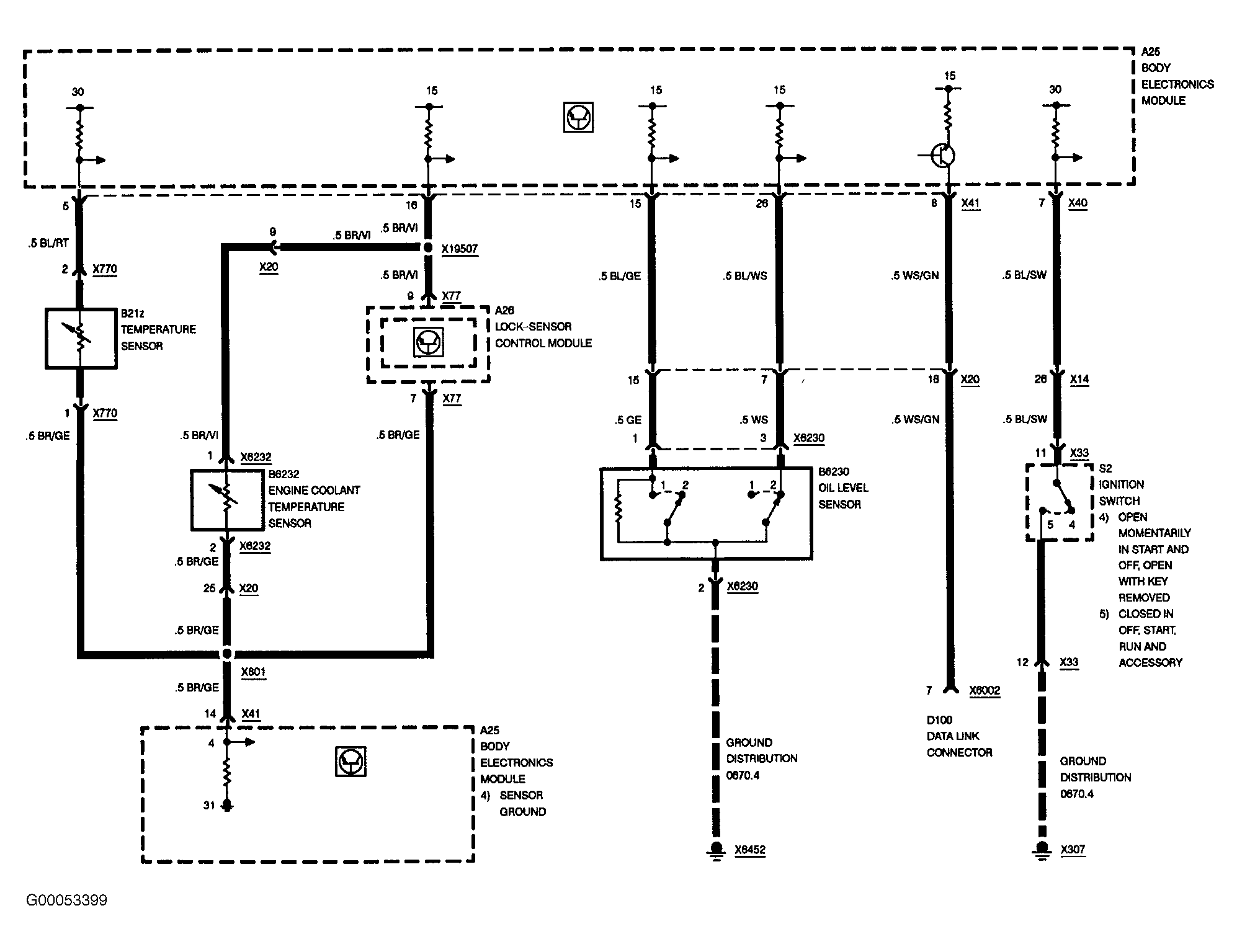

Fig 6: Single Output Speedometer (6 Of 8)

G00053399

Courtesy of BMW OF NORTH AMERICA, INC.

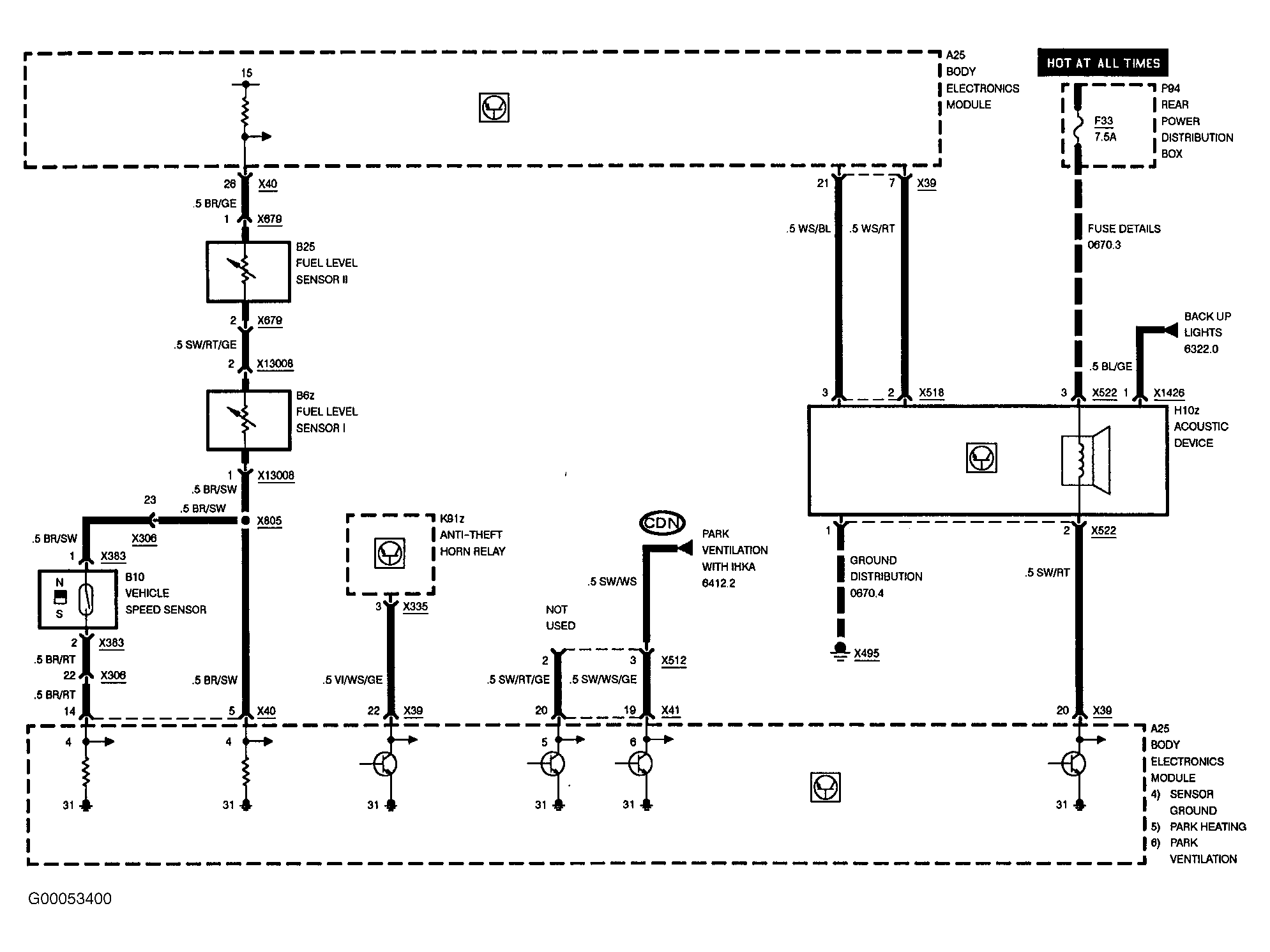

Fig 7: Single Output Speedometer (7 Of 8)

G00053400

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Single Output Speedometer (8 Of 8)

G00053401

Courtesy of BMW OF NORTH AMERICA, INC.
