Pin Assignments

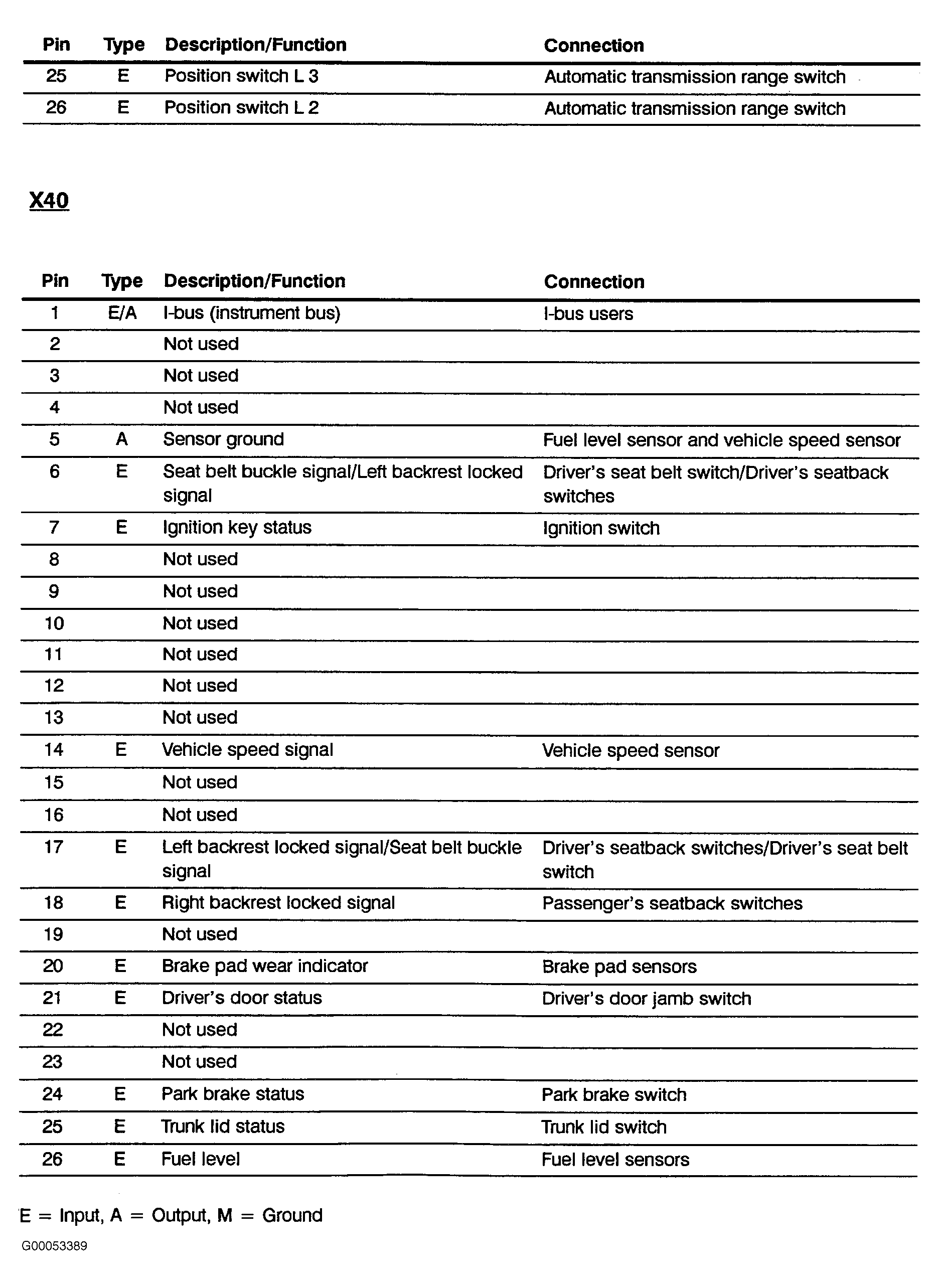

Fig 1: Body Electronics Module (EKM) - Pin Assignments (1 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

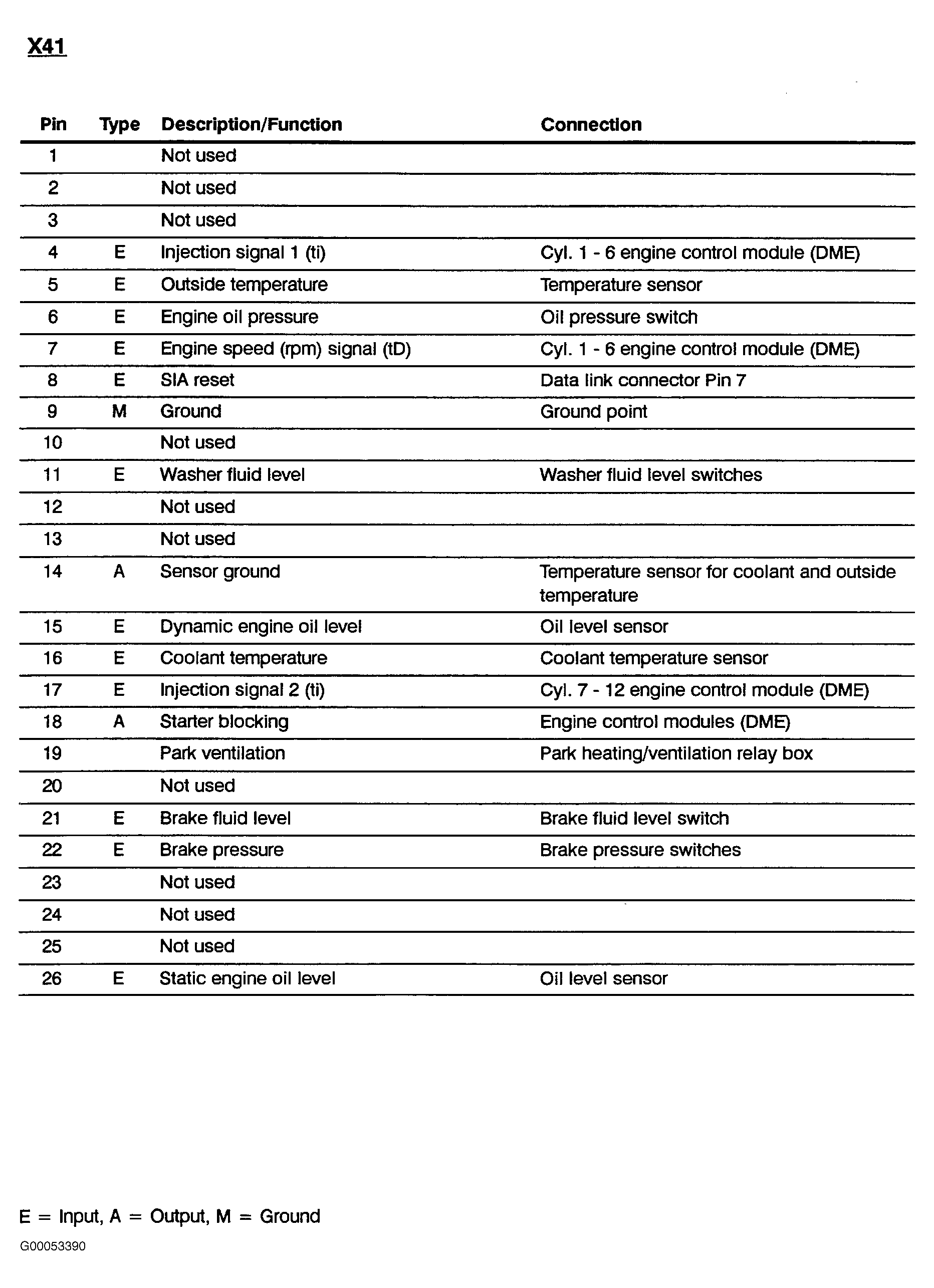

Fig 2: Body Electronics Module (EKM) - Pin Assignments (2 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

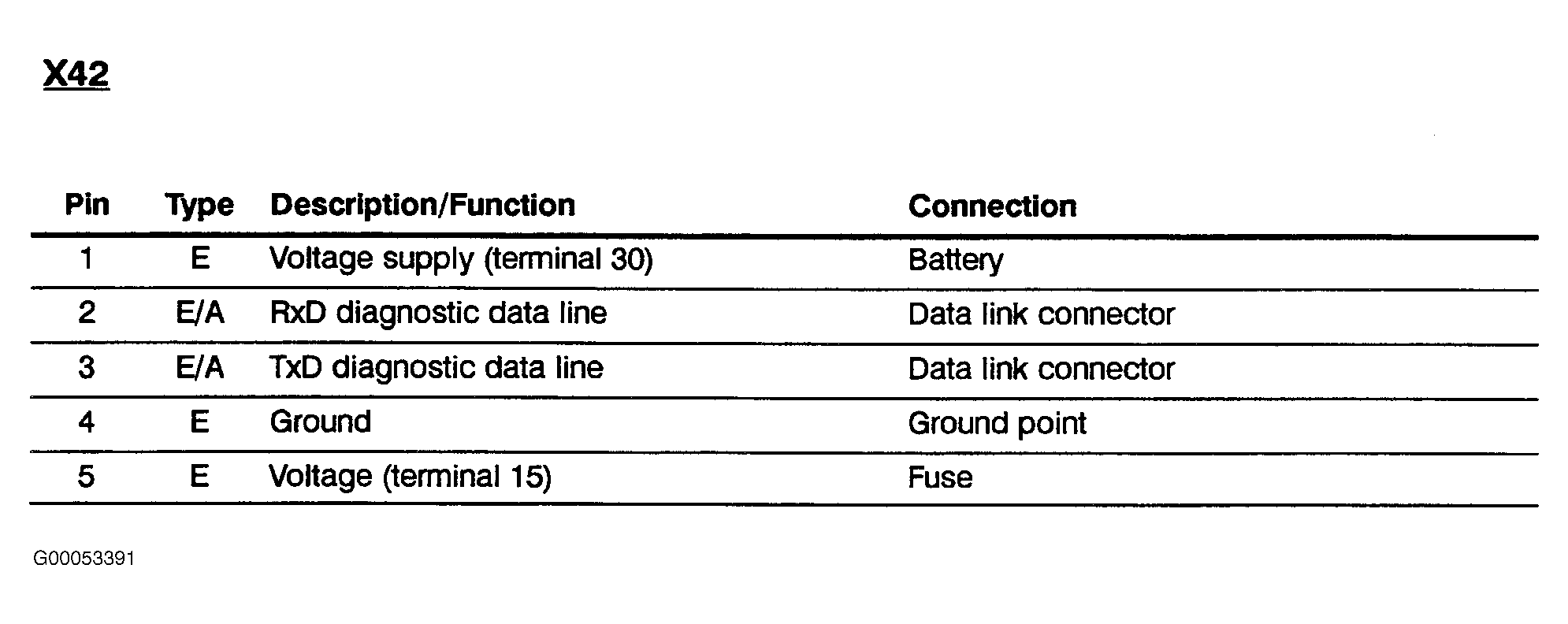

Fig 3: Body Electronics Module (EKM) - Pin Assignments (3 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

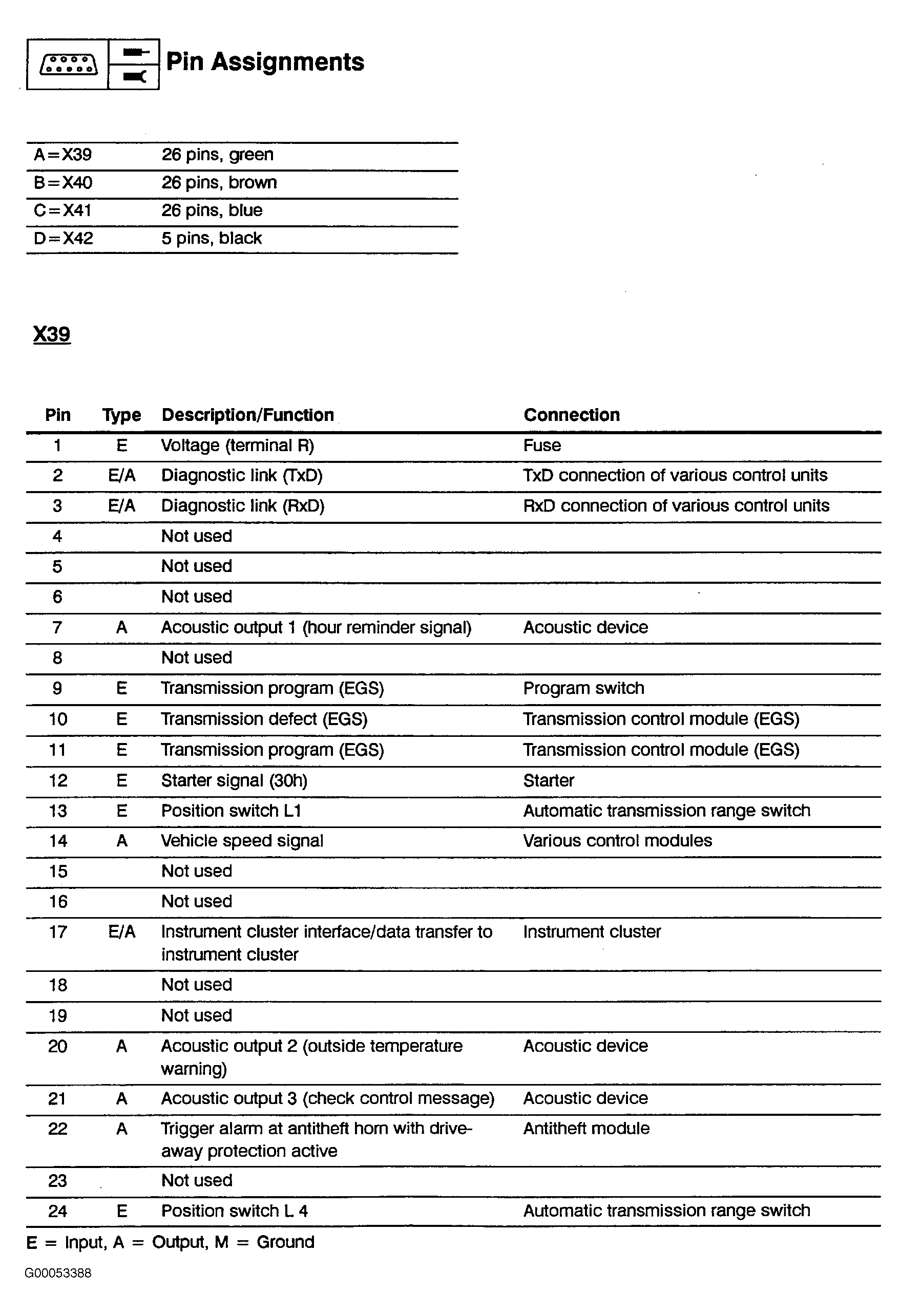

Fig 4: Body Electronics Module (EKM) - Pin Assignments (4 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.
