Wiring Diagrams - BMW 850 1991-92
>>
Auxiliary Fan
Auxiliary Fan

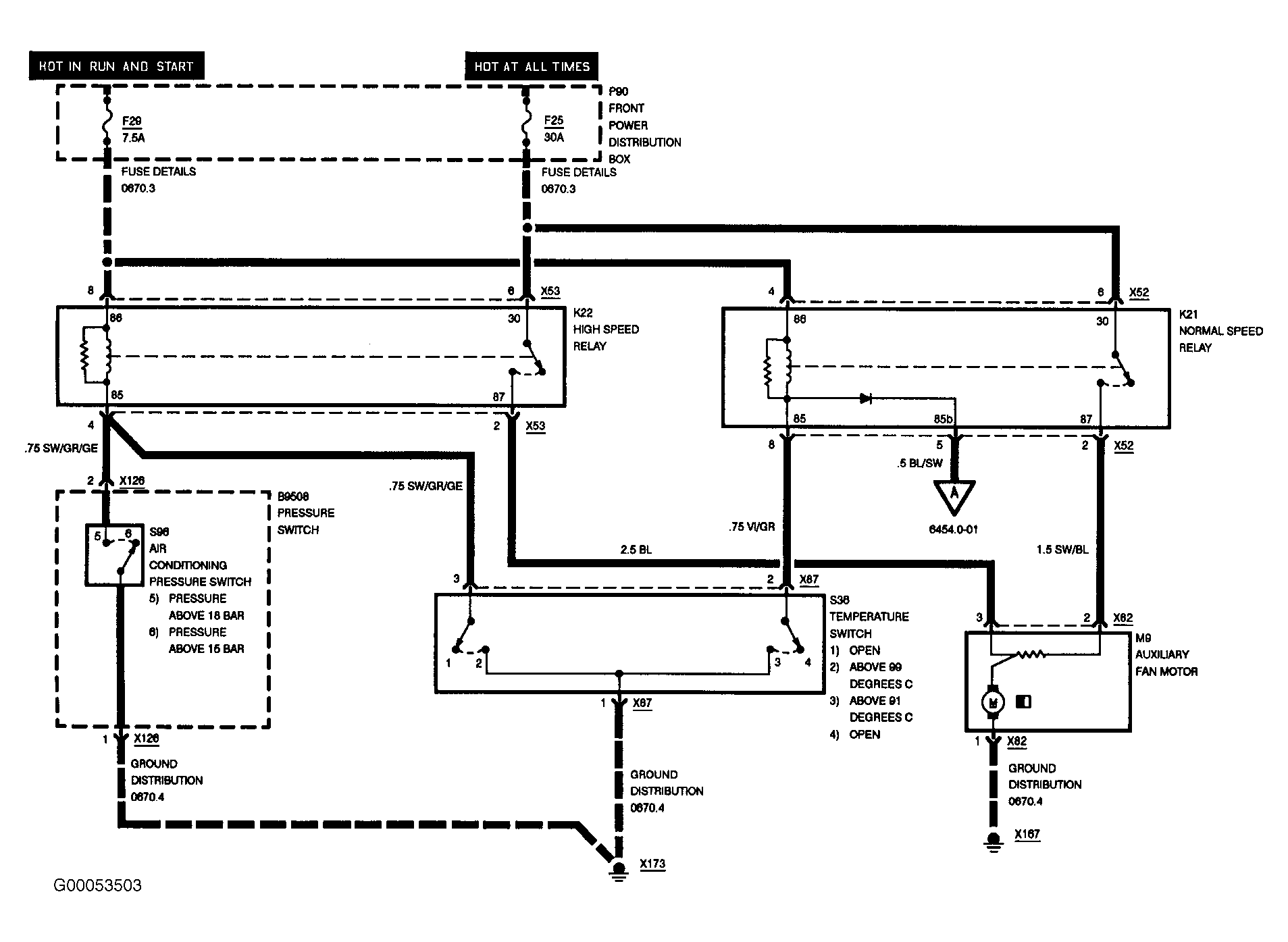

Fig 1: Auxiliary Fan (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

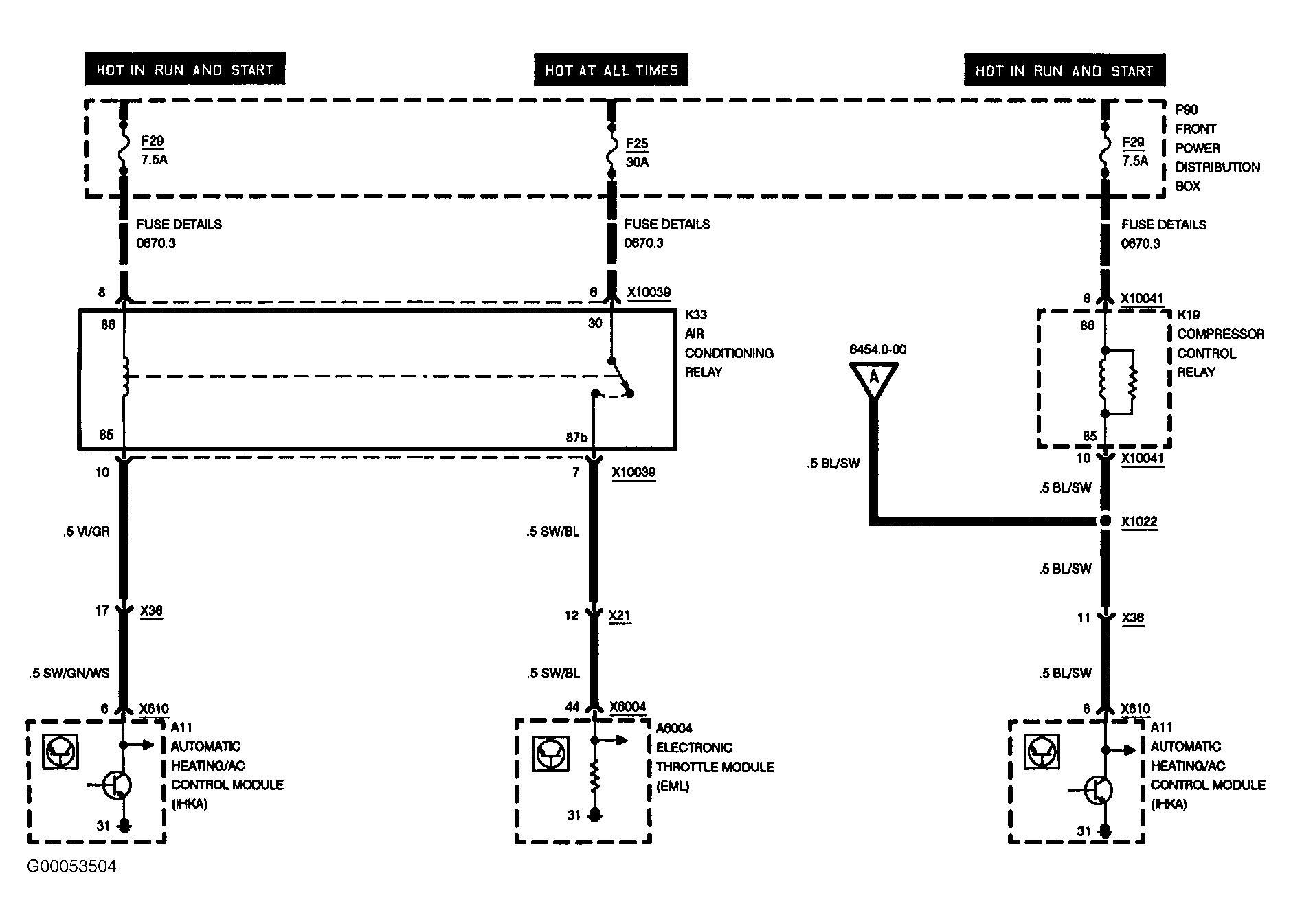

Fig 2: Auxiliary Fan (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
