Temperature Controls

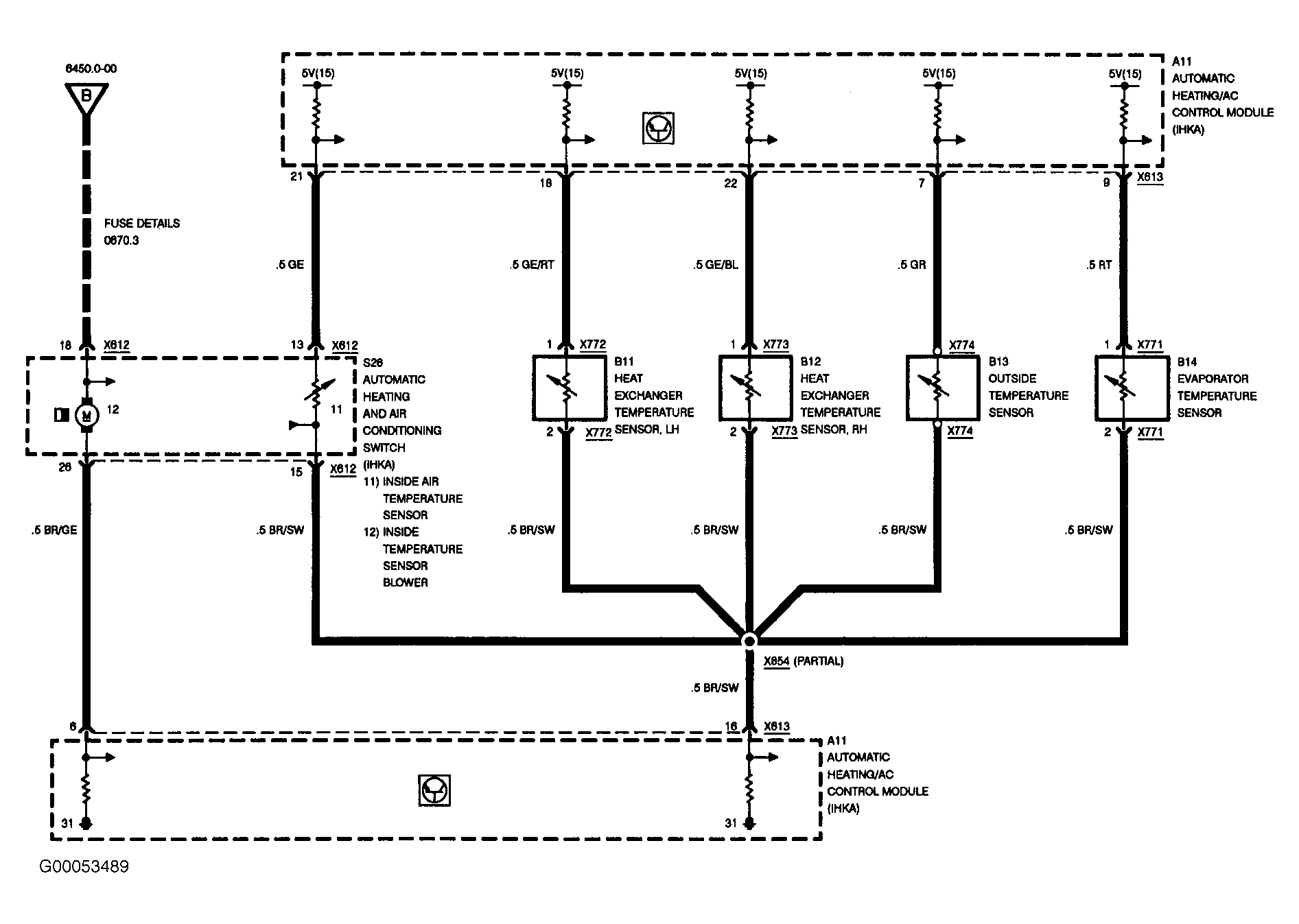

Fig 1: Temperature Controls (1 Of 2)

G00053489

Courtesy of BMW OF NORTH AMERICA, INC.

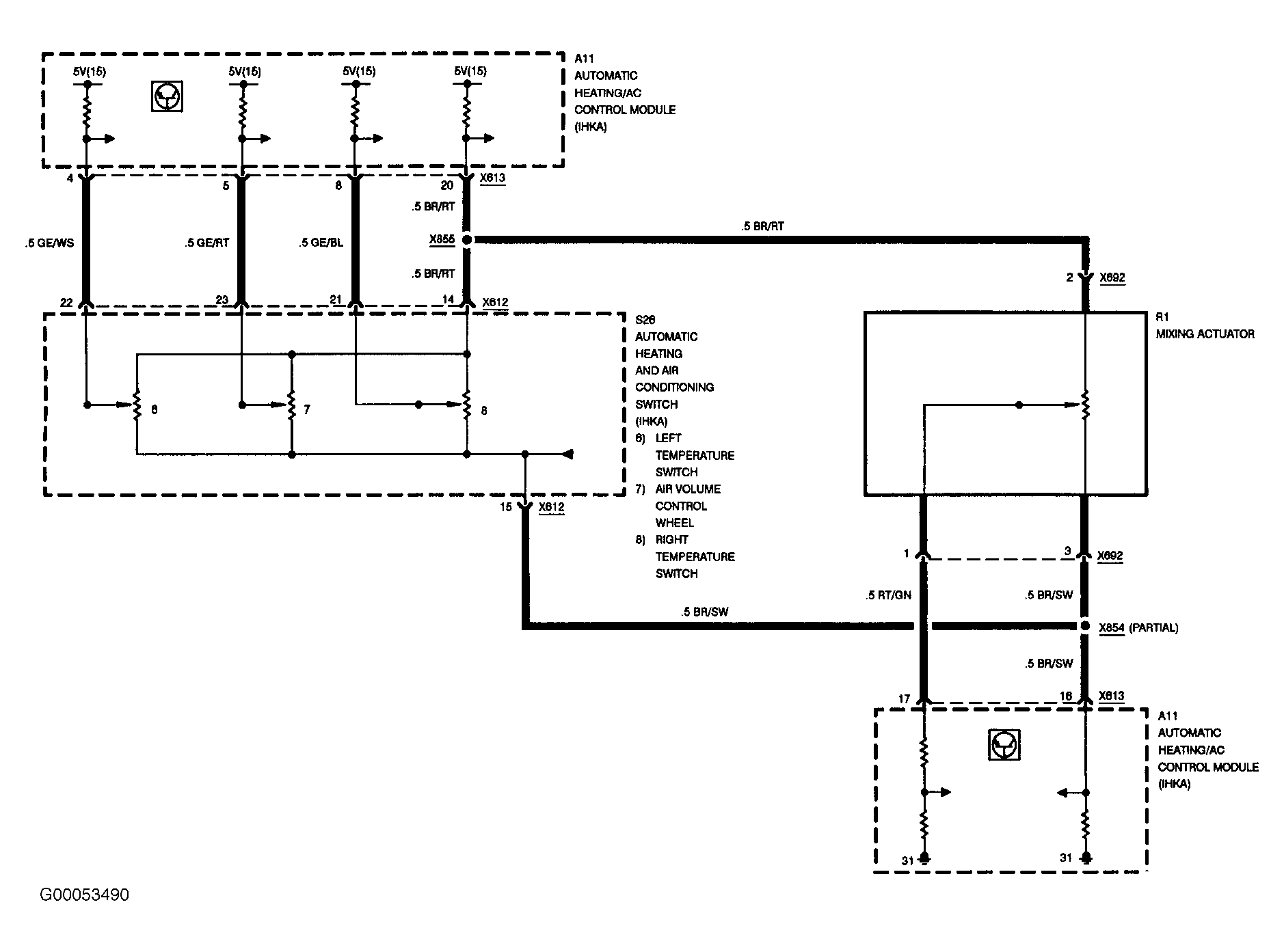

Fig 2: Temperature Controls (2 Of 2)

G00053490

Courtesy of BMW OF NORTH AMERICA, INC.
