Pin Assignments

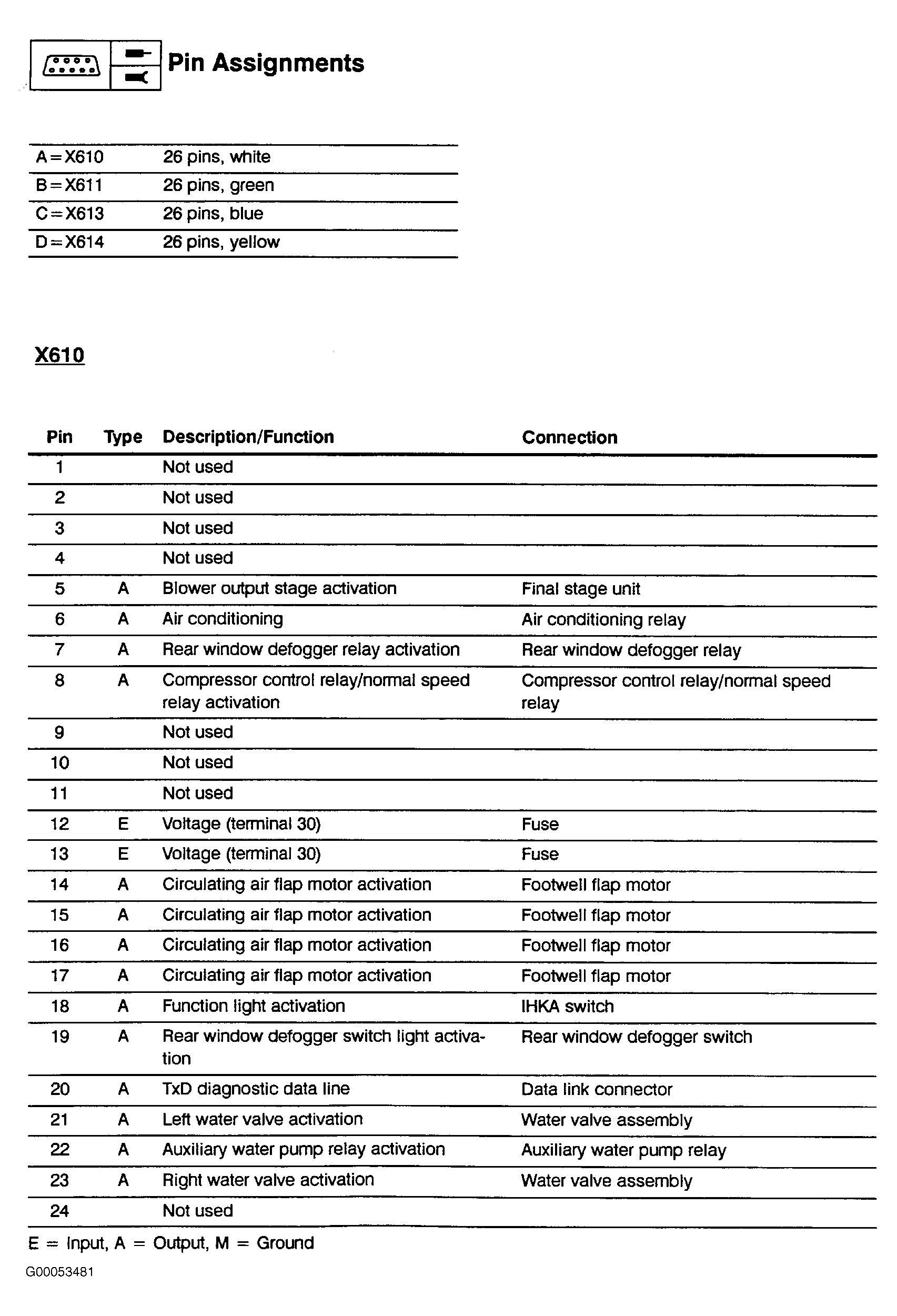

Fig 1: Pin Assignments - Automatic Heating/A/C Controls (1 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

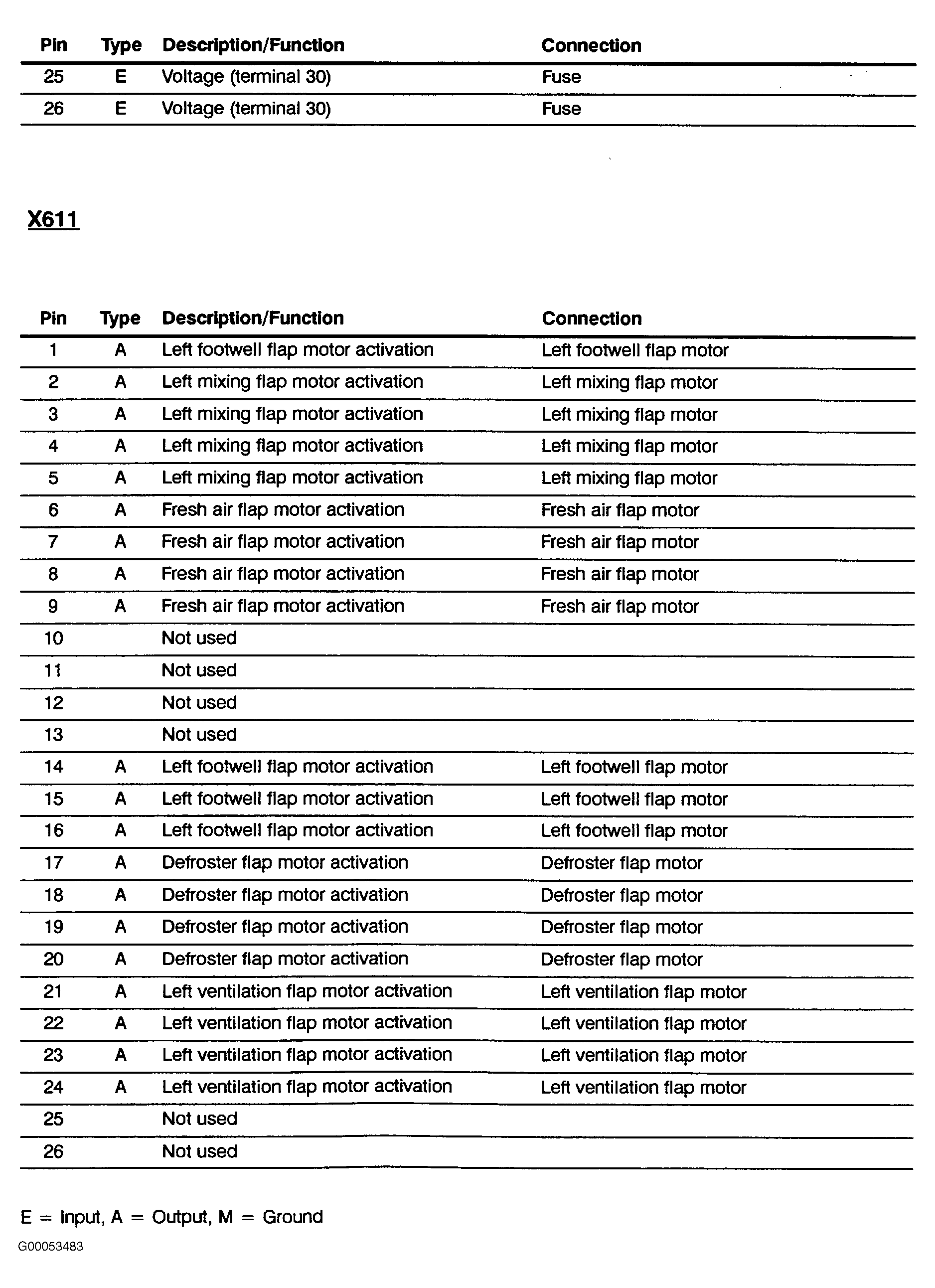

Fig 2: Pin Assignments - Automatic Heating/A/C Controls (2 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

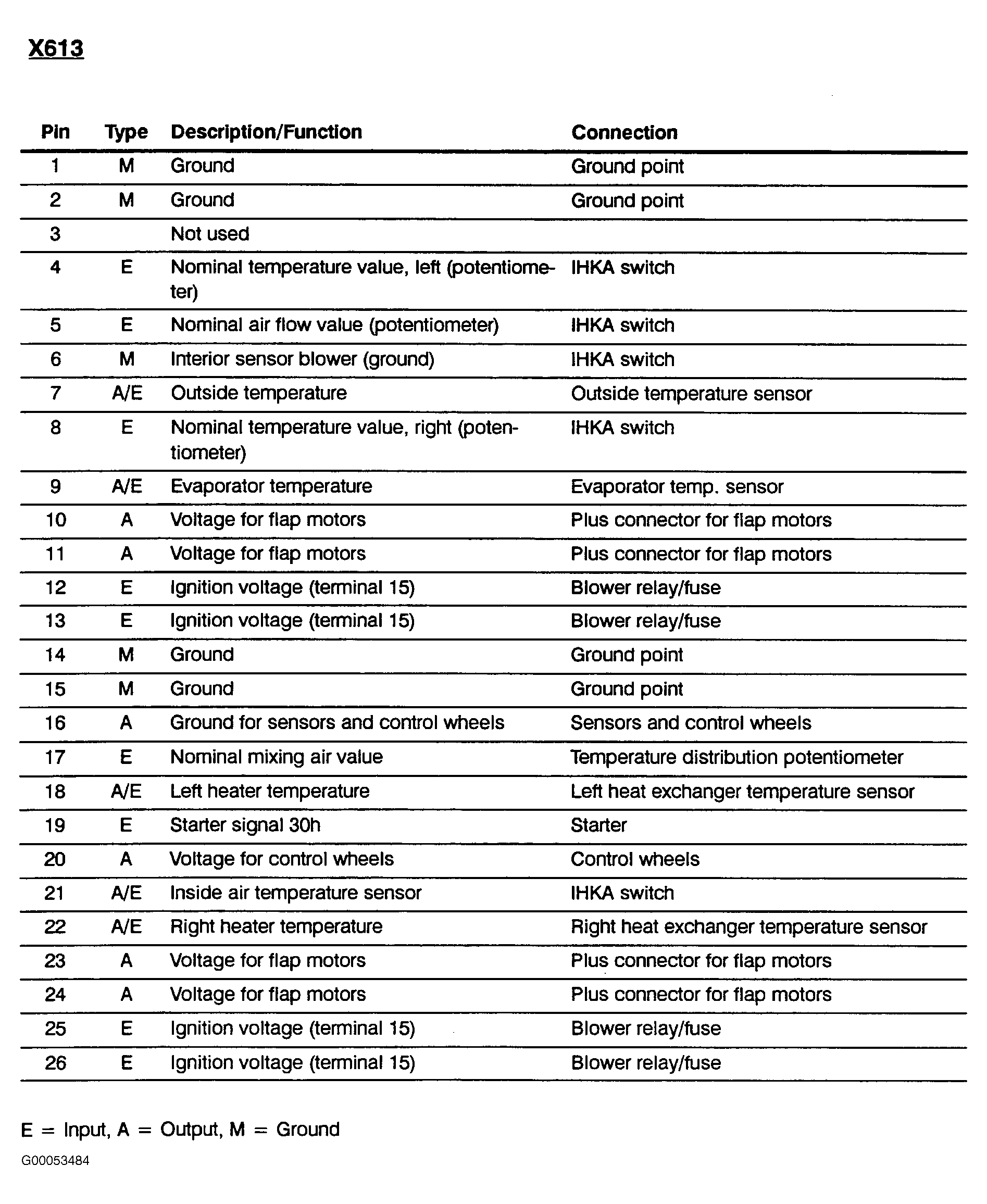

Fig 3: Pin Assignments - Automatic Heating/A/C Controls (3 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.

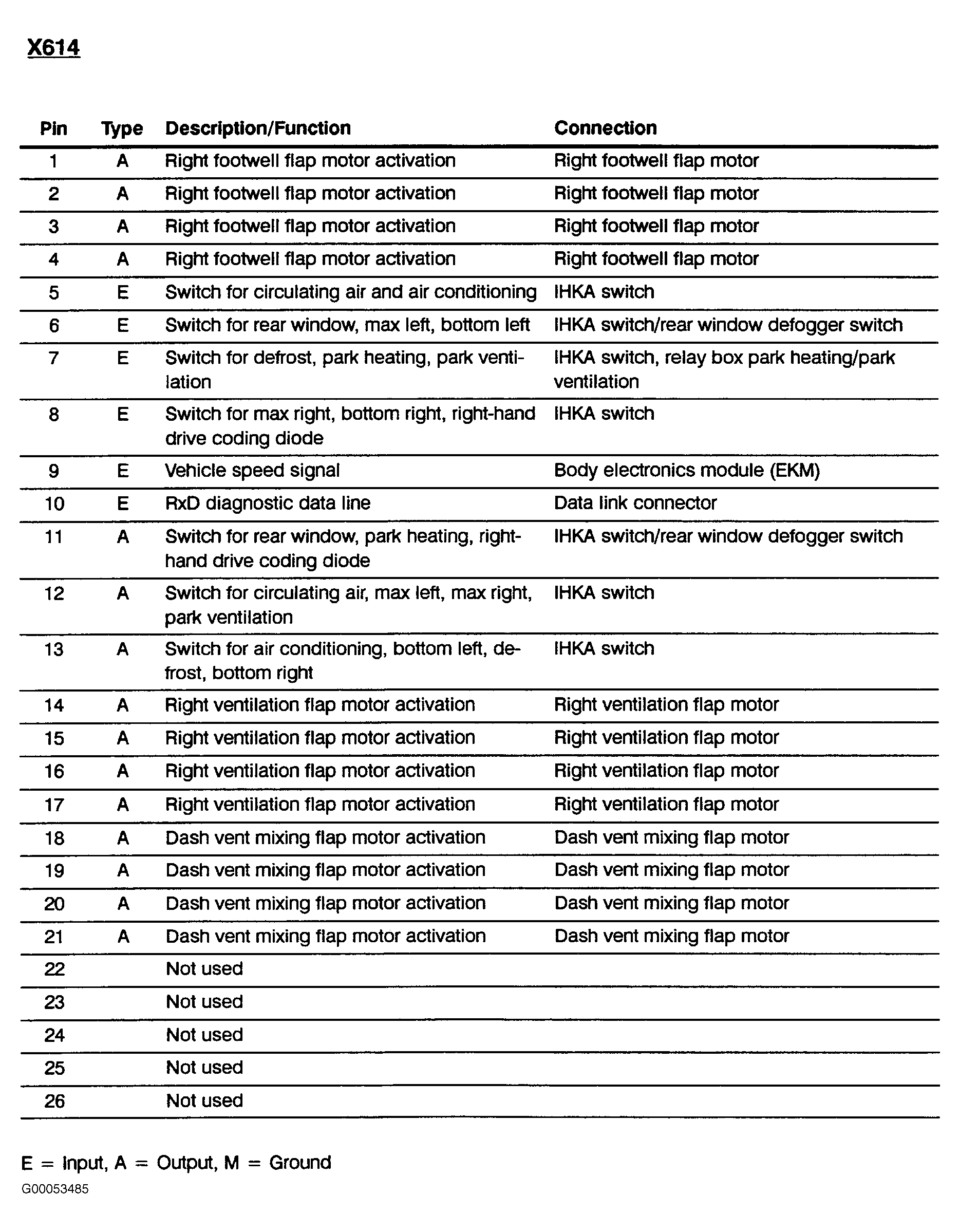

Fig 4: Pin Assignments - Automatic Heating/A/C Controls (4 Of 4)

Courtesy of BMW OF NORTH AMERICA, INC.
