Wiring Diagrams - BMW 850 1991-92
>>
Automatic Heating/A/C Control (IHKA)
>>
Data Link & Starter Input
Data Link & Starter Input

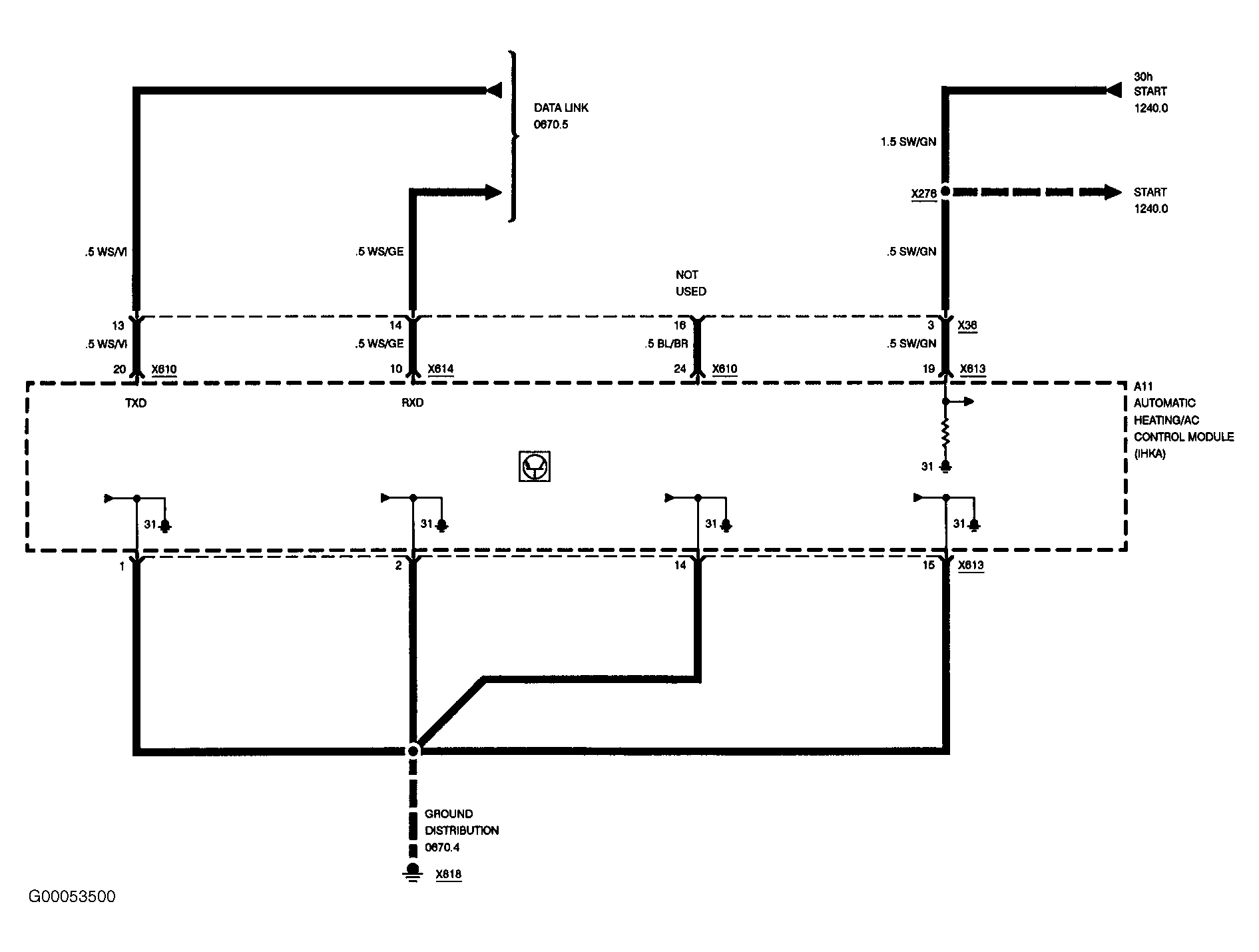

Fig 1: Data Link & Starter Input
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
