Compressor Controls

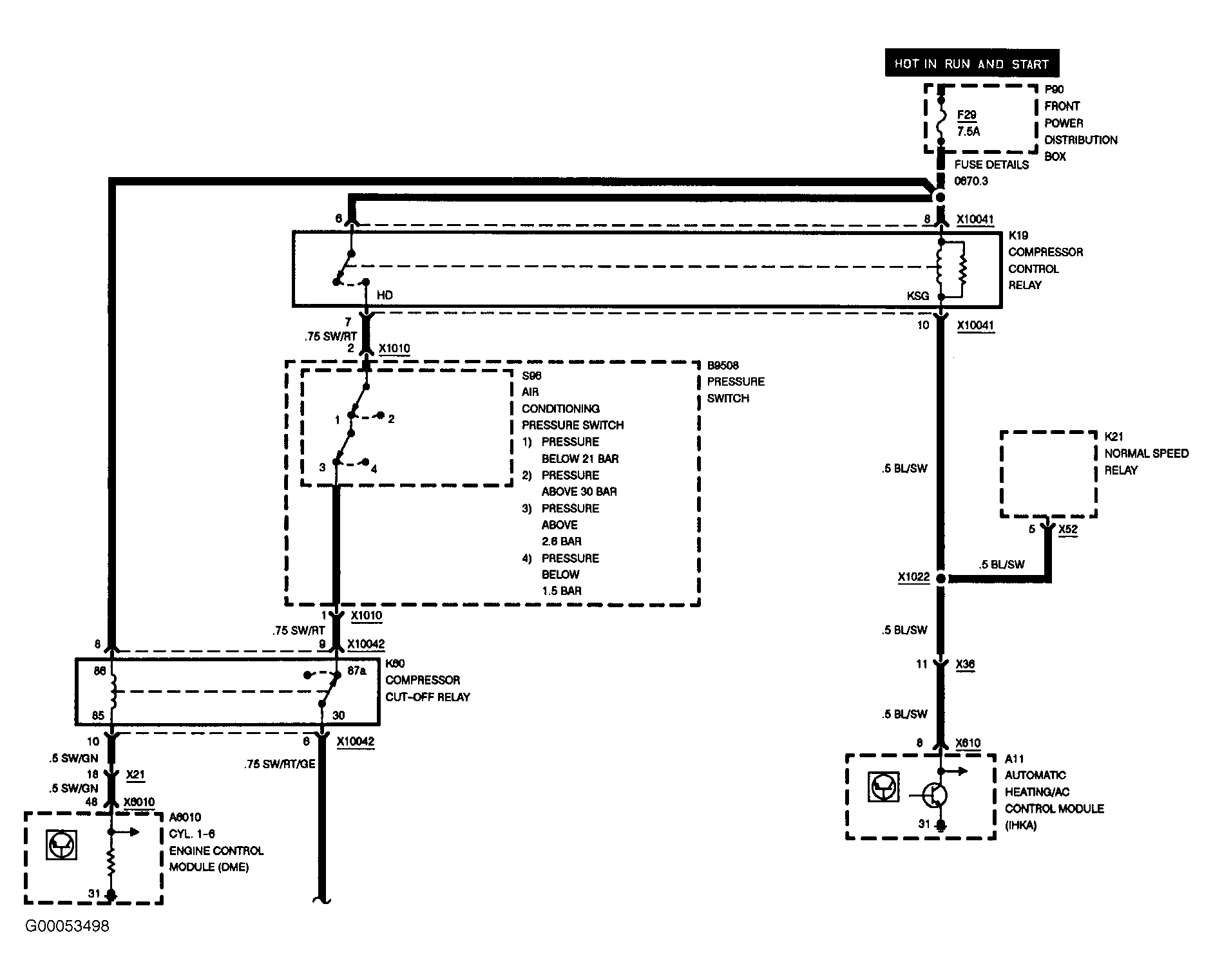

Fig 1: Compressor Controls (1 Of 2)

G00053498

Courtesy of BMW OF NORTH AMERICA, INC.

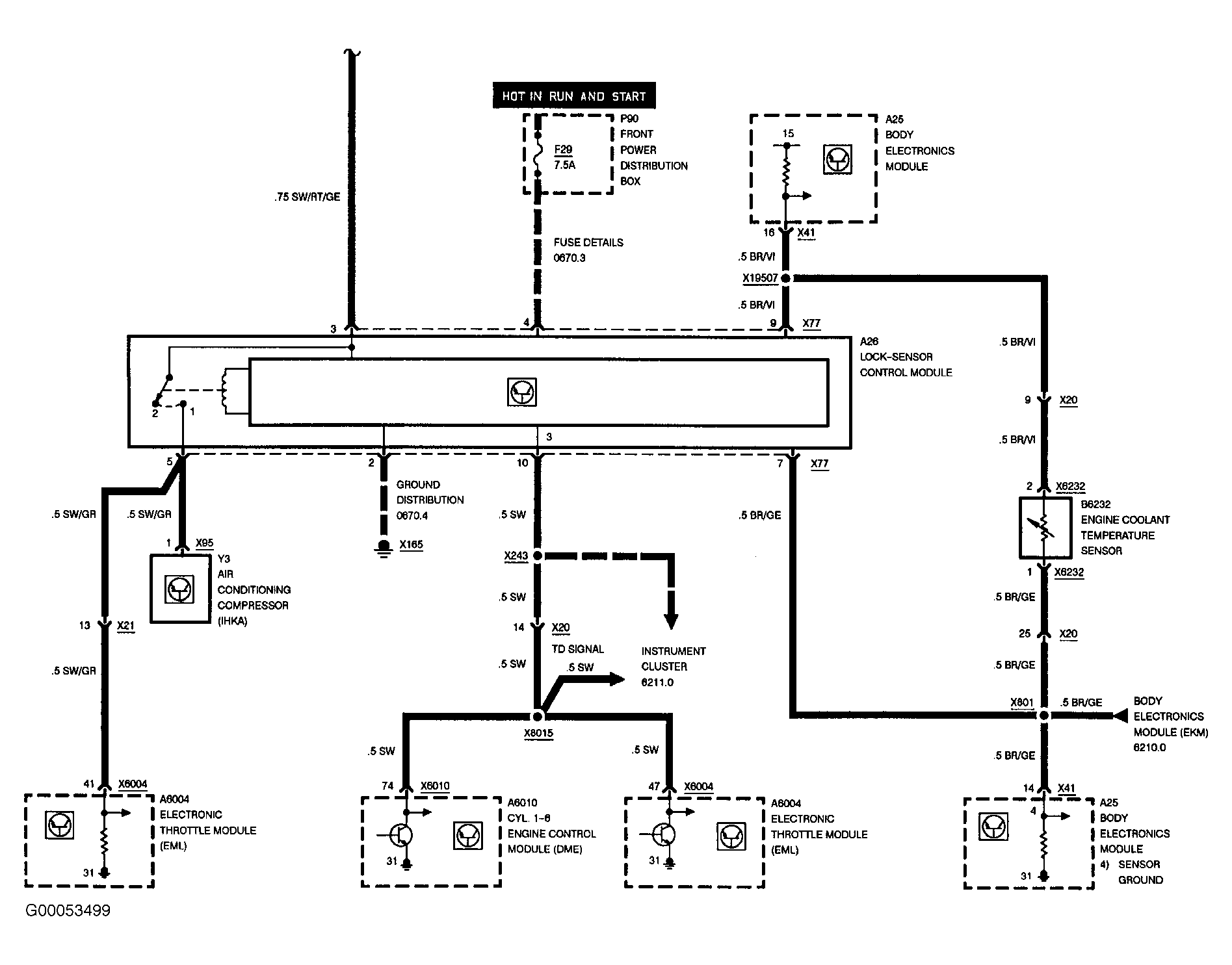

Fig 2: Compressor Controls (2 Of 2)

G00053499

Courtesy of BMW OF NORTH AMERICA, INC.
