Air Delivery

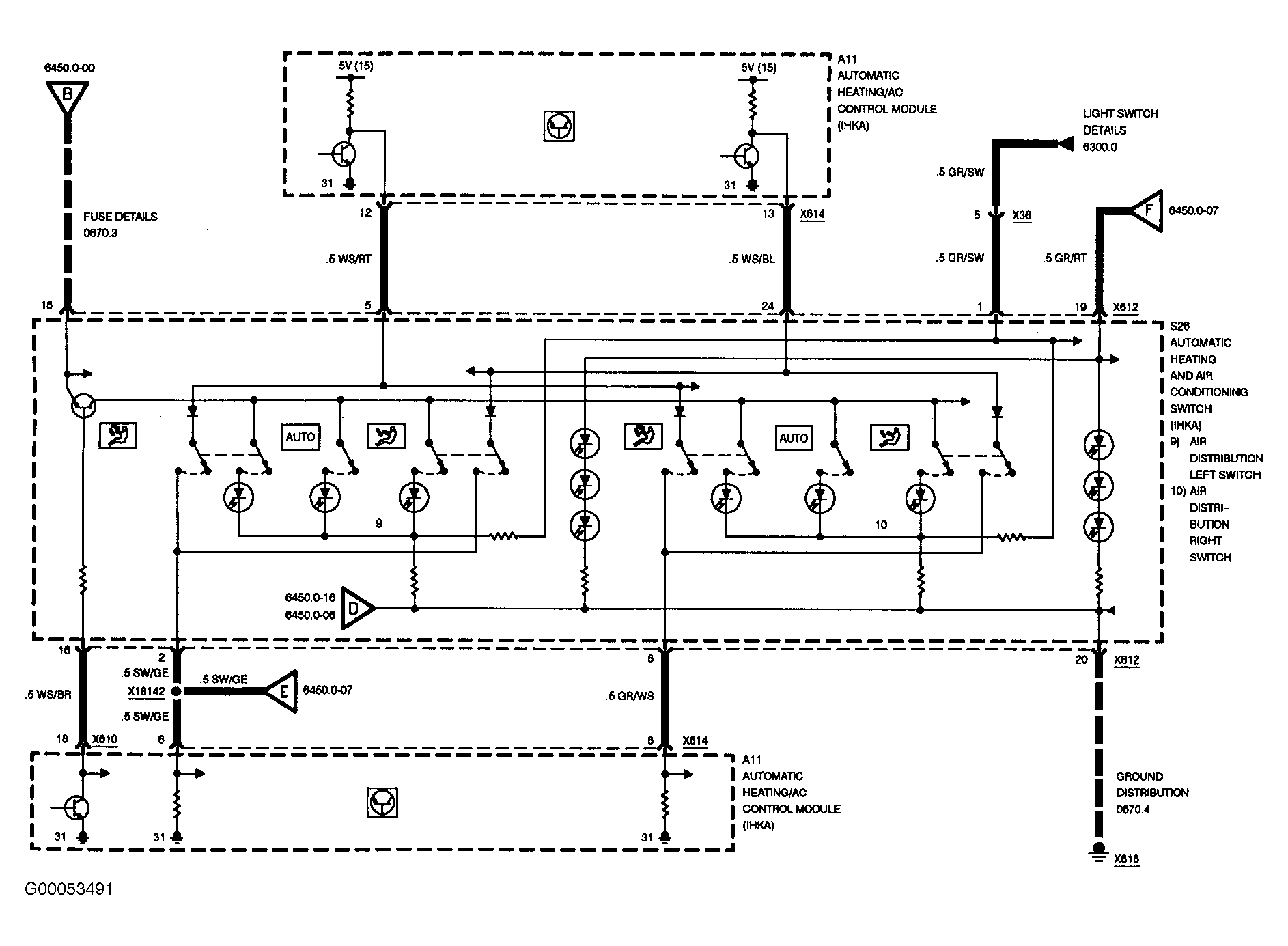

Fig 1: Air Delivery (1 Of 7)

G00053491

Courtesy of BMW OF NORTH AMERICA, INC.

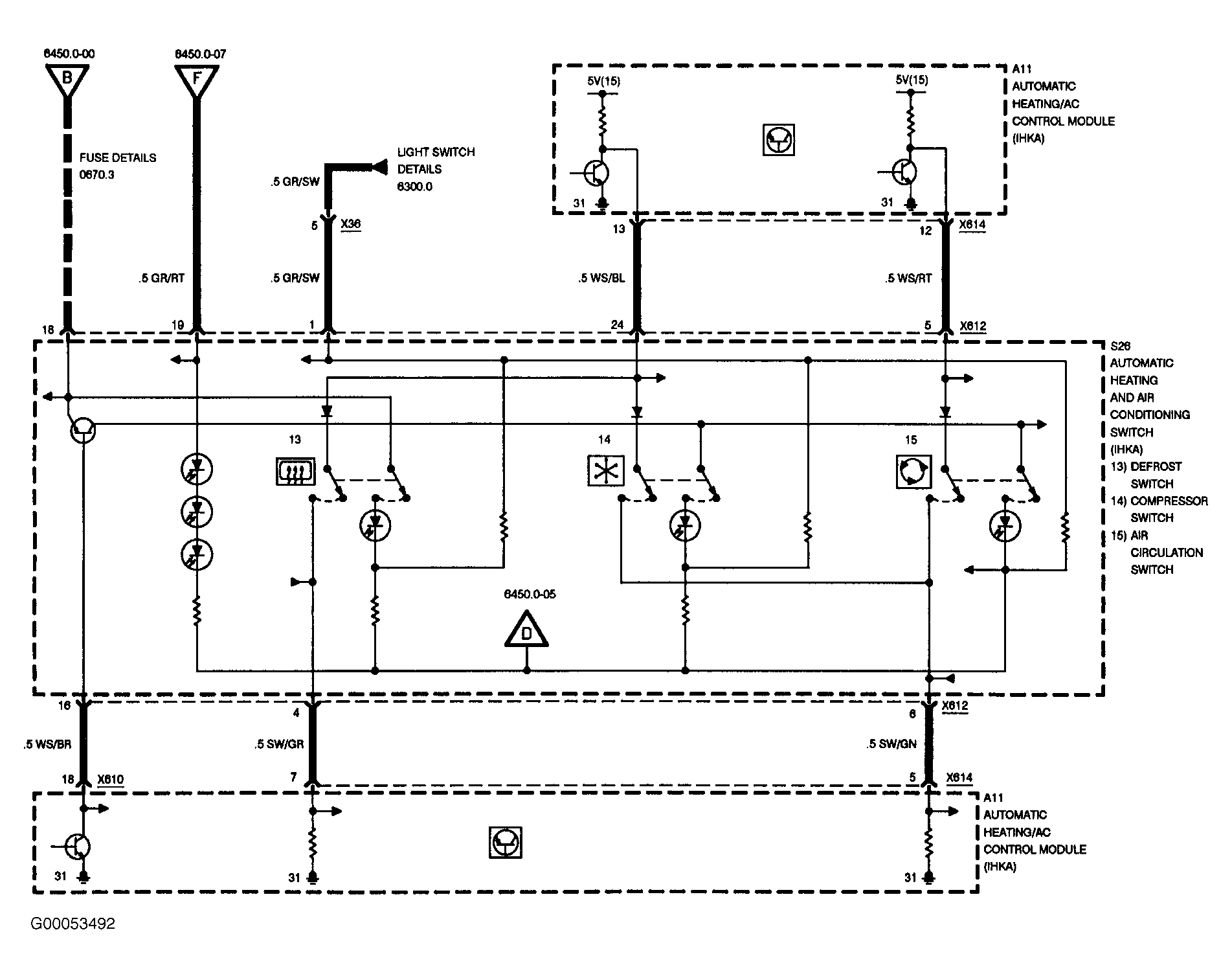

Fig 2: Air Delivery (2 Of 7)

G00053492

Courtesy of BMW OF NORTH AMERICA, INC.

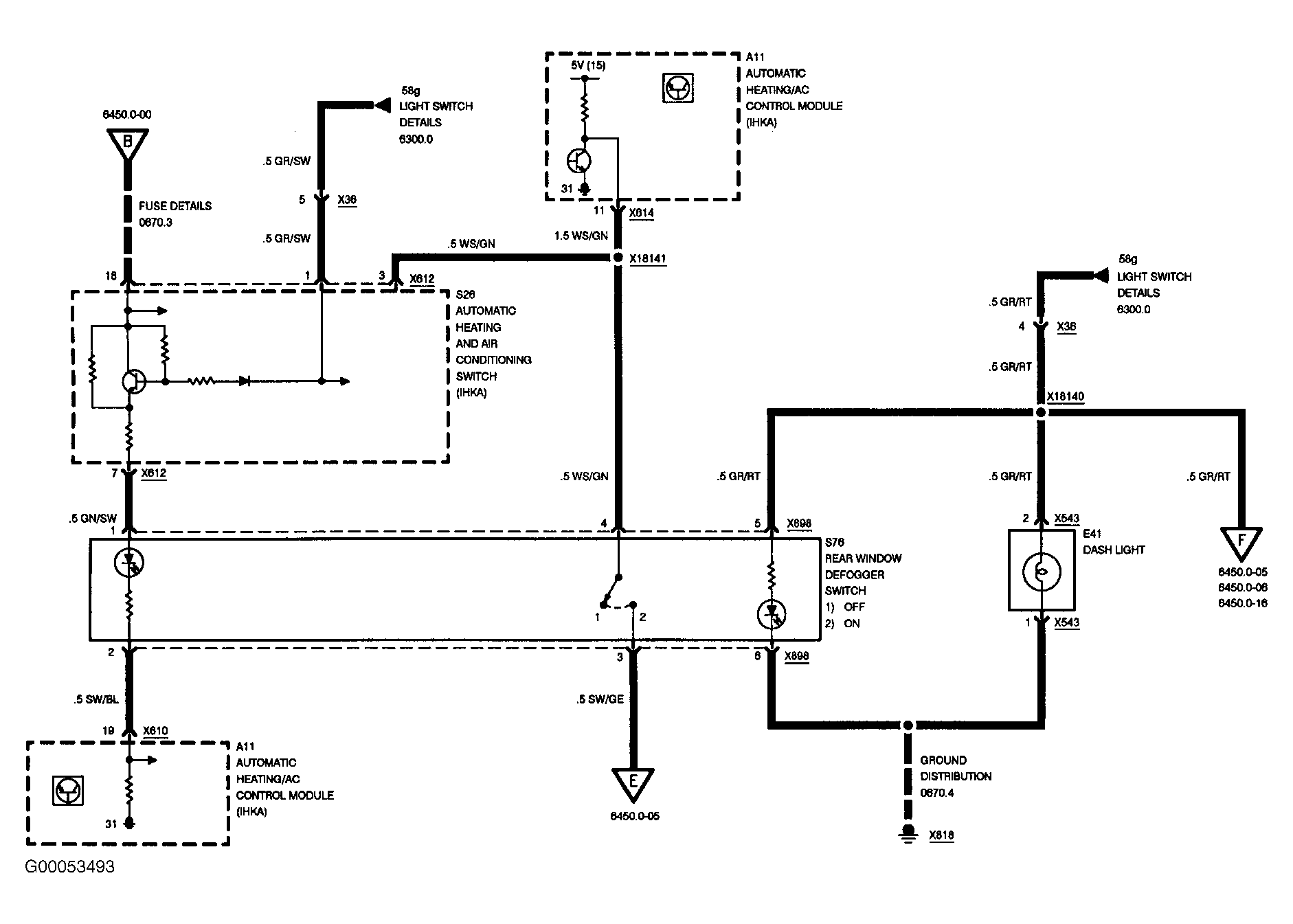

Fig 3: Air Delivery (3 Of 7)

G00053493

Courtesy of BMW OF NORTH AMERICA, INC.

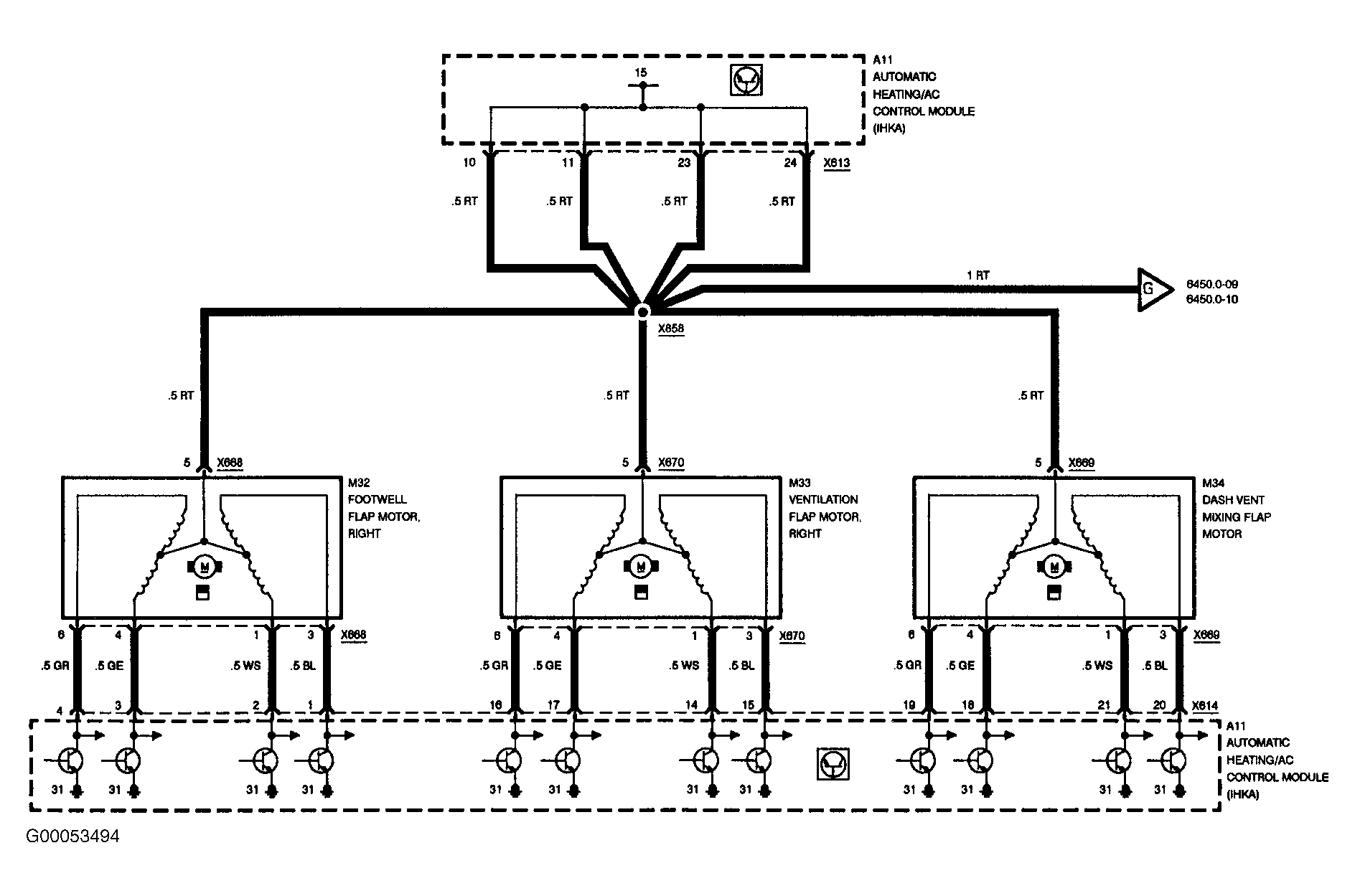

Fig 4: Air Delivery (4 Of 7)

G00053494

Courtesy of BMW OF NORTH AMERICA, INC.

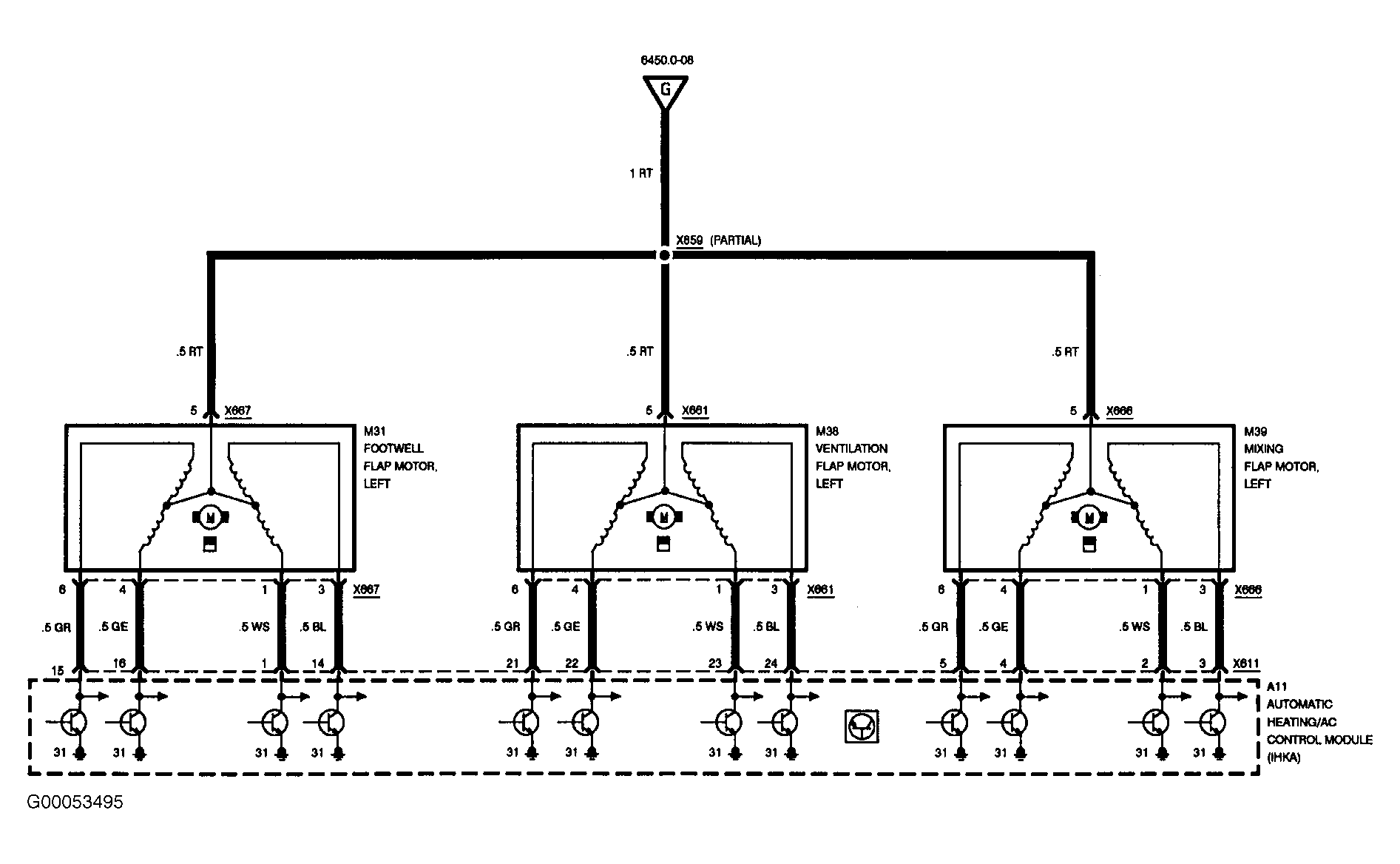

Fig 5: Air Delivery (5 Of 7)

G00053495

Courtesy of BMW OF NORTH AMERICA, INC.

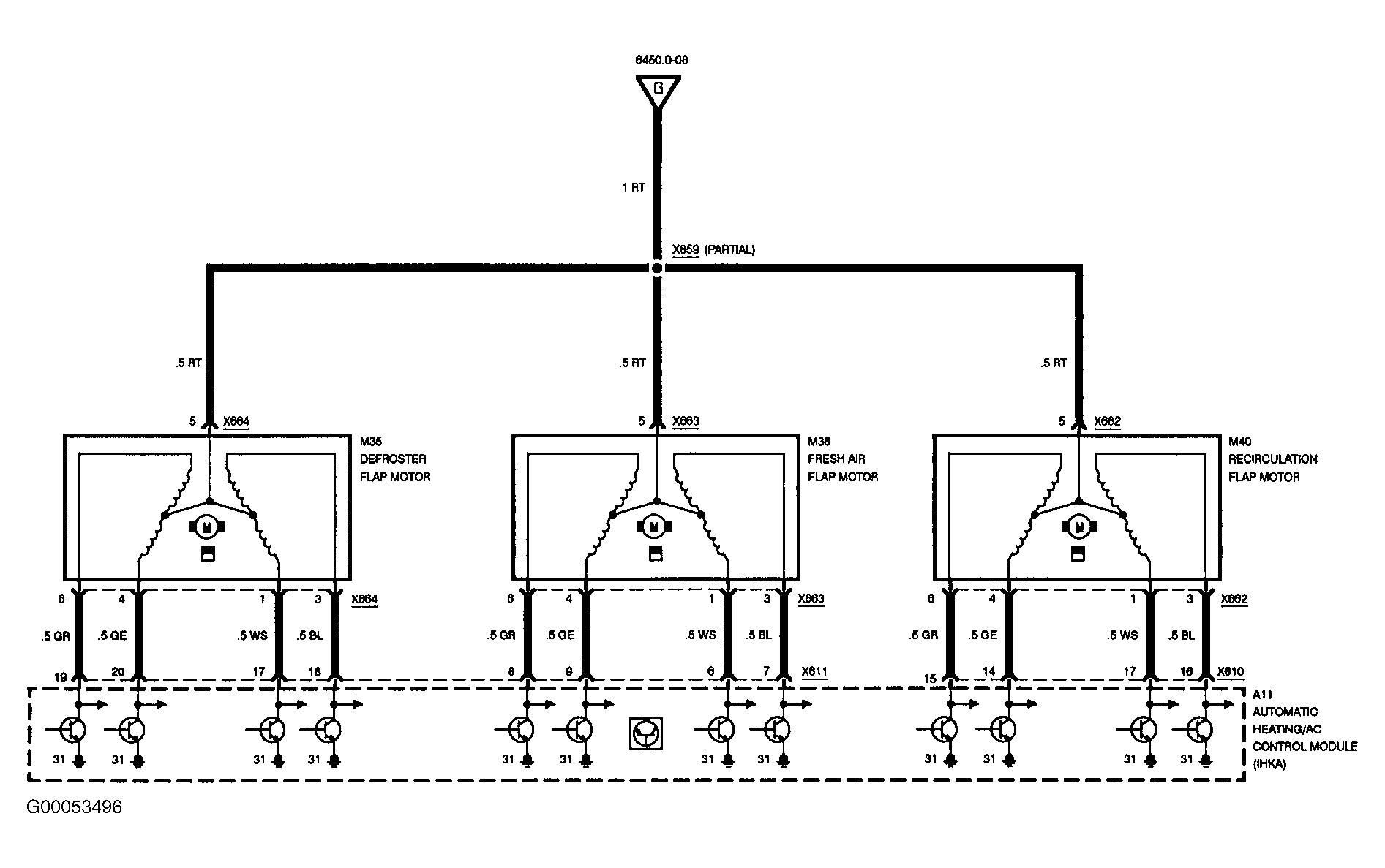

Fig 6: Air Delivery (6 Of 7)

G00053496

Courtesy of BMW OF NORTH AMERICA, INC.

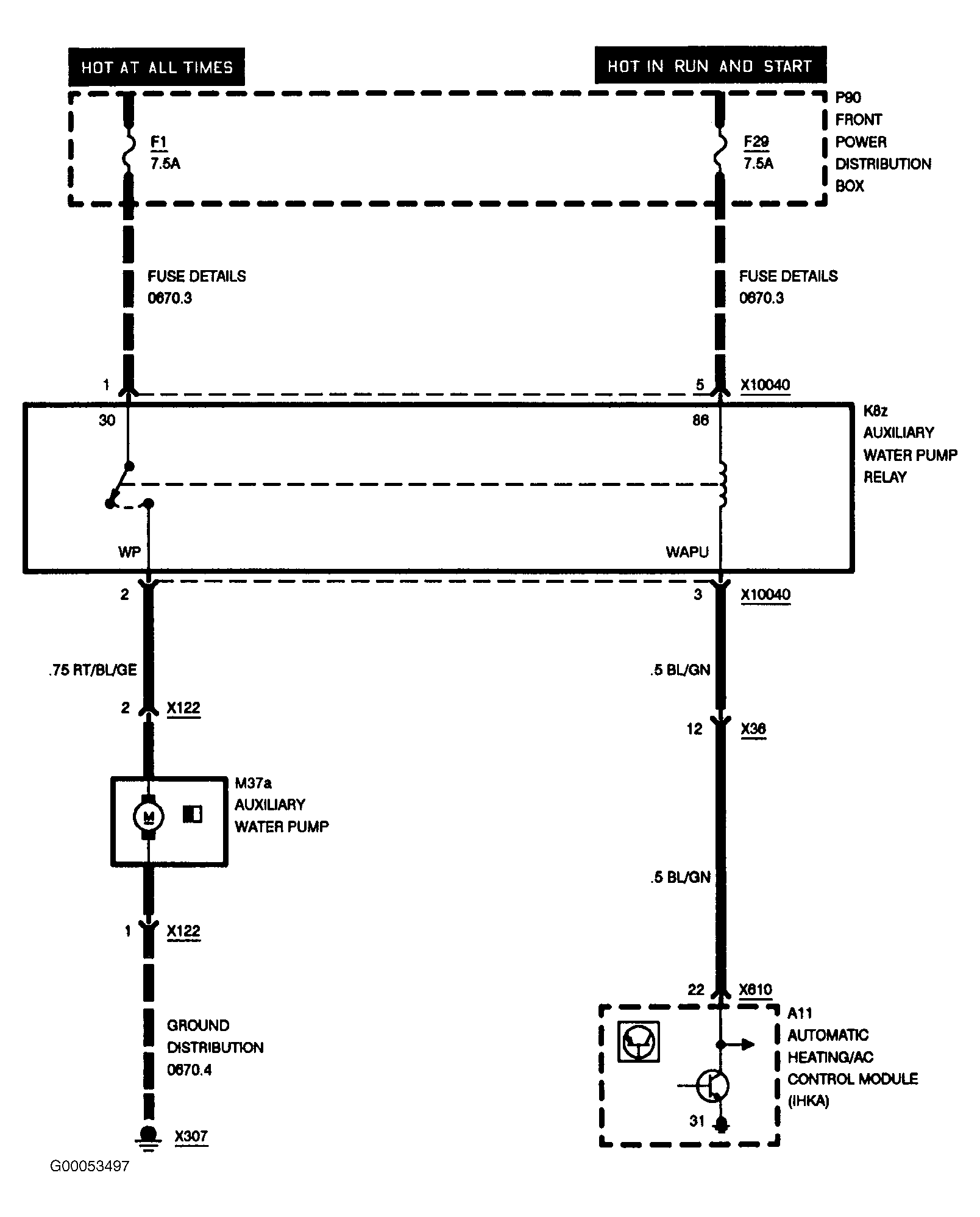

Fig 7: Air Delivery (7 Of 7)

G00053497

Courtesy of BMW OF NORTH AMERICA, INC.
